Put the Correct Friction Surface Back at the Axle

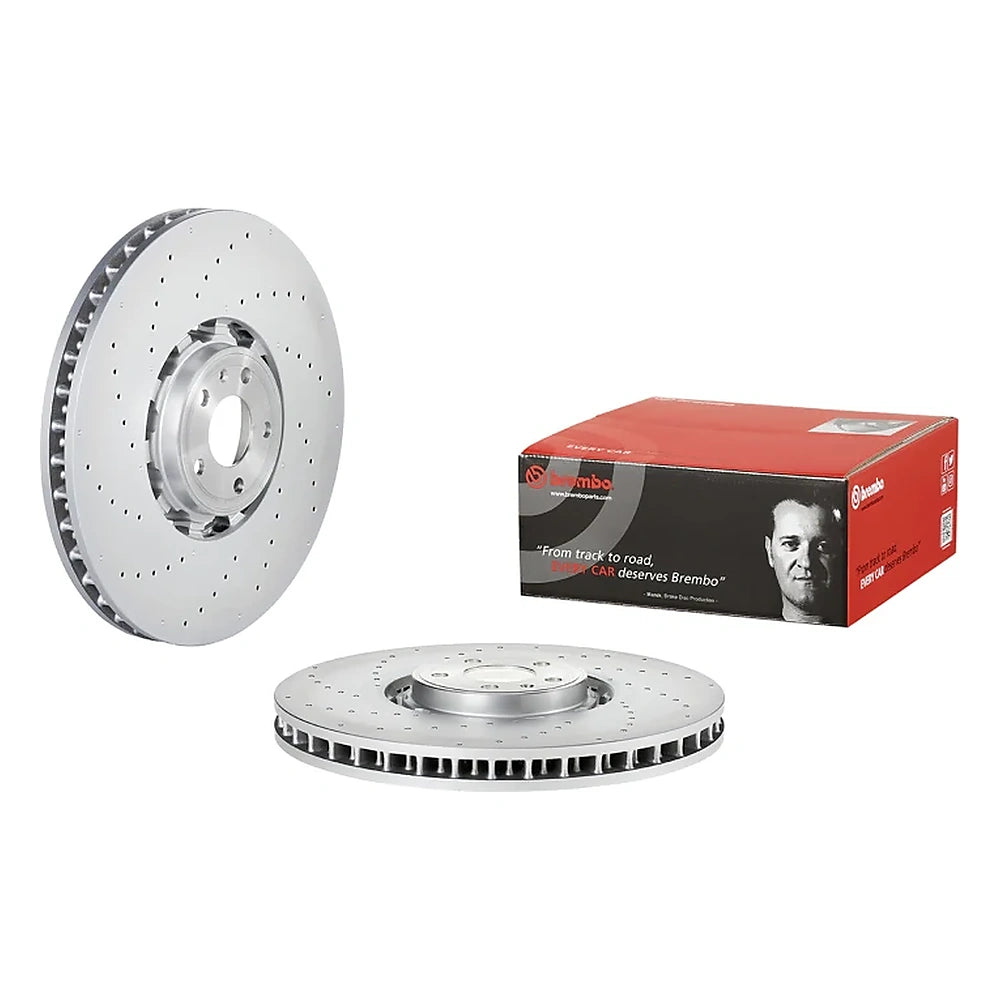

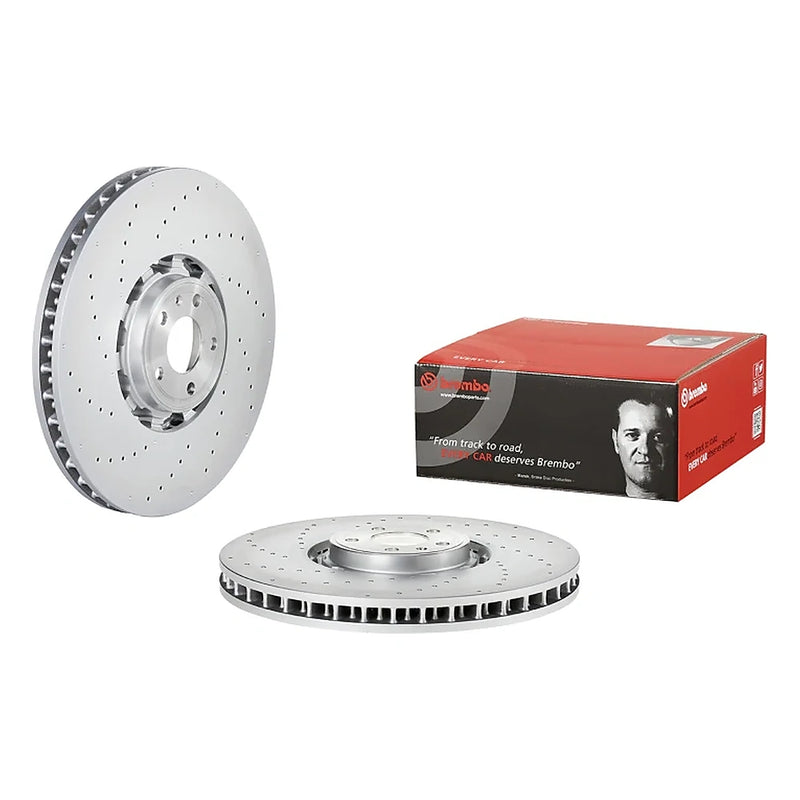

Rotor dimensions, venting, hat design, and axle position must all match for balanced braking. Brembo OE 09.D481.43 is built for 2021-2024 Audi RS6, 2021-2024 Audi RS7. Key details are Brembo Prime Dual Cast front brake disc with cast-iron friction ring and aluminum hat and front position.
Key Features
- Brembo OE 09.D481.43: Brembo Prime Dual Cast front brake disc with cast-iron friction ring and aluminum hat
- Front position
- One disc per box; two required per vehicle
- High-carbon cast-iron ring with aluminum hat
- UV and zinc protective coating
- ECE R90 approved
- 420 mm outside diameter
- 40 mm nominal thickness with 38 mm minimum thickness
- 57 mm overall height
- Five mounting holes and 68 mm center bore
Fitment
Use Brembo OE 09.D481.43 only for the applications below. Confirm every listed qualifier and exclusion.
| Years | Make | Model | Details |
|---|---|---|---|
| 2021-2024 | Audi | RS6 | Front position; PR code 1LA or 1LH; Match OE 4K0615301Q, 4K0615301R, or 4K0615301S; Two required per vehicle; Excludes: Do not substitute another 420 mm rotor configuration |
| 2021-2024 | Audi | RS7 | Front position; PR code 1LA or 1LH; Match OE 4K0615301Q, 4K0615301R, or 4K0615301S; Two required per vehicle; Excludes: Do not substitute another 420 mm rotor configuration |
Specifications
| Detail | Value |
|---|---|
| Brand | Brembo OE |
| Manufacturer Part Number | 09.D481.43 |
| Product Type | Brake Rotors |
| Manufacturer | Brembo |
| Line | Brembo Prime Dual Cast |
| Material | High-carbon cast-iron friction ring with aluminum hat |
| Finish | UV and zinc coating |
| Approval | ECE R90 |
| Outside Diameter | 420 mm |
| Nominal Thickness | 40 mm |
| Minimum Thickness | 38 mm |
| Overall Height | 57 mm |
| Mounting Holes | 5 |
| Center Bore | 68 mm |
| EAN | 8020584316955 |
| Quantity | 1 |
What's Included
- One front brake disc for Brembo OE 09.D481.43
- Not included: Second front brake disc
- Not included: Brake pads
- Not included: Installation hardware unless supplied by the vehicle manufacturer
About Brembo OE
Brembo supplies braking systems and replacement components worldwide, applying OE-level engineering to rotor design, materials, and application fitment.
Related Parts
- Check application-matched pads, rotors, hardware, hoses, fluid, and opposite-side service parts separately before beginning the brake job.
FAQ
What is the 09.D481.43?It is a Brembo OE brake rotors for 2021-2024 Audi RS6, 2021-2024 Audi RS7, built around Brembo Prime Dual Cast front brake disc with cast-iron friction ring and aluminum hat.
What is the main benefit of this part?Brembo Prime Dual Cast front brake disc with cast-iron friction ring and aluminum hat; Front position.
Which applications does it fit?It is intended for 2021-2024 Audi RS6, 2021-2024 Audi RS7. Use the Fitment table and every listed qualifier before ordering.
What comes with this product?One front brake disc.
What construction details should I know?High-carbon cast-iron friction ring with aluminum hat; UV and zinc coating.
What should be checked before installation?Compare the old and new parts, confirm position and orientation, and verify all application notes, clearances, fasteners, and required companion parts.
How should this part be installed?Confirm the vehicle, front position, PR code 1LA or 1LH, and matching OE reference before disassembly. Follow all torque, alignment, bleeding, calibration, or break-in procedures that apply.
What warranty applies?German Auto Supply lists a 24-month or 24,000-mile warranty for the exact part.
Installation Instructions
- Confirm the vehicle, front position, PR code 1LA or 1LH, and matching OE reference before disassembly.
- Inspect the hub and mating components, then clean the hub face before mounting the disc.
- Install front discs as a pair and follow the current Brembo instructions and vehicle torque specifications.
- Measure lateral runout and complete the recommended bedding procedure before normal use.
