SKU: CAM-310196

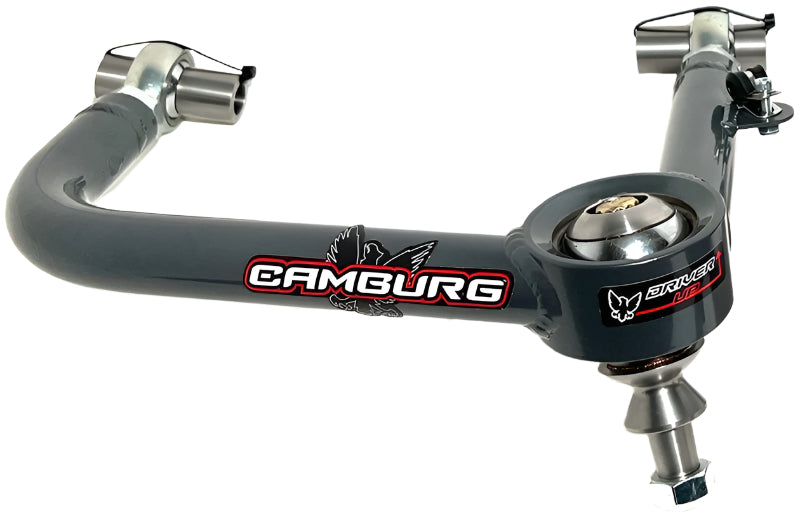

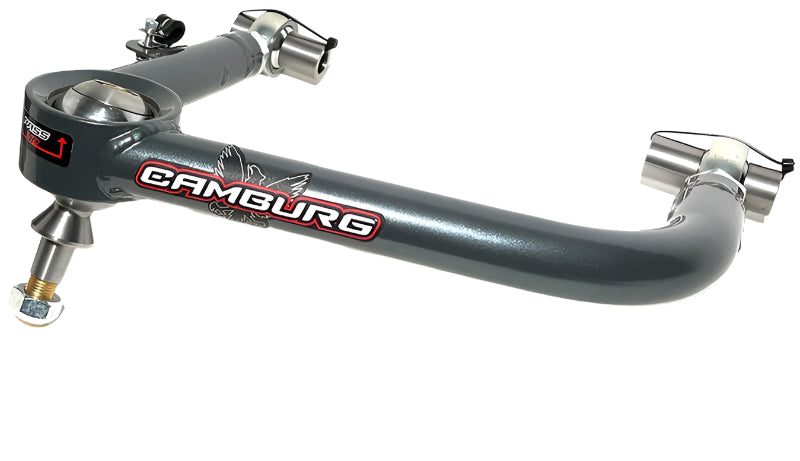

CAMBURG ENGINEERING 2024-2025 TACOMA | 2024-2025 LAND CRUISER 300 | 2024-2025 GX550 CAMBURG SERIES CONTROL ARM KIT
Fitment:
Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

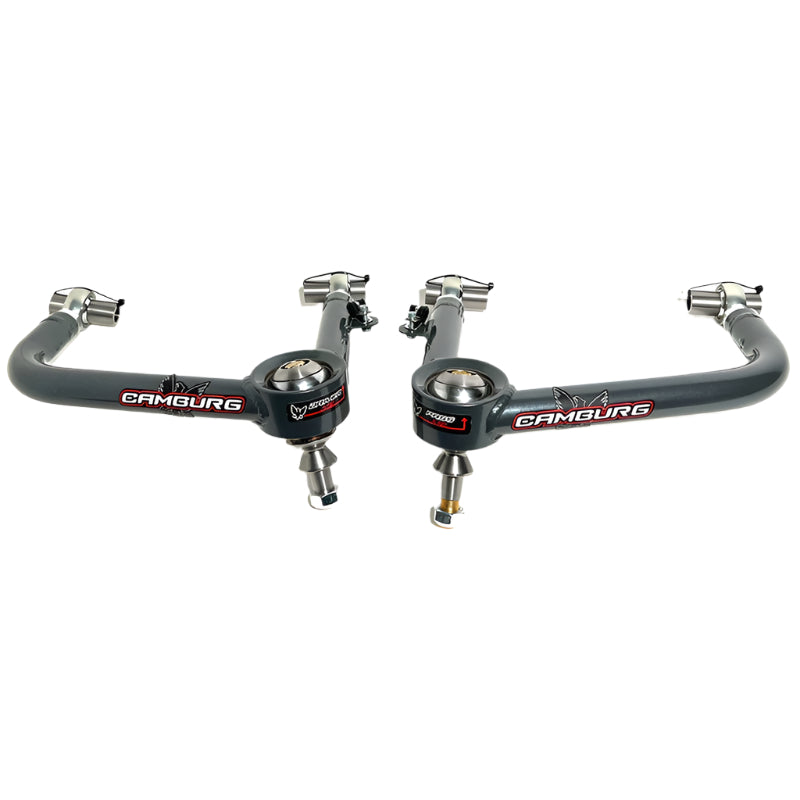

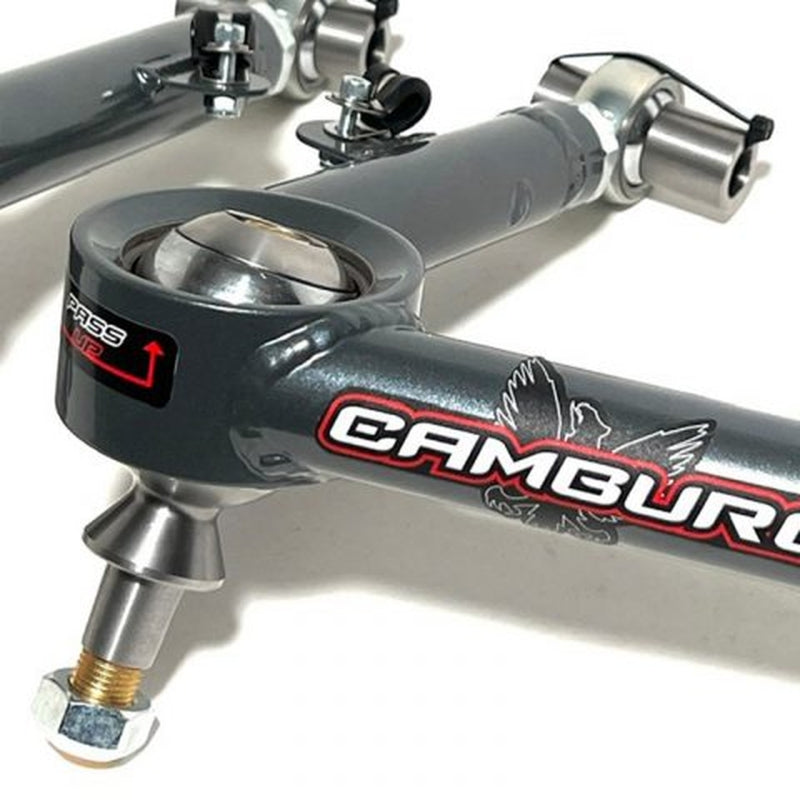

Our Camburg upper arms are designed to address the limitations of stock upper arms when lifting your truck. By replacing the stock ball-joint with a uniball bearing, we improve wheel travel and durability under extreme conditions. We also enhance the vehicle's alignment and driving characteristics by adjusting the camber curve and adding more caster. Our arms feature stronger FK 3/4" chromoly heim joints for additional camber and caster adjustment, eliminating flexing and binding. Using advanced CAD/CAM engineering software and our FARO laser scan arm, we ensure precise design and fit. Manufactured in-house, our arms undergo CNC laser cutting, bending, MIG welding, sandblasting, and powder-coating. Machined parts, including uniball mis-alignment spacers, are made in our CNC machine shop using heat-treated stainless steel. Our arms increase usable wheel travel, correct camber and caster, and eliminate weak factory ball-joints. They are made in the USA and come with all necessary hardware for installation.
SPECIFICATIONS
-
Ball Joint Cover Included- No
-
Ball Joint Included- Yes
-
Ball Joint Type- Uniball
-
Control Arm Color- Gray
-
Control Arm Construction- Tubular
-
Control Arm Material- 4130 Chromoly
-
Grade Type- Performance
-
Grease Fitting Included- No
-
Hardware Included- Yes
-
Pre-Assembled- Yes
- Pre-Greased- N
-
Prop 65 Y/N- No
-
Suspension Grade Type- Performance
-
Position- Upper
HARDWARE
-
Jam Nut- 4
-
Heim Spacer - Short- 4
-
Stainless Rubber Clamp- 2
-
Washer- 2
-
Lock Nut- 2
-
Allen Screw- 2
-
12pt Bolt- 2
-
Tapered Uniball Spindle Adaptor- 2
-
Stainless Washer- 4
-
Heim Joint- 4
-
Nyloc Nut- 2
- Heim Spacer - Long- 2
