SKU: CB-E36-LSCLUTCHT56-TFCV | UPC: 810156698521

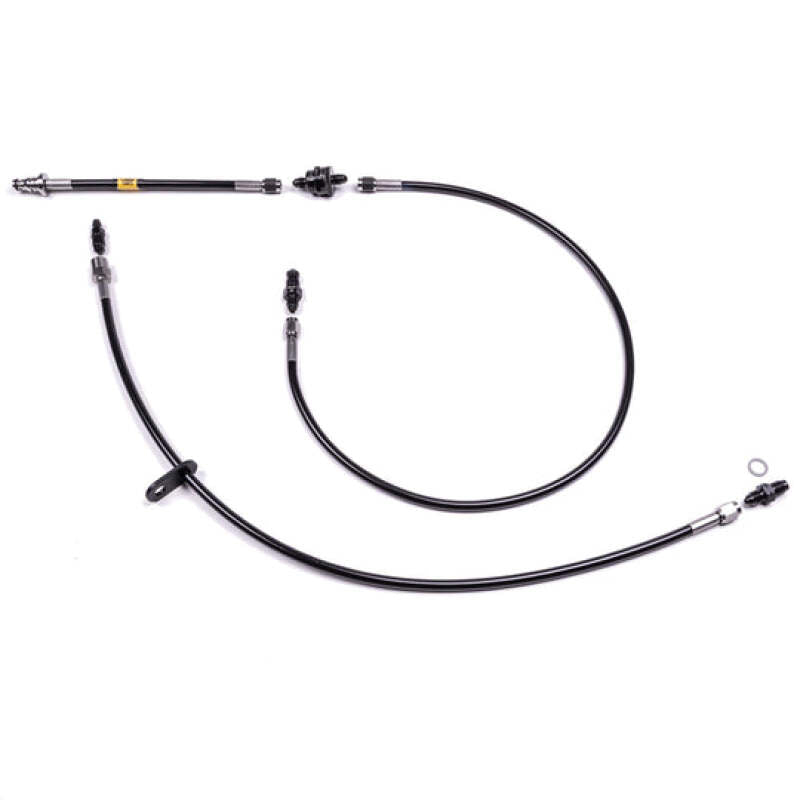

Chase Bays 92-99 BMW 3-Series E36 (w/GM LS Engine & T56) Clutch Line w/Tilton Control Valve
This Chase Bays clutch line kit replaces the factory hydraulic line on 92-99 BMW 3-Series E36 chassis with GM LS engine and T56 transmission. It delivers 28 inches of -3AN stainless braided PTFE hose for zero expansion and consistent pressure to ensure direct clutch response. The included Tilton proportioning valve allows precise adjustment of clutch engagement and pedal feel for street or track use.
Key Features
- Stainless Braided PTFE Hose: 28-inch -3AN line eliminates flex and swelling under pressure for direct consistent clutch response
- Tilton 72-505 Control Valve: Firewall-mounted adjustable proportioning valve tunes hydraulic ratio with simple knob turn for custom pedal effort
- Full Hardware Included: Firewall bulkhead fitting clutch slave banjo bolt hardline fittings and 6061 aluminum valve bracket for complete installation
- LS T56 Specific Design: Precision engineered to match E36 firewall slave location and T56 input shaft throwout setup
- USA Hand Assembled: Durable construction with aerospace grade fittings ensures long-term reliability in high heat high stress conditions
Product Notes
- Exclusively for E36 chassis with GM LS engine and T56 transmission using external slave cylinder
- Inspect hydraulic fittings for compatibility before install to avoid leaks
- Special order processing typically 3-5 business days before shipping
Installation Notes
- Professional installation recommended.
- Bleed entire clutch system multiple times post-install to remove all air bubbles
- Secure Tilton valve bracket to firewall using provided hardware for vibration resistance
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992-1999 | BMW | 3-Series | E36 Chassis w/GM LS Engine & T56 Transmission |
Why Choose Chase Bays?
- Proven track record in motorsport hydraulic systems for BMW enthusiasts
- Aircraft quality stainless braid and CNC fittings built to last
- Expert engineering tailored to popular LS swap configurations
Frequently Asked Questions
-
Q: Does this fit standard E36 without LS swap?
A: No this kit bolts to LS bellhousing slave location and T56 setup only not stock BMW transmission -
Q: What hose material and size?
A: -3AN stainless steel outer braid over smooth PTFE inner liner 28 inches long resists heat abrasion and pressure spikes -
Q: How to adjust clutch feel?
A: Turn Tilton valve knob clockwise to increase line pressure for firmer pedal counterclockwise to soften works while vehicle is parked
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard box 12 x 8 x 4 inches
- Weight: 1.8 lbs
