SKU: CB-E36-LSCLUTCH6060-TFCV | UPC: 810156698507

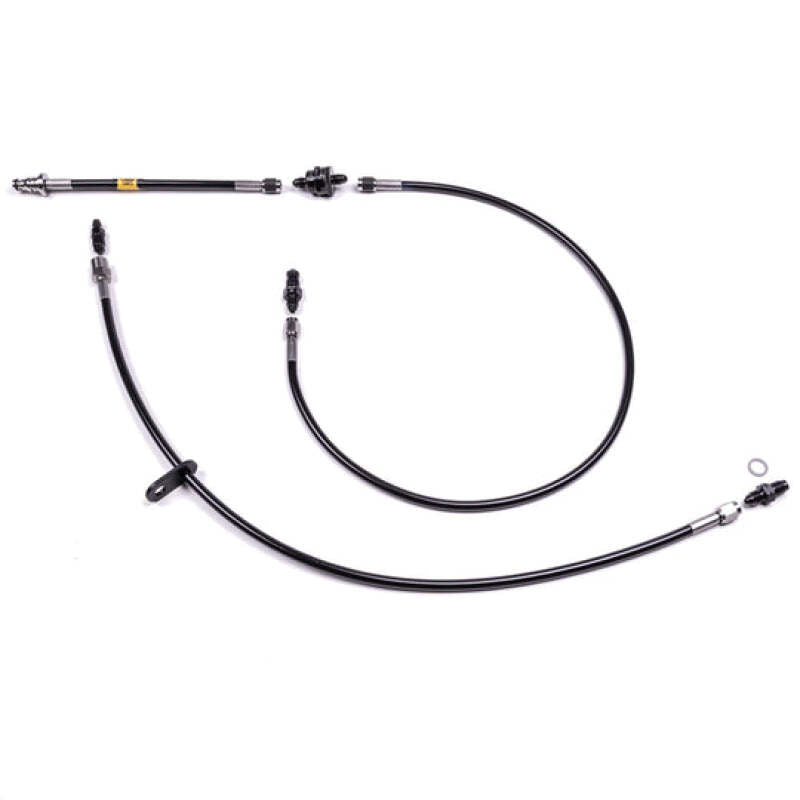

Chase Bays 92-99 BMW 3-Series E36 (w/GM LS Engine & TR6060) Clutch Line w/Tilton Control Valve
Chase Bays clutch line kit provides direct hydraulic connection from master cylinder to slave cylinder on 1992-1999 BMW 3-Series E36 chassis with GM LS engine swaps and TR6060 transmissions. This setup replaces factory hard lines with braided PTFE hose and adds a Tilton adjustable control valve for precise clutch bypass tuning. Drivers experience firm pedal pressure consistent engagement and smooth modulation for drag racing drifting or track driving.
Key Features
- Stainless Steel Braided PTFE Hose: 12-inch -3AN line resists expansion delivers immediate response and prevents air intrusion under high heat or pressure.
- Tilton 92-505 Control Valve: Adjustable bypass knob allows tuning clutch engagement from quick snap-off for drag racing to gradual slip for drifting.
- Firewall Pass-Through Fitting: -12AN to -3AN 90-degree swivel seal installs without drilling to maintain chassis integrity.
- Complete Kit Contents: Includes all fittings hardware and lines for plug-and-play installation on LS-swapped E36 chassis.
- Lightweight Construction: Total assembled weight of 1.2 lbs cuts unsprung mass for improved handling response.
Product Notes
- Requires clutch master cylinder with -3AN outlet port such as Tilton 74-series or Wilwood compact.
- Flush system thoroughly before install to remove contaminants from prior hydraulic fluid.
- Ships as special order confirm lead time at checkout typically 3-5 business days.
Installation Notes
- Professional installation recommended.
- Mount Tilton valve to firewall or inner fender using provided bracket and hardware.
- Compatible with OEM slave cylinder location on TR6060 bellhousing ensure proper hose routing.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992-1999 | BMW | 3-Series | E36 w/ GM LS Engine & TR6060 |
Why Choose Chase Bays?
- Leaders in aftermarket hydraulic systems for BMW swaps with proven race-winning designs.
- Every component CNC-machined and pressure-tested for leak-free durability.
- Engineered in USA for exact fitment on modified chassis like E36 LS builds.
Frequently Asked Questions
-
Q: Will this work on my stock E36 without LS swap?
A: No this kit fits only E36 chassis with GM LS-series engine and TR6060 transmission due to specific hydraulic routing and slave location. -
Q: What material is the hose and does it handle high temps?
A: Braided stainless over PTFE inner core rated to 3000 PSI and 400F continuous for track abuse without fading. -
Q: What warranty covers this part?
A: Lifetime warranty against defects in materials or workmanship when installed per instructions.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: Special order ships within 3-5 business days
- Packaging: Compact box 12 x 8 x 3 inches
- Weight: 1.2 lbs
