SKU: 06178-HDFF-XH

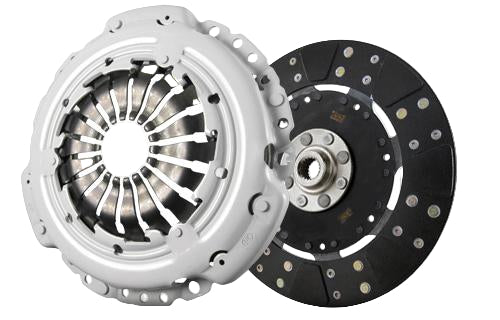

Clutch Masters FX350 Sprung Hub Clutch Kit (Heavy Duty Pressure Plate) - 2011-2017 Nissan Juke 1.6L Turbo MR16DDT (Flywheel Not Included)
This Clutch Masters FX350 clutch kit upgrades 2011-2017 Nissan Juke 1.6L Turbo models with 110% more clamp load for 450+ ft-lbs torque capacity at the wheels. The sprung hub fiber friction disc ensures smooth street drivability even with larger turbos E85 or aggressive tunes. Ideal direct bolt-on for 6-speed manual Juke NISMO and standard turbo variants using factory flywheel.
Key Features
- Heavy Duty Pressure Plate: 110% increased holding power over stock with marcel spring design for reliable grip under high torque.
- Fiber Friction Disc: High-torque material lined on both sides delivers smooth engagement and extended durability.
- Sprung Hub: Dampened design with marcel springs minimizes shock loads and eliminates gear rattle on the street.
- Torque Capacity: Rated for 450+ ft-lbs at the wheels based on tune and traction for modified turbo setups.
- Release Bearing: Premium throw-out bearing included along with alignment tool and pilot bearing for complete kit.
Product Notes
- Part number 06178-HDFF-XH FX350 Heavy Duty Fiber Tough sprung disc flywheel not included requires stock or lightweight flywheel.
- Compatible with factory hydraulic release system kit weight 22-25 lbs limited 1-year 12000-mile warranty no racing coverage.
- Recommended for street/strip use with moderate pedal effort increase over stock.
Installation Notes
- Professional installation recommended.
- Direct bolt-on replacement requires transmission removal uses factory flywheel.
- Break-in 500 miles gentle driving before aggressive use typical install time 6-8 hours.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011-2017 | Nissan | Juke | 1.6L Turbo 6-Speed Manual |
| 2011-2017 | Nissan | Juke | NISMO 1.6L Turbo 6-Speed Manual |
| 2011-2017 | Nissan | Juke | NISMO RS 1.6L Turbo 6-Speed Manual |
| 2011-2014 | Nissan | Juke | S 1.6L Turbo 6-Speed Manual |
| 2011-2014 | Nissan | Juke | SL 1.6L Turbo 6-Speed Manual |
| 2011-2014 | Nissan | Juke | SV 1.6L Turbo 6-Speed Manual |
Why Choose Clutch Masters?
- 30+ years specializing in high-performance clutch systems for turbo cars.
- FX350 series track record on 400-600hp FWD turbo applications worldwide.
- Every kit hand-assembled balanced and dyno-tested in California USA.
Frequently Asked Questions
-
Q: Does this kit include a flywheel?
A: No flywheel not included compatible with stock flywheel or Clutch Masters lightweight steel flywheel sold separately. -
Q: What is the pedal effort compared to stock?
A: Approximately 25-35% stiffer than stock but remains street-friendly for daily driving. -
Q: Does it fit CVT models or only manuals?
A: Fits only 6-speed manual transmission 1.6L Turbo Juke models not compatible with CVT.
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Box dimensions 16" × 16" × 8" package weight 28-32 lbs
- Weight: Kit weight approximately 22-25 lbs
