Serious Holding Power for the Turbocharged Elantra GT

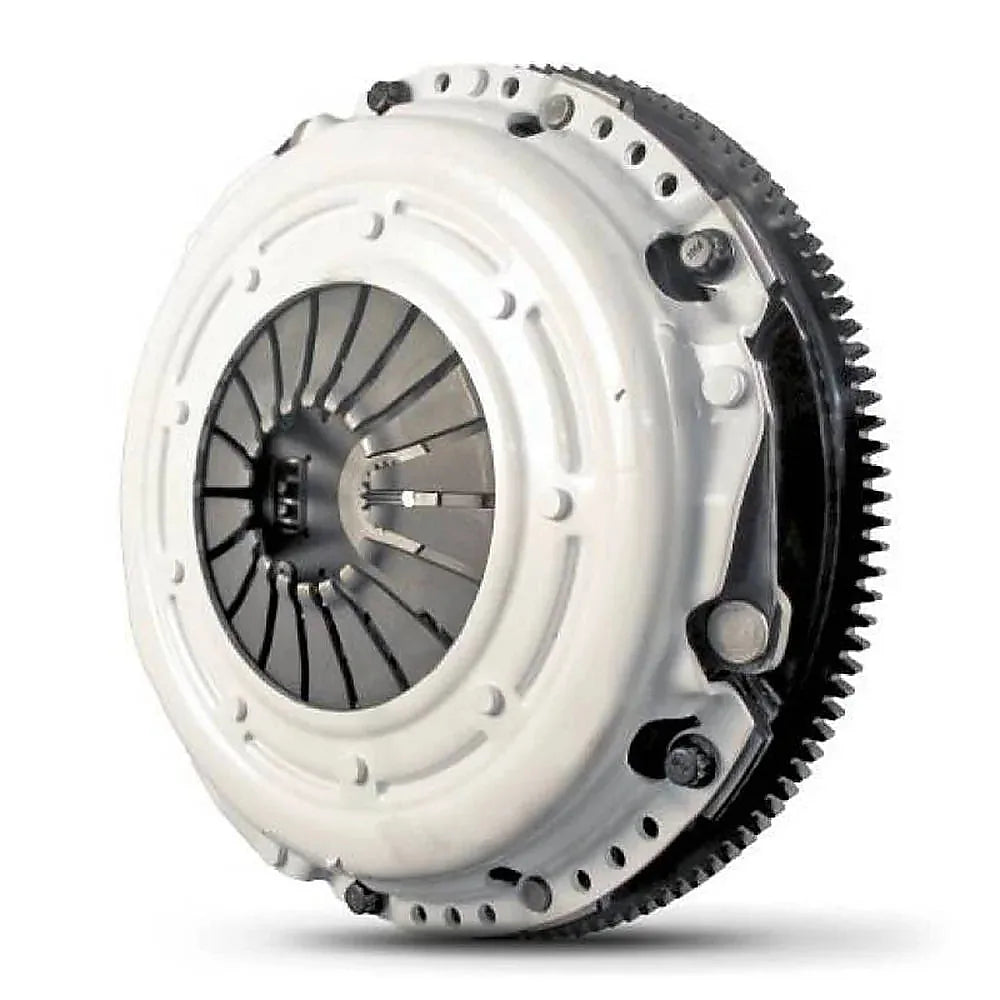

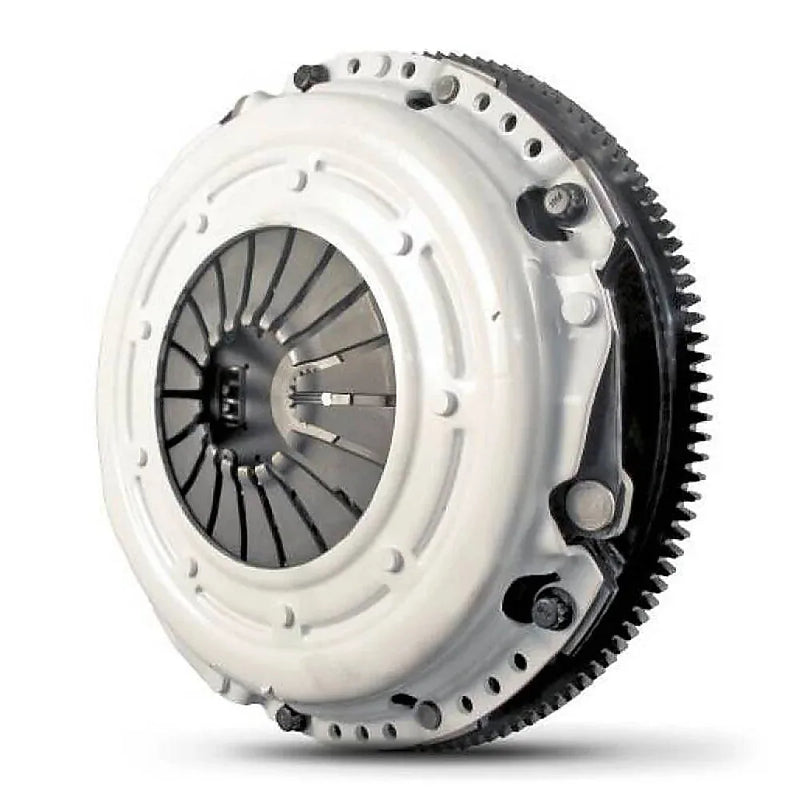

Boosted hatchbacks put a lot of stress through a stock clutch disc, and the factory unit becomes the weak link once power climbs. The 05410-HDCL-AK FX400 kit pairs a Hi Leverage heavy duty pressure plate with an 8 puck ceramic sprung disc and a lightweight aluminum flywheel, giving the 1.6L turbo drivetrain enough clamping force to hold up to 450 ft/lbs of torque. It is built as a direct changeover for the factory flywheel bolt pattern, so the aluminum flywheel included in the box is required for correct fitment.
Key Features
- 170 percent increase in holding capacity over a stock clutch
- 8 puck ceramic full face disc for quick, controlled engagement
- Sprung hub design dampens driveline shock for street use
- Hi Leverage heavy duty pressure plate maintains a normal pedal feel
- Lightweight aluminum flywheel included in the kit
- Rated to handle up to 450 ft/lbs of torque
Fitment Table
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2018-2020 | Hyundai | Elantra GT | 1.6L Turbo |
Specifications
| Detail | Value |
|---|---|
| Part Number | 05410-HDCL-AK |
| Disc Type | 8 puck ceramic sprung disc |
| Pressure Plate | Hi Leverage heavy duty |
| Flywheel | Aluminum, included |
| Torque Capacity | Up to 450 ft/lbs |
| UPC | N/A |
What's Included
- Heavy duty pressure plate
- 8 puck ceramic sprung clutch disc
- Aluminum flywheel
- Release bearing
- Pilot bearing where applicable
- Alignment tool
- Instruction card and decals
About Clutch Masters
Clutch Masters has engineered performance clutch and flywheel systems for street and race applications for decades, focusing on durable friction materials and pressure plate designs that hold up under repeated abuse without sacrificing everyday drivability.
FAQ
What is the 05410-HDCL-AK?It is the Clutch Masters FX400 8 puck clutch kit built for the 2018 to 2020 Hyundai Elantra GT 1.6L Turbo, including an aluminum flywheel.
Will this kit work with my factory flywheel?No. This changeover kit requires the included aluminum flywheel and will not work with the OEM or a different brand flywheel.
Is the 8 puck disc streetable?Yes. The 8 puck full face design engages smoothly with minimal chatter, making it more street friendly than the 6 puck version.
How much torque can this clutch handle?The FX400 system is rated to handle up to 450 ft/lbs of torque, well above what the stock clutch can hold.
Does installing this clutch void my factory warranty?Under the Magnuson Moss Warranty Act, installing an aftermarket clutch does not void your vehicle warranty for unrelated systems or components.
Does the kit include a pilot bearing?A pilot bearing is included when applicable to the vehicle application.
Can this clutch be used for drag racing?Yes. The FX400 system is designed for extreme duty street driving as well as road and drag racing use.
Will the ceramic disc wear faster than a stock clutch?Ceramic discs are built for holding capacity and durability under load rather than maximum lifespan, so they may wear differently than a stock organic disc depending on driving style.
Install Instructions
- Support the transmission and remove it from the vehicle following factory service procedures
- Remove the factory clutch, pressure plate, and flywheel as an assembly
- Install the included aluminum flywheel and torque to factory specification
- Mount the 8 puck disc and Hi Leverage pressure plate using the supplied alignment tool
- Install the release bearing and pilot bearing where applicable
- Reinstall the transmission and follow the included instruction card for proper break in
