Stainless Adjustment Tabs For All Angles Design Control Arms
These are the 304 stainless adjustment tabs used by All Angles Design control arms, sold individually by size in sets of eight or as a Tab Pak such as the TBA-1-9 positive pack. They fit every arm manufactured by All Angles Design and Bender Services since 2012, so a single arm can be moved through its full adjustment range without buying new arms.
Key Features
- 304 stainless steel construction

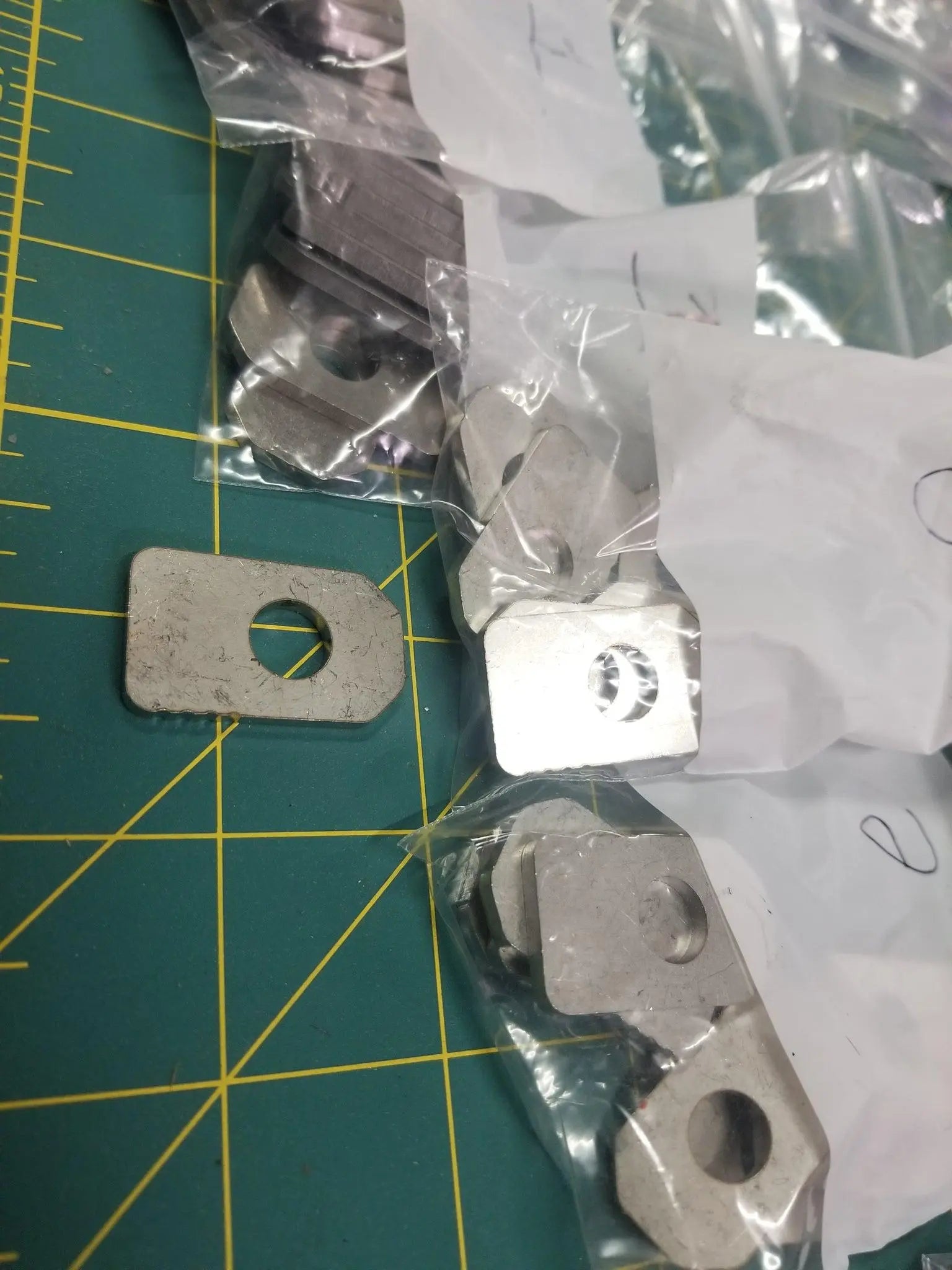

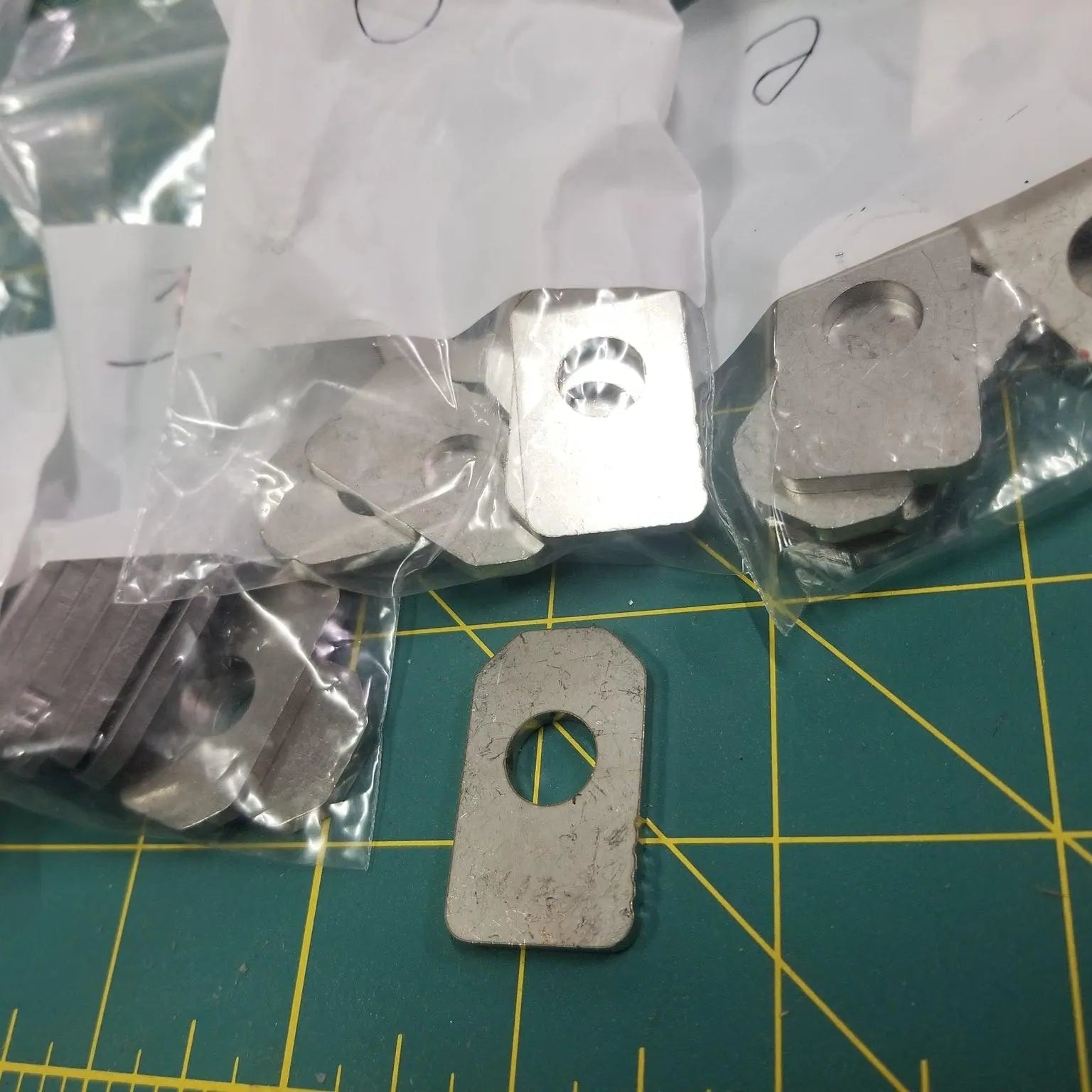

- Individual sizes are supplied in sets of eight
- Fits all arms manufactured by All Angles Design and Bender Services since 2012
- Two Tab Pak options: a positive pack from plus one to plus nine and a negative pack from minus eight to zero

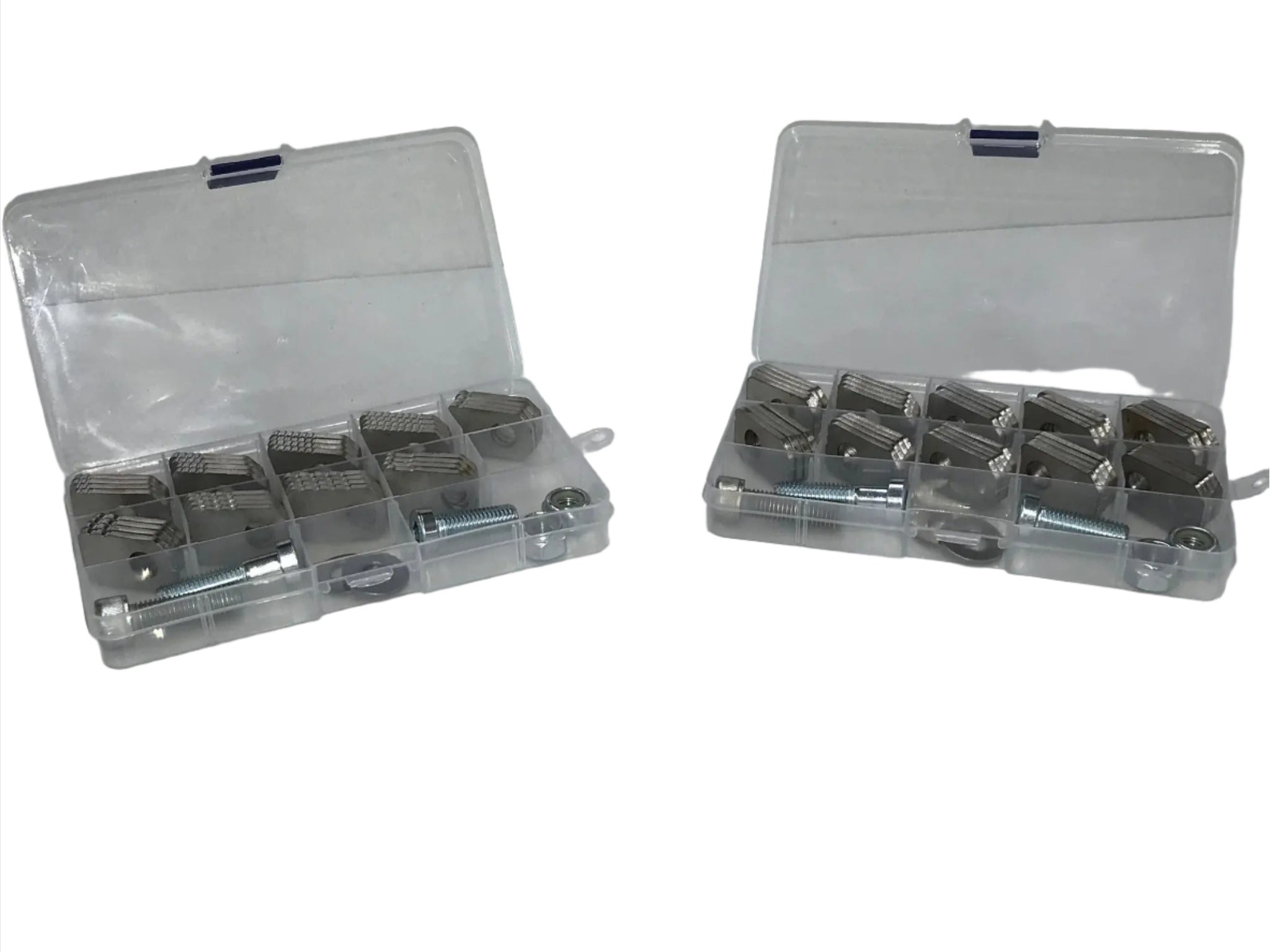

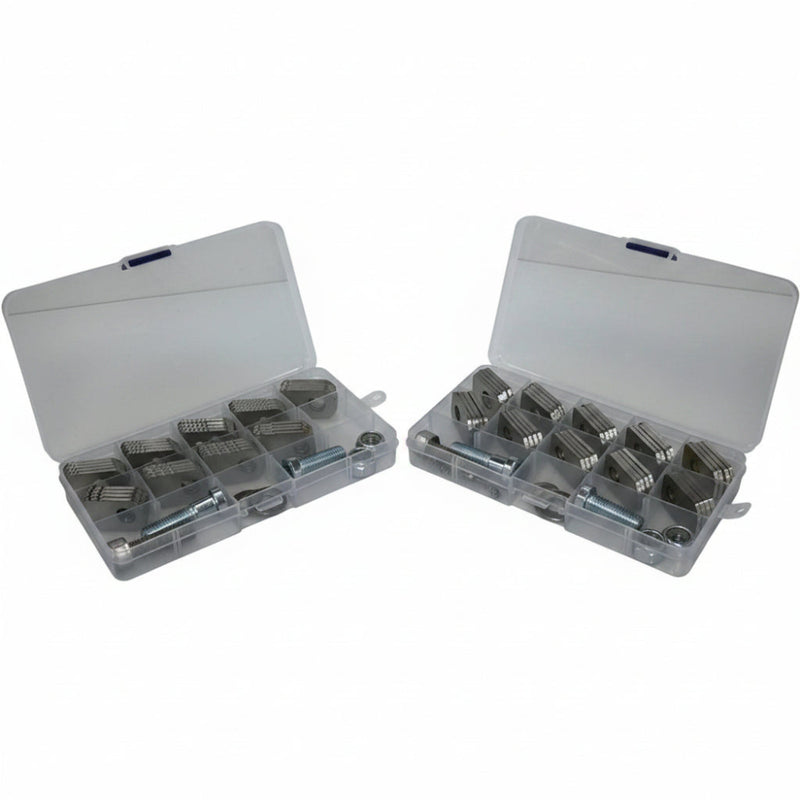

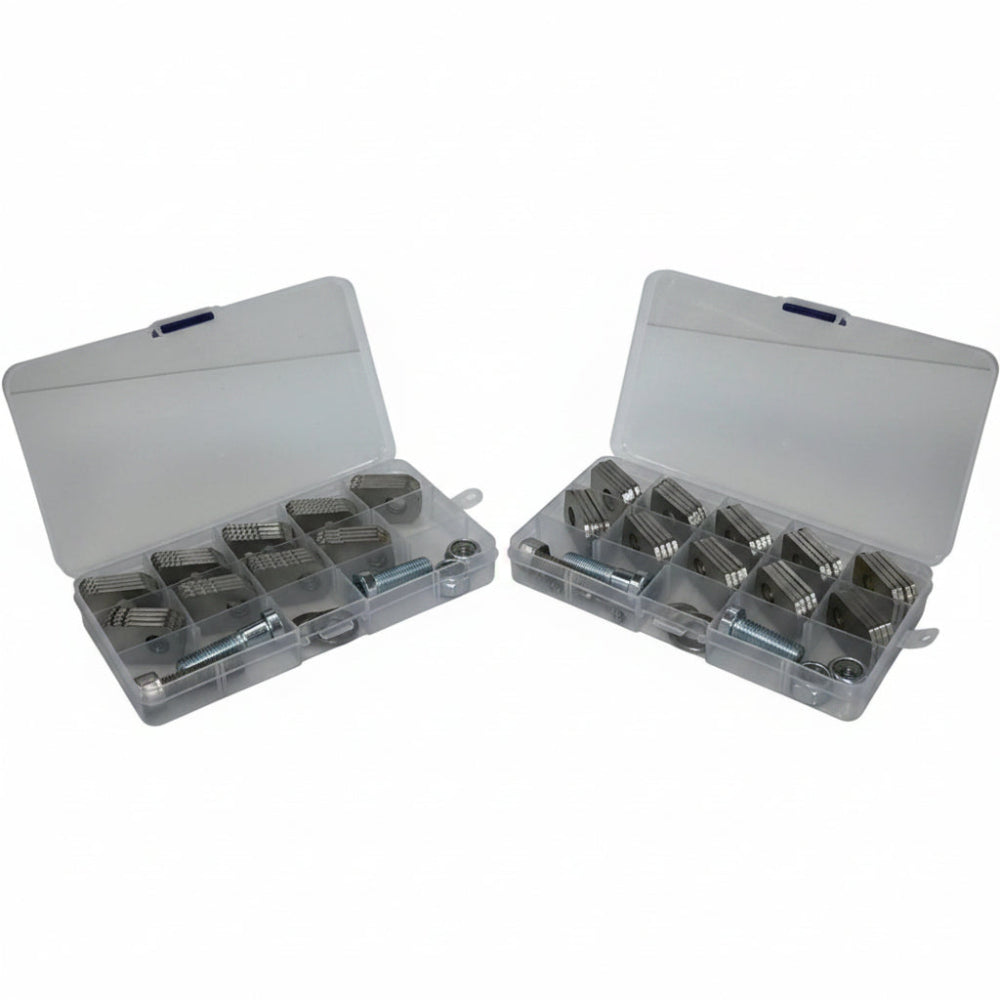

- Each Tab Pak includes four tabs of each size in a plastic case with spare nuts and bolts

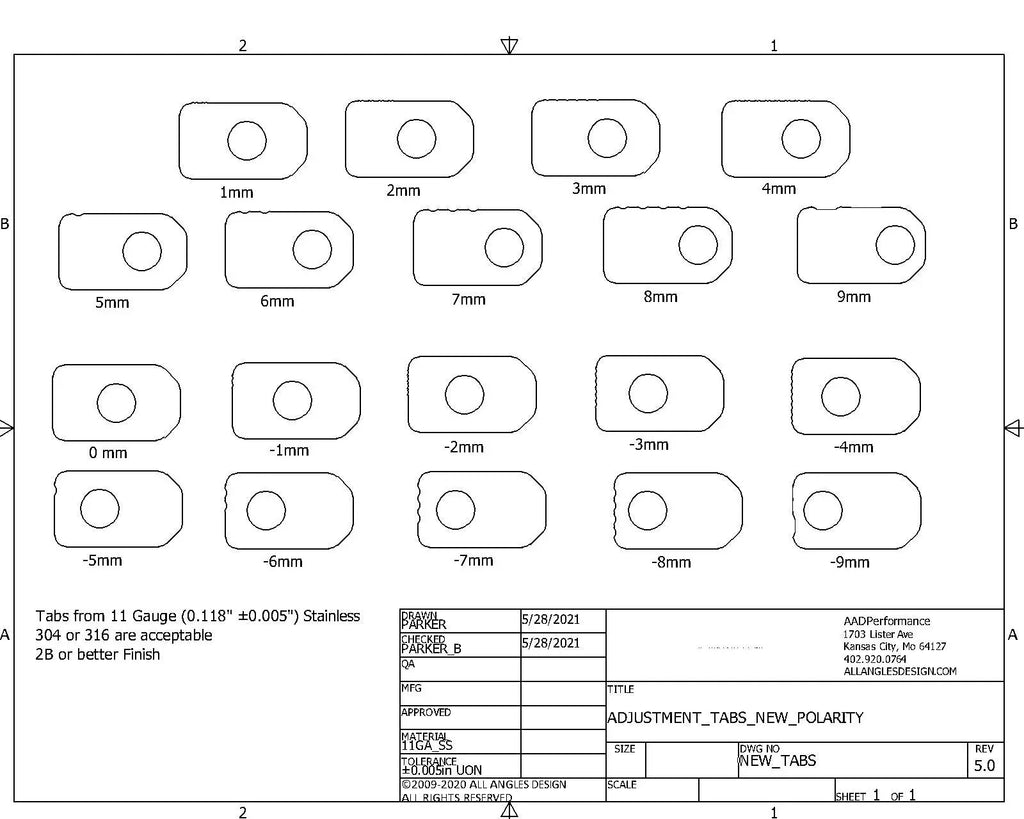

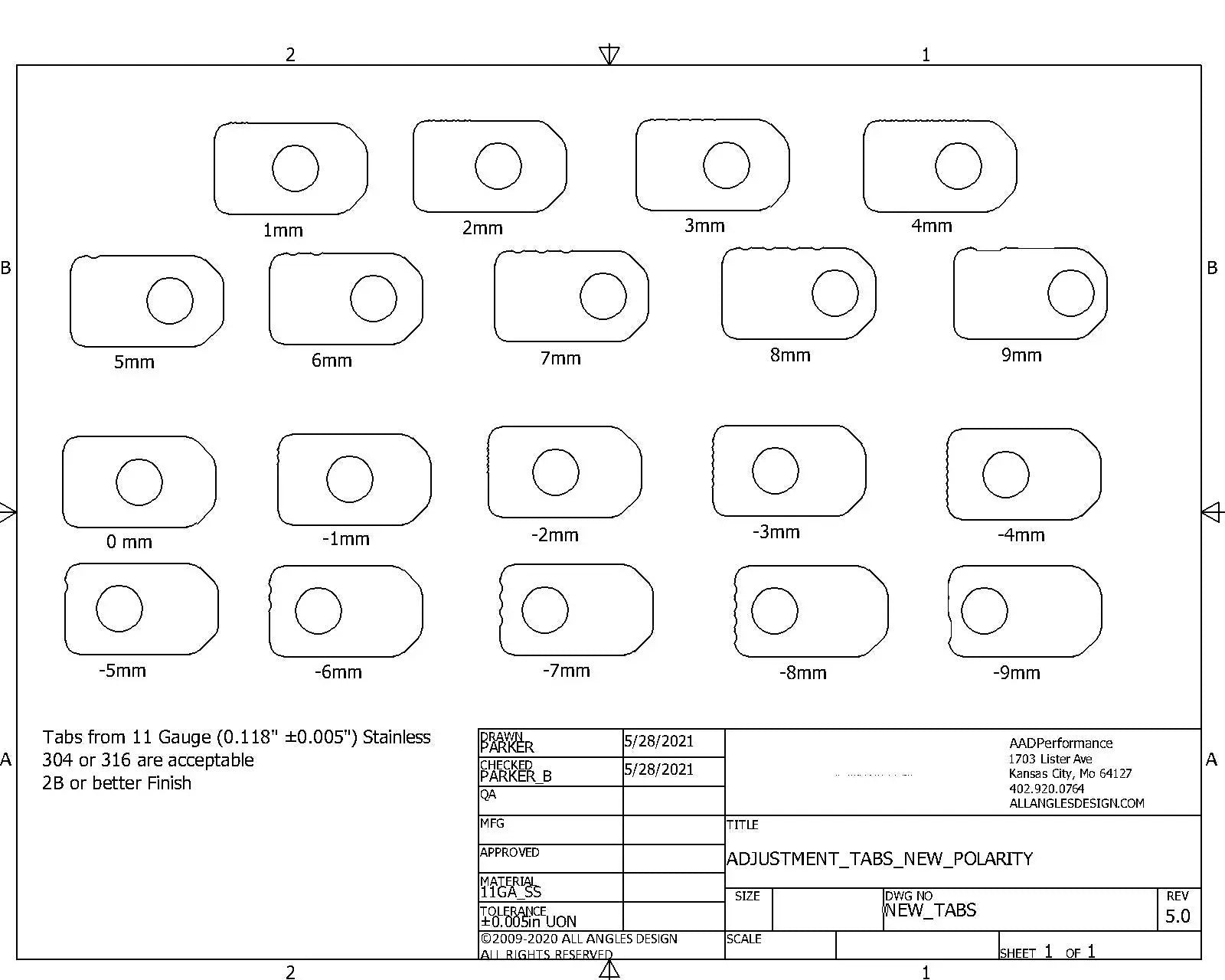

- The published adjustment chart is accurate for all control arms made after 2018
Fitment
These tabs are matched to All Angles Design control arms rather than to a vehicle. They fit every arm manufactured by All Angles Design and Bender Services since 2012, so application is by arm rather than by year, make and model.
Specifications
| Detail | Value |
|---|---|
| Retailer part numbers | TBA-1-9 positive Tab Pak and TBA-8-0 negative Tab Pak |
| Material | 304 stainless steel |
| Individual size packaging | Sets of eight tabs |
| Tab Pak contents | Four tabs of each size plus spare nuts and bolts in a plastic case |
| Positive pack range | +1 mm through +9 mm |
| Negative pack range | -8 mm through 0 mm |
| Chart accuracy | Accurate for all control arms made after 2018 |
| Country of manufacture | United States |
What's Included
- Selected individual tab size in a set of eight, or
- Positive Tab Pak covering plus one through plus nine, or
- Negative Tab Pak covering minus eight through zero, each with spare nuts and bolts
About AAD Performance
AAD Performance, also listed under the All Angles Design vendor name, designs and machines billet aluminum suspension, driveline and engine hardware in Kansas City, Missouri. The company is known for its patent pending Spheriflex bearing, its tab-lock adjustment system and OEM-CAD derived fitment, and it manufactures, assembles and packages its parts in the United States.
Warranty: AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.
Related Parts
- AAD Billet Front Upper Control Arms
- AAD Billet Rear Upper Control Arms
- AAD Mustang S550 Rear Camber Arms
FAQ
What is the TBA-1-9?It is the retailer part number for the positive Control Arm Adjustment Tab Pak covering plus one through plus nine millimetres.
How are individual sizes packaged?Each individual size is sold in a set of eight tabs.
What material are the tabs?They are 304 stainless steel.
Which arms do these fit?All arms manufactured by All Angles Design and Bender Services since 2012.
What is in a Tab Pak?Four tabs of each size in the range, supplied in a plastic case with a couple of spare nuts and bolts.
Which Tab Pak ranges are offered?A positive pack from plus one to plus nine and a negative pack from minus eight to zero.
Is the chart valid for older arms?The chart is accurate for arms made after 2018; earlier arms should be checked for polarity before ordering.
Do these tabs fit a specific vehicle?No. They are matched to the control arm, not to a year, make and model.
Do I need an alignment after changing tabs?Yes, because changing a tab changes the alignment setting the arm holds.
What warranty applies?AADPerformance Limited One Year Warranty. Defect coverage runs one year from the date of original purchase and applies to the original purchaser only. Installed parts cannot be returned, and unused non-warranty returns are subject to a 15 percent restocking fee.
Installation Instructions
- Identify whether the arm needs a positive or negative tab, using the manufacturer chart.
- Confirm the arm's manufacturing date, because arms made before 2018 must be checked against the chart for polarity.
- Support the vehicle safely and unload the suspension at the arm being adjusted.
- Loosen the tab hardware on the arm.
- Remove the existing tabs and fit the new tab size in the same orientation.
- Tighten the tab hardware so the tabs seat fully.
- Torque the arm fasteners to factory specification at ride height.
- Align the vehicle and confirm the resulting camber or toe change.
