Cooler Intake Air Means More Power for Your Boxer Engine
The CORSA 185206 PowerCore Closed Box Air Intake System upgrades the factory intake on the 2012-2017 Scion FR-S, Subaru BRZ, and Toyota 86 2.0L. By sealing the filter inside a closed box constructed from cross-linked polyethylene, the 185206 shields the PowerCore dry filter from underhood heat while channeling cooler, denser air into the engine. The result is a gain of up to 18 horsepower and 23 lb-ft of torque, all without any tune required.
Key Features
- CORSA PowerCore Closed Box Air Intake System, part number 185206
- Cross-linked polyethylene air duct and closed box construction for heat isolation
- Delivers up to 18 horsepower and 23 lb-ft of torque gains
- Included PowerCore dry filter rated for 99.99 percent filtration efficiency
- Filter maintenance interval of 4 years or 150,000 miles, no oiling or cleaning required
- Silicone connectors and marine grade clamps for a secure, durable fit
- No tune required after installation
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2012-2017 | Scion | FR-S | 2.0L |
| 2012-2017 | Subaru | BRZ | 2.0L |
| 2012-2017 | Toyota | 86 | 2.0L |
The 185206 fits all 2.0L naturally aspirated FR-S, BRZ, and 86 models across this platform generation.
Specifications
| Detail | Value |
|---|---|
| Part Number | 185206 |
| Type | Closed Box Air Intake |
| Air Duct Material | Cross-Linked Polyethylene |
| Box Material | Cross-Linked Polyethylene |
| Filter Style | PowerCore Dry, Non-Reusable |
| Filtration Efficiency | 99.99 percent |
| Filter Maintenance Interval | 4 Years / 150,000 Miles |
| Horsepower Gain | Up to 18 HP |
| Torque Gain | Up to 23 lb-ft |
| Replacement Filter Part Number | 61513 |
| UPC | Not published by manufacturer |
What's Included

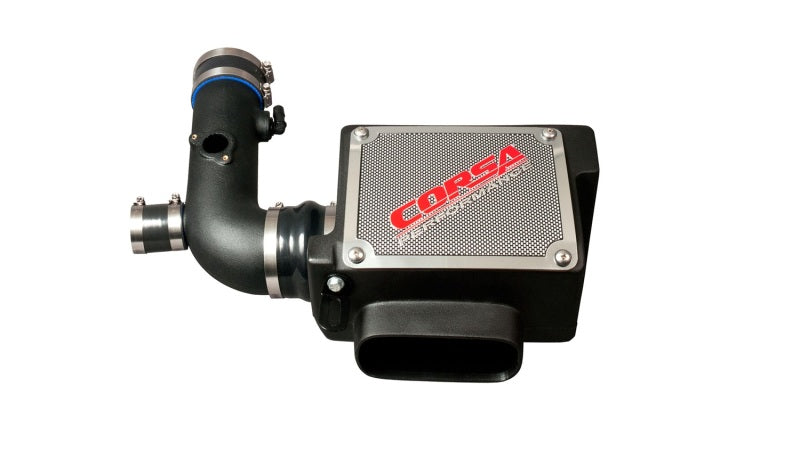

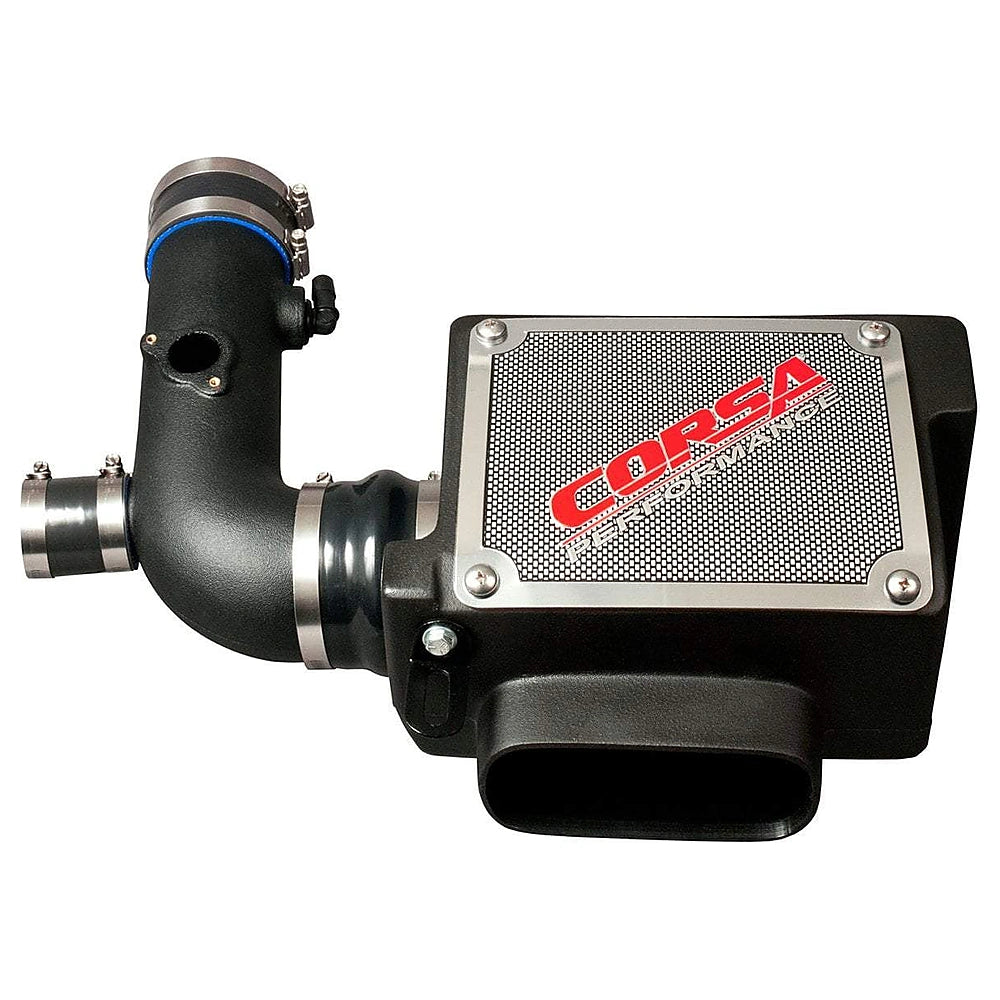

- CORSA 185206 PowerCore closed box air intake system
- Included PowerCore dry replacement filter
- Silicone connectors and marine grade clamps
- All necessary hardware for installation
About CORSA Performance
CORSA Performance has engineered stainless steel performance exhaust and intake systems in the USA for over three decades. Their PowerCore air intake systems pair specifically engineered air boxes with high efficiency filtration to maximize airflow and horsepower while minimizing maintenance. Every CORSA air intake component is backed by a limited warranty for reliable long term performance.
Related Parts on Our Site
Frequently Asked Questions
What is the 185206?The 185206 is a CORSA PowerCore closed box air intake system built for the 2012-2017 Scion FR-S, Subaru BRZ, and Toyota 86 2.0L.
How much power does the 185206 add?The 185206 is rated for gains of up to 18 horsepower and 23 lb-ft of torque over the factory intake system.
Does the 185206 require an ECU tune?No, the 185206 does not require any tuning after installation.
How often does the PowerCore filter need maintenance?The included PowerCore dry filter has a maintenance interval of 4 years or 150,000 miles and does not require oiling or cleaning.
What is the replacement filter part number for the 185206?The replacement filter for the 185206 is part number 61513.
What material is the 185206 intake box made from?The air duct and box are both constructed from cross-linked polyethylene for durability and heat resistance.
Is the 185206 CARB compliant?A CARB Executive Order is currently unavailable for the 185206, so verify local emissions requirements before installation.
Is the 185206 covered by a warranty?Yes, CORSA air intake systems are backed by a limited warranty, and the PowerCore filter carries its own filter warranty.
Installation Instructions
- Allow the engine to cool completely and disconnect the negative battery terminal.
- Remove the factory air intake box, air duct, and mass airflow sensor connector.
- Retain the mass airflow sensor for installation into the new CORSA air duct.

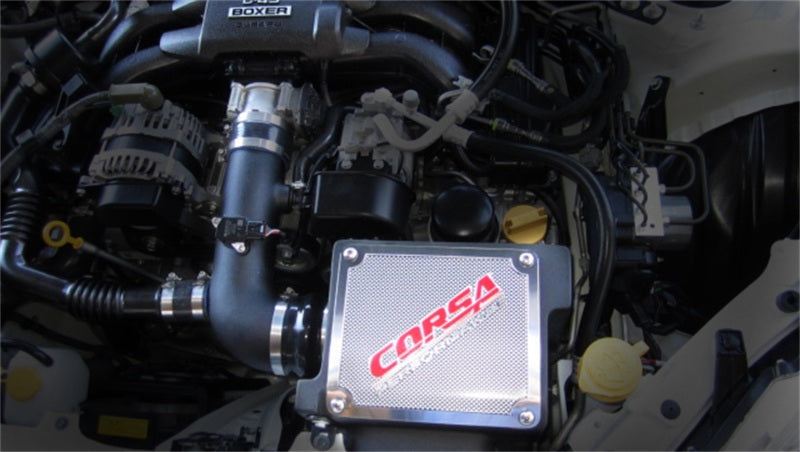

- Install the CORSA closed box assembly in the factory intake location using the provided hardware.
- Install the air duct with the mass airflow sensor and secure it with the marine grade clamps.
- Connect the silicone connectors between the air duct and the throttle body.
- Reconnect the mass airflow sensor electrical connector.
- Reconnect the negative battery terminal and verify a secure, leak free fit.
WARNING: This product can expose you to chemicals including nickel compounds, which are known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
