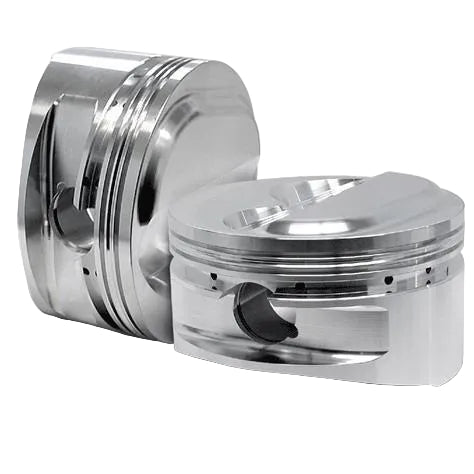

CP Piston & Ring Set for Honda F20C/F22C - Bore (87mm) - Size (STD) - Compression Ratio (F20C-11.0/F CP Pistons CPPSC7160-4
Click to zoom in

CP Piston & Ring Set for Honda F20C/F22C - Bore (87mm) - Size (STD) - Compression Ratio (F20C-11.0/F

CP Pistons
CPPSC7160-4
Piston Sets - Forged - 4cyl
2 Units In Stock - Ships Next Business Day
$ 885.15
$ 885.15

SKU: SC7160-4

CP Piston & Ring Set for 2000-2009 Honda S2000 F20C/F22C - Bore 87mm STD - Comp Ratio F20C 11.0:1

CP SC7160-4 piston and ring set delivers forged performance for Honda S2000 engines with F20C or F22C. Machined to 87mm standard bore this kit supports high-revving builds with precise compression and durability. Includes rings and pins for complete assembly readiness in 2000-2009 S2000 models.

Key Features

  • Forged 2618-T61 Alloy: High-strength material handles extreme heat and boost pressure in racing applications
  • 87mm STD Bore: Exact factory dimension ensures drop-in fit without machining on stock blocks
  • 11.0:1 Compression: Boosts F20C power output while maintaining safe detonation limits on pump gas
  • Included Rings & Pins: Premium 1.0/1.2/2.8mm rings and 20x1.32mm 927 pins reduce setup time
  • Accumulator Groove Design: Seals combustion pressure to minimize blow-by and extend ring life

Product Notes

  • Compatible with stock or aftermarket connecting rods balance assembly after install
  • Apply moly lubricant to skirts and pins during assembly for break-in
  • Packaged in foam-lined box dimensions 12 x 8 x 6 inches

Installation Notes

  • Professional installation recommended.
  • Set ring end gaps to spec (top ring 0.0045 inch) and hone cylinders if worn
  • Requires 140mm rod length for F20C 144.5mm for F22C compatibility

This Part Fits

Year Make Model Submodel
2000-2009 Honda S2000 Base
2008-2009 Honda S2000 CR

Why Choose CP Pistons?

  • Proven in NHRA and drag racing with thousands of race wins
  • CNC-machined in USA for tolerances under 0.0003 inches
  • Customizable options available for stroker or boosted setups

Frequently Asked Questions

  • Q: Will SC7160-4 fit both F20C and F22C S2000 engines?
    A: Yes 87mm bore works for both F20C uses 84mm stroke F22C uses 90.7mm stroke with matching comp height options
  • Q: What is the piston weight?
    A: Each piston weighs 295 grams lightened full set 1.3 kg for balanced rotating mass
  • Q: Does it include warranty?
    A: Backed by CP limited lifetime warranty on manufacturing defects with proper installation

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Foam-protected box 12x8x6 inches
  • Weight: 4.5 lbs
