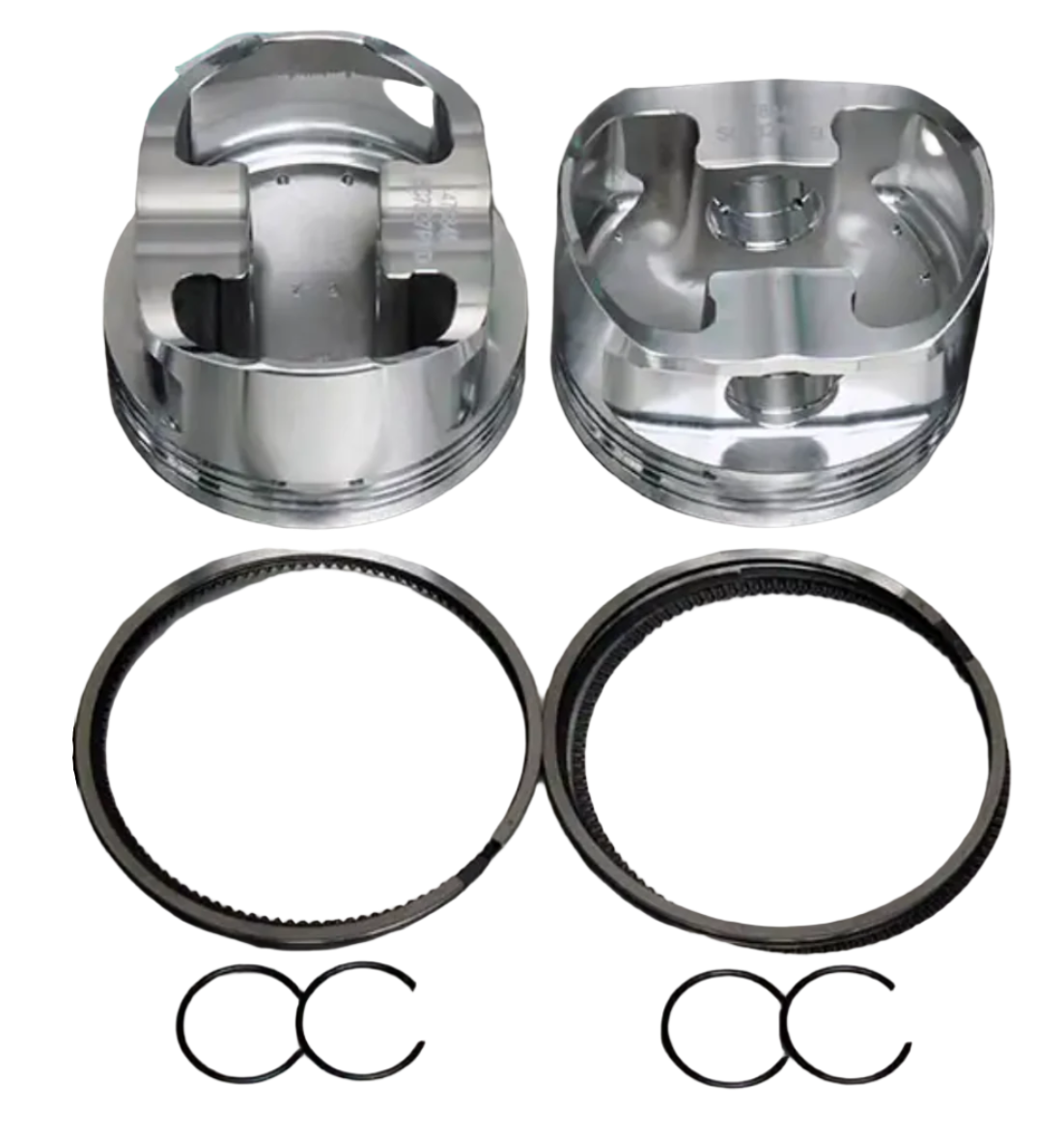

CP Piston & Ring Set for Nissan SR20DE w/ Turbo - Bore (86.5mm) - Size (.5mm) - 8.5:1

CP Pistons
CPPSC7327PVD
Piston Sets - Forged - 4cyl
20+ Units In Stock - Ships Next Business Day
$ 885.15
$ 885.15

SKU: SC7327PVD

SR20DE w/ Turbo - Bore (86.5mm) - Size (.5mm) - 8.5:1

All pistons come balanced within one gram, include pin lock grooves and wrist pins at no additional charge.

Features

  • Dedicated forgings
  • Balanced to + or 1 gram
  • Wrist pins provided at no cost
  • Pin fitting provided at no cost
  • Accumulator Grooves
  • Dual forced pin oilers
  • Pick lock grooves
  • Fully CNC machined
  • USA Made

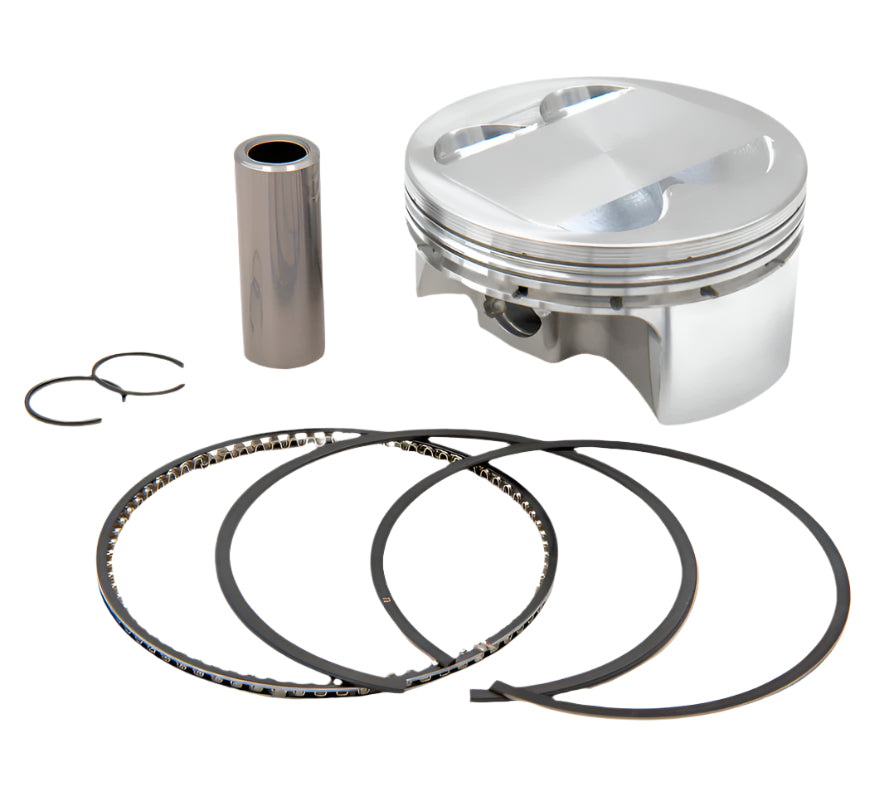

Pistons come with wrist pins, pin fitted, and locks (except for Subaru).

CAM AND BARREL

The Cam is the shape around the skirt of the piston and the barrel is the shape from under the oil ring to the bottom of the skirt. Extensive research and development has been done to find the optimum skirt shape for each piston. These shapes have been found to seal up cylinders and reduce harmonics in the bore better than ever before. Depending on the forging and application, different cam and barrel profiles are utilized for maximum performance. Having the correect cam and barrel on a part promotes the following:

1. Tighter clearances

2. Less noise

3. Better ring seal

4. More power

5. Increased durability

ANTI DETONATION GROOVES


Specifications

Old Part Number

SC7327

Shipping Weight (Dimensional)

6.000000

Part Type

Pistons

Make

Nissan / Infiniti

Model

180SX 89-90 S13, 240SX 89-94 S13, 240SX 95-98 S14, Sentra 00-06 B15, Sentra 91-94 B13, Sentra 95-99 B14, Silvia 89-94 S13, Silvia 95-98 S14, Silvia 99-02 S15

Engine

SR20DE, SR20DET

Rod Length

5.365" / 136.3mm

Rod Length Oversize

Standard Length

Bore Diameter

86.5mm

Bore Oversize

0.020" / 0.5mm

Stroke

86mm (Standard Stroke)

Compatible with Stock Sleeves

Yes

Requires Aftermarket Sleeves

No

Compression Ratio

8.5:1

Pin Size

0.866" / 22mm

Upgraded Pin (not included)

866-2250-25CP3C

Included Ring Set

CPT-3406PVD

Included Pin Locks

866x063 SWL

Included Pin

866-2250-20CP1C

Face Type

Dish

Dome cc

-15.5 cc

Compression Height

1.260" / 32mm

Brand

CP Pistons

Skirt Type

Full Round

Piston Material

2618

Carb Legal

No

Wrist Pin Wall Thickness

0.200"

Wrist Pin Dimensions

.866" x 2.250" x .200"

Pin Material

5100 Chrome Moly Steel
