More Cooling Tubes, Sharper Cutoff Line, Zero Modifications for the 2005-2006 Ford GT Supercharger

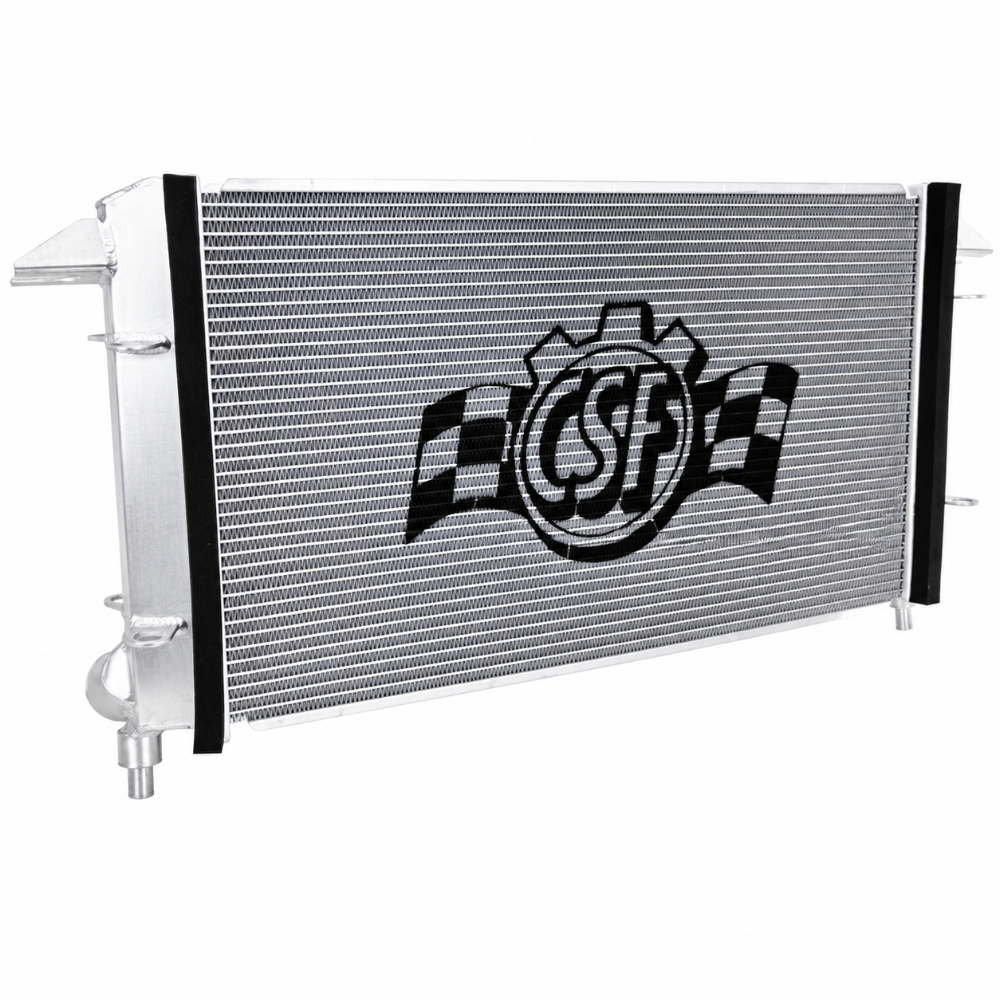

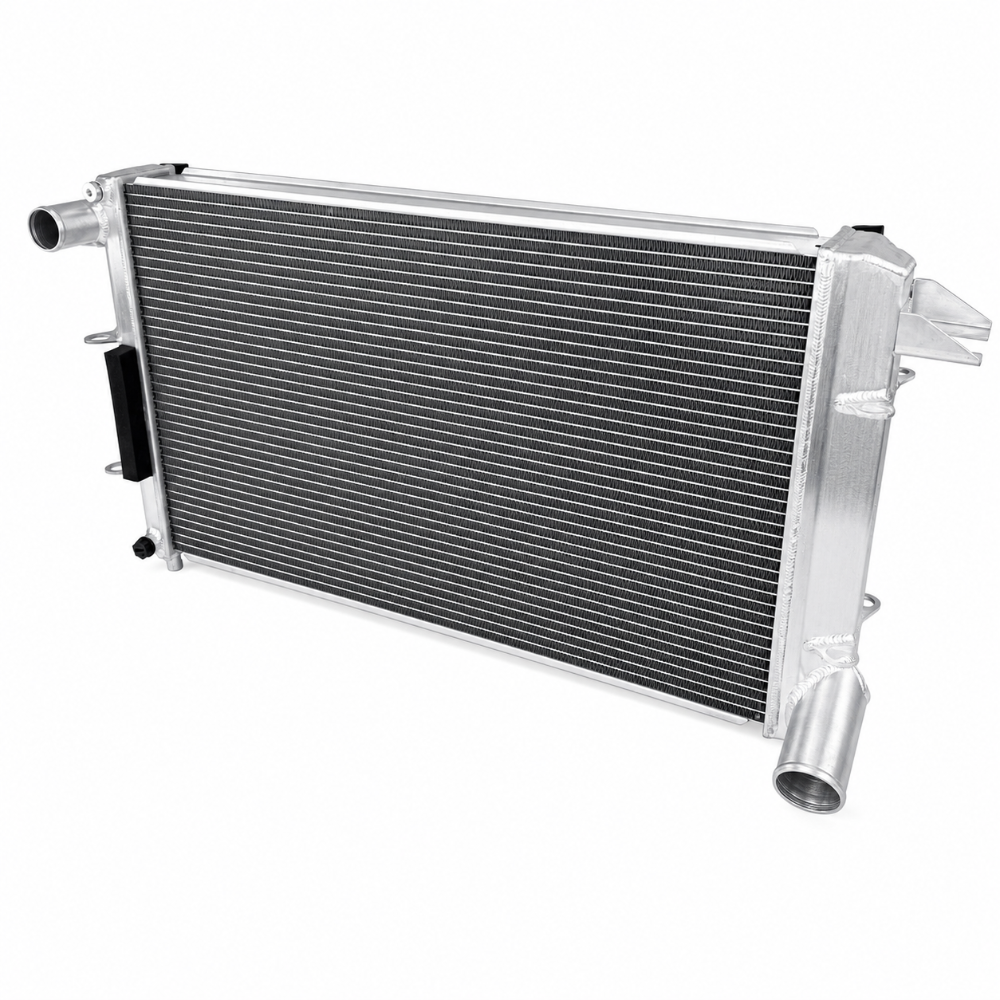

The CSF 8365 High-Performance All-Aluminum Heat Exchanger is a purpose-built supercharger heat exchanger for the 2005-2006 Ford GT. Featuring a 1-row 31mm aluminum core with CSF's exclusive B-Tube Technology, the 8365 improves heat transfer by approximately 15 percent over conventional oval welded tubes. With approximately 32 percent more cooling tubes and fins than the OEM unit and 6.5mm multi-louvered fins, this heat exchanger delivers a significant reduction in intake air temperatures under boost without restricting airflow to the radiator behind it. The unit mounts in the factory supercharger heat exchanger location with no modifications or cutting required and is fully compatible with both the OEM Ford GT radiator and the CSF 7245 High-Performance Radiator.
Key Features

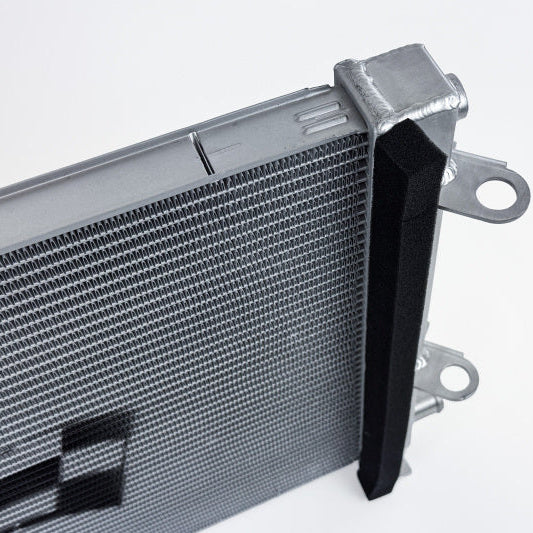

- 1-row 31mm all-aluminum core with CSF exclusive B-Tube Technology for 15 percent greater heat transfer than standard oval tubes
- Approximately 32 percent more cooling tubes and fins than the OEM Ford GT supercharger heat exchanger
- 6.5mm multi-louvered fins maximize airflow through the core while preserving flow to the radiator positioned behind
- Mounts in the factory supercharger heat exchanger location with no modifications, cutting, or fabrication required
- Compatible with the OEM Ford GT radiator and the CSF 7245 High-Performance All-Aluminum Radiator
- 100 percent all-aluminum construction for lightweight durability
- Purpose-built for the 2005-2006 Ford GT 5.4L supercharged V8 platform
This Part Fits
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2005-2006 | Ford | GT | GT |
Specifications
| Detail | Value |
|---|---|
| Part Number | 8365 |
| Brand | CSF |
| Core Type | 1-row 31mm aluminum |
| Core Technology | CSF exclusive B-Tube |
| Fin Height | 6.5mm multi-louvered |
| Cooling Tubes vs OEM | Approximately 32 percent more |
| Material | All aluminum |
| Fitment | Direct OEM replacement, no modifications |
| Application | Supercharger heat exchanger (intercooler) |
| Proposition 65 | No |
| UPC | 710353083659 |
What Is Included
- 1x CSF 8365 High-Performance All-Aluminum Heat Exchanger for 2005-2006 Ford GT
Frequently Asked Questions
What does this heat exchanger replace on the Ford GT?The 8365 replaces the factory supercharger heat exchanger on the 2005-2006 Ford GT. The Ford GT uses a water-to-air intercooler system where the heat exchanger sits in the front of the vehicle and cools the water circuit that removes heat from the supercharged intake charge. It installs in the same factory location as the OEM unit with no modifications required.
How does the B-Tube Technology improve performance on this heat exchanger?The B-Tube design creates internal turbulence inside each cooling tube, increasing the contact between the water and the tube wall and improving heat transfer by approximately 15 percent over standard oval welded tubes at the same flow rate. Combined with 32 percent more cooling tubes and fins than the OEM heat exchanger, it removes more heat per unit of time compared to the factory part.
Will installing this heat exchanger reduce intake air temperatures in the Ford GT?Yes. The 8365 improves the cooling capacity of the water-to-air intercooler circuit, which means the water entering the supercharger charge cooler is colder. This directly lowers the intake air temperature leaving the supercharger, supporting more consistent power delivery under sustained boost on the track or during back-to-back accelerations on the street.
Can this heat exchanger be used with the OEM Ford GT radiator?Yes. It mounts in the factory heat exchanger location and is fully compatible with the OEM radiator. For a complete cooling system upgrade, it can also be paired with the CSF 7245 High-Performance All-Aluminum Radiator, which occupies the adjacent factory mounting location.
Does this heat exchanger restrict airflow to the radiator behind it?No. The 6.5mm multi-louvered fins used in the 8365 are specifically designed to maximize heat rejection while maintaining a clean airflow path to the radiator mounted behind the heat exchanger. CSF engineered the fin geometry to balance high surface area contact with low pressure drop across the core face.
Is this a bolt-on installation with no modifications?Yes. It is a direct-fit replacement designed to use the factory Ford GT heat exchanger mounting points and coolant line connections. No cutting, drilling, or fabrication is required. It is compatible with the OEM coolant hoses and mounting hardware.
What is the warranty on this heat exchanger?CSF provides a manufacturer warranty covering defects in materials and workmanship. Confirm current warranty terms with CSF or your authorized retailer before purchase, particularly for any conditions that may apply to track or competition use.
Is this heat exchanger still in production or is it a special order item?It is listed as a regularly stocked product. Due to the limited Ford GT owner base, availability can vary. Contact your retailer to confirm current stock status before placing an order, especially for time-sensitive builds.
Installation Instructions
- Allow the vehicle to cool completely. The Ford GT heat exchanger circuit operates at pressure when warm.
- Disconnect the negative battery terminal.
- Place a coolant catch pan under the front of the vehicle. Locate the heat exchanger coolant circuit drain fitting and drain the intercooler water circuit completely.
- Remove any front undertray or splash shield fasteners as needed to access the heat exchanger mounting location at the front of the vehicle.
- Disconnect the upper and lower coolant hose clamps from the OEM heat exchanger inlet and outlet necks.
- Remove the factory heat exchanger mounting fasteners and lift the OEM unit out of the mounting location.
- Position this heat exchanger into the factory mounting location, aligning the inlet and outlet necks with the existing coolant hoses.
- Install all mounting fasteners and tighten to the factory specification. Reconnect the coolant hoses and clamps securely.
- Reinstall any undertray or splash shield panels. Reconnect the battery.
- Refill the intercooler water circuit with the factory-specified coolant and water mixture. Follow Ford's bleeding procedure to purge air from the circuit.
- Start the engine and bring to operating temperature. Inspect all hose connections for leaks. Check the coolant level and top off as needed once cooled.
