SKU: 00B 001 E | UPC: 4996338030801
Cusco OIL Filter E 80ID X 70H M20-1.5P (CY4A/CX4A/CN9A/CP9A/CT9A/CZ4A) Mazda 3 6 CX-3 CX-5 Diesel 2012-2022

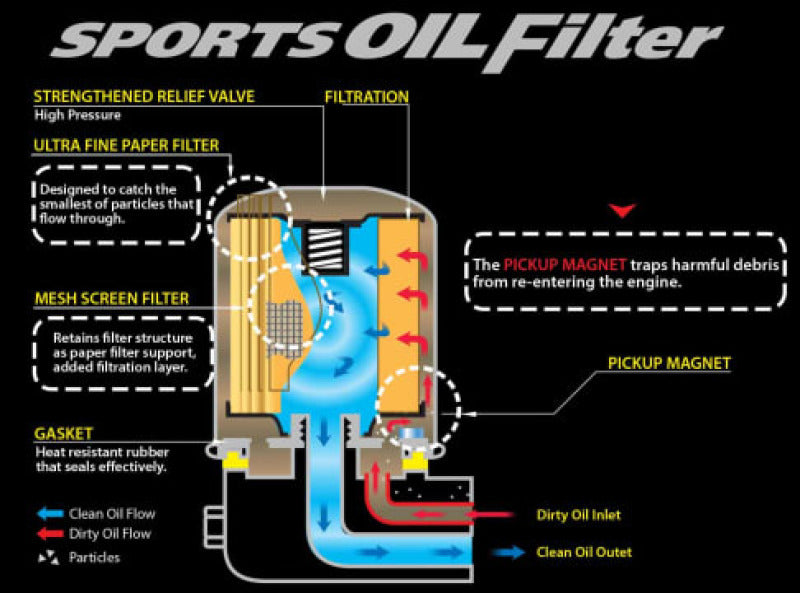

Cusco Oil Filter E delivers performance filtration for Mazda Skyactiv-D diesel engines in models like Mazda3 Mazda6 CX-3 CX-5. Sized 80mm ID x 70mm height with M20-1.5P thread it directly replaces OEM filters on CY4A CX4A CN9A CP9A CT9A CZ4A powerplants. Extra oil volume and fine media trap more debris while supporting high RPM demands for reliable lubrication.
Key Features
- Increased Oil Capacity: Holds 20 percent more oil than stock for sustained pressure cooling during extended track or highway runs
- Multi-Layer Filter Media: Captures particles down to 20 microns keeping oil cleaner longer versus standard filters
- High Flow Bypass Valve: Opens at 2 bar ensuring circulation under all conditions without restriction
- Steel Canister Construction: Burst tested to 8 bar resists deformation in boosted diesel applications
- Precise M20-1.5P Thread: Seamless fit no sealing washers needed seals tight on first install
Product Notes
- Pair with 5W-30 or 0W-30 synthetic diesel oil for peak results
- Replace every 5000 miles or annually in performance use
- Packaged in protective box handles rough transit intact
Installation Notes
- Professional installation recommended.
- Torque to 25 Nm using 27mm wrench avoid cross-threading
- Compatible with factory oil filter housing no adapters required
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2019 | Mazda | 3 | 1.8L Skyactiv-D (CY4A) |
| 2015-2021 | Mazda | CX-3 | 1.5L Skyactiv-D (CN9A) |
| 2013-2022 | Mazda | 6 | 2.2L Skyactiv-D (CP9A) |
| 2012-2017 | Mazda | CX-5 | 2.2L Skyactiv-D (CZ4A) |
| 2014-2019 | Mazda | 3 | 1.5L Skyactiv-D (CX4A variants) |
| 2015-2020 | Mazda | CX-5 | 1.8L Skyactiv-D (CT9A variants) |
Why Choose Cusco?
- Motorsport heritage since 1978 powers D1GP rally champions
- JDM factory direct materials endure 200000km service life
- Engine dyno tested flows 30L/min at 4 bar pressure
Frequently Asked Questions
-
Q: Will this fit my 2016 Mazda3 diesel overseas model?
A: Yes confirms fit CY4A 1.8L Skyactiv-D chassis BP series verify engine code on valve cover -
Q: What filter media and body material does it use?
A: Synthetic multi-layer cellulose media in zinc plated steel canister anti-corrosion coated inside out -
Q: Does Cusco offer warranty or return policy?
A: 1 year limited warranty covers defects when installed per instructions contact distributor for claims
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: 4 x 4 x 3 inch box
- Weight: 0.7 lbs
