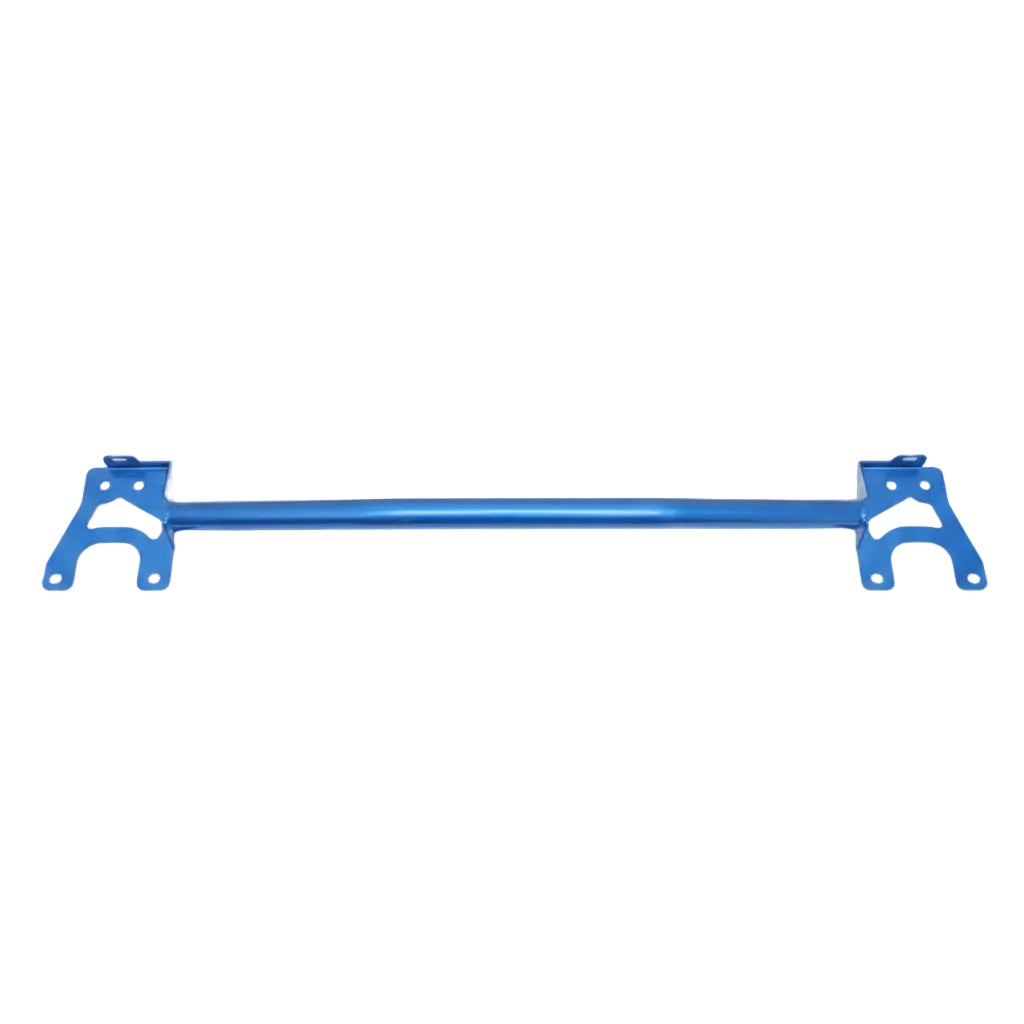

Rear chassis reinforcement brace for the 2023+ Toyota GR Corolla, Cusco 1H1-492-RE.
The Cusco 1H1-492-RE Power Brace Rear End is a direct bolt-on steel brace that mounts inside the rear bumper cover of the 2023+ Toyota GR Corolla (chassis code GZEA14H, G16E-GTS 1.6L 3-cylinder turbo), tying together rear chassis mounting points to reduce flex under hard cornering and braking. As part of Cusco's Power Brace lineup for the GR Corolla, the 1H1-492-RE is engineered to work alongside the companion Rear Cross Member Brace and Front Cross Member Brace for a more complete chassis stiffening setup, though it installs and functions on its own. Finished in Cusco's signature blue powder coat, it uses factory mounting points for a straightforward bolt-on installation with no cutting, drilling, or welding required.
Key Features
- The 1H1-492-RE bolts directly to factory rear chassis mounting points, no cutting or drilling required
- Steel construction adds rigidity to the rear chassis structure for sharper handling response
- Mounts inside the rear bumper cover, remaining hidden after installation
- Finished in Cusco's signature blue powder coat for corrosion resistance and a clean appearance
- Pairs with Cusco's Rear Cross Member Brace (1H1-492-R) and Front Cross Member Brace (1H1-492-F) for additional chassis stiffening
- Engineered specifically for the GZEA14H chassis and G16E-GTS 1.6L turbo platform
Fitment
| Year | Make | Model |
|---|---|---|
| 2023-2025 | Toyota | GR Corolla (GZEA14H, G16E-GTS 1.6L Turbo) |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 1H1-492-RE |
| Mount location | Rear, inside bumper cover |
| Material | Steel |
| Finish | Cusco Blue powder coat |
| Installation | Direct bolt-on, uses factory mounting points |
| Chassis code | GZEA14H |
What's Included
- 1 Cusco 1H1-492-RE Power Brace Rear End, steel construction
- All mounting hardware required for factory bolt-on installation
About Cusco
Cusco has engineered Japanese chassis and suspension components since 1954, and the 1H1-492-RE Power Brace Rear End extends that chassis-tuning expertise to the GR Corolla platform with a bolt-on rear brace designed to reduce flex without any cutting or welding.
FAQ
Does this brace require any cutting, drilling, or welding to install?No. This brace bolts directly to existing factory mounting points inside the rear bumper cover with no modification required.
Will this brace fit a standard Toyota Corolla or only the GR Corolla?This brace is designed specifically for the 2023+ Toyota GR Corolla (chassis code GZEA14H) and is not compatible with the standard Corolla.
Can I install this brace on its own, or does it require other Cusco braces?This brace installs and functions on its own, though it can be paired with Cusco's Rear Cross Member Brace and Front Cross Member Brace for additional chassis stiffening.
Is this brace visible after installation?No. It mounts inside the rear bumper cover and is not visible once the bumper is reinstalled.
What material and finish does this brace use?It is made from steel and finished in Cusco's signature blue powder coat for corrosion resistance.
Does installing this brace affect the factory suspension geometry?No. This is a chassis reinforcement brace, not a suspension component, and it does not alter suspension geometry or alignment settings.
Is professional installation required?Professional installation is recommended, though the bolt-on design and use of factory mounting points make it approachable for an experienced home mechanic with the vehicle properly supported.
How long does installation typically take?Installation typically takes under an hour once the rear bumper cover is accessed, since the brace uses existing factory mounting points.
Installation Instructions
- Lift and safely support the vehicle, then remove any undercarriage or interior trim components obstructing access to the rear bumper cover area.
- Locate the factory chassis mounting points inside the rear bumper cover where the brace will attach.
- Position the brace against the factory mounting points and hand-thread the supplied hardware to hold it in place.
- Torque all mounting hardware to factory specifications once the brace is properly aligned.
- Reinstall any trim or undercarriage components removed for access, lower the vehicle, and inspect the installation for clearance and fitment.
