Give street-driven performance brakes more consistent gas and dust evacuation

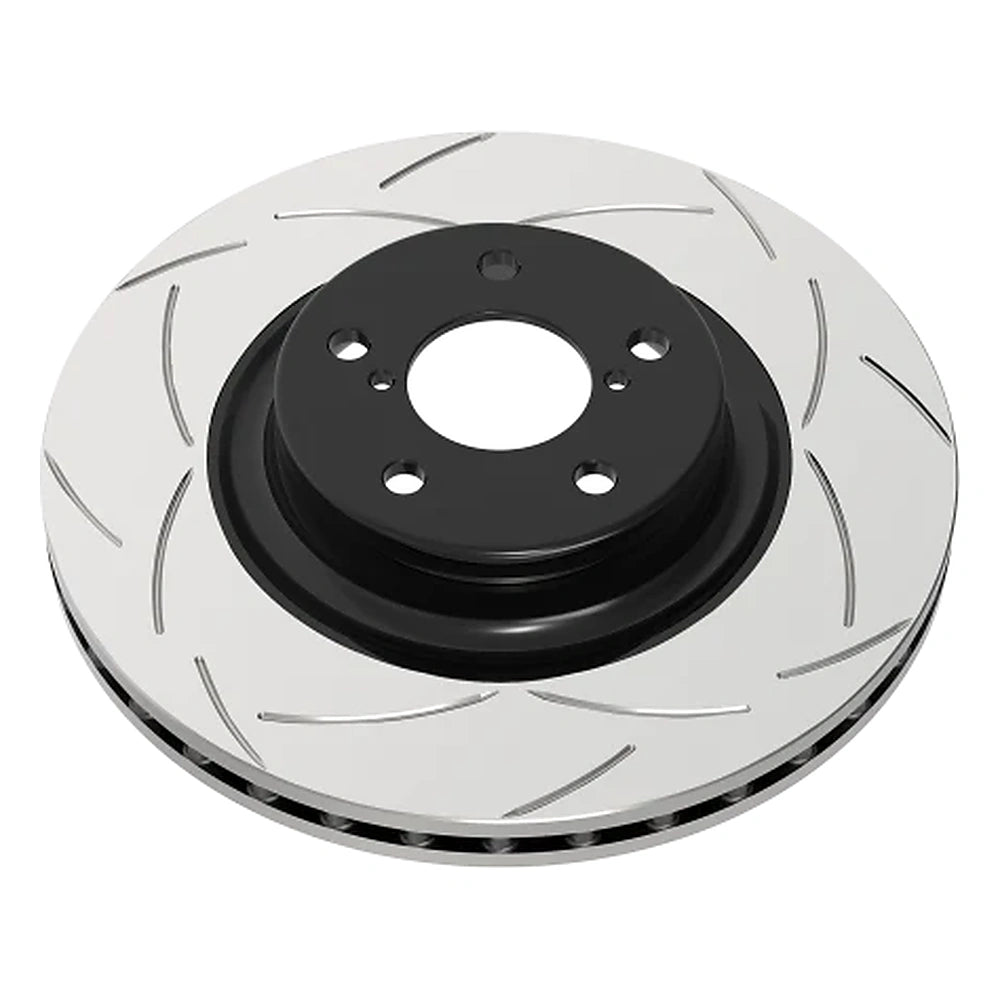

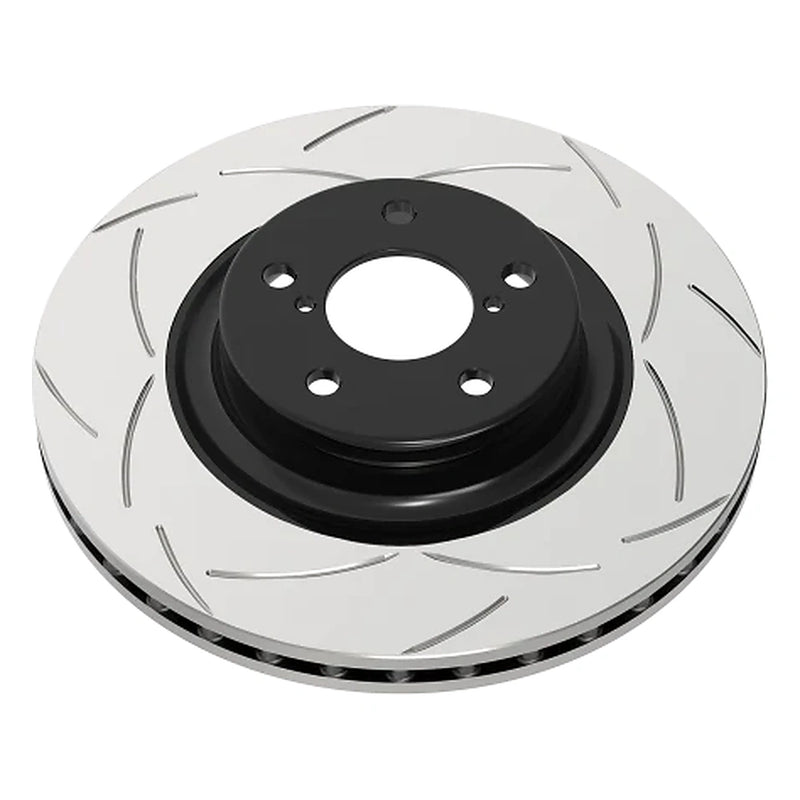

DBA DBA2124S combines the Street Series direct-replacement platform with CNC-machined T2 bi-symmetrical slots. The vented 355 mm front rotor is sold individually and uses DBA's Kangaroo Paw vane design to move heat through the disc during repeated stops.
Key Features
- DBA DBA2124S: T2 bi-symmetrical slots provide multiple paths for friction dust and gases to escape
- Kangaroo Paw ventilation promotes heat transfer through the rotor core
- 355 mm vented front rotor for the listed Mustang GT application
- CBN-machined friction surfaces help control disc-thickness variation
- Painted non-friction areas help resist corrosion
- Bi-directional slot arrangement allows use on either side of the front axle
Fitment
Use DBA DBA2124S only for the applications below. Confirm every listed qualifier and exclusion.
| Years | Make | Model | Details |
|---|---|---|---|
| 2013 | Ford | Mustang | GT; Front axle; 355 mm rotor application listed on DBA's current exact-part page; Excludes: Mustang configurations not listed by DBA for this exact part number |
Specifications
| Detail | Value |
|---|---|
| Brand | DBA |
| Manufacturer Part Number | DBA2124S |
| Product Type | Street Series T2 Front Brake Rotor |
| Series | Street Series T2 |
| Axle | Front |
| Surface | Slotted |
| Rotor Type | Vented |
| Outer Diameter | 355 mm |
| Overall Height | 47 mm |
| Nominal Thickness | 32 mm |
| Minimum Thickness | 30 mm |
| Center Bore | 71 mm |
| Bolt Pattern | 5x114.3 mm |
| Vane Design | Kangaroo Paw |
| Quantity | One rotor |
| UPC/EAN | 9316391407665 |
What's Included
- One DBA Street Series T2 front slotted brake rotor for the listed part number for DBA DBA2124S
- Not included: Second front rotor
- Not included: Brake pads
- Not included: Calipers
- Not included: Mounting hardware
- Not included: Installation labor
About DBA
DBA develops replacement and performance braking components in Australia. Its Street Series T2 rotors combine application-specific dimensions with CNC-machined slots and Kangaroo Paw ventilation for street-focused thermal management.
Related Parts
- Select a second identical rotor for axle-pair service and use brake pads approved for the exact Mustang brake package and rotor dimensions.
FAQ
What is the DBA2124S?It is a single DBA Street Series T2 vented and slotted front brake rotor for the listed 2013 Ford Mustang GT application.
Is this rotor sold individually or as a pair?It is sold individually, so axle-pair replacement requires two rotors.
What is the rotor diameter?The outside diameter is 355 mm.
What is the nominal and minimum thickness?The nominal thickness is 32 mm and the published minimum thickness is 30 mm.
What do the T2 slots do?The bi-symmetrical slots provide exit paths for friction dust and gases while promoting a more responsive pedal feel and even pad contact.
Can the rotor be installed on either side?Yes. DBA describes the slot arrangement as bi-directional, but the complete axle should still be serviced consistently.
Are brake pads included?No. Brake pads and all other brake-system components are sold separately.
What must be verified before ordering?Confirm the exact vehicle application, front brake package, 355 mm diameter, 32 mm thickness, 71 mm center bore, and 5x114.3 mm mounting pattern.
Installation Instructions
- Confirm the exact 2013 Mustang GT front-brake application and compare all rotor dimensions with the removed part before installation.
- Raise and support the vehicle safely, remove the wheel and caliper assembly, and support the caliper without loading the brake hose.
- Clean the hub face and inspect the wheel bearing, caliper, pads, and mounting hardware before fitting the rotor.
- Install the rotor and brake components using the vehicle and DBA procedures, then torque all fasteners and wheel hardware to specification.
- Bed the pads and rotors using the current DBA procedure, verify pedal feel and clearance, and recheck the system for noise, vibration, or leaks.
