An R90-Certified Rear Pad for a Cummins-Powered Three-Quarter Ton

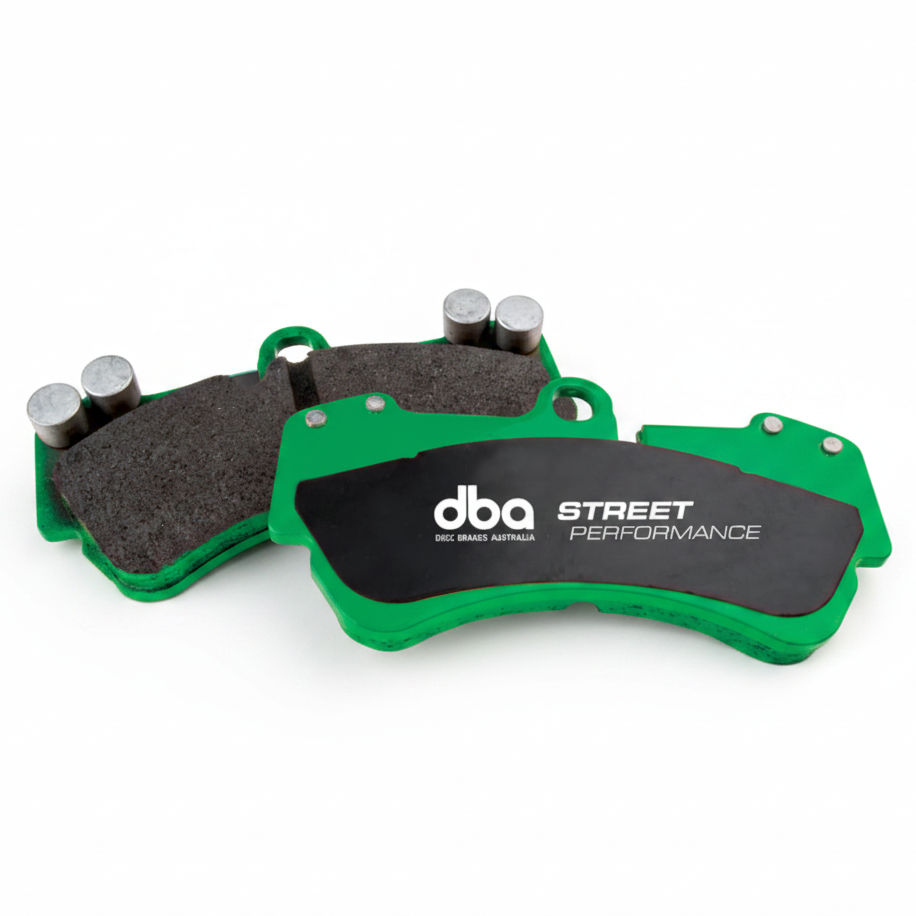

DBA DB2703SP is the rear axle set of four Street Performance pads for the 2019-2024 Ram 2500 and 3500 (DJ) with the 6.7-litre engine and four-wheel drive. It is a long 194.5 mm pad at 19.1 mm thick, made from a copper-free carbon-fibre semi-metallic compound and certified to ECE R90, the European replacement-brake standard.
Key Features
- SP compound tuned for effective pedal response with low wear and reduced dust compared with the OE pad.
- Copper-free semi-metallic carbon-fibre friction material.
- ECE R90 certified, meaning the friction performance has been type-approved against the OE pad.
- Chamfered, slotted and shimmed for quiet operation on a heavy truck.
- TSP scorched friction surface for a shorter bed-in.

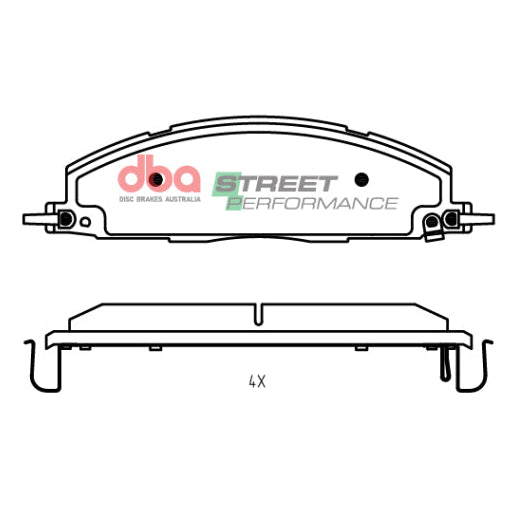

- Substantial 194.5 mm by 57.3 mm by 19.1 mm heavy-duty rear pad.
- Supersedes the earlier DB2703 part number.
Fitment
| Vehicle | Axle and restrictions |
|---|---|
| Ram 2500 (DJ) | 2019-2024, 6.7L, 4WD, rear axle |
| Ram 3500 (DJ) | 2019-2024, 6.7L, 4WD, rear axle |
Two-wheel-drive and non-6.7L Ram HD coverage has not been confirmed on any fetched source, so DBA DB2703SP is tagged only to the 6.7L 4WD trucks.
Specifications
| Detail | Value |
|---|---|
| Brand | DBA |
| MPN | DB2703SP |
| Product line | Street Performance (SP) |
| Axle | Rear |
| Friction material | Copper-free semi-metallic carbon fibre |
| Certification | ECE R90 |
| Length | 194.5 mm |
| Width | 57.3 mm |
| Thickness | 19.1 mm |
| Chamfer | Yes |
| Slots | Yes |
| Shims | Yes |
| Pads per box | 4 |
| Packaged size | 7 x 20 x 27 cm |
| Packaged weight | 2.58 kg |
| Surface treatment | TSP scorched |
| Supersedes | DB2703 |
| UPC | 9316391502216 |
| Warranty | 12 months / 20,000 km / 12,000 miles |
What's Included

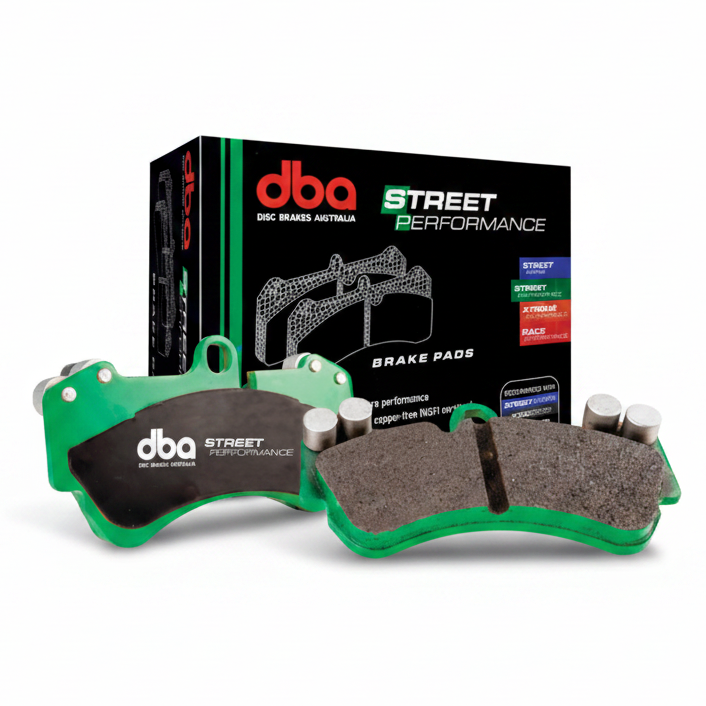

- One DBA DB2703SP axle set of four brake pads
- Anti-noise shims fitted to the pads
About DBA
SP is DBA's street compound: copper free, chamfered and shimmed, and aimed at owners who want a firmer pedal and less dust than OE without moving to a track material. On a heavy-duty pickup that also means holding friction while loaded. DBA DB2703SP is the SP compound in the rear pad shape used by the fifth-generation Ram HD.
FAQ
Which axle and drivetrain does this Ram HD set cover?It is the rear axle set for the 2019 onward Ram 2500 and 3500 with the 6.7L engine and four-wheel drive, and the box contains all four rear pads.
What does ECE R90 certification mean?It is a European type approval for replacement friction, confirming the pad's performance has been tested against the original equipment pad on the same vehicle.
Is the compound copper free?Yes. The SP formulation contains no copper.
How does SP differ from the XP version of this pad?Both share the same 194.5 mm footprint. SP targets low dust and quiet street use, while XP trades some of that for higher bite under load.
Will these fit a 2WD Ram HD?That has not been verified. The confirmed application is the 6.7L four-wheel-drive truck.
Are they chamfered?Yes, and slotted and shimmed, which matters on a truck rear axle that spends a lot of time lightly loaded.
Do these come with hardware clips?The box contains four pads with shims. Caliper hardware kits are separate items.
What rotors pair with them?DBA recommends Street Series T2 or 4000 Series T3 slotted rotors.
What is the warranty?12 months or 20,000 km / 12,000 miles.
Installation Instructions
- Have the pads fitted by a qualified technician, as DBA specifies.
- Support the truck on rated stands, remove both rear wheels and release the park brake so the rear caliper can be removed.
- Inspect the rear rotors for scoring and measure thickness against the minimum specification before fitting new friction.
- Clean the carrier abutments and slider pins; on a work truck this is usually where corrosion has built up.
- Retract the pistons, then fit the four 194.5 mm pads with their shims, keeping the chamfers oriented as the carrier allows.
- Refit the caliper, pump the pedal until firm, and confirm both rear wheels turn freely.
- Bed in on a clear road: from 50 km/h (30 mph) brake down to 10 km/h (5 mph) with medium pedal pressure without coming to a stop.
- Repeat that cycle about ten times with roughly 30 seconds of rolling cool-down between each one.
- Avoid heavy or prolonged braking for the first 200 km (120 miles) so the friction transfer layer stabilises.
