SKU: DBA798 | UPC: 9316391079800

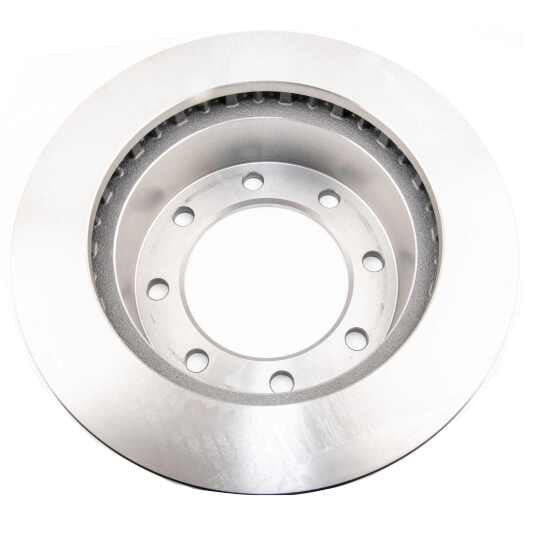

DBA Street Series Standard Front Brake Rotor - 1999-2004 Ford F-250 Super Duty 4WD
The DBA798 Street Series front brake rotor is a direct replacement upgrade for the 1999-2004 Ford F-250 Super Duty 4WD trucks, featuring DBA's patented Kangaroo Paw ventilation system, high-carbon cast iron construction, and En-Shield protective coating. This rotor provides superior heat dissipation, reduced fade under heavy loads, and longer life while maintaining quiet operation and compatibility with factory calipers and ABS ideal for daily-driven, towing, or light off-road Super Duty trucks.
Key Features
- Kangaroo Paw Ventilation: Patented 144-pillar design increases cooling efficiency by up to 20% over solid rotors.
- High-Carbon Cast Iron: XG-150 formula for strength, stability, and reduced brake noise.
- En-Shield Protective Coating: Non-oily zinc-based coating prevents corrosion and eliminates pre-cleaning.
- Thermal Stability Profiling: Heat-tempered to reduce warping and cracking.
- CBN Surface Finish: Cubic boron nitride machined for perfect flatness and parallel surfaces.
- Plain/Smooth Surface: Non-slotted/non-drilled for quiet braking and maximum pad contact.
- Made in Australia: Manufactured by Disc Brakes Australia to ISO standards.
Product Notes
- Rotor diameter: 348mm (13.70").
- Thickness: 30mm (new) / 28mm (minimum).
- Height: 76mm.
- Center bore: 108mm.
- Sold individually – front left or right (pair required for axle).
- En-Shield coating burns off in pad contact area during first few stops.
- Weight approximately 14 kg (30.8 lbs) per rotor.
- Limited 12-month / 20,000 km warranty.
Installation Notes
- Direct replacement remove wheel, caliper, and old rotor.
- Professional installation recommended; clean hub mating surface.
- Bed-in procedure required for optimal performance (follow DBA instructions).
- Typical install time 60-90 minutes per side.
This Part Fits
| Year | Make | Model | Drivetrain |
|---|---|---|---|
| 1999-2004 | Ford | F-250 Super Duty | 4WD |
| 1999-2004 | Ford | F-350 Super Duty (SRW) | 4WD |
Why Choose DBA Street Series?
- Australian manufacturer with proven performance on heavy-duty trucks.
- Kangaroo Paw ventilation for superior cooling in towing and off-road conditions.
- En-Shield coating provides "ready-to-install" convenience with no oil residue.
Frequently Asked Questions
-
Q: Is this slotted or drilled?
A: Plain/smooth surface (Street Series) for quiet operation and maximum pad contact. -
Q: Does it fit 2WD models?
A: Yes, same rotor for 2WD and 4WD (verify hub bore). -
Q: Do I need to machine the rotor?
A: No, CBN finished surface ready for immediate use.
Shipping & Handling
- Method: Standard ground shipping.
- Package Weight: Approximately 35–40 lbs.
- Box Dimensions (approx): 18" × 18" × 8".
