SKU: DBA798X | UPC: 9316391079848

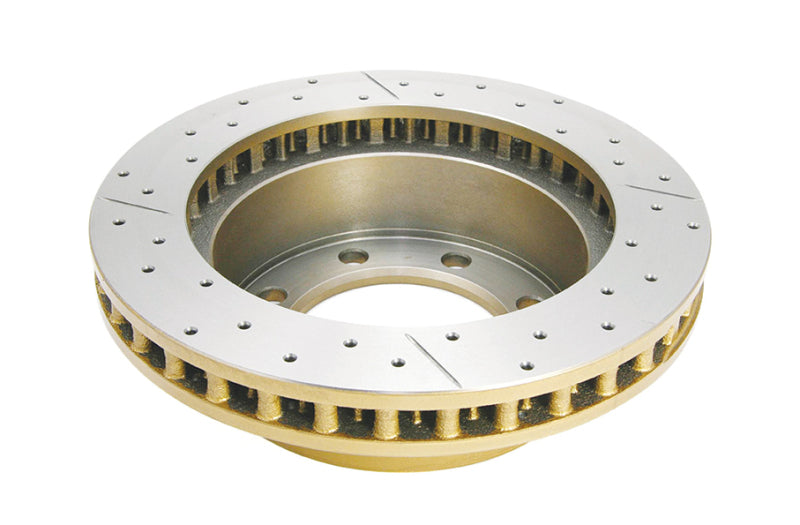

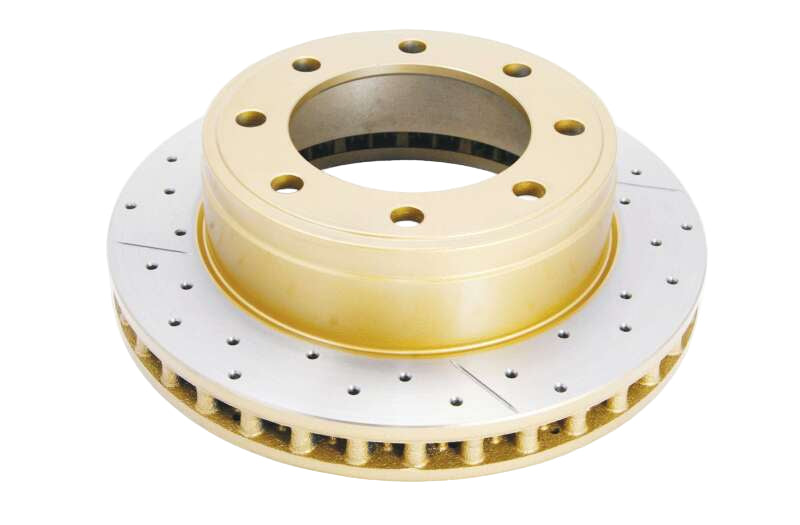

DBA Street Series X-Drilled & Slotted Front Brake Rotor - 1999-2004 Ford F-250 / F-350 Super Duty 4WD (with Rear Disc Brakes)
The DBA798X Street Series front rotor is a direct replacement upgrade for the 1999-2004 Ford F-250/F-350 Super Duty 4WD trucks with rear disc brakes, featuring DBA's patented Kangaroo Paw ventilation, high-carbon cast iron construction, cross-drilled & slotted surface, and protective En-Shield coating. This rotor provides superior heat dissipation, reduced fade under heavy loads, faster cooling, and enhanced wet-weather performance while maintaining quiet operation ideal for towing, hauling, or daily-driven Super Duty trucks.
Key Features
- Kangaroo Paw Ventilation: Patented 144-pillar design increases cooling efficiency by up to 20% over solid rotors.
- High-Carbon Cast Iron: XG-150 formula for strength, stability, and reduced brake noise.
- X-Drilled & Slotted Surface: Cross-drilled holes and curved slots for gas/debris evacuation and improved bite.
- En-Shield Protective Coating: Non-oily zinc-based coating prevents corrosion and eliminates pre-cleaning.
- Thermal Stability Profiling: Heat-tempered to reduce warping and cracking.
- CBN Surface Finish: Cubic boron nitride machined for perfect flatness and parallel surfaces.
- Made in Australia: Manufactured by Disc Brakes Australia to ISO standards.
Product Notes
- Rotor diameter: 348mm (13.70").
- Thickness: 30mm (new) / 28mm (minimum).
- Height: 76mm.
- Center bore: 108mm.
- Sold individually front left or right (pair required for axle).
- En-Shield coating burns off in pad contact area during first few stops.
- Weight approximately 14 kg (30.8 lbs) per rotor.
- Limited 12-month / 20,000 km warranty.
Installation Notes
- Direct replacement remove wheel, caliper, and old rotor.
- Professional installation recommended clean hub mating surface.
- Bed-in procedure required for optimal performance (follow DBA instructions).
- Typical install time 60-90 minutes per side.
This Part Fits
| Year | Make | Model | Drivetrain / Notes |
|---|---|---|---|
| 1999-2004 | Ford | F-250 Super Duty | 4WD (with rear disc brakes) |
| 1999-2004 | Ford | F-350 Super Duty (SRW) | 4WD (with rear disc brakes) |
Why Choose DBA Street Series X?
- Australian manufacturer with proven performance on heavy-duty trucks.
- Kangaroo Paw ventilation + drilled/slotted surface for superior cooling and wet performance.
- En-Shield coating provides "ready-to-install" convenience with no oil residue.
Frequently Asked Questions
-
Q: Is this for front or rear?
A: Front axle (pair required). -
Q: Does it fit trucks with rear drum brakes?
A: Yes, front rotor same for drum or disc rear models. -
Q: Do I need to machine the rotor?
A: No, CBN finished surface ready for immediate use.
Shipping & Handling
- Method: Standard ground shipping.
- Package Weight: Approximately 35–40 lbs.
- Box Dimensions (approx): 18" × 18" × 8".
