Join AN plumbing to a metric port without a stack of adapters

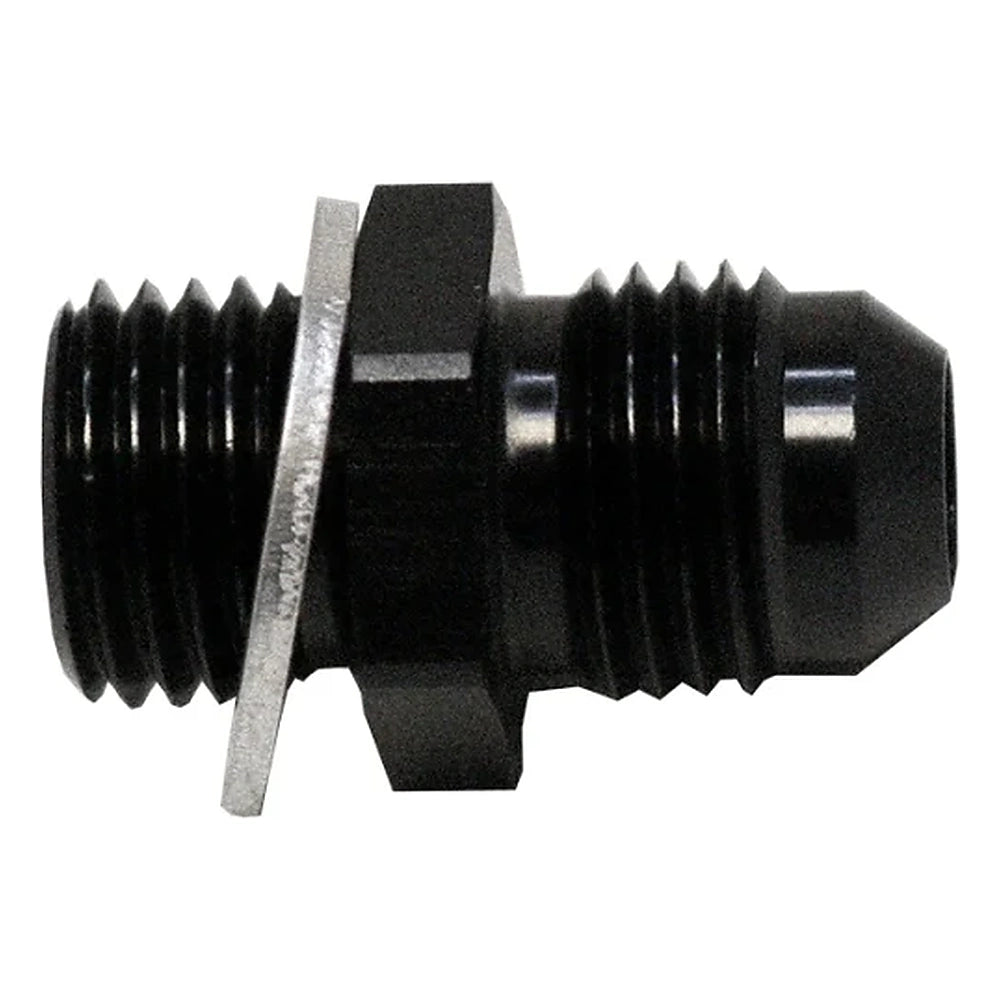

DeatschWerks 6-02-0614-B provides a straight, compact transition from a 6AN male flare to an M14 x 1.5 metric male port for custom fuel and fluid plumbing. The supplied crush washer supports the metric-side seal when used with a compatible flat sealing surface.
Key Features
- Straight 6AN male flare to M14 x 1.5 metric male transition
- T6061 aluminum construction balances strength and low weight
- Matte black anodized finish protects the fitting surface
- Includes the crush washer required for the metric-side interface
- Ethanol-compatible construction for supported fuel-system applications
- Compact one-piece design reduces unnecessary threaded connections
Fitment
No year-make-model fitment applies. Confirm every dimension, interface, clearance, load, and installation requirement shown below.
| Application Type | Requirements |
|---|---|
| Dimension Based | Universal plumbing adapter selected by interface: 6AN male flare on one side and M14 x 1.5 metric male thread on the other. Verify fluid compatibility, sealing surface, routing, and clearance before installation. |
Specifications
| Detail | Value |
|---|---|
| Brand | DeatschWerks |
| Manufacturer Part Number | 6-02-0614-B |
| Product Type | Fittings |
| Fitting Angle | Straight |
| Side 1 | 6AN male flare |
| Side 2 | M14 x 1.5 metric male |
| Material | T6061 aluminum |
| Finish | Matte black anodized |
| Application | Dimension- and interface-based fuel or fluid plumbing |

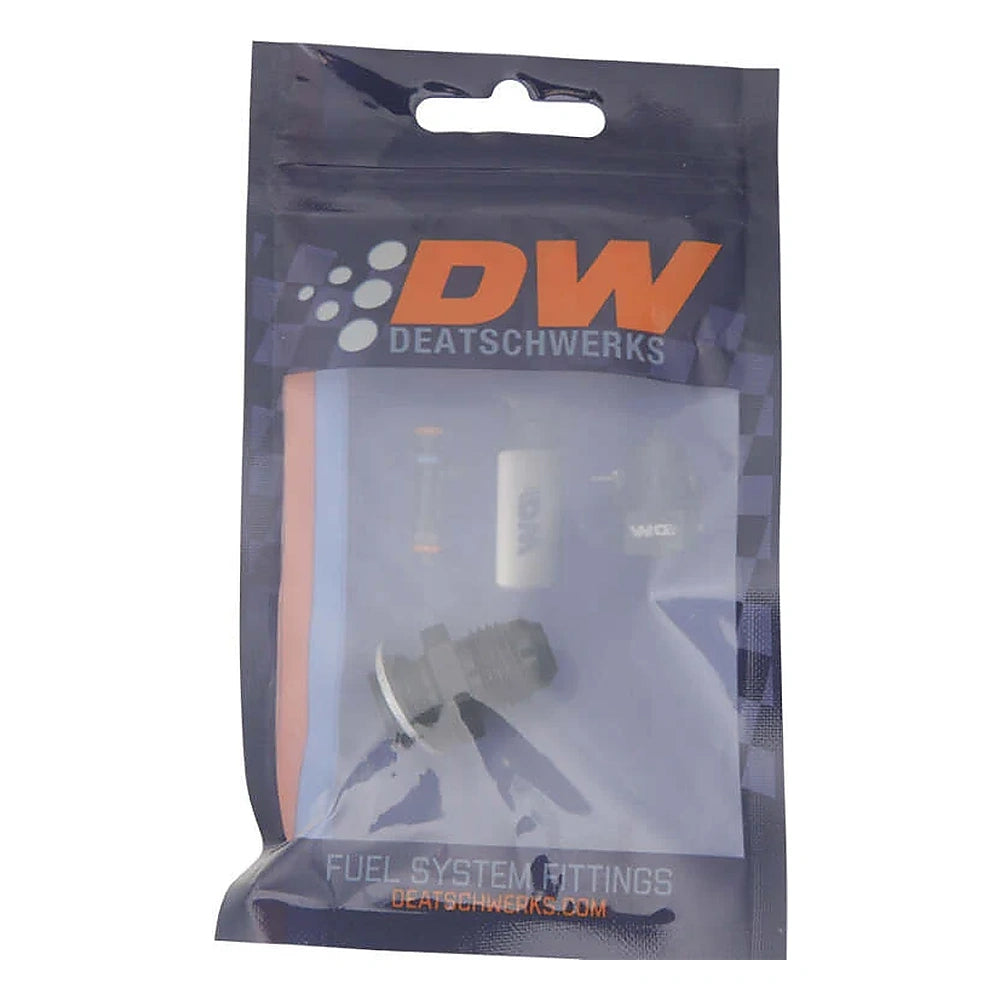

What's Included
- One straight metric adapter
- One crush washer
- Not included: Hose ends, lines, sealant, and mating components
About DeatschWerks
DeatschWerks develops fuel-system components and plumbing hardware with an emphasis on application testing, material compatibility, and serviceable modular connections.
Related Parts
- Use only verified 6AN hose ends and M14 x 1.5 components that match the system pressure, fluid, sealing surface, and routing requirements.
FAQ
What is the 6-02-0614-B?It is a straight 6AN-to-metric adapter built for joining compatible 6AN plumbing to an M14 x 1.5 metric port.
What does this part fit?No year-make-model fitment applies. Select it only for a 6AN female flare connection and an M14 x 1.5 metric port with a compatible crush-washer sealing surface.
What is included?The package contains one adapter and one crush washer.
What is it made from?The fitting is made from T6061 aluminum with a matte black anodized finish.
Is professional installation recommended?Careful installation by a qualified technician is recommended whenever the fitting is used in a pressurized fuel system.
Does it require additional parts?Review the package contents and installation notes before beginning because vehicle condition and surrounding components can require service items not included in the package.
What warranty applies?DeatschWerks lists a limited lifetime warranty under its current warranty policy.
What should be checked before use?Confirm the application, mating interfaces, clearances, fastener security, and safe operation before returning the vehicle or system to service.
Installation Instructions
- Confirm that the receiving port is M14 x 1.5 with a compatible crush-washer sealing surface and that the opposite connection is a 6AN female flare.
- Inspect both mating surfaces and threads, then place the supplied crush washer on the metric side.
- Thread the adapter in by hand and tighten it to the component manufacturer's specification without applying sealant to the AN flare.
- Connect the 6AN line without side loading, pressurize the system, and inspect both joints for leaks before operation.
