DeatschWerks 8AN Bulkhead Fitting

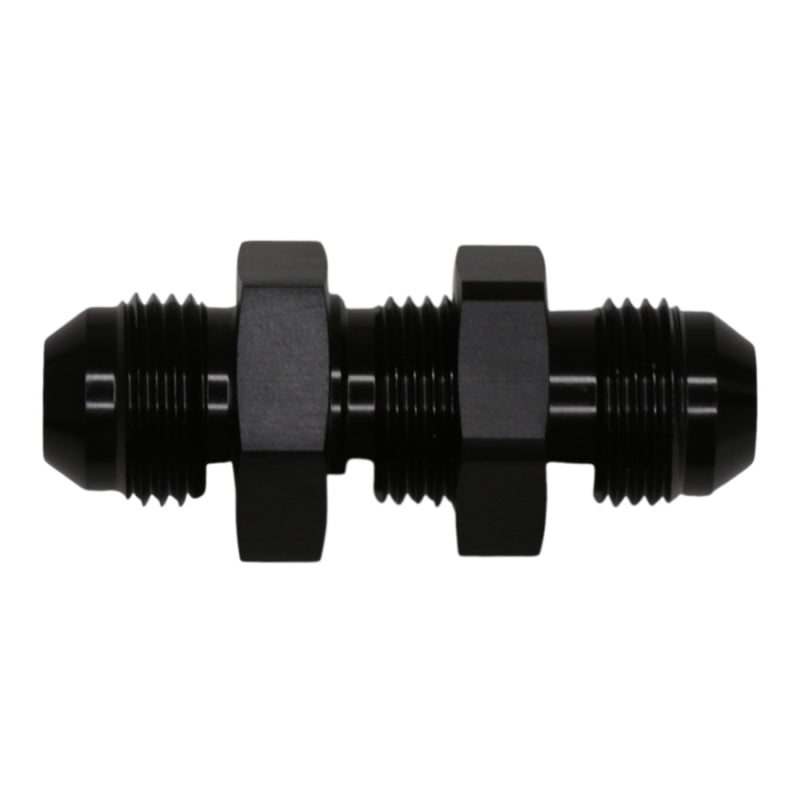

DeatschWerks part 6-02-0709-B is an 8AN male flare to 8AN male flare bulkhead adapter, finished in anodized matte black and includes a mounting nut. It allows a fuel or fluid line to pass through a firewall, tank wall, or panel with a secure, leak-free connection point on both sides.
Key Features
- 8AN male flare on both sides
- Includes mounting nut for bulkhead installation
- Anodized matte black finish
Fitment
| Application | Details |
|---|---|
| Universal | Fits any system requiring an 8AN bulkhead pass-through |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 6-02-0709-B |
| Fitting size | 8AN male flare, both sides |
| Finish | Anodized matte black |
What's Included

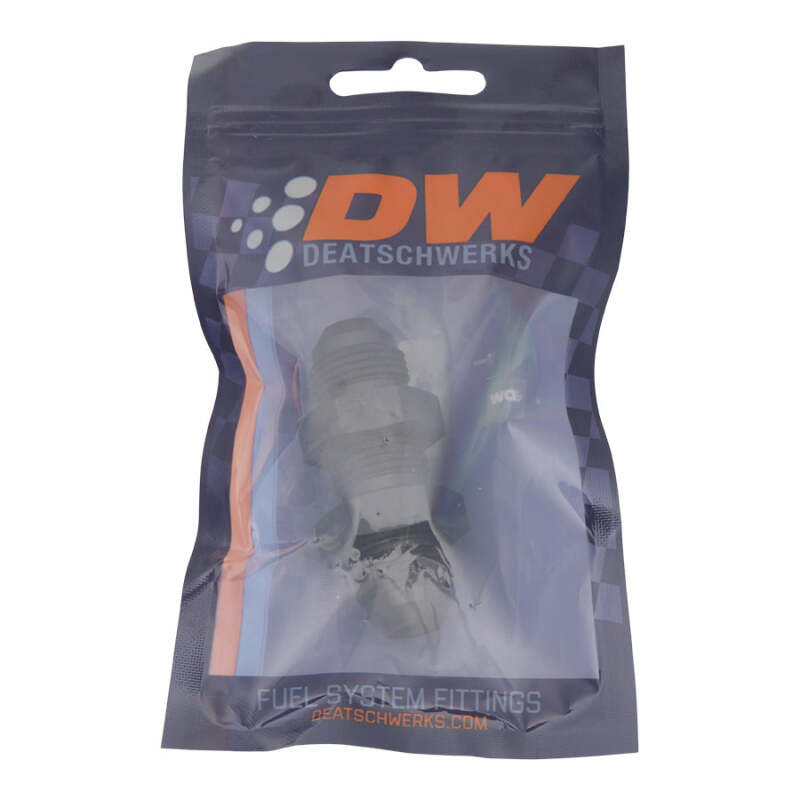

- 1 8AN bulkhead adapter
- 1 mounting nut
About DeatschWerks
DeatschWerks designs and manufactures fuel system components in Oklahoma City, including injectors, fuel pumps, fuel rails, and fittings for Sport Compact, Modern Muscle, and Euro applications.
FAQ
What is a bulkhead fitting used for?A bulkhead fitting allows a line to pass through a panel, firewall, or tank wall with a secure connection point on each side.
Does this fitting include the mounting nut?Yes, one mounting nut is included for bulkhead installation.
Is this fitting vehicle specific?No, this is a universal fitting for any system requiring an 8AN bulkhead pass-through.
Is professional installation recommended?Fuel and fluid fittings should be installed by someone experienced with system safety practices.
What material is this fitting made from?This fitting is machined and anodized for corrosion resistance.
What size panel hole does this fitting require?Refer to the fitting's thread and body dimensions when sizing the panel cutout for installation.
Can this fitting be used on both fuel and other fluid systems?Yes, this fitting can be used on fuel, oil, or other compatible fluid systems using 8AN fittings.
Does this fitting seal against the panel?Yes, the mounting nut compresses against the panel to create a secure, sealed pass-through.
Installation Instructions
- Drill or cut an appropriately sized hole in the panel for the bulkhead fitting.
- Insert the fitting through the panel and thread the mounting nut onto the back side.
- Tighten the mounting nut to secure the fitting against the panel.
- Connect both 8AN sides to their respective lines and check for leaks before pressurizing the system.
