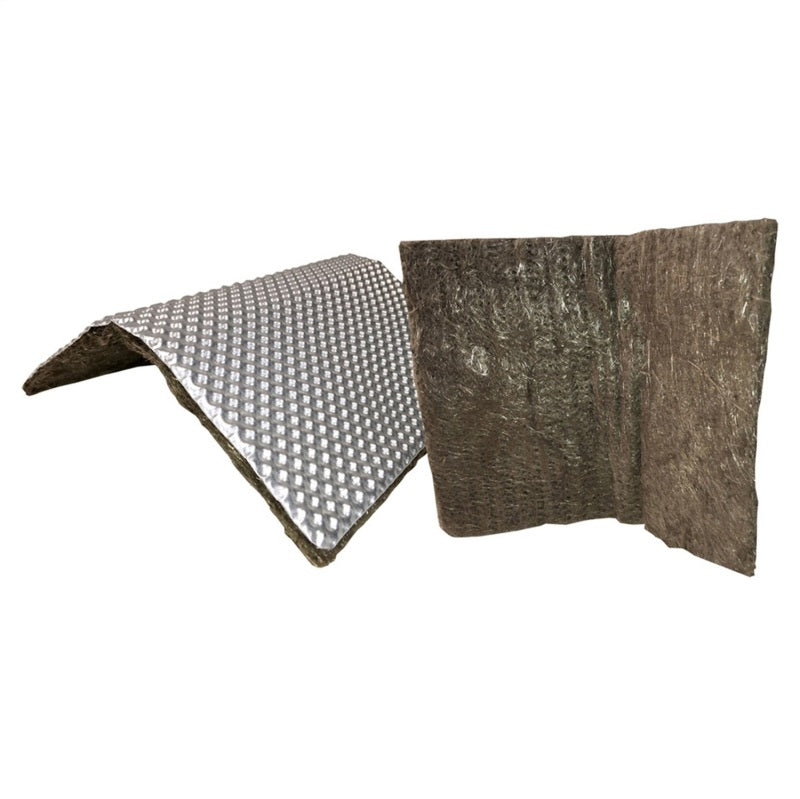

Form-A-Shield solves the problem of needing a direct contact, extreme heat barrier. Capable of withstanding direct heat of up to 1400F, Form-A-Shield can be applied to exhaust headers, manifolds, turbo housings, and downpipes dramatically reducing radiant exhaust temperatures. Formed from 10 mil dimpled aluminum bonded to a high temperature rated basalt thermal barrier material, Form-A-Shield can be applied directly to hot surfaces helping to lower under hood temperatures while keeping more heat in the exhaust system.
Key Features
- Its improved multifaceted modern aluminum surface offers improved reflectivity and rigidity and allows for ease of installation.
- Constructed with an embossed 10 mil aluminum face bonded to 1/8" composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, Floor & Tunnel Shield II withstands up to 1750° F of direct continuous heat.
- Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic.
- Can be applied directly to heat sources like exhaust manifolds and pipes.
- At only 3/16" thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas.
Fitment
Universal application. Confirm dimensions, temperature rating, clearance, and the intended component before ordering. This product does not receive a vehicle YMM tag.
Specifications
| Manufacturer | Design Engineering Inc. (DEI) |
|---|---|
| Manufacturer Part Number | 50519 |
| Product Type | Thermal Protection |
| Fitment Type | Universal |
What's Included
One 12 inch by 21 inch sheet of Form-A-Shield.
About DEI
Design Engineering Inc. develops automotive thermal, acoustic, and vibration-control products for underhood, exhaust, interior, and electrical applications. Match every product by exact manufacturer part number and published use.
Related DEI Products
- DEI 90-05 Mazda Miata NA & NB Under Carpet Interior Insulation Kit - 1/2in Thick
- DEI Starter Shield 2ft x 7in Wide - Onyx
- DEI Fuel Rail and Injecter Cover Jeep 1997 - 2004 4.0L Engine
Browse the DEI collection for related thermal-management products.
Frequently Asked Questions
Is this a universal-fit product?
Yes. It is not tied to a Year Make Model record. Confirm dimensions, temperature exposure, clearances, and the intended component before ordering.
What should I verify before ordering?
Match the DEI part number, product dimensions, material, intended location, and required clearance to the job.
Are all mounting materials included?
Only the components DEI lists for this exact part number are included. Related tape, ties, tools, or surface preparation materials may be separate.
Installation Instructions
- Confirm part number 50519, dimensions, and the intended application.
- Read the DEI instructions supplied for this exact product before disassembly.
- Allow hot components to cool and clean every mounting or contact surface.
- Test-position the product and maintain clearance from moving parts, fluids, and electrical terminals.
- Install with the specified overlap, fasteners, adhesive, or hardware, then inspect it after the first heat cycle.
