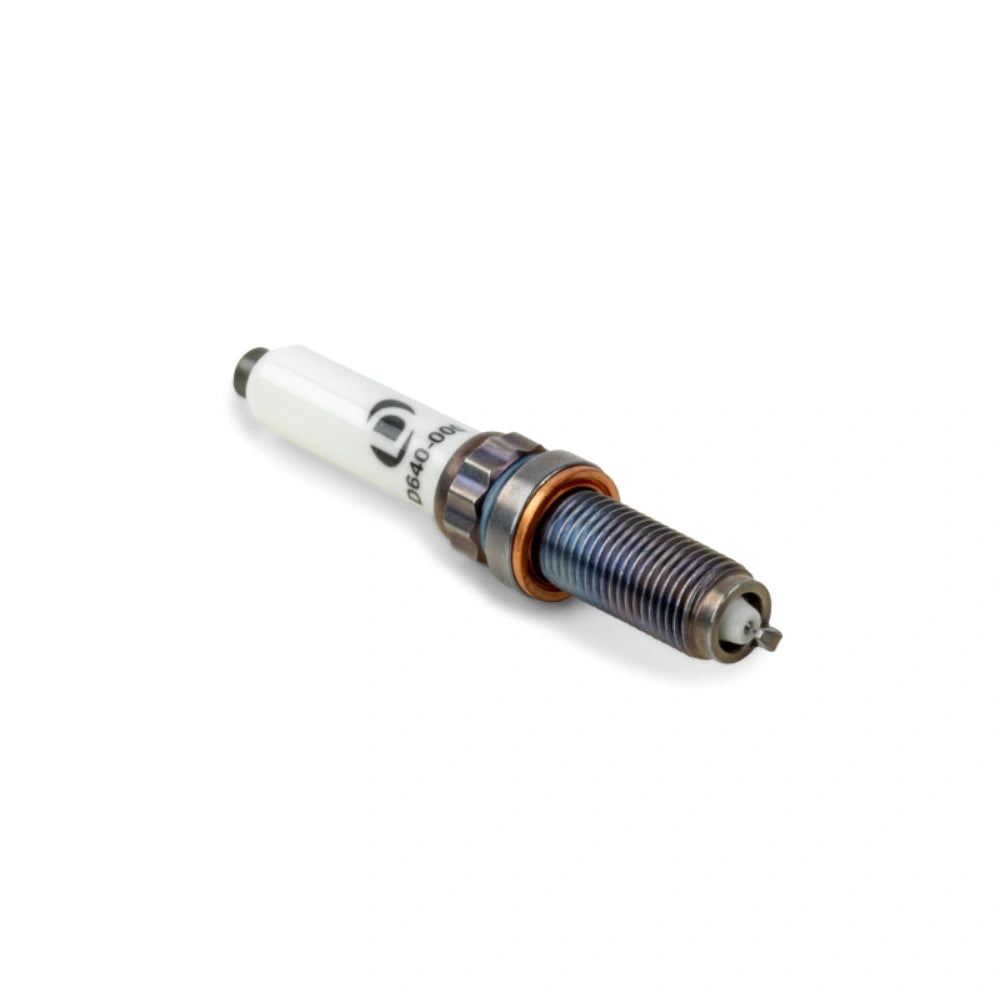

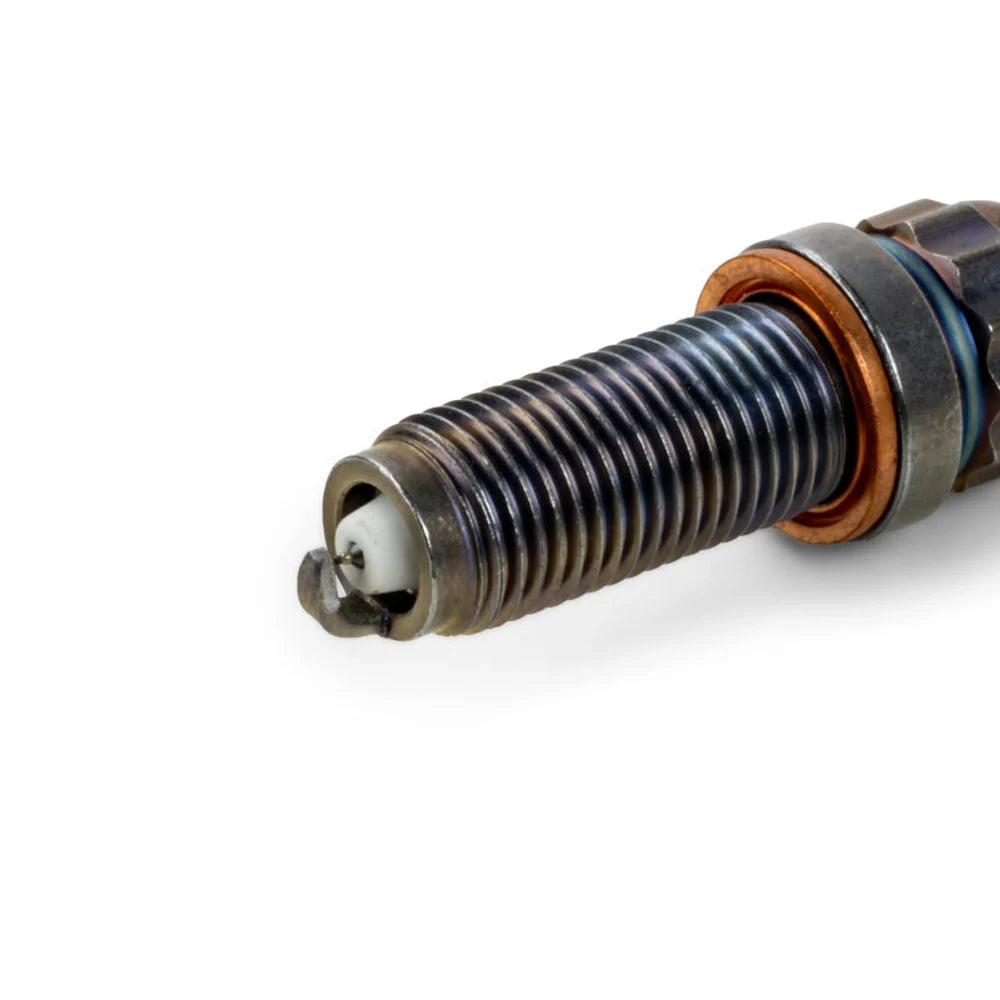

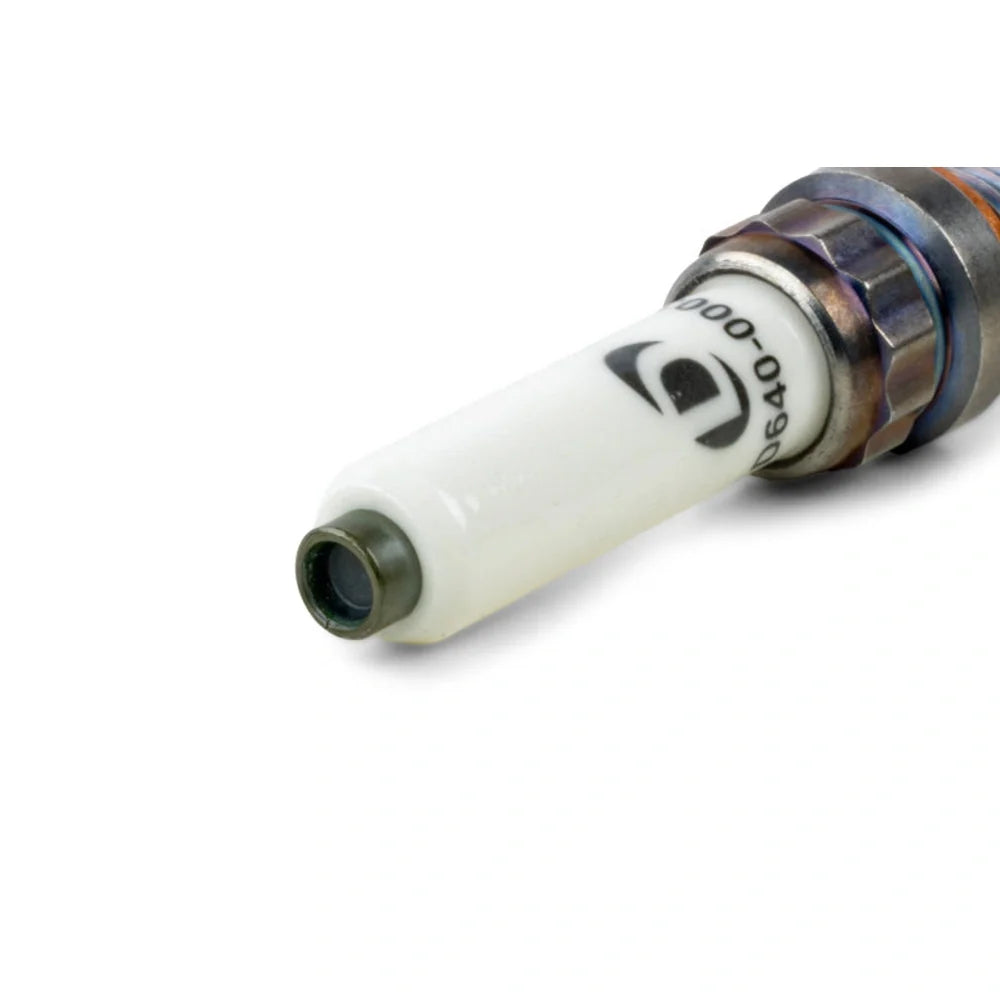

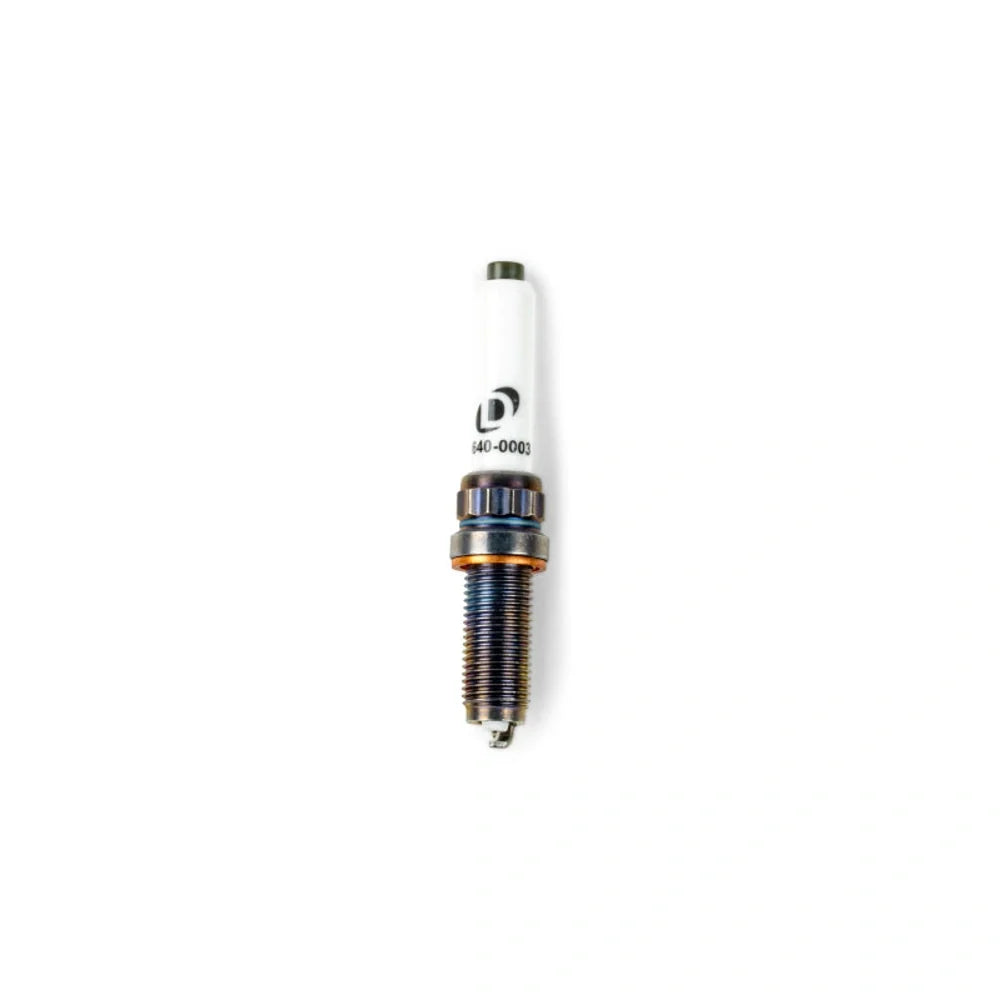

Dinan D640-0003 Iridium Spark Plug - Heat Range 12 - Single

Dinan
DNND640-0003
810215392988
Spark Plugs
20+ Units In Stock - Ships Next Business Day
Dinan, Engine, Ignition, Spark Plugs
$ 21.27
$ 21.27

Dinan D640-0003 is a single iridium performance spark plug for compatible B48 TU and B58 TU1 engine applications. It uses a 12 mm thread, 26.5 mm reach, 14 mm bi-hex, flat seat, and 0.5 mm supplied gap. Select it by exact engine, OE cross-reference, dimensions, heat range, and tuning requirements rather than an assumed vehicle list.

Key Features

  • Iridium center electrode
  • Heat range 12 comparable to NGK 8
  • 12 mm thread diameter
  • 26.5 mm reach
  • 14 mm bi-hex
  • 0.5 mm supplied gap

Fitment

This plug is engine-specific, and Dinan identifies B48 TU and B58 TU1 applications rather than a complete verified year, make, and model table. No Convermax vehicle tags are added until authoritative YMM coverage is available. Confirm OE cross-reference 12125A523E0 and all plug dimensions before installation.

Specifications

Brand Dinan
Manufacturer Part Number D640-0003
Thread Diameter 12 mm
Reach 26.5 mm
Hex 14 mm bi-hex
Seat Flat
Supplied Gap 0.5 mm
Quantity One spark plug
UPC or GTIN 810215392988

What's Included

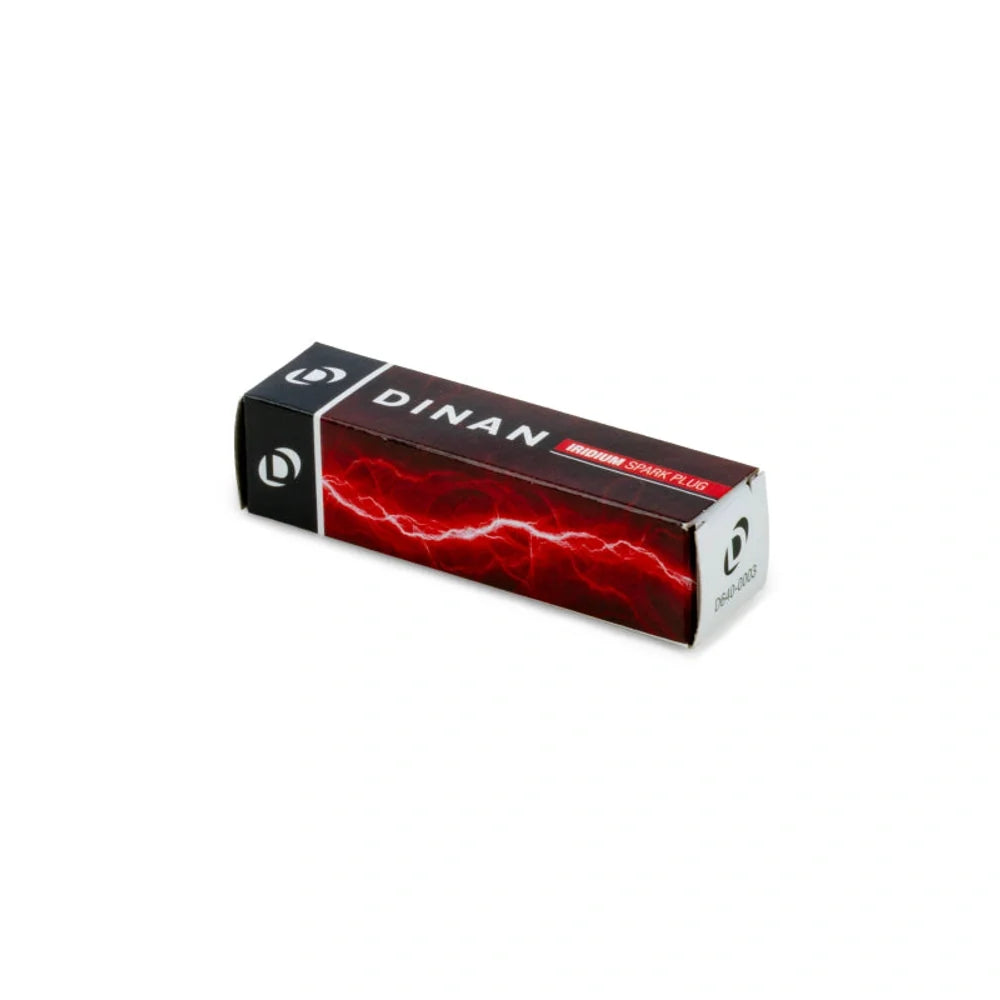

One Dinan D640-0003 iridium spark plug. Order the correct quantity for the engine. Ignition coils, tools, and other service parts are not included.

About Dinan

Dinan manufactures automotive performance and replacement components. Match the exact manufacturer part number and published application details before installation.

Related Dinan Products

Frequently Asked Questions

Is D640-0003 sold as a complete engine set?
No. This listing is for one spark plug.

Which engines does Dinan identify?
Dinan identifies B48 TU and B58 TU1 applications, also described as Gen 2 B48 and Gen 3 B58.

Why are there no vehicle tags?
The authoritative source provides engine coverage but not a complete YMM table, so the listing is marked for fitment verification rather than using invented vehicle tags.

Installation Instructions

Installation should be completed by a qualified technician using the current manufacturer instructions. Verify the vehicle or system application, inspect every supplied component, follow the specified fastener and torque procedures, check clearances and routing, and confirm safe operation before driving.
