OEM-style Elite Series LED fog lamp upgrade for Toyota 4Runner, Avalon, Prius, and Sienna, plus Lexus GX460, IS250/IS350, and CT200h models, Diode Dynamics DD5186P.

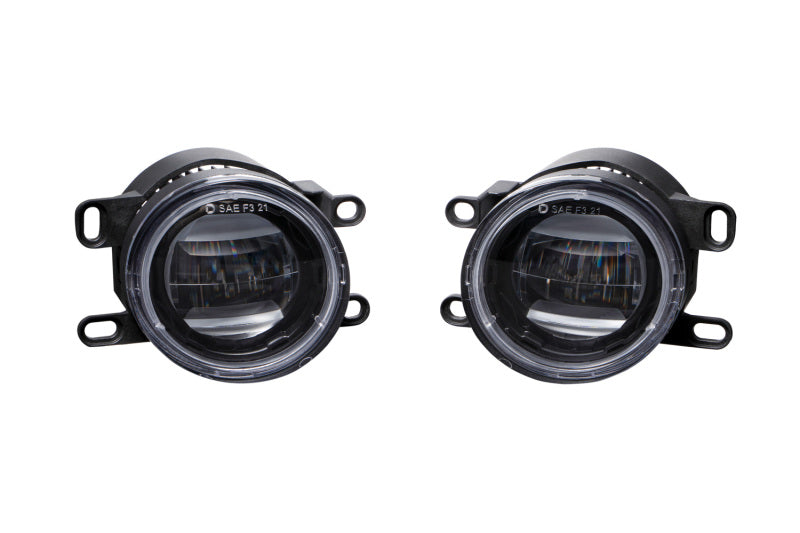

The Diode Dynamics DD5186P Elite Series fog lamp is a direct plug-and-play replacement for the factory fog light housing on Toyota 4Runner, Avalon, Prius, and Sienna, plus Lexus GX460, IS250/IS350, and CT200h models, using a custom-engineered patent-pending optic and multi-die automotive LED emitters to deliver up to 5 times more output than the factory halogen fog light. Each DD5186P lamp is built around a high-quality toroidal lens and OEM-grade aluminum casting, meets SAE F3 fog light standards for legal on-road use, and includes an integrated amber backlight accent that can be wired to a constant 12-volt source. Available in 6000K cool white or 3000K selective yellow. This Type CGX lamp kit covers the shared Lexus/Toyota bracket and connector platform for these model years.
Key Features
- The DD5186P delivers up to 5x more light output than the factory halogen fog lamp
- Custom-engineered patent-pending optic and multi-die LED emitters for a wide, intense beam
- SAE F3 compliant for legal on-road use, unlike many aftermarket fog lights
- Integrated amber backlight accent light included standard on every DD5186P lamp
- OEM-grade aluminum casting and copper-core circuit board for long-term heat dissipation
- Bolt-on plug-and-play installation using factory mounting points and hardware
- Built-in aiming adjustment screw for precise beam alignment after installation
- 8-year limited warranty backed by Diode Dynamics
Fitment
| Year | Make | Model | Trim/Submodel |
|---|---|---|---|
| 2010-2013 | Lexus | GX460 | All |
| 2011-2013 | Lexus | IS250 | All |
| 2011-2013 | Lexus | IS350 | All |
| 2011-2013 | Lexus | CT200h | All |
| 2010-2013 | Toyota | 4Runner | All |
| 2013-2015 | Toyota | Avalon | All |
| 2012-2014 | Toyota | Prius | All |
| 2010-2016 | Toyota | Sienna | All |
| 2018-2020 | Toyota | Sienna | All |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | DD5186P |
| Series | Elite Series |
| Compliance | SAE J575 durability, SAE J583 fog lamp beam pattern (SAE F3) |
| IP rating | IP68 waterproof |
| Lens material | UV-coated toroidal polycarbonate lens |
| Housing material | Precision-cast aluminum |
| Backlight feature | Integrated amber accent, constant 12V source required (fused) |
| Warranty | 8-year limited |
What's Included
- Two (2) Diode Dynamics DD5186P Elite Series fog lamps (one pair)
- Plug-and-play wiring adapters to connect to the factory bulb sockets
- Backlight tap wires and T-taps for the amber accent light circuit
- Vehicle-specific Type CGX mounting hardware
- Mounting hardware and installation guide
About Diode Dynamics
Diode Dynamics designs and engineers LED lighting upgrades in-house, using 3D vehicle scanning to develop OEM-fitment replacement housings like the DD5186P that bolt directly into the factory fog light opening with no cutting or modification. Every Elite Series lamp is assembled to meet SAE compliance standards while delivering significantly more usable light than the factory halogen equivalent.
FAQ
Is this a direct plug-and-play replacement for my factory fog lights?Yes. It bolts into the factory fog light opening using the factory mounting points and hardware, with plug-and-play wiring adapters included.
Is this fog light legal for on-road use?Yes. It is engineered to meet SAE F3 fog light standards for legal on-road use in the United States.
Does the amber backlight turn on automatically?The backlight can be wired to any constant fused 12-volt source, such as a parking or sidemarker circuit, using the included tap connector; it is not automatically powered out of the box.
Can I aim the beam after installation?Yes. Each lamp includes a built-in adjustment screw so the beam can be aimed to the correct cutoff height after mounting.
Will I need to modify my bumper or fender to install this?No cutting or drilling is required. The lamp uses the factory fog light mounting points and existing bumper opening.
What is the difference between the white and yellow versions?The white version outputs a 6000K cool white beam, while the yellow (selective yellow) version outputs a 3000K beam that many drivers prefer for foul-weather visibility; both meet the same SAE compliance standards.
How long is the warranty on this fog lamp?Diode Dynamics backs this lamp with an 8-year limited warranty.
Do I need any special tools to install this?No. Installation uses basic hand tools and, on some vehicles, a trim removal tool to access the factory fog light housing.
Installation Instructions
- Access the factory fog light by reaching behind the bumper or pulling back the wheel well liner, depending on the vehicle.
- Disconnect the factory fog light electrical connector and remove the factory fog light housing from the bumper, retaining the factory mounting hardware.
- Install the new lamp using the factory mounting points and hardware; if the lamp is side-specific, confirm the labeled side before tightening.
- Connect the included wiring adapter to the vehicle harness, and connect the backlight tap wire to a fused constant 12-volt source if the amber accent feature will be used.
- Repeat the process for the opposite side, then park facing a wall 25 feet away and use the adjustment screw to aim each beam so its top edge sits four inches below the measured mounting height.
