Diode Dynamics SS3 LED Fog Light Kit for 2017-2020 Ford F-150 Raptor

DIODD9009
195995149954
Fog Lights
1 Units In Stock - Ships Next Business Day
$ 1,019.95 $ 1,018.90
$ 1,018.90

Bolt-On Fog and Off-Road Lighting for the 2017-2020 Raptor

This is the Diode Dynamics SS3 LED Fog Light Kit built specifically for the 2017-2020 Ford F-150 Raptor, adding both SAE-compliant road-legal fog lights and powerful off-road lighting in one CAD-designed bracket kit. Six total SS3 LED pods mount into the factory bumper openings, two dedicated SAE fog pods and four combo pods, giving full coverage on-road and off-road.

Key Features

  • CAD-designed brackets mount six SS3 LED pods into the factory Raptor bumper openings.
  • Two SAE fog pods for road-legal, wide 80-degree beam coverage.
  • Four combo pods with driving and flood optics for a focused 65 by 25 degree downrange pattern.
  • Included harnesses allow independent control of fog and off-road lighting through the factory aux switch bank.
  • Each pod features an amber backlight controllable separately from the main beam.

Fitment

Year Make Model
2017-2020 Ford F-150 Raptor

Specifications

Detail Value
Brand Diode Dynamics
Series SS3
Pod Count 6 total (2 SAE fog, 4 combo)
Beam Angle Fog 80 x 8 degrees, Combo 65 x 25 degrees

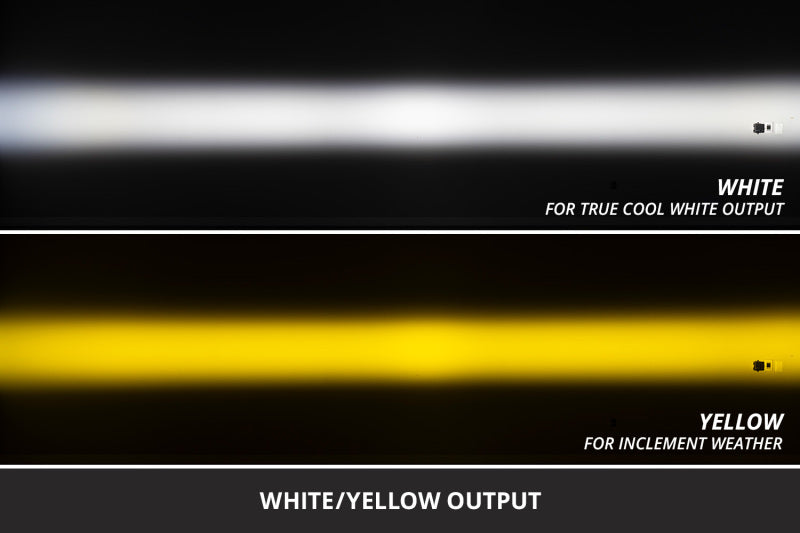

Color Temperature 6000K white or 3000K yellow fog option, 6000K white off-road pods
Operating Voltage 9-30V
Connector Deutsch DT input
Ingress Protection IP69K waterproof, high pressure
Compliance SAE J575 durability, SAE J583 foglamp beam pattern

What's Included

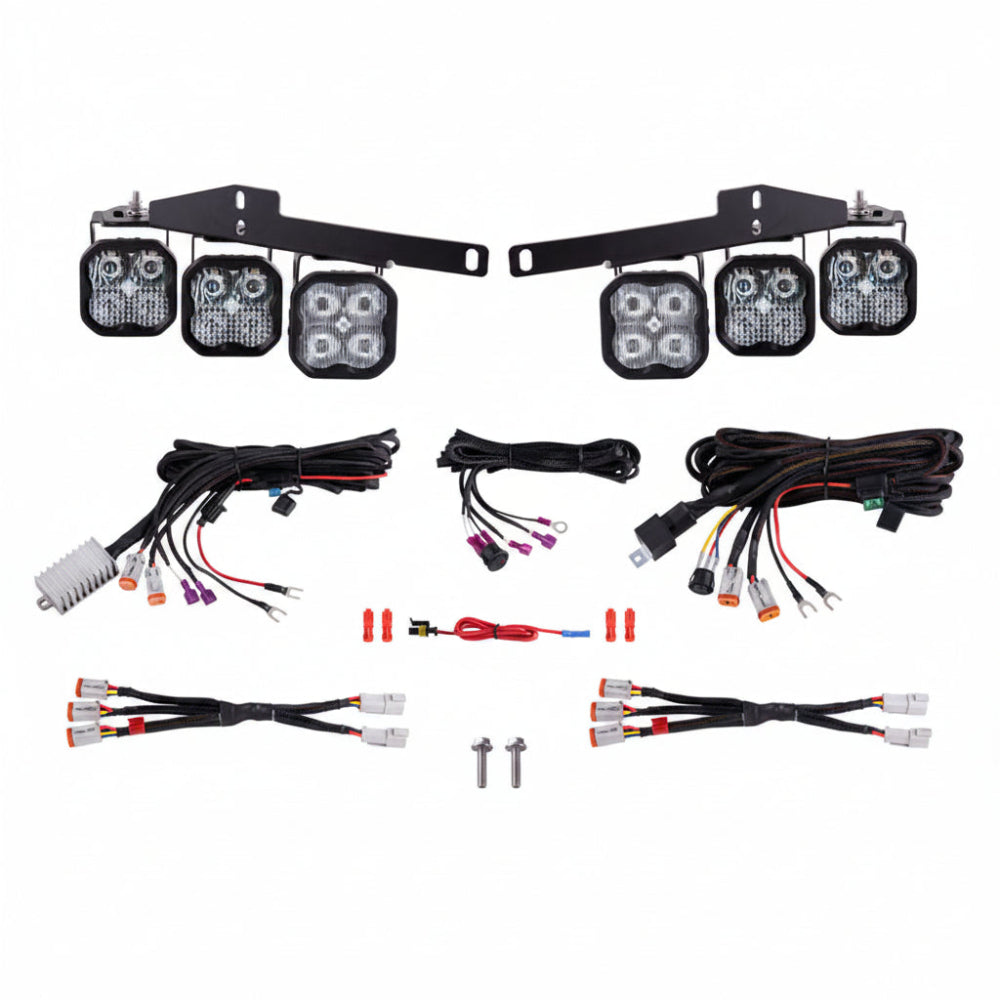

  • Two SAE Fog SS3 LED pods
  • Four Combo SS3 LED pods
  • One dual-output fog harness
  • One heavy duty dual-output 4-pin harness
  • Two 3-way backlight splitters
  • Four zip ties
  • Mounting hardware and installation guide

About Diode Dynamics

Diode Dynamics designs and engineers LED lighting in the USA, with application-specific kits like this one CAD-designed to use the factory Raptor bumper mounting points without permanent modification.

FAQ

Does this kit require cutting the factory bumper?
No, the CAD-designed brackets are built to mount into the existing factory bumper openings on the 2017-2020 Raptor.

Can I control the fog lights and off-road lights separately?
Yes, the included harnesses allow independent control of the SAE fog pods and the off-road combo pods through the factory aux switch bank.

What color fog light options are available?
The SAE fog pods are available in 6000K cool white or 3000K selective yellow. The off-road combo pods are 6000K white in both kit versions.

Are the fog lights in this kit street legal?
Yes, when installed as a pair and aimed per state regulations, the fog pattern meets SAE J583 foglamp requirements.

What is the backlight feature on these pods?
Each pod includes an amber backlight that can be controlled separately from the main beam using the factory aux switches.

How many total lights are in this kit?
Six SS3 LED pods total, two dedicated fog pods and four combo pods.

What connector do these pods use?
A Deutsch DT-style input connector, wired through the included harnesses.

Are these pods waterproof?
Yes, they carry an IP69K rating for waterproofing and high-pressure wash resistance.

Installation Instructions

  1. Remove the factory grille inserts or bumper covers as needed to access the mounting openings.
  2. Install the CAD-designed brackets into the factory Raptor bumper openings using the included hardware.
  3. Mount the two SAE fog pods and four combo pods to their respective bracket positions.
  4. Connect the dual-output fog harness and heavy duty 4-pin harness per the included wiring diagram.
  5. Route and secure all wiring with the included zip ties, away from moving or hot components.
  6. Connect the 3-way backlight splitters to enable independent backlight control.
  7. Test all lighting functions through the factory aux switches before finishing installation.
