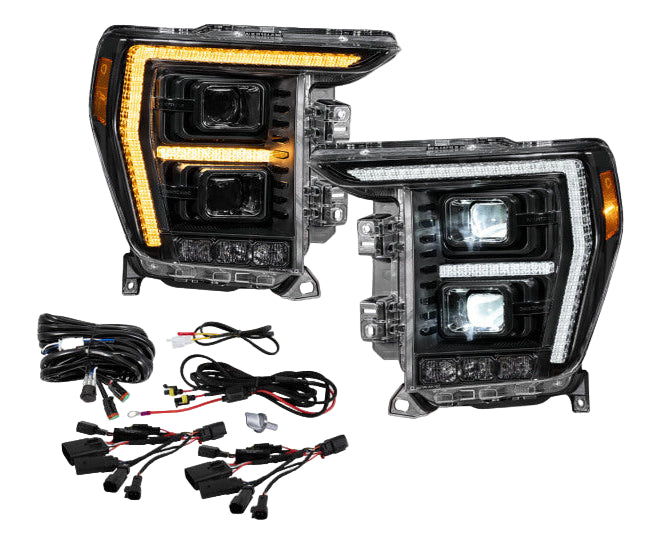

Diode Dynamics Elite Max LED headlamp assemblies pair for 2021+ F-150

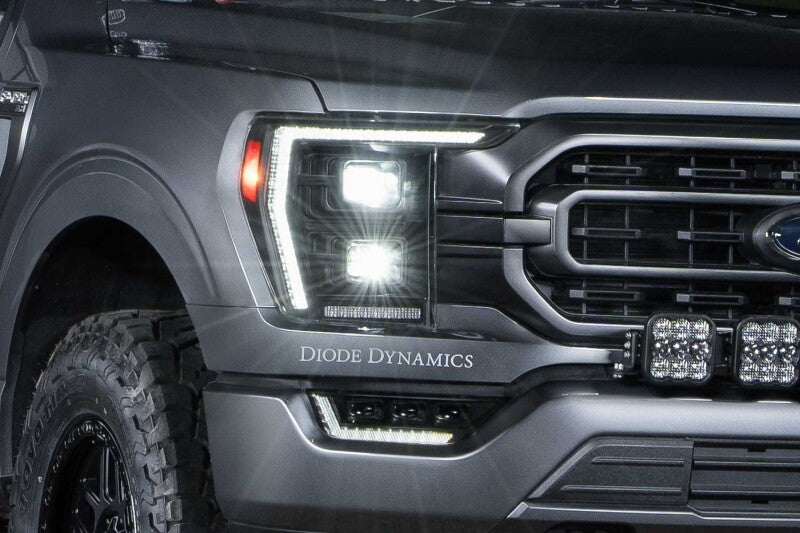

Diode Dynamics Elite Max headlamp beam pattern comparison vs factory
Diode Dynamics Elite Max headlamps installed on Ford F-150 showing light output
Diode Dynamics Elite Max integrated DRL and startup sequence on F-150
Click to zoom in

Diode Dynamics 2021+ Ford F-150 Elite Max LED Headlamps

DIODD5167
195995130983
Headlights
3 Units In Stock - Ships Next Business Day
$ 1,999.95
$ 1,999.95

SKU: DD-F150-ELITE-MAX   |   UPC: 856847007100

Diode Dynamics Elite Max LED Headlamp Assemblies - 2021+ Ford F-150 (All Trims incl. Tremor & Raptor)

The Diode Dynamics Elite Max LED headlamp assemblies for the 2021+ Ford F-150 provide a complete plug-and-play upgrade with advanced multi-beam LED technology for superior light output, beam pattern, and color temperature over factory halogen or LED lamps. Featuring full LED low/high beams, DRLs, turn signals, and startup sequence, these SAE/DOT-compliant assemblies deliver a bright 6000K white light with precise cutoff, increased width, and distance while maintaining factory fitment and functions including auto-leveling and adaptive features on compatible models.

Key Features

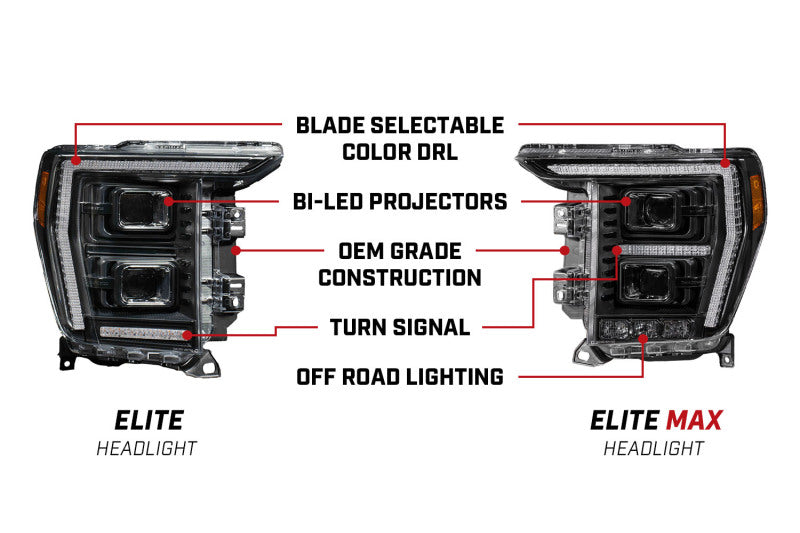

  • Multi-Beam LED Technology: Custom-engineered projectors with separate low/high beam LEDs for optimal pattern and intensity.
  • Full LED Functionality: Integrated LED DRL, turn signals, and signature startup sequence.
  • 6000K Color Temperature: Clean white light with high contrast and visibility.
  • SAE/DOT Compliant: Street-legal beam pattern with sharp cutoff no glare for oncoming traffic.
  • Plug & Play Installation: Direct replacement uses factory wiring and mounting points.
  • Aluminum Housing: Durable black aluminum with UV-coated polycarbonate lenses.
  • Adaptive Compatible: Works with factory adaptive cornering on equipped models.
  • Made in USA: Designed and assembled by Diode Dynamics in St. Louis, Missouri.

Product Notes

  • Complete pair – left and right headlamp assemblies.
  • Part number: DD-F150-ELITE-MAX (Elite Max series).
  • Fits all 2021+ F-150 models including XL, XLT, Lariat, King Ranch, Platinum, Limited, Tremor, and Raptor.
  • Compatible with halogen and factory LED headlamps full replacement assembly.
  • Output: ~3,000 lumens low beam / ~4,500 lumens high beam per side.
  • Weight approximately 28-32 lbs per pair.
  • Lifetime warranty.

Installation Notes

  • Direct bolt-on replacement remove factory lamps and install Elite Max assemblies.
  • Professional installation recommended for headlight aim adjustment.
  • Typical install time 1-2 hours.
  • Headlight aiming required after install for proper cutoff.

This Part Fits

Year Make Model Notes
2021-2025 Ford F-150 All Trims (incl. Raptor & Tremor)

Why Choose Diometrically Dynamics Elite Max?

  • Industry leader in automotive LED lighting with patented optics and engineering.
  • Elite Max series offers the brightest, most advanced LED headlamps for modern trucks.
  • Perfect upgrade for F-150 owners seeking maximum visibility and style.

Frequently Asked Questions

  • Q: Does this fit Raptor models?
    A: Yes, fits all 2021+ F-150 including Raptor (non-matrix LED models).
  • Q: Will it work with adaptive headlights?
    A: Yes, compatible with factory adaptive cornering systems.
  • Q: Is aiming required?
    A: Yes, headlight aiming recommended after install for proper beam pattern.

Shipping & Handling

  • Method: Freight truck (large heavy box).
  • Package Weight: Approximately 40–50 lbs.
  • Box Dimensions (approx): 36" × 24" × 18".
