This is the Diode Dynamics Stage Series Fog Pocket Kit built for the 2021-2025 Ford Bronco equipped with the factory steel bumper, adding both SAE-compliant road-legal fog lights and off-road lighting through CAD-designed brackets. The kit mounts two SS3 LED pods in the SAE fog beam pattern and four SSC2 LED pods in a combo beam pattern into the factory bumper openings.
| Year | Make | Model |
|---|---|---|
| 2021-2025 | Ford | Bronco |
This kit is compatible only with the 2021-2025 Bronco equipped with the factory steel bumper and is not compatible with models using the plastic bumper.
| Detail | Value |
|---|---|
| Brand | Diode Dynamics |
| Series | Stage Series (SS3 fog / SSC2 combo) |
| Pod Count | 6 total (2 SS3 fog, 4 SSC2 combo) |
| SS3 Beam Angle | Fog, 80 x 8 degrees |
| SSC2 Beam Pattern | Combo, 40 x 20 degrees |

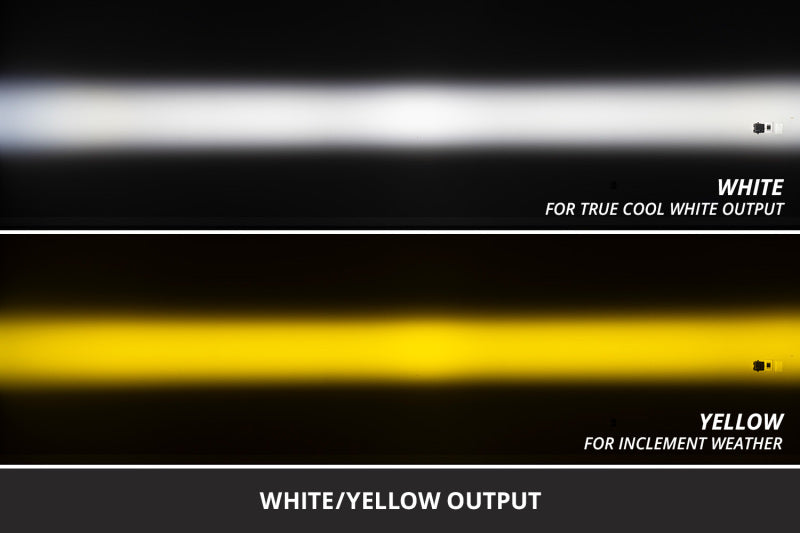

| Color Temperature | 6000K white or 3000K yellow fog option, 6000K white off-road pods |
| SS3 Operating Voltage | 9-30V |
| SSC2 Operating Voltage | 9-16V |
| Connector | Deutsch DT input |
| Ingress Protection | IP69K waterproof, high pressure |
| Bumper Compatibility | Steel bumper only, not compatible with plastic bumper |
Diode Dynamics designs and engineers LED lighting in the USA, with application-specific kits like this one CAD-designed to use the factory Bronco steel bumper mounting points without permanent modification.
Will this kit fit a Bronco with the plastic bumper?
No, this kit is designed specifically for the steel bumper and is not compatible with the plastic bumper option.
Can I control the fog lights and off-road lights separately?
Yes, the included harnesses allow independent control of the SS3 fog pods and SSC2 combo pods through the factory aux switch bank.
Do the fog pods turn on automatically with the headlights?
Yes, the SS3 fog pods are wired to activate the same way factory-installed fog lights do.

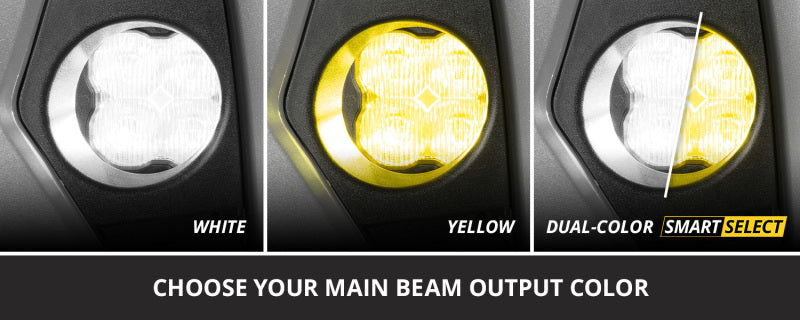

What color fog light options are available?
The SS3 fog pods are available in 6000K cool white or 3000K selective yellow. The SSC2 off-road pods are 6000K white in both kit versions.
Are the fog lights in this kit street legal?
Yes, when installed as a pair and aimed per state regulations, the fog pattern meets SAE J583 foglamp requirements.
How many total lights are in this kit?
Six LED pods total, two SS3 fog pods and four SSC2 combo pods.
What connector do these pods use?
A Deutsch DT-style input connector, wired through the included harnesses.
Are these pods waterproof?
Yes, they carry an IP69K rating for waterproofing and high-pressure wash resistance.
