Pair the Complete Level 5 Rear Driveline Upgrade on Your Nissan Skyline GT-R with the DSS Right Rear Axle

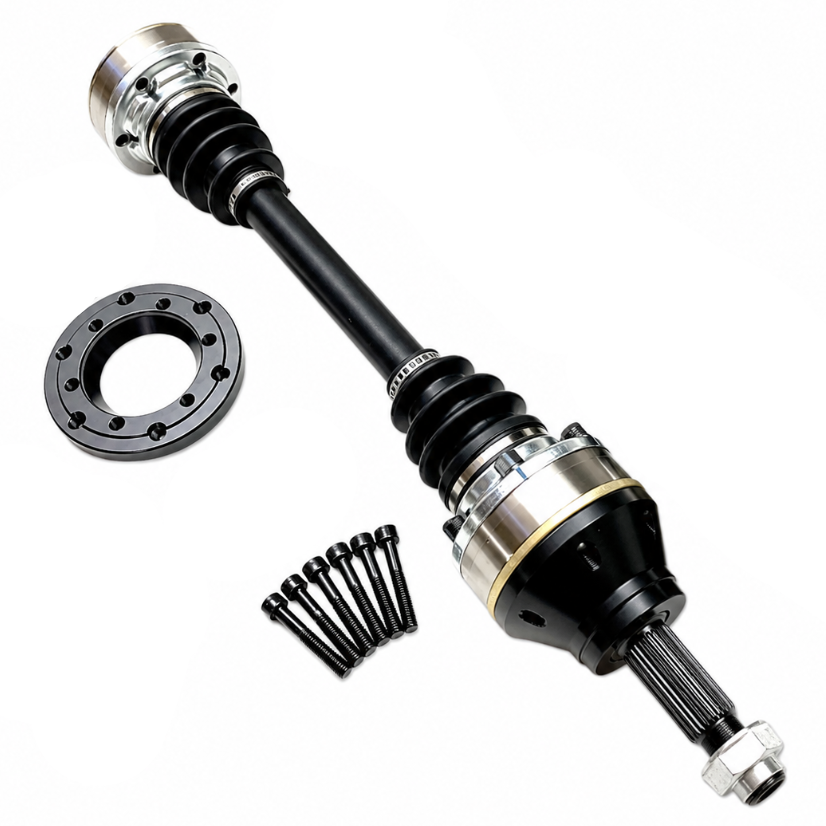

The DSS Level 5 rear right axle for the 1989-2002 Nissan Skyline GT-R across R32, R33, and R34 generations. It is the right-side (passenger side) counterpart to the RA8012X5 left rear axle, forming a complete rear axle upgrade set when used together. Like the left-side unit, it uses Porsche-style 108mm CV joints on both ends, a 30-spline billet 4340 chromoly center bar, and precision billet adapter plates for direct installation on the factory differential stubs. This axle is sold individually as DSS510030.
The aerospace-quality torsional center bar absorbs shock loads from high-horsepower launches and power delivery, outperforming the factory rear axles under sustained track use, drag racing, or aggressive street driving. The outer CV is manufactured from a DSS proprietary high-grade material for superior strength and wear resistance. No modifications to the vehicle are required for installation.
Key Features
- Porsche-style 108mm CV joints on both ends for maximum articulation and strength
- 30-spline billet 4340 chromoly center bar rated for high-horsepower applications
- Aerospace-quality torsional bar absorbs shock loads from aggressive launches
- Outer CV manufactured from DSS proprietary high-grade material
- Precision billet adapter plates included for direct mount to factory differential stubs
- Fits R32 (1989-1994), R33 (1993-1998), and R34 (1999-2002) GT-R generations
- Right-side (passenger side) rear axle, sold as a single unit
- No vehicle modifications required for installation
- 1-year Driveshaft Shop limited warranty
Vehicle Fitment
| Year Range | Make | Model |
|---|---|---|
| 1989-1994 | Nissan | Skyline GT-R (R32) |
| 1993-1998 | Nissan | Skyline GT-R (R33) |
| 1999-2002 | Nissan | Skyline GT-R (R34) |
Specifications
| Detail | Value |
|---|---|
| Brand | Driveshaft Shop (DSS) |
| Part Number | RA8013X5 |
| SKU | DSS510030 |
| Axle Type | Level 5 Rear Right Axle |
| CV Joint Type | Porsche-Style 108mm (both ends) |
| Center Bar | 30-Spline Billet 4340 Chromoly |
| Adapter Plates | Precision billet, included |
| Side | Right (Passenger Side) |
| Installation | Direct bolt-on, no modifications required |
| Application | Street, Time Attack, Drag Racing |
| Warranty | 1-Year DSS Limited |
| Weight | 45 lbs |
| Dimensions | 39 x 11 x 6 in |
| UPC | N/A |
What's Included
- 1x DSS Level 5 right rear axle assembly (passenger side)
- Precision billet adapter plates with mounting hardware
About Driveshaft Shop
Driveshaft Shop (DSS) has been engineering high-performance driveline components since the early 1990s and is one of the most respected axle and driveshaft manufacturers in the performance industry. Their Pro-Level and Level 5 systems are industry standards for drag racing and time attack applications, proven on some of the highest-horsepower builds worldwide. DSS manufactures all components in-house using proprietary materials and processes, backed by a limited warranty.
Related Parts on Our Site
Frequently Asked Questions
What is the DSS RA8013X5?
The DSS RA8013X5 is a Driveshaft Shop Level 5 rear right axle for the 1989-2002 Nissan Skyline GT-R across R32, R33, and R34 generations. It uses Porsche-style 108mm CV joints, a 30-spline billet 4340 chromoly center bar, and billet adapter plates for direct installation on the factory differential stubs, sold individually as the passenger-side rear axle (SKU DSS510030).
What is the difference between a DSS Level 5 rear axle and the factory unit?
The factory Nissan Skyline GT-R rear axles use smaller CV joints and lower-grade center bars that are prone to failure under high-power or high-traction conditions. This Level 5 unit upgrades to Porsche-style 108mm CVs on both ends and a 30-spline billet 4340 chromoly bar with an aerospace-quality torsional design that absorbs shock loads instead of snapping under aggressive launches or sustained high-horsepower use.
Does this fit the R32, R33, and R34 GT-R?
Yes. This Level 5 rear axle fits all three Skyline GT-R generations: R32 (1989-1994), R33 (1993-1998), and R34 (1999-2002). The included billet adapter plates allow direct installation on the factory differential stubs across all three generations with no modifications required.
Is this a left or right rear axle?
This is the right-side (passenger side) rear axle (SKU DSS510030). The left-side rear axle is the RA8012X5, available separately. For a complete rear axle upgrade, you need both part numbers.
Does this axle require any modifications to the GT-R?
No. This axle includes precision billet adapter plates that mount directly to the factory differential stubs on the Skyline GT-R without any welding, machining, or modifications to the vehicle. It is a direct bolt-on installation on all covered R32, R33, and R34 models.
Can I use this axle with a stock differential?
Yes. The DSS Level 5 rear axle system is compatible with stock differentials as well as upgraded aftermarket units. The billet adapter plates are designed for the factory differential stub interface, so no differential modifications are required for installation.
What warranty does this axle carry?
Driveshaft Shop provides a 1-year limited warranty covering manufacturing defects. Retain your proof of purchase for any warranty claims. Failures resulting from abuse, improper installation, or exceeding the rated application are not covered.
Can this axle be used for street driving?
Yes. The DSS Level 5 rear axle is engineered for street, time attack, and drag racing use. It is fully compatible with daily driving on the Skyline GT-R and does not require any special maintenance beyond what a standard rear axle would need. The torsional center bar design absorbs driveline shock under normal acceleration for improved feel.
How does the 108mm Porsche-style CV compare to the factory GT-R CV?
The Porsche-style 108mm CV joint used on this axle is substantially larger and stronger than the factory Skyline GT-R rear CV joint. The larger cage and race-proven geometry provide greater articulation angle, higher torque capacity, and longer service life under the stress of high-horsepower launches and sustained track use.
Installation Instructions
- Safely raise and support the vehicle on jack stands. Remove the right rear wheel.
- Disconnect the right rear ABS sensor connector if equipped and secure it away from the work area.
- Remove the factory axle nut and any retaining clips or cotter pins on the rear axle.
- Separate the factory axle from the hub carrier by pressing or pulling outward from the hub.
- Remove the factory axle from the differential stub. Note the orientation of the original adapter plate for reference.
- Clean the differential stub mounting surface and hub bore to remove rust, debris, and old grease.
- Install the DSS billet adapter plate onto the differential stub and torque mounting hardware to the DSS specification.
- Insert the outer CV into the hub and install the axle nut finger-tight.
- Connect the inboard CV to the adapter plate and torque all fasteners to specification.
- Torque the axle nut to the factory specification for your GT-R model year.
- Reconnect the ABS sensor, reinstall the wheel, and torque lug nuts to spec.
- Lower the vehicle and road-test before returning to full-power use.
