108W Flood and Spot Combo Light with Dual-Color Halo for Any Bumper or Light Bar Mount

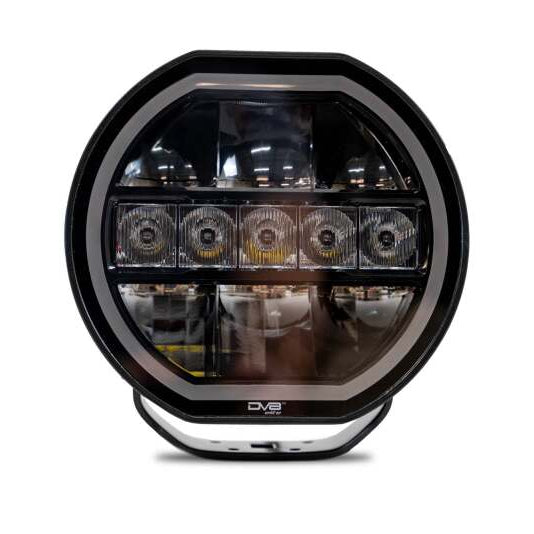

This is a 7-inch round LED light producing 3,600 raw lumens from a 108-watt combo flood and spot beam in 5700K bright white. The BE7RW108W-H fits any bumper, bull bar, or light bracket with a standard 7-inch round light mount, making it compatible with a wide range of off-road builds across Jeep, Ford, Toyota, and other platforms.
The light includes an amber or clear accent halo that operates as a visual signature when the main light is off, and automatically shuts off when the main LED beam is activated. Two operating modes are built in: driving mode for general use and off-road mode for maximum legal output. Switching modes requires a simple on/off sequence described in the instructions.
The BE7RW108W-H is rated IP68 for full waterproof protection, and the polycarbonate lens is shatterproof and UV-resistant for long-term durability in demanding conditions.
Key Features
- 3,600 Raw Lumens at 108 Watts: The BE7RW108W-H delivers 3,600 raw lumens from 108 watts of LED power in a 7-inch round form factor, providing substantial output for trail lighting, ditch lighting, and forward-facing off-road illumination
- Flood and Spot Combo Beam: The combo beam pattern illuminates a wide zone close to the vehicle for ditch and side hazard detection while simultaneously projecting a spot beam far ahead to identify obstacles in the distance

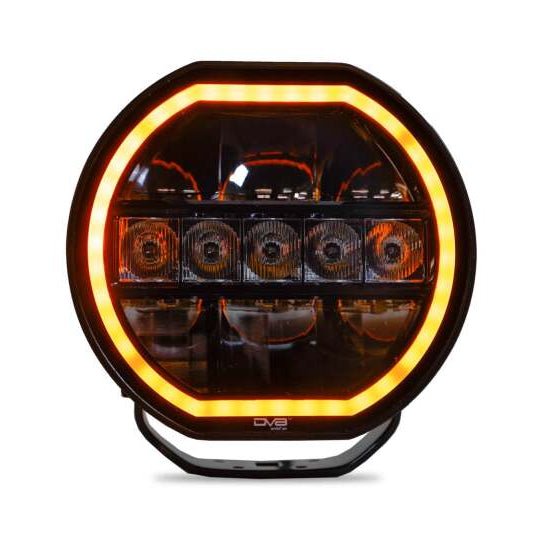

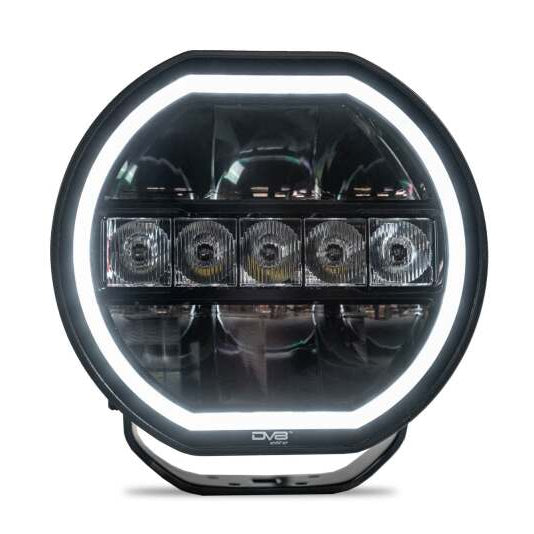

- Amber or Clear Accent Halo: The BE7RW108W-H includes a dual-color halo ring that can be wired to either amber or clear output. The halo operates as an accent or DRL-style marker when the main beam is off, and automatically deactivates when the main LED is on
- Driving and Off-Road Dual Modes: The BE7RW108W-H includes two programmable modes. Driving mode suits general use. Off-road mode maximizes output. Switching between modes uses a simple timed on/off sequence and the light retains its last mode when powered off
- IP68 Waterproof, 50,000-Hour LED Life: All BE7RW108W-H components are IP68-rated for full immersion waterproof protection. The LED array is rated for 50,000 hours of service life
- Shatterproof UV-Resistant Polycarbonate Lens: The lens is engineered to resist impact, UV degradation, and yellowing over time in harsh outdoor environments
- Satin Black Aluminum Housing: The aluminum housing is finished in a durable satin black powder coat that resists corrosion and complements most bumper and light bar finishes
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | BE7RW108W-H |
| SKU | DVEBE7RW108W-H |
| Light Size | 7 inches (round) |
| Total Wattage | 108W |
| Output | 3,600 lumens (RAW) |
| Color Temperature | 5700K (main beam) |
| Beam Pattern | Combo (Flood + Spot) |
| LED Lifespan | 50,000 hours |
| Halo Options | Amber or Clear (selectable by wiring) |
| Operating Modes | Driving + Off-Road (dual mode) |
| Housing Material | Aluminum, Satin Black Powder Coat |
| Lens Material | Shatterproof UV-Resistant Polycarbonate |
| Waterproof Rating | IP68 |
| Fitment | Universal (7-inch round light mounts) |
| Prop 65 | Yes |

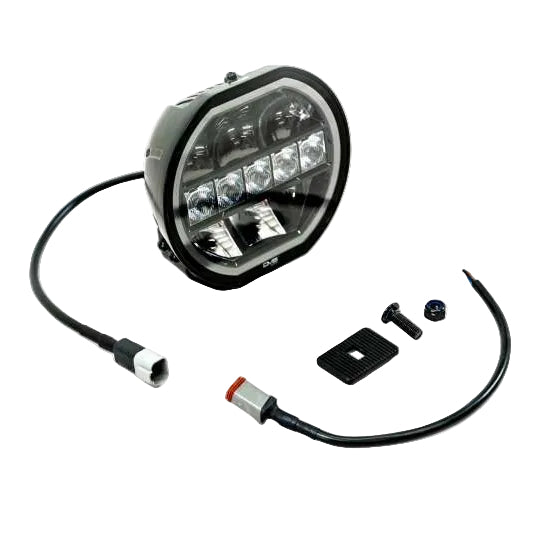

What's Included
- One (1) DV8 BE7RW108W-H 7-inch halo elite round LED light
- Wiring pigtail with weather-resistant plug
- Mounting hardware
- DV8 instruction sheet
About DV8 Offroad
DV8 Offroad engineers and manufactures off-road lighting, bumpers, skid plates, fender flares, and accessories for Jeep, Ford, Toyota, and other off-road platforms. Their Elite Series lighting line is designed to provide high-output LED performance in compact, durable housings engineered for demanding trail and overland use. DV8 products undergo rigorous testing for waterproofing, vibration resistance, and temperature performance before release.
Frequently Asked Questions
What is the DV8 BE7RW108W-H?
The DV8 BE7RW108W-H is a 7-inch round halo elite LED light producing 3,600 raw lumens at 108 watts in a 5700K white combo flood and spot beam. It includes an amber or clear accent halo that activates when the main beam is off, supports dual driving and off-road modes, is rated IP68 waterproof, and fits any standard 7-inch round light mount on off-road bumpers, bull bars, or light brackets.
Is the BE7RW108W-H sold as a single light or a pair?
The BE7RW108W-H is sold as a single light. If you are using two lights on a bumper or bar, you will need to add two units to your cart.
What is the difference between driving mode and off-road mode on the BE7RW108W-H?
Driving mode is the default mode and is suitable for general road and trail use within legal output limits. Off-road mode maximizes the BE7RW108W-H's full 108-watt output for demanding trail conditions. To switch modes: power on the light, wait 2 seconds, then cycle the power off and on 3 times within 5 seconds. The light transitions to off-road mode and retains this setting until you switch back.
Can the halo be wired as amber or white?
Yes. The BE7RW108W-H includes a halo ring that can be connected to either an amber or clear output depending on wiring. The halo illuminates when the main beam is off and shuts off automatically when the main LED beam activates.
What vehicles does the BE7RW108W-H fit?
The BE7RW108W-H is a universal 7-inch round light that mounts to any off-road bumper, bull bar, or accessory bracket designed for 7-inch round light housings. Compatible vehicles include Jeep Wrangler JK and JL, Jeep Gladiator JT, Ford Bronco, Toyota Tacoma, Toyota 4Runner, and any other vehicle with a compatible mounting location. A mount or bracket is required and sold separately.
Is the BE7RW108W-H waterproof?
Yes. The BE7RW108W-H carries an IP68 waterproof rating, meaning it is fully protected against dust ingress and temporary water immersion. The polycarbonate lens is also shatterproof and UV-resistant for long-term outdoor durability.
Does the BE7RW108W-H require a relay or switch?
Yes. Like all high-output auxiliary LED lights, the BE7RW108W-H requires proper wiring with an appropriate relay, fuse, and switch or controller. Direct connection to vehicle wiring without a relay risks electrical damage. Consult the DV8 instruction sheet and follow proper wiring practices for your specific installation.
What is the beam pattern of the BE7RW108W-H?
The BE7RW108W-H uses a combo beam pattern combining both flood and spot elements. The flood portion illuminates a wide zone close to the vehicle for side and ditch hazard detection. The spot portion projects a focused beam far ahead to identify trail obstacles at distance. This combo pattern is ideal for general off-road and overland use where both coverage and distance illumination are needed simultaneously.
Installation Instructions
- Select an appropriate bumper, bull bar, or light bracket mounting location with a 7-inch round light opening or mount compatible with the BE7RW108W-H housing
- Position the BE7RW108W-H in the mount and secure with the included hardware, confirming the light is aimed at the desired angle before fully tightening
- Route the BE7RW108W-H wiring pigtail to your relay and switch location, keeping the wiring away from moving components, heat sources, and sharp edges
- Connect the main beam leads through a properly sized relay (30A minimum recommended) and fuse to your battery or switched power source
- Connect the halo leads to either the amber or clear circuit per the DV8 wiring diagram, connecting to a 12V switched or constant source as desired
- Power on the light and confirm both main beam and halo function correctly in driving mode
- To switch to off-road mode: power on, wait 2 seconds, then cycle off/on 3 times within 5 seconds
- Confirm beam aim is appropriate for your intended use and adjust the mounting bracket angle if needed
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
