Wide-Area Illumination with a Built-In Amber Accent

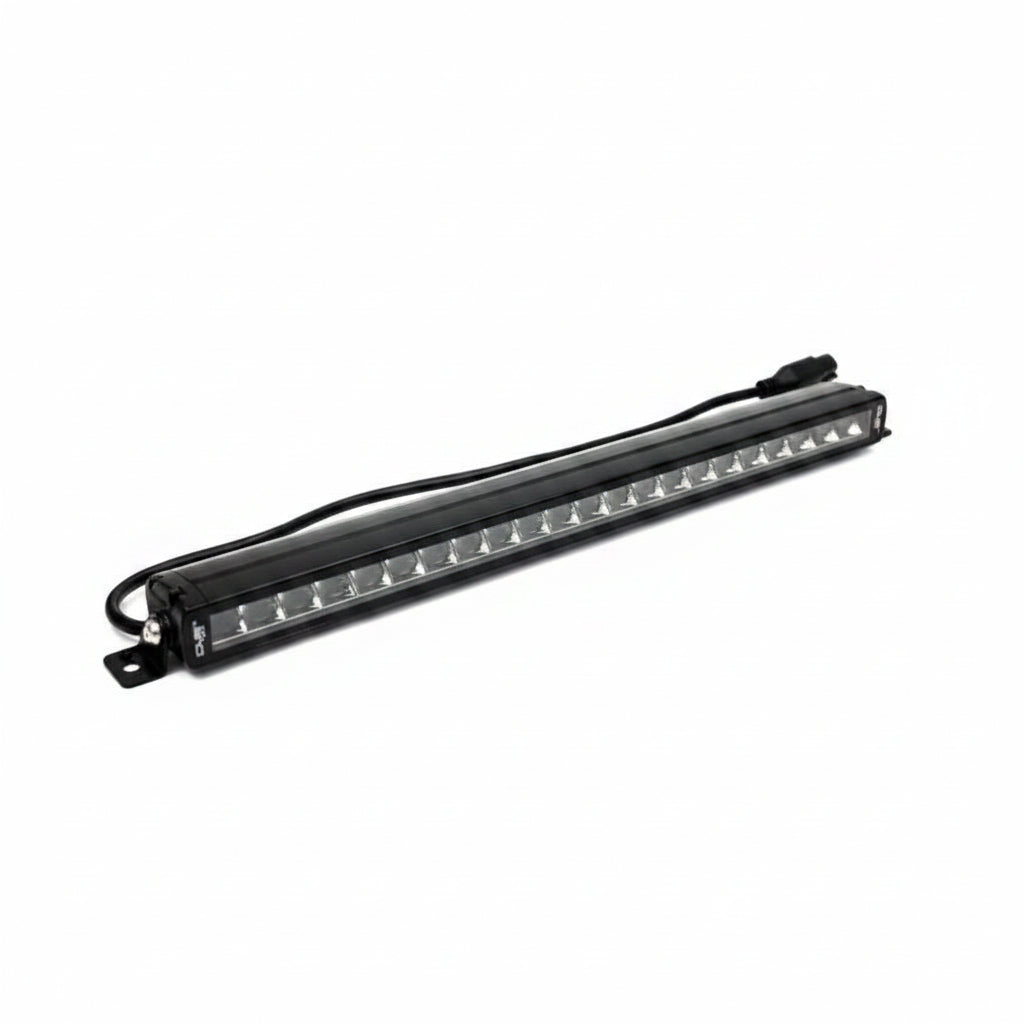

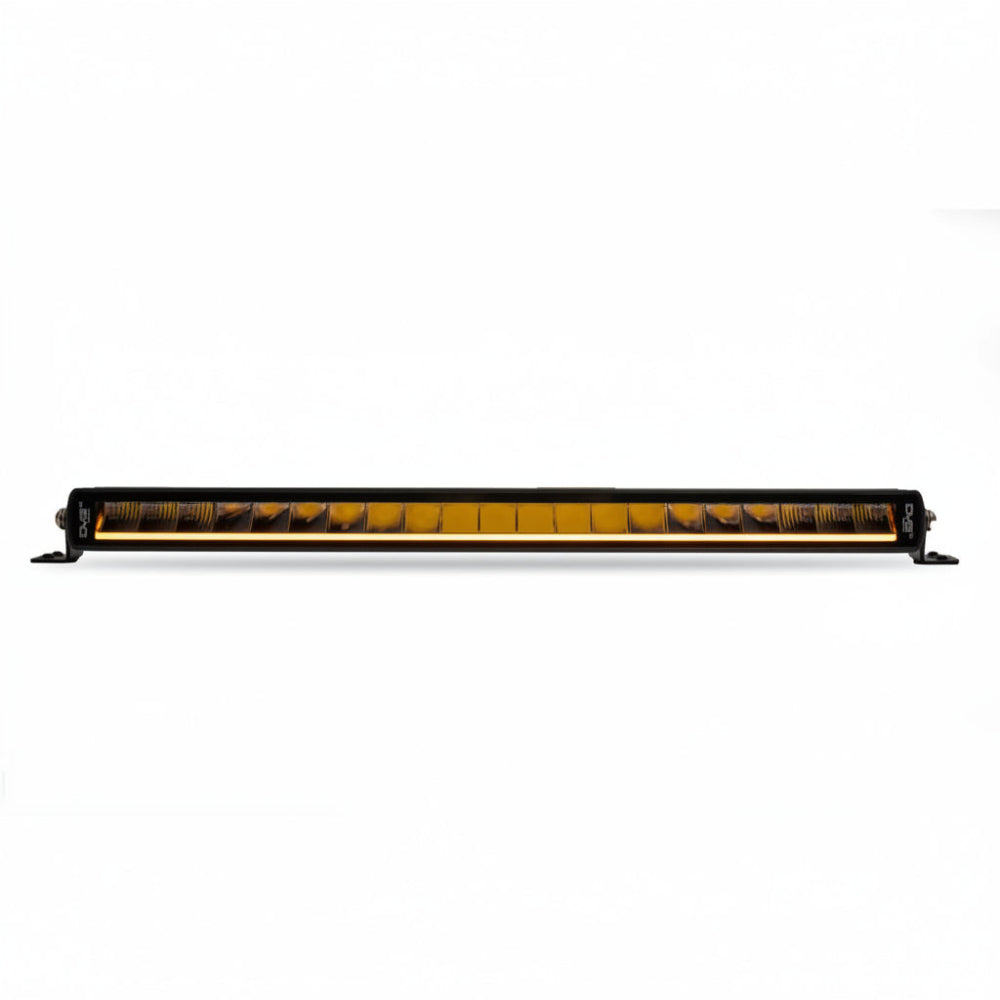

This is the DV8 Offroad BE20SW105W-H, a 20-inch single row LED light bar that combines flood and spot beam patterns for wide-area and long-distance illumination, with a built-in amber accent light for supplemental lighting when the main beam is off.
Key Features
- 8,820 raw lumens in a combined flood and spot pattern for both close-range width and long-range reach.

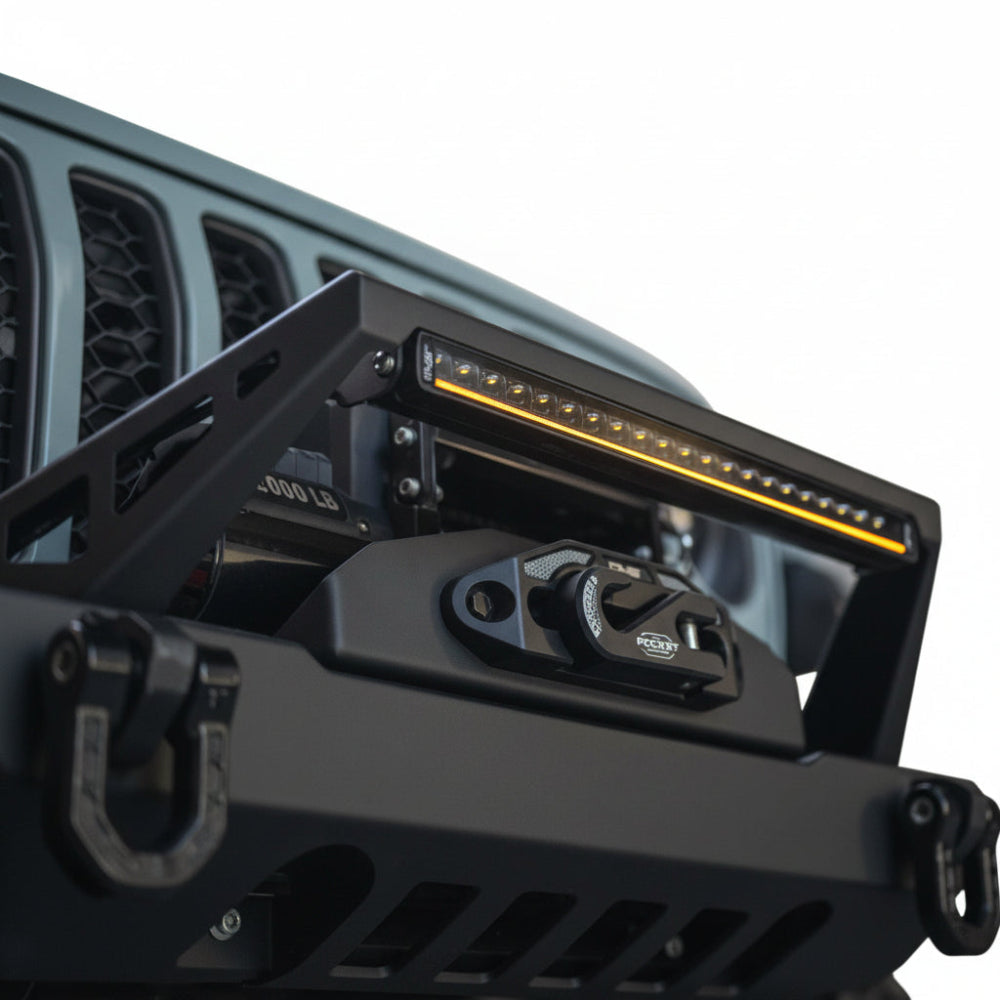

- Built-in amber accent light that runs independently and automatically turns off when the main light is activated.
- Driving and off-road light modes, switchable by cycling the light on and off three times within 5 seconds after the first 2 seconds of activation.
- Aluminum housing with a satin black powder coat finish and a shatterproof, UV-resistant polycarbonate lens.
- IP68 rated for water and dust resistance, with a weather-resistant wiring plug.
- 5700K bright white LEDs rated for 50,000 hours of use.
Fitment
| Application | Requirement |
|---|---|
| Vehicle fitment | Universal. Mounts to front bumpers, grilles, roof racks, or bull bars with appropriate mounting hardware. |
| Common uses | Trucks, SUVs, and off-road vehicles, including Jeep Wrangler and Gladiator applications. |
| Wiring | Proper wiring to a switched, fused power source is required and is not included; a relay and switch kit is recommended. |
Specifications
| Detail | Value |
|---|---|
| Brand | DV8 Offroad |
| MPN | BE20SW105W-H |
| Length | 20 inches |
| Row type | Single row |
| Beam pattern | Combined flood and spot |
| Raw lumens | 8,820 |
| Color temperature | 5700K bright white |
| Accent light | Amber, independent circuit |
| Housing material | Aluminum, satin black powder coat |
| Lens material | Shatterproof, UV-resistant polycarbonate |
| Water/dust rating | IP68 |
| LED lifespan | 50,000 hours |
What's Included
- 1 20-inch single row LED light bar with amber accent light
- Mounting hardware
About DV8 Offroad
DV8 Offroad builds off-road lighting and armor for trucks, SUVs, and Jeep applications, pairing high-output LED main beams with independent accent circuits for flexible use both on and off the trail.
Related Parts
FAQ
What is the BE20SW105W-H?It is a 20-inch single row LED light bar combining a flood/spot main beam with a built-in amber accent light.
How many lumens does this light bar produce?8,820 raw lumens from the main beam.
What beam pattern does it use?A combined flood and spot pattern for both wide coverage and long-distance visibility.
Does the accent light stay on with the main light?No, the amber accent light automatically turns off when the main light is activated.
How do I switch between driving and off-road mode?Turn on the light, wait 2 seconds, then turn it off and on three times within 5 seconds to switch modes. The light remembers the last mode used.
Is this light bar waterproof?Yes, it is IP68 rated for resistance to water and dust.
Does this fit any vehicle?It is a universal-fit light bar that mounts with hardware to bumpers, grilles, roof racks, or bull bars; some vehicles may need brand-specific mounting brackets sold separately.
Is wiring included?No, proper wiring to a switched power source is required and must be done separately for safe operation.
Installation Instructions
- Choose a mounting location with adequate clearance and a flat or compatible curved surface.
- Attach the light bar using the included mounting hardware.
- Route the wiring harness to a switched, fused power source and ground point, following proper automotive wiring practices.
- Connect the main light and accent light circuits separately if running both functions.
- Test both driving and off-road modes, and confirm the amber accent light operates independently of the main beam.
