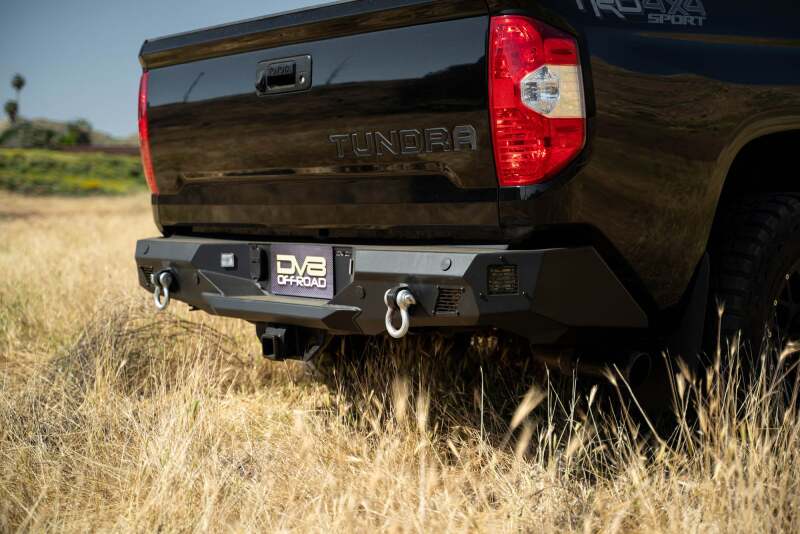

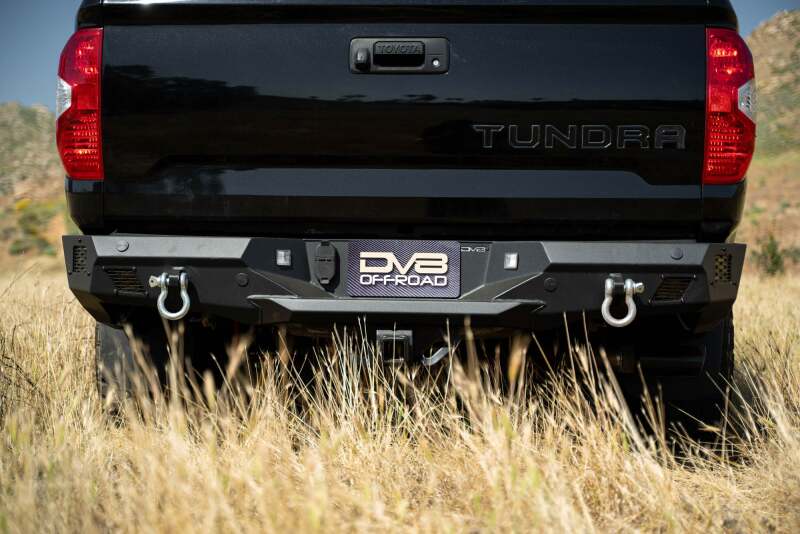

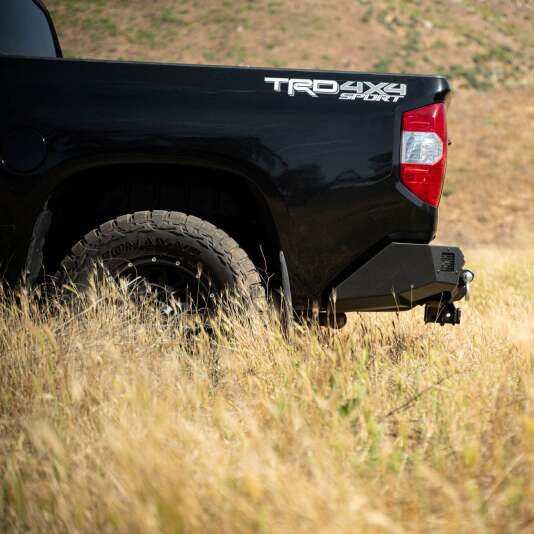

DV8 Offroad RBTT2-06 Spec Series Rear Bumper 2014-2021 Toyota Tundra All Trims

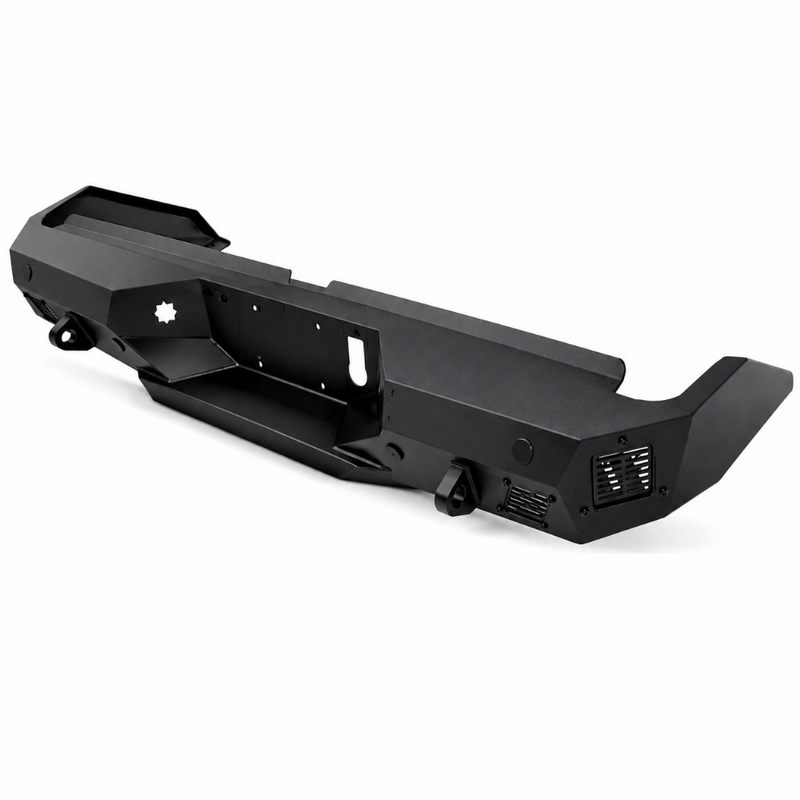

The DV8 Offroad RBTT2-06 Spec Series Rear Bumper is a full-width steel replacement bumper built specifically for the 2014 through 2021 Toyota Tundra, covering all cab configurations, all bed lengths, and all trim levels from SR through TRD Pro. The DVERBTT2-06 is constructed from 1/4-inch plate steel in the main structural sections and 3/16-inch plate steel in the accent panel areas, then finished in a durable micro-texture black powder coat. The included satin black accent panels give the rear of your Tundra a clean, modern look while concealing mounts for up to four 3-inch pod lights. The DVERBTT2-06 is a fully bolt-on fitment with no cutting and no drilling required, retains your factory hitch receiver, factory backup and parking sensors, and factory license plate lights straight out of the box.

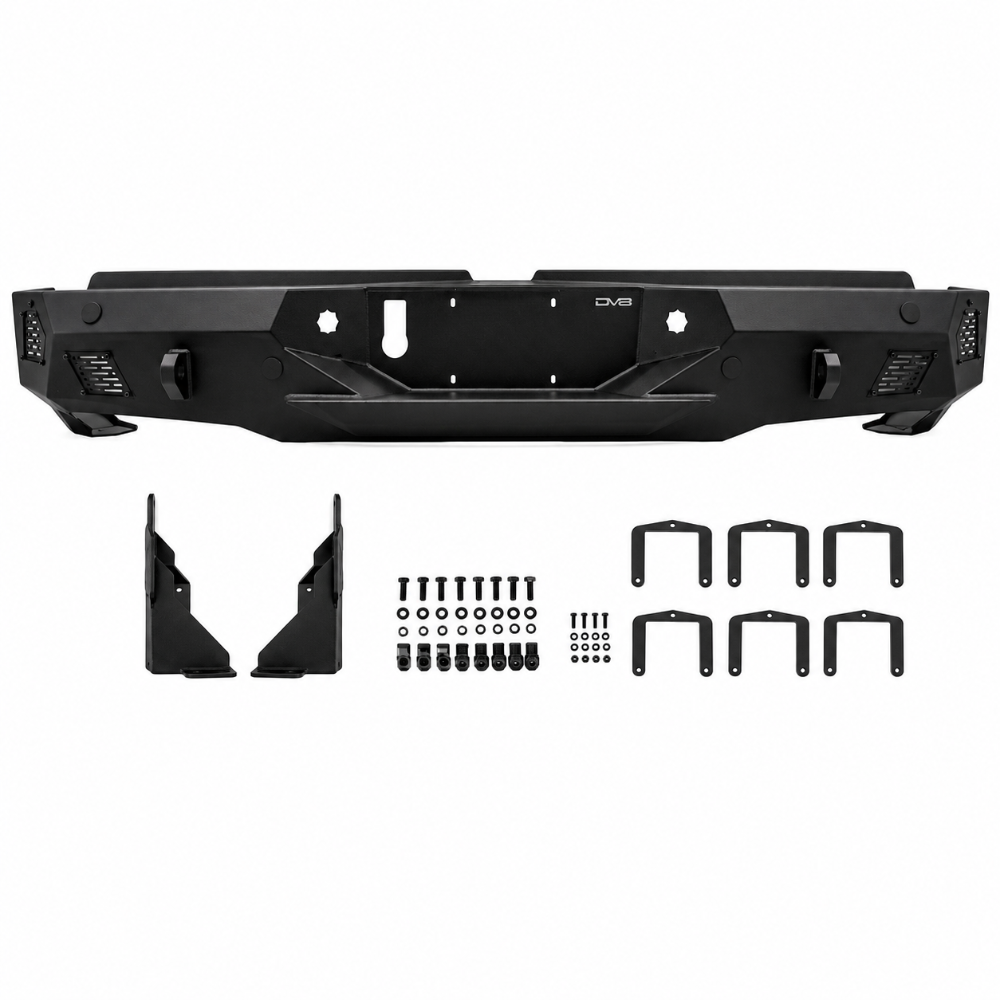

What's Included with RBTT2-06

• (1) DV8 Offroad Spec Series Rear Bumper assembly, finished in micro-texture black powder coat
• (2) Satin black powder coated accent panels (pre-installed on bumper)
• (2) 1-inch thick D-ring mounts sized for 3/4-inch shackles with 7/8-inch pin
• All mounting and installation hardware


Note: Pod lights are NOT included. This bumper accommodates up to four 3-inch pod lights behind the accent panels, but lights must be purchased separately. D-ring shackles themselves are not confirmed included; the kit includes the D-ring mount brackets.

Construction and Materials

This bumper is built from premium-grade steel throughout. The main structural sections use 1/4-inch (6.35 mm) plate steel to handle real-world recovery loads and off-road impacts. The accent panel areas are formed from 3/16-inch (4.76 mm) plate steel, keeping overall weight sensible while providing solid protection across the full width of the rear bumper.

The bumper body carries a micro-texture black powder coat finish, a two-stage coating process that resists UV exposure, rust, and surface scratches far better than standard paint. The removable accent panels receive a separate satin black powder coat, creating a two-tone contrast that complements the factory Tundra exterior styling. Welded-in zip tie tabs are integrated throughout the bumper structure for clean, organized routing of any aftermarket wiring you run to the pod light mounts.

Two 1-inch thick D-ring mount points are welded directly into the bumper body. Each mount accepts a standard 3/4-inch D-ring shackle on a 7/8-inch pin, giving you solid rated recovery points on both corners without the need for add-on adapters.

Fitment for 2014-2021 Toyota Tundra, All Trims

The RBTT2-06 fits the 2014 through 2021 Toyota Tundra (2nd Generation, XK50 platform) across all cab styles (Double Cab and CrewMax), all bed lengths (5.5 ft, 6.5 ft, and 8.1 ft), and all drivetrain configurations (2WD and 4WD). All trim levels are covered. Confirm your model year before ordering, as this bumper does not fit the 2022 or newer 3rd-generation Tundra.

Important blind spot monitoring (BSM) note: On 2014 to 2017 Tundra models equipped with blind spot monitoring, DV8 does not guarantee full retention of BSM function with this bumper installed. For those trucks, limit pod light installation to two lights to minimize sensor interference. On 2018 to 2021 models, the RBTT2-06 is compatible with or without blind spot monitoring. When BSM is present on any year, use only two of the four pod light positions to retain full BSM functionality.

Full Specifications

Warranty

This bumper is backed by DV8 Offroad's 1-year limited warranty from the date of original purchase. The warranty covers defects in workmanship and materials, with DV8 retaining the option to repair or replace the product with an equivalent item at their discretion.

The warranty does not cover installation labor, freight costs, normal wear and tear, abuse, misuse, collision damage, or consequential damages. The warranty is void if the product has been altered, modified, improperly installed, or subjected to neglect or mishandling. This warranty is non-transferable and applies to the original purchaser only.

To make a warranty claim, contact DV8 Offroad within one month of discovering the defect. The defective product must be returned at the purchaser's expense within the warranty period for inspection. DV8 will verify the defect was not caused by negligence or misuse before authorizing a remedy.

California Residents: This product can expose you to chemicals including those known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Frequently Asked Questions

Does the RBTT2-06 fit a 2022 or newer Toyota Tundra?
No. This bumper is designed for the 2nd-generation Tundra (XK50 platform, model years 2014 through 2021 only). The 2022 and newer Tundra is a completely different 3rd-generation platform. For the 3rd-gen Tundra, DV8 Offroad offers the MTO Series rear bumper under part number RBTT2-04.

Will the RBTT2-06 work on my 2014 Tundra that has blind spot monitoring?
The bumper will install on a 2014 to 2017 Tundra with blind spot monitoring, but DV8 Offroad does not guarantee full retention of BSM function on those model years. On 2014 to 2017 trucks with BSM, DV8 recommends mounting no more than two 3-inch pod lights to minimize the risk of blocking BSM sensors. On 2018 to 2021 Tundras, it is fully compatible with or without blind spot monitoring.

Does this rear bumper require any cutting or drilling for installation?
No. This is a fully bolt-on replacement that attaches to the Tundra's factory mounting points. No cutting, drilling, or frame modification is required. All necessary mounting hardware and installation instructions are included in the box. DV8 estimates the installation takes approximately 3.5 hours.

Will this bumper interfere with the factory trailer hitch?
No. This bumper is designed to retain the factory OEM hitch receiver. Your existing hitch ball mount and trailer wiring connections remain fully functional after installation.

Do factory backup sensors still work after installation?
Yes. It is engineered to retain all factory backup and parking sensors. The sensors are plug-and-play with no modification needed. Factory license plate lights are also retained without any additional wiring changes.

How many pod lights can I mount on this bumper?
This bumper includes mounts behind the satin black accent panels for up to four 3-inch pod lights, with two mounting positions per side. If your Tundra has blind spot monitoring, DV8 recommends using only two of the four positions to retain full BSM function. Pod lights are not included and must be purchased separately.

What steel thickness does the DV8 Spec Series Tundra bumper use?
The main structural sections are formed from 1/4-inch (6.35 mm) plate steel. The accent panel sections use 3/16-inch (4.76 mm) plate steel. The bumper body is finished in a micro-texture black powder coat, and the accent panels carry a separate satin black powder coat finish.

Does this bumper fit both Double Cab and CrewMax Tundra?
Yes. This bumper fits all cab styles available on the 2014 to 2021 Tundra, including Double Cab and CrewMax. It is also compatible with all three bed lengths (5.5 ft, 6.5 ft, and 8.1 ft) and both 2WD and 4WD drivetrain configurations.

Will this bumper clear the factory dual exhaust?
Yes. This bumper is designed with clearance for the factory dual exhaust system. No exhaust modification, cutting, or relocation is required during installation.

Does this bumper fit TRD Pro Tundra models?
Yes. It fits the TRD Pro trim for model years 2015, 2016, 2017, 2019, 2020, and 2021. Note that Toyota did not offer a TRD Pro Tundra for the 2018 model year, so there is no 2018 TRD Pro fitment. The TRD Pro returned for 2019 and continued through the end of the 2nd-generation Tundra in 2021.

Does this bumper include D-ring shackles or just the mount brackets?
This bumper includes two 1-inch thick D-ring mount brackets sized for 3/4-inch shackles with a 7/8-inch pin. Whether actual D-ring shackles are included in the box has not been confirmed by DV8 Offroad in published product documentation.
