SKU: S90-2-10-004 | UPC: 803050438348

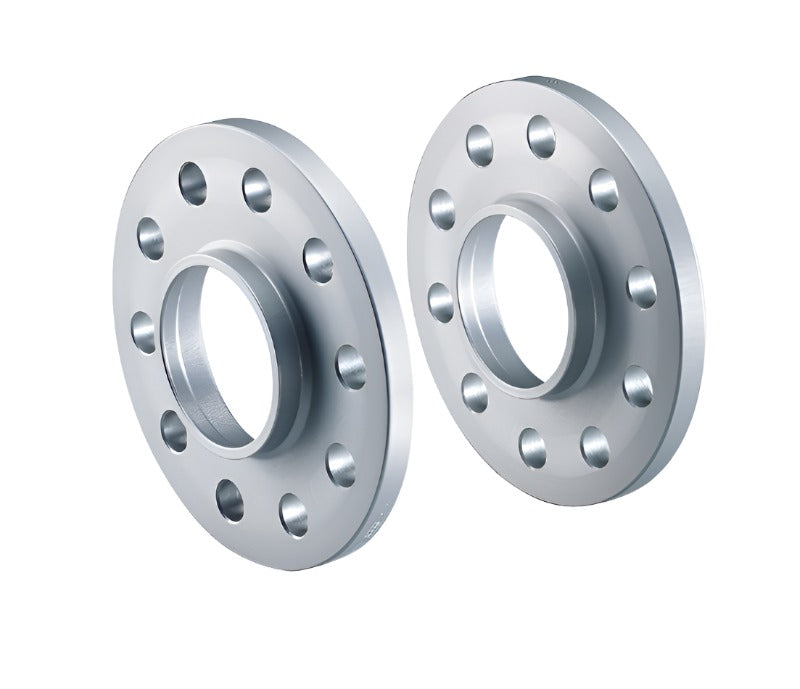

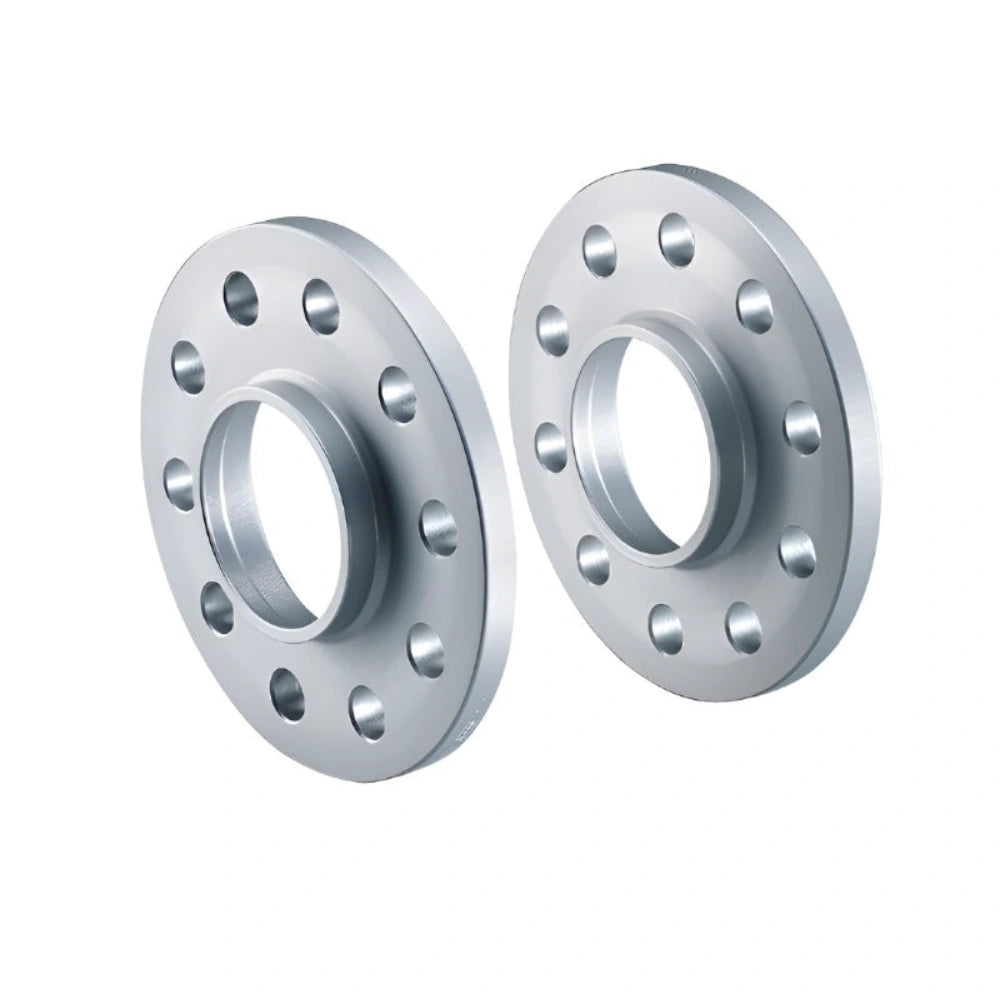

Eibach Pro-Spacer System - 10mm Spacer / 5x120 Bolt Pattern / Hub Center 72.5 for 15-17 BMW M4 F83
Eibach Pro-Spacer System delivers 10mm hub-centric wheel spacers designed for BMW vehicles with 5x120 bolt pattern and 72.5mm hub bore, including the 2015-2017 BMW M4 F83. This pair widens track width by 20mm total for improved stability, cornering grip, and aggressive wheel stance without compromising safety. Engineered for direct bolt-on fit on dozens of BMW 1-7 Series, M models, X3, and Z4.
Key Features
- Hub-Centric Design: 72.5mm center bore ensures perfect centering, vibration-free operation, and even load distribution on high-speed drives.
- High-Strength Aluminum: CNC-machined from 7075 T6 aircraft-grade alloy for lightweight durability that resists corrosion and warping under extreme track conditions.
- Included Extended Bolts: Grade 10.9 wheel studs provided match OEM threads (M12x1.5), torqued to BMW specs for secure mounting.
- 10mm Thickness: Adds 10mm per side (20mm total track increase) to fill wheel wells, enhance leverage on suspension, and boost braking response.
- TÜV Certified: ABE-approved for street-legal use in Europe and USA, meets strict DIN standards for material strength and fatigue testing.
Product Notes
- Sold as a complete pair (one left, one right) with all hardware for immediate installation.
- Inspect wheel/tire clearance post-install; minor fender rolling may be needed on lowered setups.
- Standard ground shipping; secure foam packaging protects against transit damage.
Installation Notes
- Professional installation recommended.
- Clean hub and spacer mating surfaces thoroughly; apply light anti-seize to bolts.
- Torque bolts to 140 Nm in star pattern; re-torque after 100 miles. Compatible with OEM lug nuts.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2013 | BMW | 128i | Base |
| 2009-2013 | BMW | 135i | Base |
| 2014-2016 | BMW | 228i | Base |
| 2014-2018 | BMW | 320i | Base |
| 2013-2018 | BMW | 320i xDrive | Base |
| 2002-2005 | BMW | 325xi | Base |
| 2008-2016 | BMW | 328i | Base |
| 2018 | BMW | 330e | Base |
| 2017 | BMW | 330e | iPerformance |
| 2017-2018 | BMW | 330i xDrive | Base |
| 2002-2005 | BMW | 330xi | Base |
| 2007-2015 | BMW | 335i | Base |
| 2014-2015 | BMW | 335i xDrive | Base |
| 2016-2017 | BMW | 340i | Base |
| 2017-2018 | BMW | 340i xDrive | Base |
| 2014-2016 | BMW | 428i | Base |
| 2014-2016 | BMW | 435i | Base |
| 2015-2016 | BMW | 435i Gran Coupe | Base |
| 2014-2016 | BMW | 435i xDrive | Base |
| 2017-2018,2020 | BMW | 440i Gran Coupe | Base |
| 2011-2016 | BMW | 528i | Base |
| 2013-2016 | BMW | 528i xDrive | Base |
| 2021-2022 | BMW | 530e | Base |
| 2018,2020 | BMW | 530e | iPerformance |
| 2017-2018,2020-2022 | BMW | 530i | Base |
| 2017-2018,2020-2022 | BMW | 530i xDrive | Base |
| 2010-2016 | BMW | 535i | Base |
| 2012-2016 | BMW | 535i xDrive | Base |
| 2017-2018,2020-2022 | BMW | 540i | Base |
| 2017-2018,2020-2022 | BMW | 540i xDrive | Base |
| 2011-2016 | BMW | 550i | Base |
| 2011-2015 | BMW | 550i GT | Base |
| 2011-2017 | BMW | 550i GT xDrive | Base |
| 2012-2016 | BMW | 550i xDrive | Base |
| 2012-2018 | BMW | 640i | Base |
| 2014-2018 | BMW | 640i xDrive | Base |
| 2005 | BMW | 645Ci | Base |
| 2012-2018 | BMW | 650i | Base |
| 2012-2018 | BMW | 650i xDrive | Base |
| 2012-2015 | BMW | 740i | Base |
| 2010-2015 | BMW | 750i | Base |
| 2016-2018 | BMW | M2 | Base |
| 2019-2020 | BMW | M2 | Competition |
| 2020 | BMW | M2 | CS |
| 2014-2016 | BMW | M235i | Base |
| 2016 | BMW | M235i xDrive | Base |
| 2002-2006,2008-2013,2015-2018 | BMW | M3 | Base |
| 2015-2020 | BMW | M4 | Base |
| 2019-2020 | BMW | M4 | CS |
| 2016 | BMW | M4 | GTS |
| 2005 | BMW | X3 | 2.5i |
| 2005-2006 | BMW | X3 | 3.0i |
| 2007-2008 | BMW | X3 | 3.0si |
| 2009-2010 | BMW | X3 | xDrive30i |
| 2012-2017 | BMW | X3 | xDrive35i |
| 2004-2005 | BMW | Z4 | 2.5i |
| 2004-2005 | BMW | Z4 | 3.0i |
| 2006-2008 | BMW | Z4 | M Roadster |
| 2006-2008 | BMW | Z4 | Roadster 3.0i |
| 2006-2008 | BMW | Z4 | Roadster 3.0si |
| 2010-2016 | BMW | Z4 | sDrive35i |
| 2012-2016 | BMW | Z4 | sDrive35is |
Why Choose Eibach?
- Motorsport-proven components trusted by BMW teams worldwide.
- German manufacturing with rigorous quality controls from raw billet to finish.
- Direct OEM-style fitment developed with BMW hub geometry in mind.
Frequently Asked Questions
-
Q: Will this fit my 2015-2017 BMW M4 F83?
A: Yes, direct fit for all 2015-2020 M4 Base models including F82/F83 coupe/convertible with 5x120 wheels; confirm hub bore is 72.5mm. -
Q: What material are the spacers made from?
A: Precision CNC-machined 7075 T6 aluminum alloy, anodized black for corrosion resistance and heat dissipation. -
Q: What is the warranty and installation process?
A: Limited lifetime warranty against defects; install takes 30-60 min per side with basic tools—includes bolts, no hub modifications required.
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Foam-protected cardboard box, 6" x 6" x 2" dimensions
- Weight: 1.65 lbs
