Control Drivetrain Movement with a Red Polyurethane Ford Mount
Energy Suspension 4.1144R is a red polyurethane transmission mount for compatible Ford applications that require 2.710 inch mount centers. Its steel bracket and safety interlock design support the transmission while helping control movement under street and performance loads.
Key Features
- Exact 4.1144R red transmission mount configuration
- Polyurethane isolator resists vehicle oils and common road contaminants
- Steel bracket supports the mount assembly
- Safety interlock design helps retain the drivetrain if the isolator is damaged
- Included mounting hardware supports installation
Fitment
| Application Scope | Required Mount Centers | Compatibility Check |
|---|---|---|
| Application specific Ford transmission mount | 2.710 in | Match the original mount dimensions, bracket position, transmission, crossmember, and hardware before ordering |
Specifications
| Detail | Value |
|---|---|
| Manufacturer | Energy Suspension |
| Manufacturer Part Number | 4.1144R |
| Product Type | Transmission mount |
| Mount Center Spacing | 2.710 in |
| Isolator Material | Polyurethane |
| Bracket Material | Steel |
| Color | Red |
| Warranty | Seven year limited warranty |

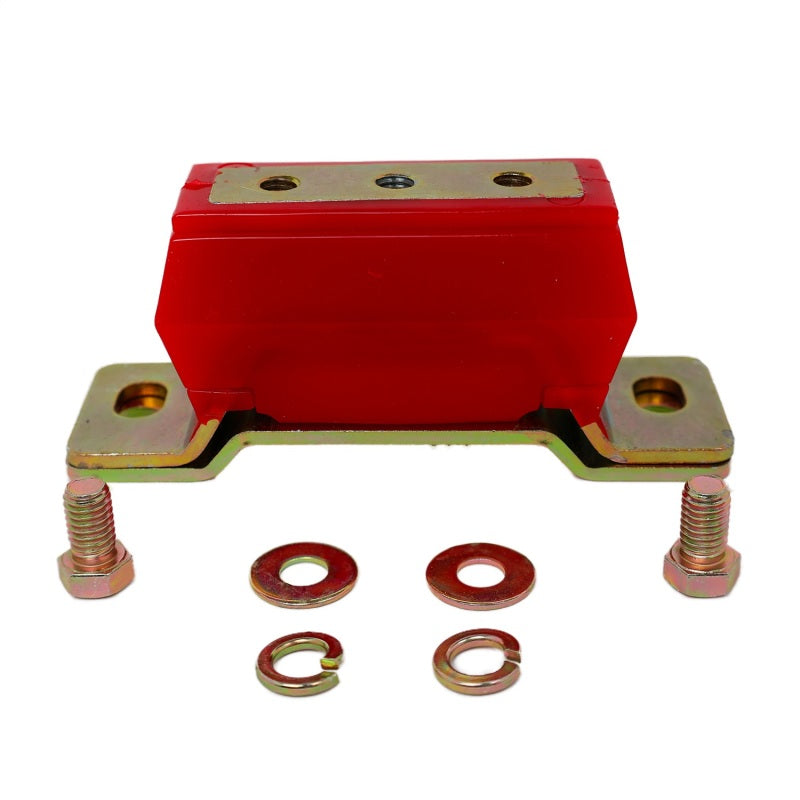

What's Included
- One Energy Suspension 4.1144R red transmission mount assembly
- Two threaded mounting fasteners
- Two flat washers and two lock washers
About Energy Suspension
Energy Suspension develops polyurethane suspension and drivetrain mounts for street and performance vehicles. The 4.1144R combines a polyurethane isolator, steel bracket, and safety interlock structure.
FAQ
What is the 4.1144R?It is a red polyurethane transmission mount for compatible Ford applications requiring 2.710 inch mount centers.
Is this mount universal?No. Match the center spacing, bracket arrangement, transmission, and crossmember to the original mount before ordering.
What material is the isolator?The red isolator is made from performance polyurethane.
Is a bracket included?Yes. The polyurethane mount is assembled with a steel bracket.
Does the package include hardware?Yes. The attached package includes two threaded fasteners, two flat washers, and two lock washers.

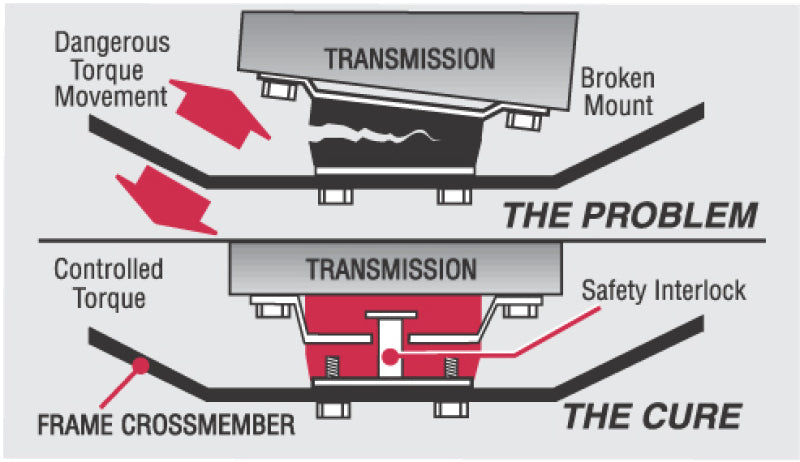

What does the safety interlock do?The interlock structure helps retain the drivetrain if the isolator is damaged.
Will this mount feel firmer than rubber?Polyurethane controls movement more firmly than a compliant original rubber mount and may transmit more drivetrain vibration.
What should be measured before ordering?Confirm 2.710 inch mount centers and compare the complete bracket and fastener layout with the original mount.
Installation Instructions
- Confirm the original mount uses 2.710 inch centers and matches the bracket and fastener layout.
- Support the transmission safely before removing the original mount.
- Remove the original hardware and clean the transmission and crossmember mounting surfaces.
- Position the new mount without forcing the bracket or changing the drivetrain alignment.
- Install the supplied hardware and tighten all fasteners to the vehicle manufacturer's specifications.
- Lower the drivetrain support, inspect clearance, and check for abnormal contact or vibration before driving.
