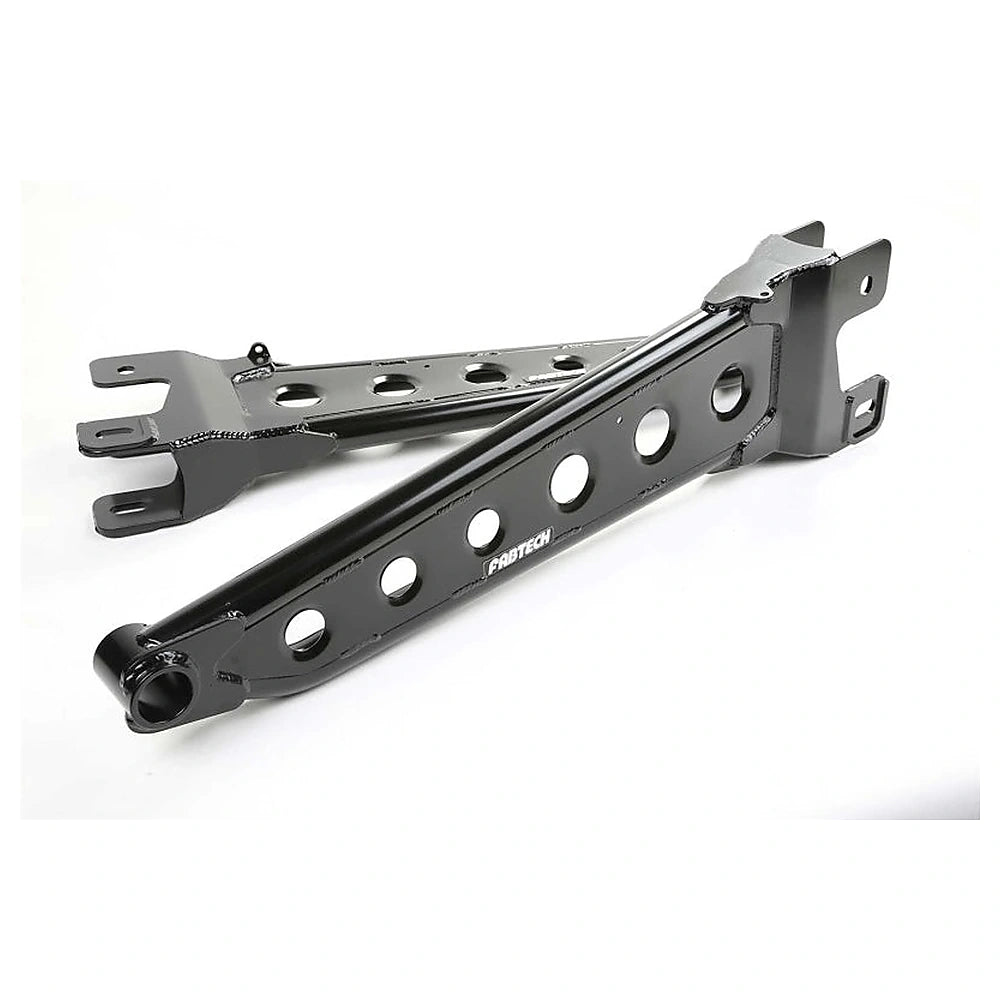

Fabtech 05-20 Ford F250/350 & 08-20 Ford F450/550 4WD 4/6/8in Lift Radius Arm System

Fabtech
FABFTS22321
674866110724
Lift Kits
2 Units In Stock - Ships Next Business Day
Fabtech, Lift Kits, Suspension
$ 875.14 $ 787.63
$ 787.63

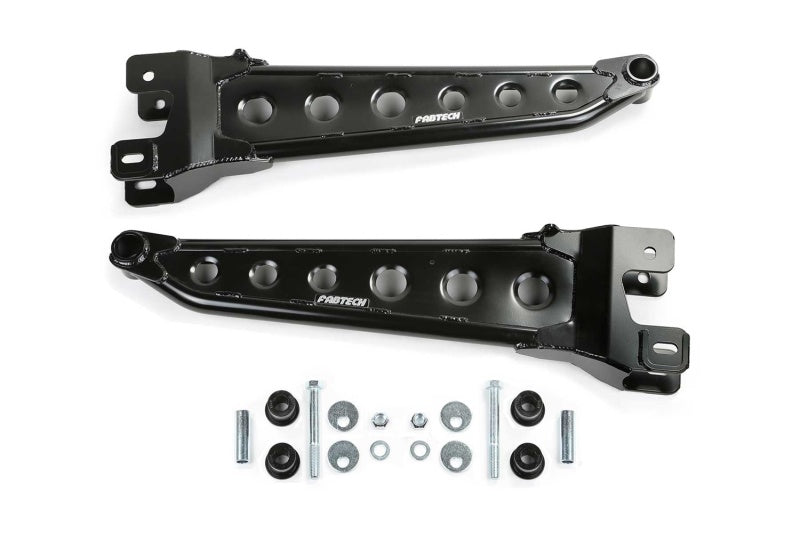

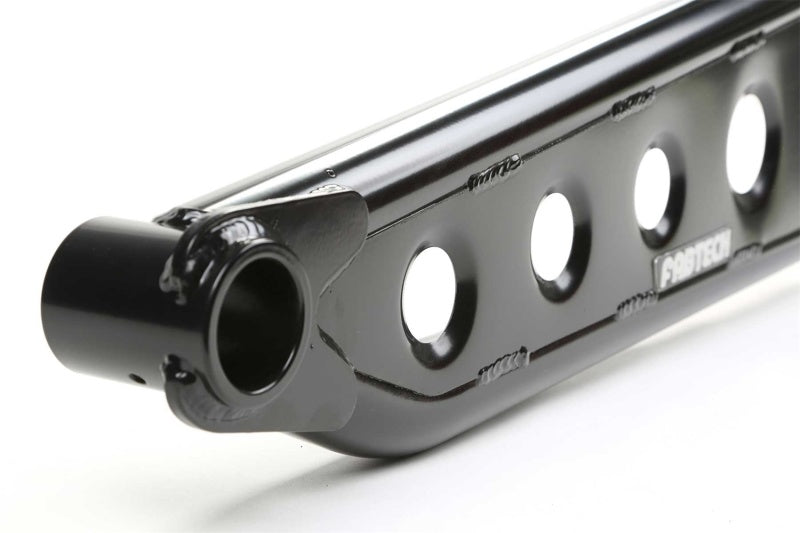

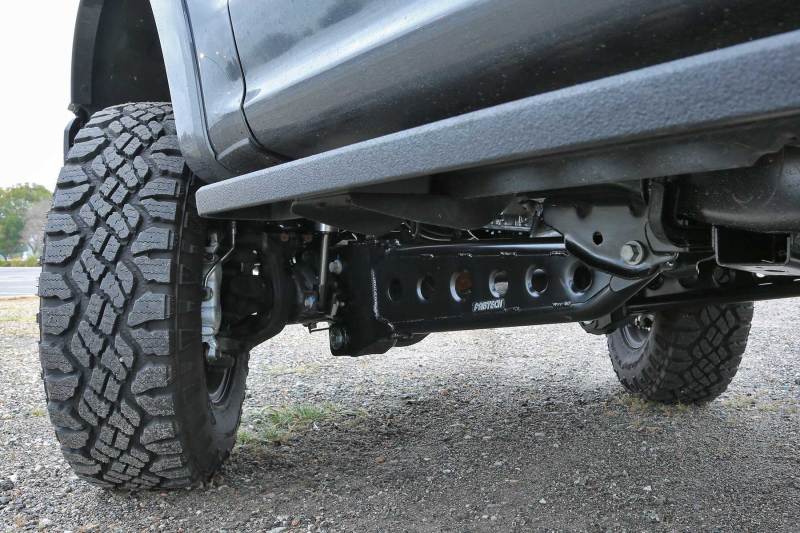

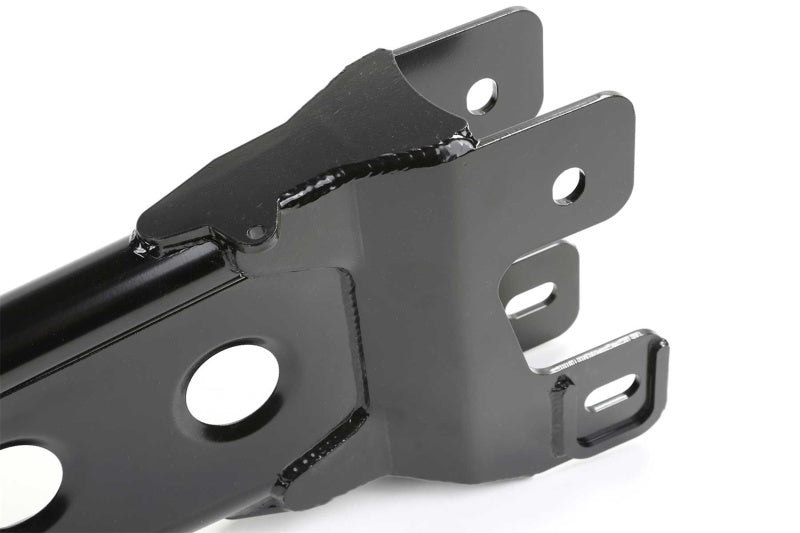

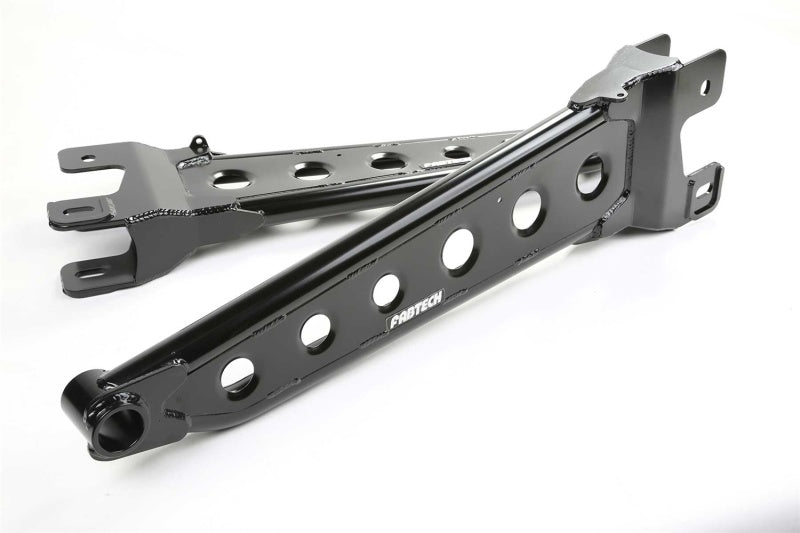

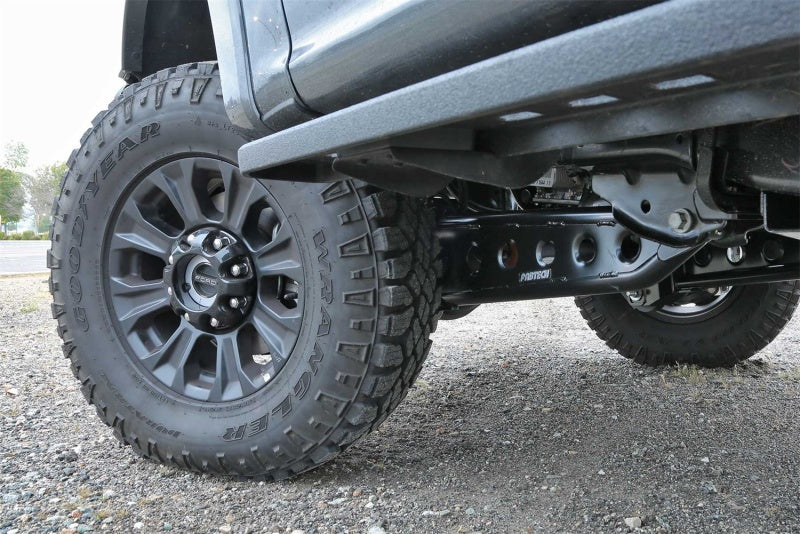

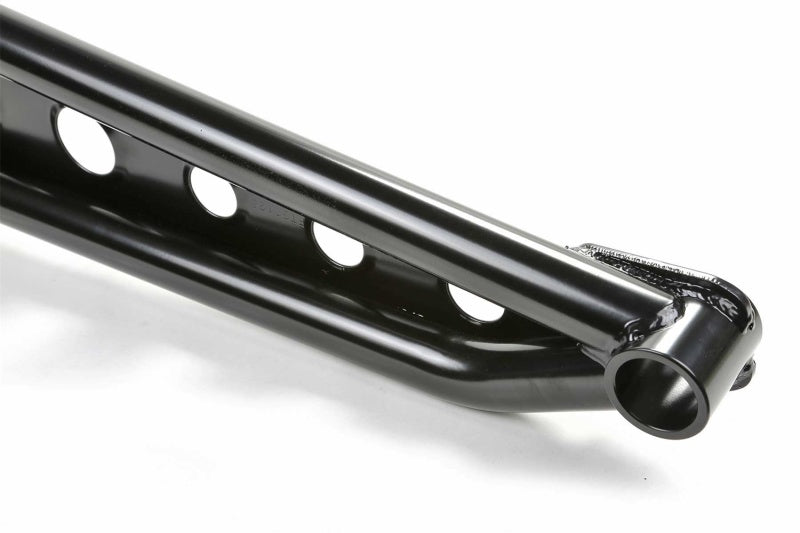

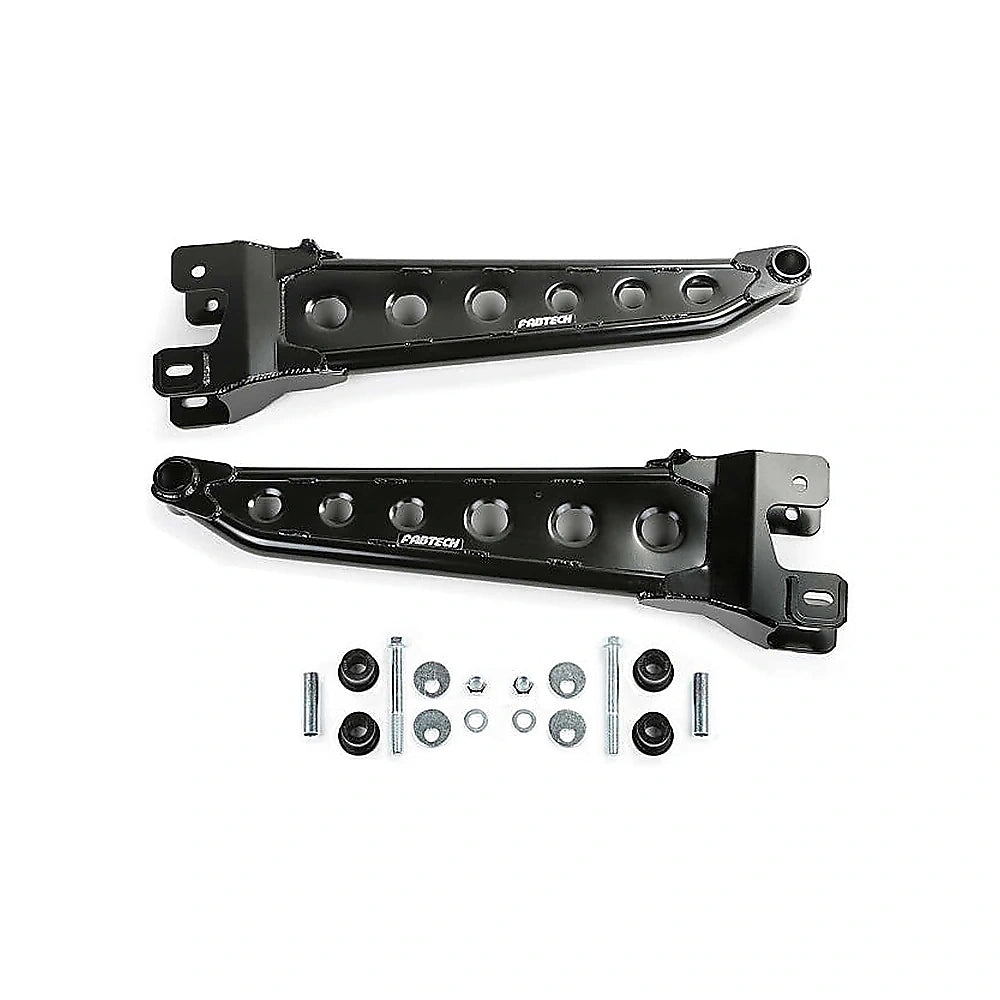

2005-20 Ford F250/F350 4WD. 2008-19 Ford F450/F550 4WD. Fabtech's legendary Radius Arms are the perfect upgrade to the Ford Super Duty front suspension for lifted applications. The heavy duty tubular construction adds strength with a race component style to the vehicle for aggressive offroad use. These Super Duty Radius Arms directly replace the factory arms for use with lifted 4" to 8" suspensions. The arms have an additional 1 degree of caster built into the arms and with the easy adjustment alignment cams gives a total of 2 degrees more caster than stock. A big benefit for taller 6" and 8" lifted vehicles to improve highway tracking. The upper and lower tubes of the arms are constructed with 1.75" OD x .120" wall DOM tubing and are fully welded closed to prevent corrosion. Spanning between the tubes is a dimple die side plate that adds rigidity to the arm for strength with minimal weight gain. Radius Arms are offset and positioned inboard compared to the stock arms to allow full steering lock with a 13.50 wide tire on a 5" backspace wheel. The Fabtech Super Duty Radius Arms are an open design so that powdercoat can cover the entire arm. This design is superior in coating coverage compared to boxed arms that are stitch welded and have gaps that allow moisture to get and cause rust. Fabtech's Radius Arms have been proven for over 15 years in consumer, commercial and military applications. There are no better Radius Arms for your Super Duty. Features: Constructed with 1.75" OD x .120" wall DOM tubing. Directly replace factory arms on lifted vehicles. Additional caster to improve tracking.

This Part Fits:

Year Make Model Submodel
2009-2010 Ford F-250 Super Duty Cabela's
2008-2009 Ford F-250 Super Duty FX4
2005-2010 Ford F-250 Super Duty Harley-Davidson Edition
2005-2020 Ford F-250 Super Duty King Ranch
2005-2020 Ford F-250 Super Duty Lariat
2018-2020 Ford F-250 Super Duty Limited
2013-2020 Ford F-250 Super Duty Platinum
2005-2020 Ford F-250 Super Duty XL
2005-2020 Ford F-250 Super Duty XLT
2009-2010 Ford F-350 Super Duty Cabela's
2008-2009 Ford F-350 Super Duty FX4
2005-2010 Ford F-350 Super Duty Harley-Davidson Edition
2005-2020 Ford F-350 Super Duty King Ranch
2005-2020 Ford F-350 Super Duty Lariat
2018-2020 Ford F-350 Super Duty Limited
2013-2020 Ford F-350 Super Duty Platinum
2005-2020 Ford F-350 Super Duty XL
2005-2020 Ford F-350 Super Duty XLT
