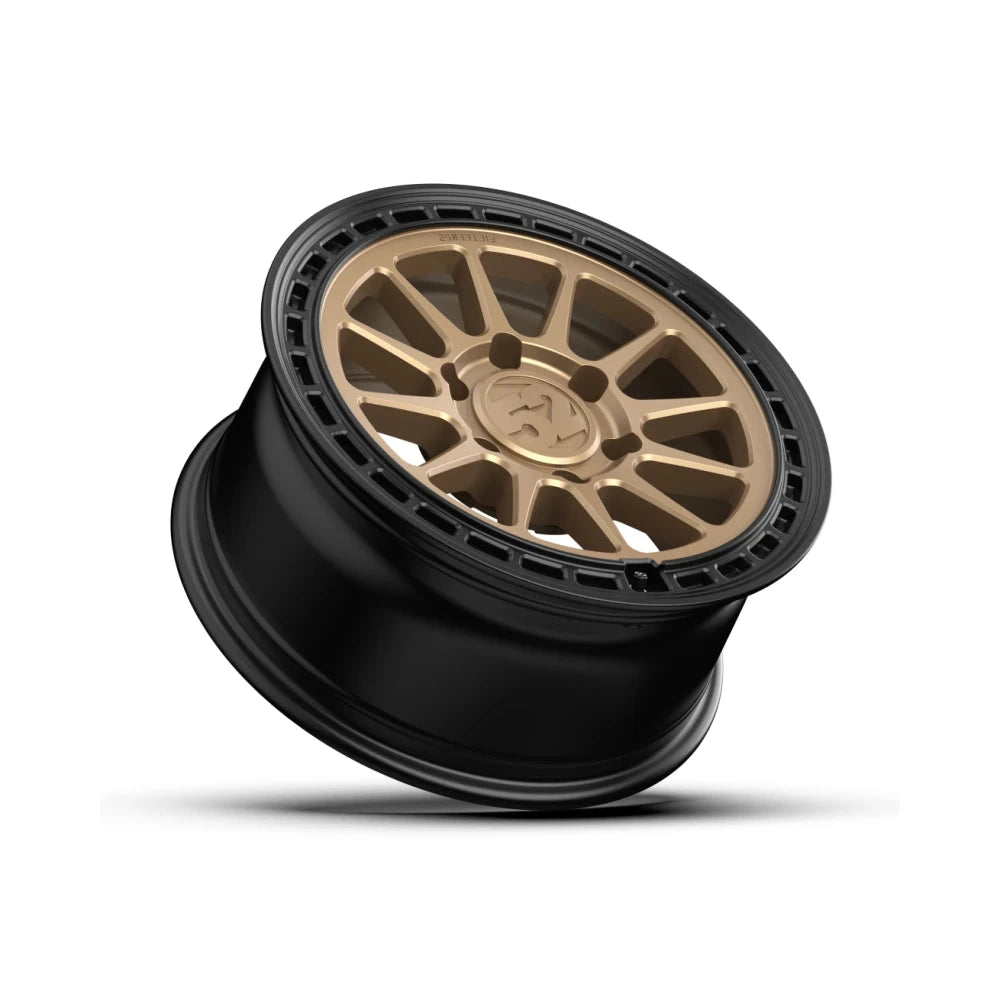

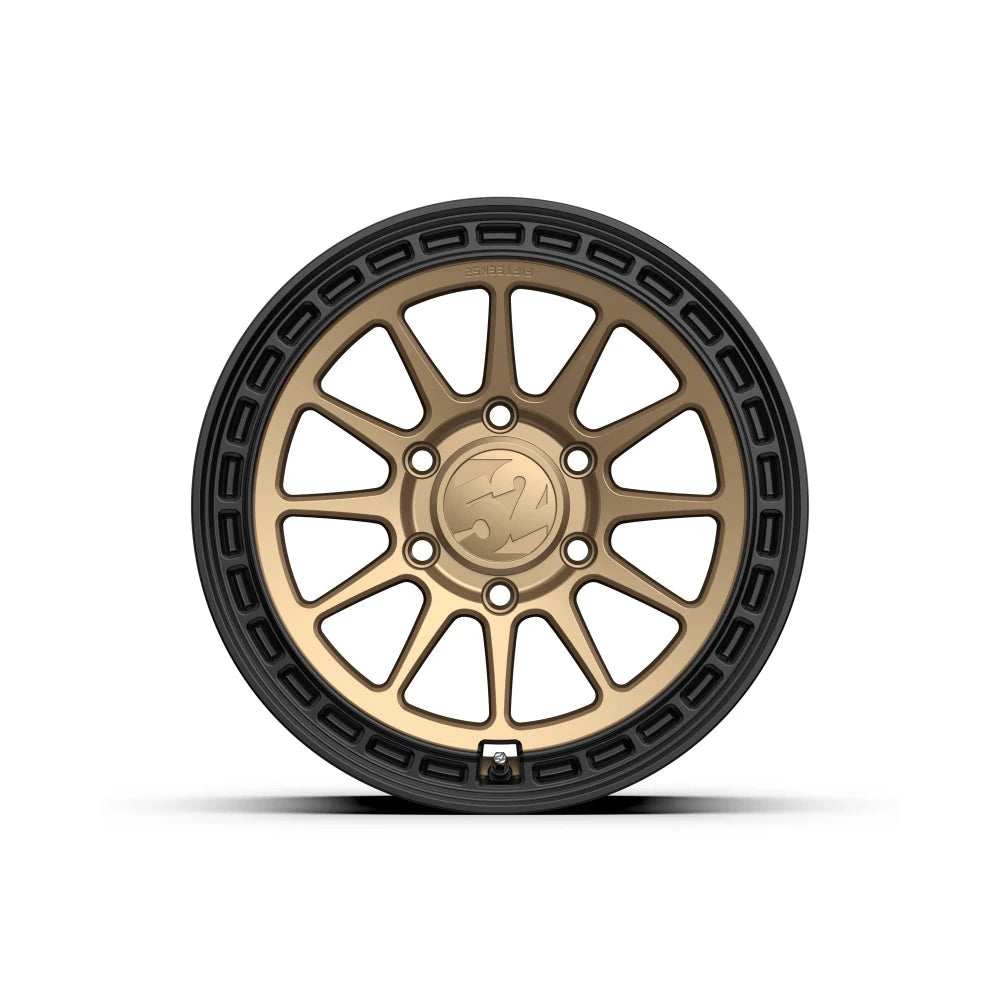

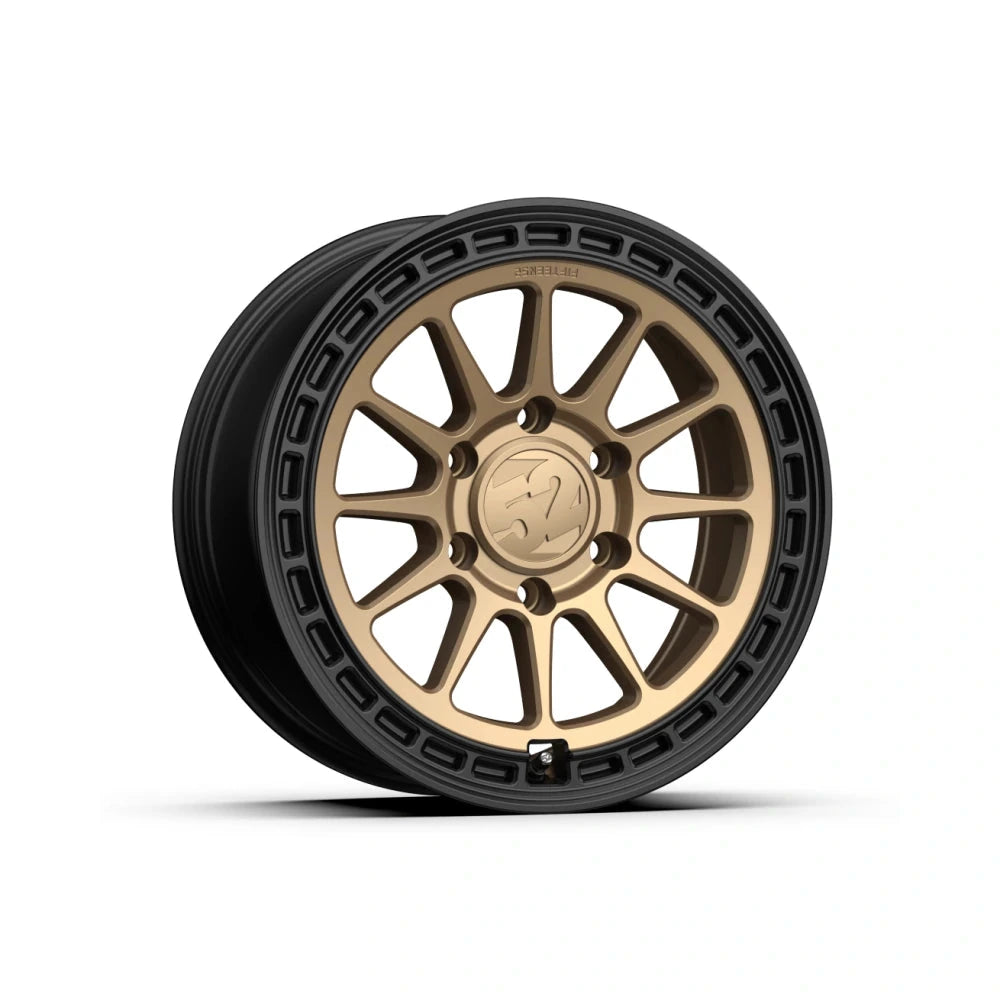

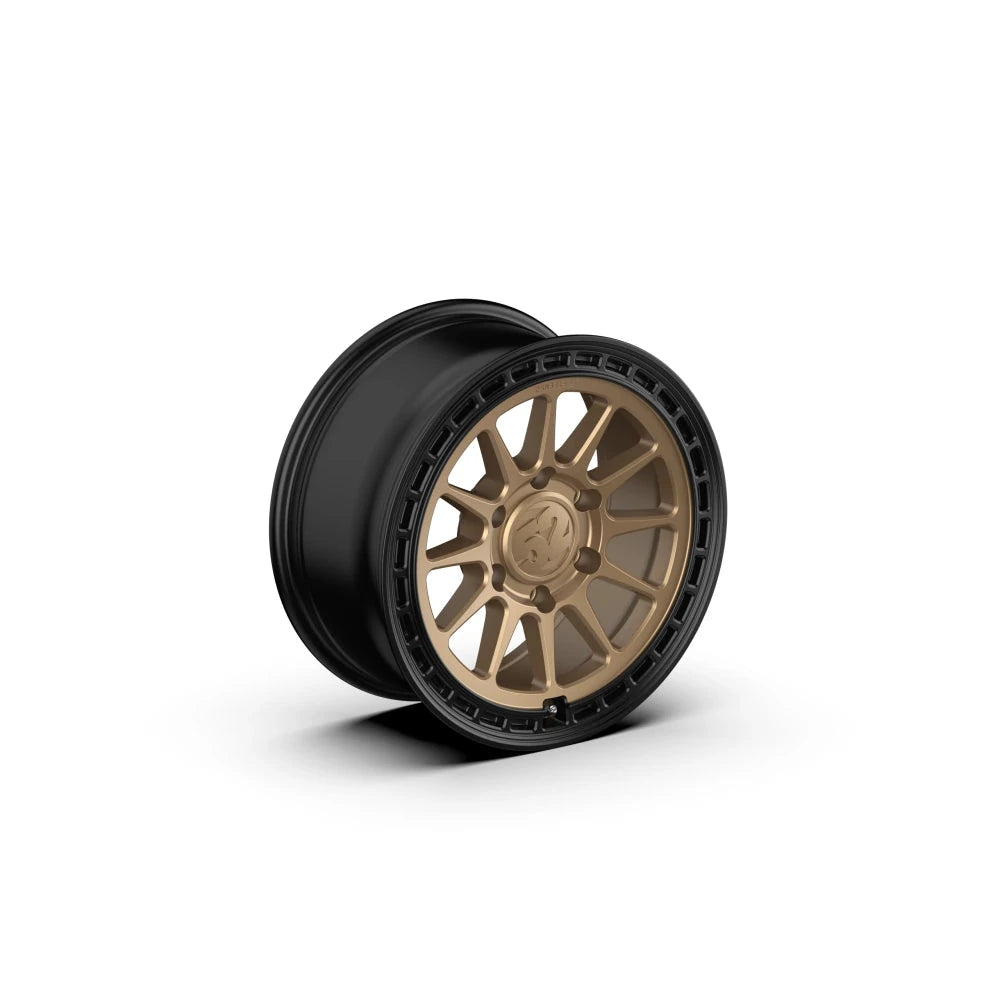

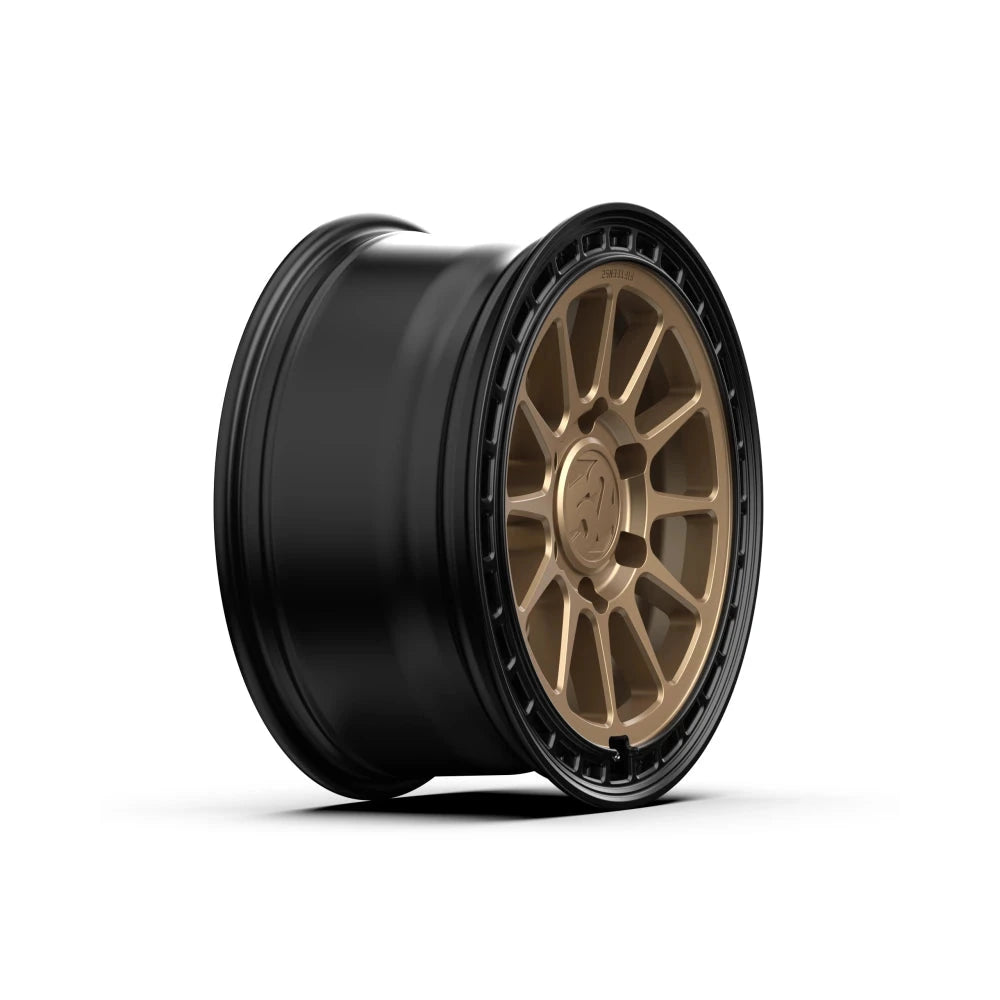

fifteen52 GMXDB-78051+20 is one Range MX cast wheel in a 17x8-inch size with a 5x112 bolt pattern, +20 mm offset, 57.1 mm center bore, and desert bronze finish. Compatibility is determined by the complete wheel specification rather than a broad year-make-model claim.
| Application Type | Required Checks |
|---|---|
| Universal / specification selected | Confirm 5x112 bolt pattern, 57.1 mm hub compatibility, +20 mm offset, brake clearance, load capacity, tire size, lug-seat style, and fender and suspension clearance. |
| Detail | Value |
|---|---|
| Manufacturer Part Number | GMXDB-78051+20 |
| Model | Range MX |
| Diameter | 17 inches |
| Width | 8 inches |
| Bolt Pattern | 5x112 |
| Offset | +20 mm |
| Center Bore | 57.1 mm |
| Finish | Desert Bronze |
| Quantity | One wheel |
| UPC | 810026164644 |
fifteen52 develops motorsport-influenced wheels for street and off-road use, combining distinctive rally-derived styling with application-specific sizes, offsets, bolt patterns, and finishes. Correct selection depends on the complete wheel specification and the vehicle's clearance and load requirements.
It is one fifteen52 Range MX 17x8 cast wheel in the bolt pattern, offset, center-bore size, and finish shown in the Specifications table.
Is this listing for a set of four wheels?No. The package quantity is one wheel.
Does the bolt pattern alone confirm fitment?No. Offset, center bore, brake clearance, wheel load, tire size, lug-seat style, and body and suspension clearance also must be checked.
Is a tire included?No. Tires are selected and installed separately.
Is a TPMS sensor included?No. Use a sensor that is compatible with the vehicle and the wheel.
Are lug nuts or bolts included?No. Use hardware with the correct thread, seat profile, length, and torque specification.
Can a hub-centric ring be required?Yes. Compare the wheel center bore with the vehicle hub and use a properly sized ring when the application calls for one.
Should final clearance be checked before driving?Yes. Verify brake, suspension, fender, tire, and hub clearance through the full steering and suspension range.
