A Compact 90-Degree Connection for Fuel-System Packaging

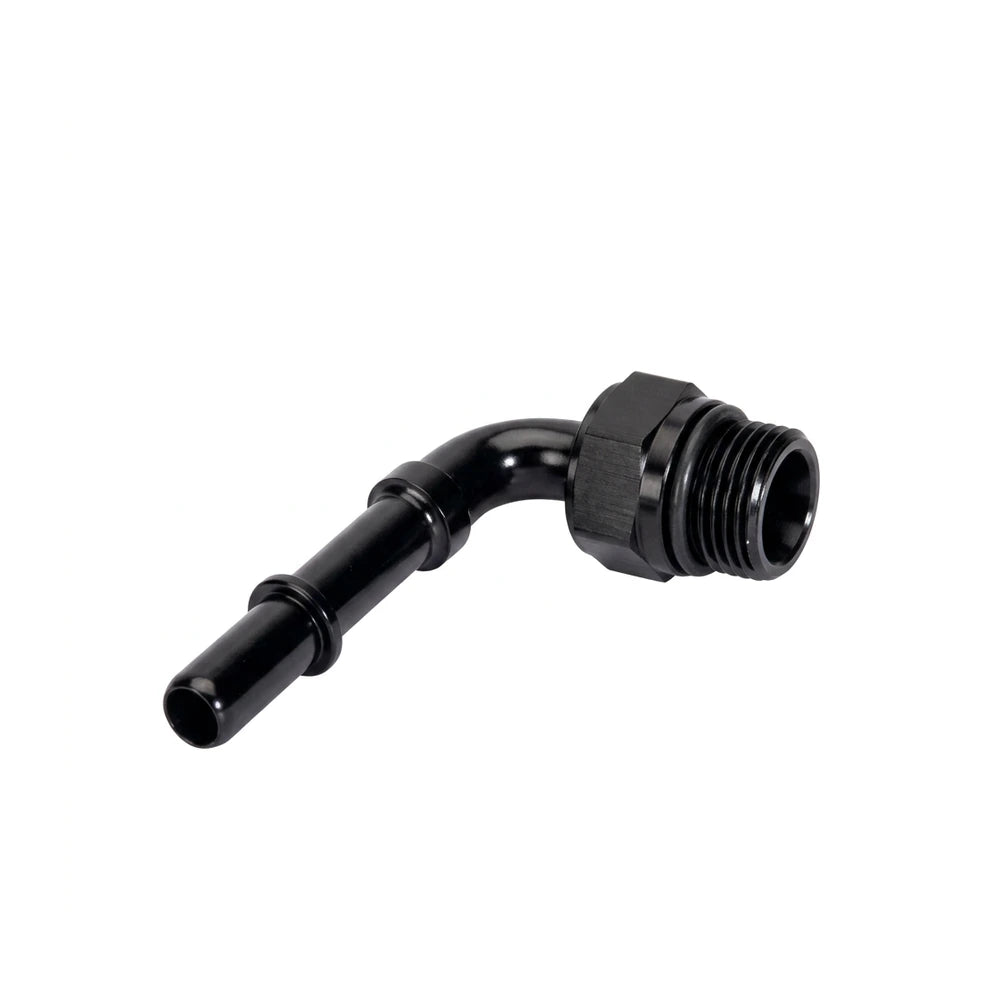

Fleece Performance FPE-APT-34-90-Q38 is a compact 90-degree swivel fitting that joins a 3/8-inch SAE quick-connect line to a 3/4-16 ORB port. Its short hex and black-anodized aluminum body are intended for installations where clearance and hose routing matter.
Key Features
- 3/8-inch SAE quick-connect connection
- 3/4-16 ORB swivel connection
- 90-degree body for tight routing
- Short-hex design reduces installed envelope
- Black-anodized aluminum construction
- Universal dimensional component; compatibility is determined by connection standards, pressure, fluid, and clearance
Fitment
| Application type | Required connection 1 | Required connection 2 | Verification |
|---|---|---|---|
| Universal / dimension-based | 3/8-inch SAE quick connect | 3/4-16 ORB | Confirm fluid, pressure, seal, orientation, and clearance |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | FPE-APT-34-90-Q38 |
| Angle | 90 degrees |
| Quick-connect size | 3/8 inch |
| ORB thread | 3/4-16 |
| Body style | Swivel, short hex |
| Material | Aluminum |
| Finish | Black anodized |
| UPC / GTIN | 732777410101 |
What's Included
- One Fleece 90-degree adapter fitting
- Hose, mating connector, port fitting, and installation tools are not included
About Fleece Performance
Fleece Performance Engineering manufactures diesel performance and service components, including application-specific fuel-system hardware and compact adapter fittings for professional installations.
Related Parts
- No internal product is linked because a hose, filter base, or mating port must be selected from the exact connection, pressure, fluid, and routing requirements.
FAQ
What is the FPE-APT-34-90-Q38?It is a compact 90-degree adapter joining the two connection standards shown in the specifications table.
Is this vehicle specific?No. It is selected by dimensions and system requirements rather than year, make, and model.
What size quick connect does it use?The fitting uses a 3/8-inch SAE quick-connect interface.
What is the threaded side?The swivel end uses a 3/4-16 ORB connection.
Does the fitting swivel after tightening?It is designed as a swivel fitting for orientation during assembly. Confirm the final installation procedure and do not rely on free movement under pressure.
Can it be used with any fluid?No. Verify material, seal, temperature, pressure, and fluid compatibility for the intended system.
Are seals included?Only the fitting and any seals supplied by Fleece are included. Inspect the package and obtain the correct compatible seal when required.
What should be checked before ordering?Measure both mating connections and verify thread form, quick-connect standard, operating pressure, fluid, bend clearance, and hose direction.
Installation Instructions
- Depressurize and safely drain the system before installing Fleece Performance the new component.
- Verify both mating connections are clean, undamaged, and the exact specified standards.
- Lubricate compatible seals only as directed for the system and fluid.
- Thread the ORB end by hand, orient the 90-degree body, and tighten using the correct wrench flats and torque guidance.
- Connect the 3/8-inch line until the retainer is fully engaged, then perform a pull check.
- Pressurize the system gradually and inspect for leakage, interference, or hose strain.
