SKU: 883-26-112 | UPC: 711745592452
FOX 2005-2023 Toyota Tacoma Performance Elite 2.5 Series Shock Rear 0-1.5in Lift

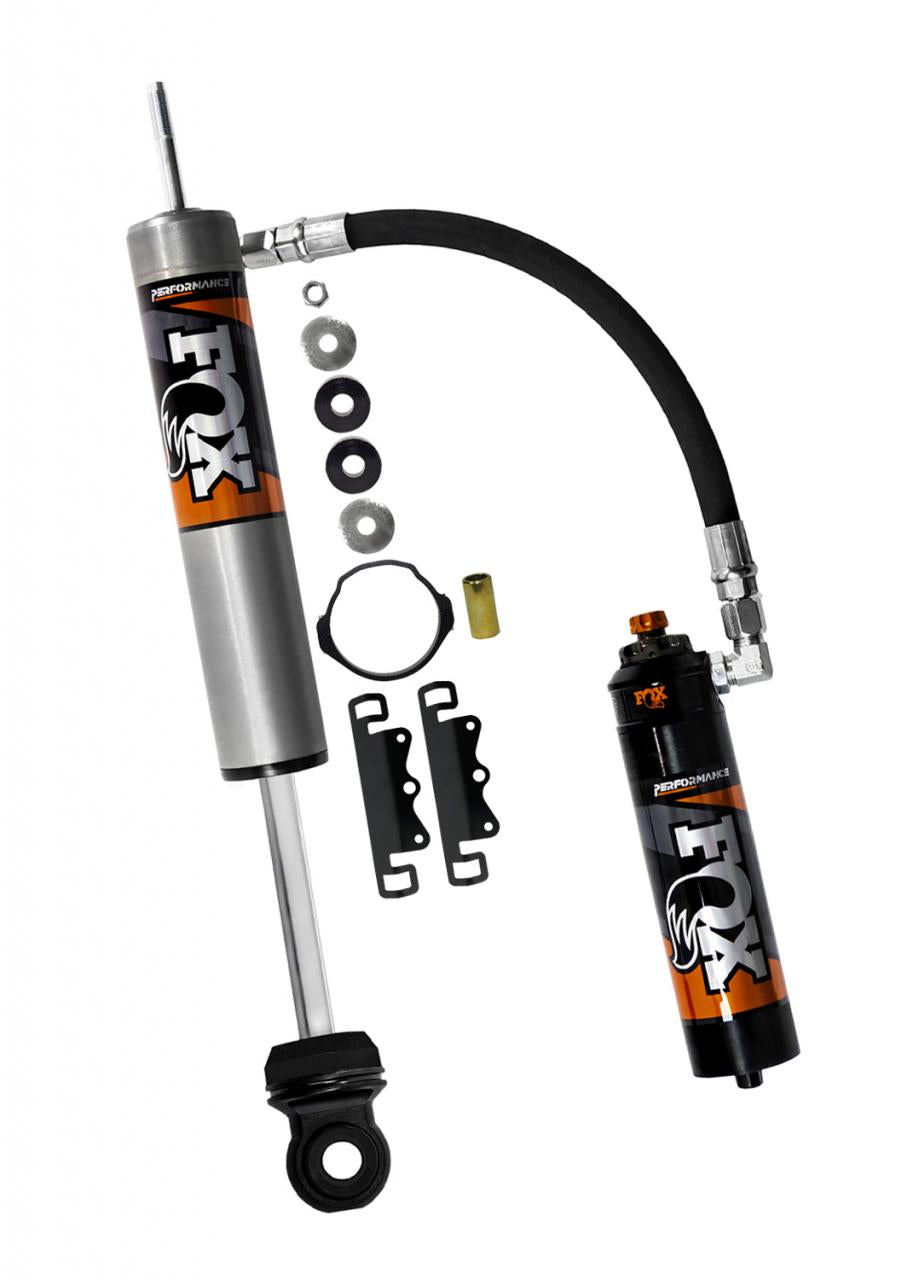

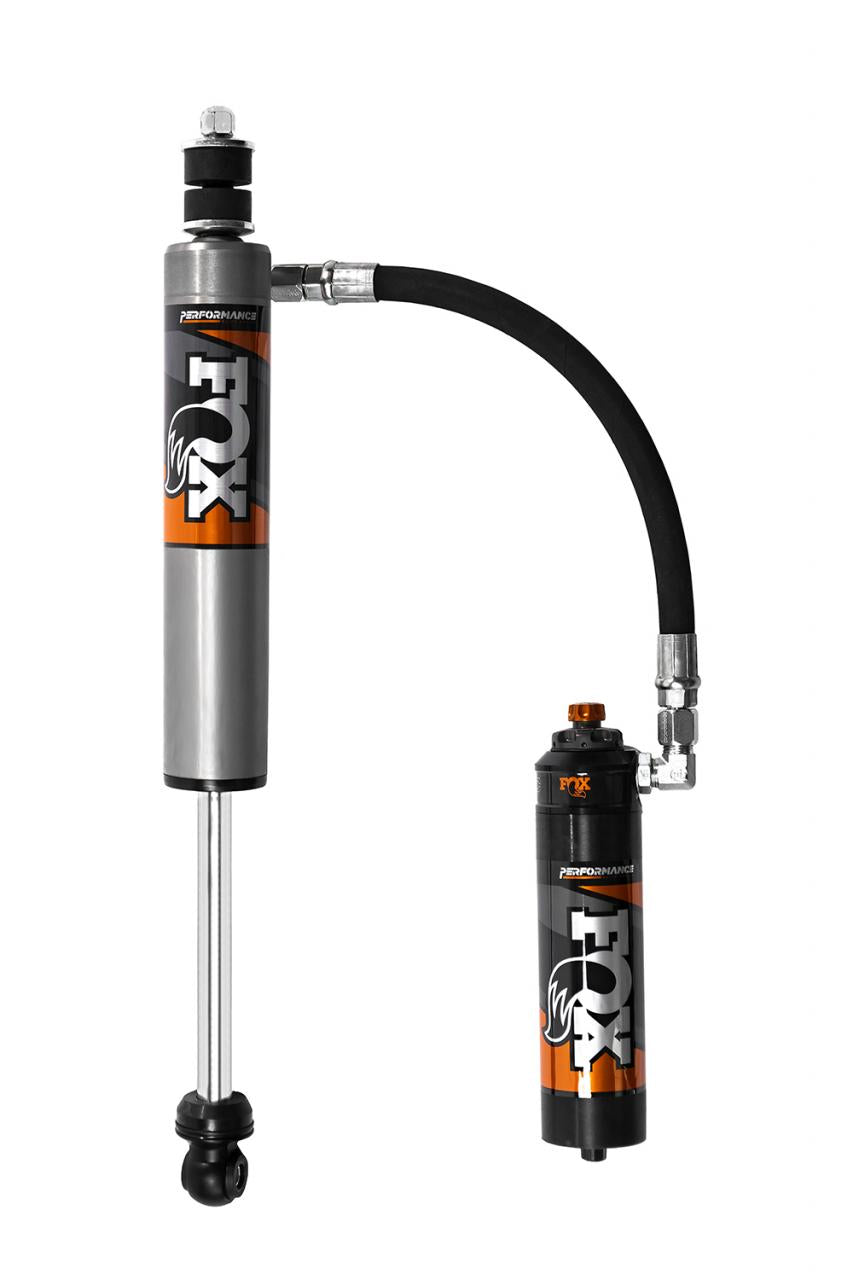

FOX Performance Elite 2.5 Series rear shock upgrades 2005-2023 Toyota Tacoma 6-lug models with 0-1.5 inch lift. It eliminates forward rake for level ride height maintains full droop travel and boosts suspension articulation on trails and roads. External reservoirs and Dual Speed Compression adjusters deliver tuned damping for any terrain load or style.
Key Features
- 2.5" Aluminum Body: Impact-extruded CNC-machined 6061-T6 hard-anodized construction resists rust and wear over time
- External Reservoir: Separates shock oil from nitrogen increases oil capacity to dissipate heat for consistent performance on long runs
- Dual Speed Compression Adjusters: Mounted to avoid tire interference at full lock allows quick tuning for stability across rough terrain
- High-Flow Piston and Valving: Race-developed design with application-specific tuning manages damping for Tacoma with aftermarket accessories
- Shaft and Seals: 7/8 inch hard chrome plated heat-treated alloy steel shaft with redundant sealing pack and PTFE-lined spherical bearings for durability
Product Notes
- Fits 6-lug Tacoma models only for 0-1.5 inch rear lift
- Extended length 22.900 inches compressed 14.350 inches travel 8.550 inches

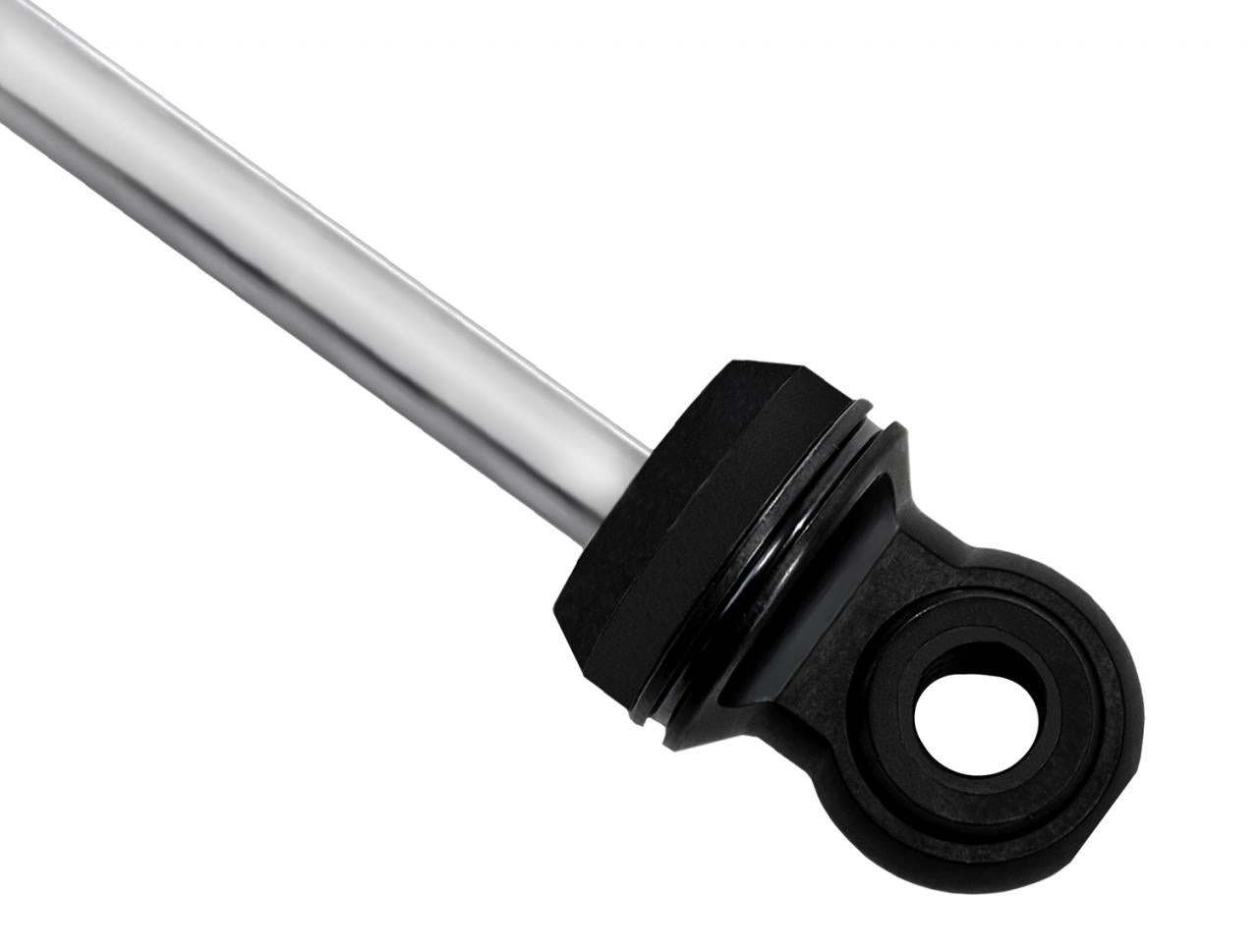

- Top mount stem top bottom mount eyelet
Installation Notes
- Professional installation recommended.
- Stem top mount requires matching factory or aftermarket upper mount
- Eyelet bottom mount uses OEM hardware or equivalent Grade 8 bolts
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2015 | Toyota | Tacoma | Base |
| 2016-2023 | Toyota | Tacoma | Limited |
| 2005-2015 | Toyota | Tacoma | Pre Runner |
| 2016-2023 | Toyota | Tacoma | SR |
| 2016-2023 | Toyota | Tacoma | SR5 |
| 2021 | Toyota | Tacoma | Trail |
| 2016-2023 | Toyota | Tacoma | TRD Off-Road |
| 2015,2017-2023 | Toyota | Tacoma | TRD Pro |
| 2016-2023 | Toyota | Tacoma | TRD Sport |
| 2005-2013 | Toyota | Tacoma | X-Runner |
Why Choose FOX?
- Decades of off-road racing development
- Engineered for deep off-grid Tacoma builds
- Components built to handle extreme abuse
Frequently Asked Questions
-
Q: Will this shock fit my 2005-2023 Tacoma?
A: Yes for 6-lug models with 0-1.5 inch rear lift across listed submodels confirm your lug count before purchase -
Q: What material is used for the body and components?
A: 6061-T6 aluminum body hard-anodized for corrosion resistance black-anodized billet aluminum components and chrome-plated steel shaft -
Q: What is the warranty and install process?
A: FOX provides limited lifetime warranty to original owner professional install advised using torque specs for stem top and eyelet mounts
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure box 23.5 x 8.3 x 8.3 inches
- Weight: 11.8 lbs
