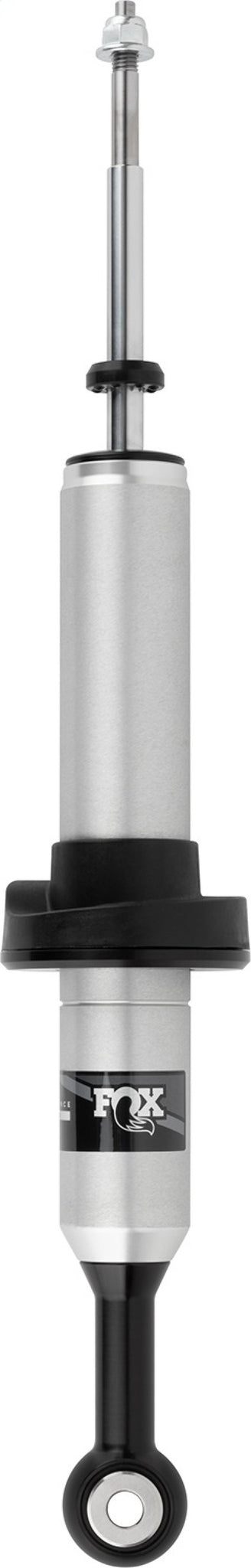

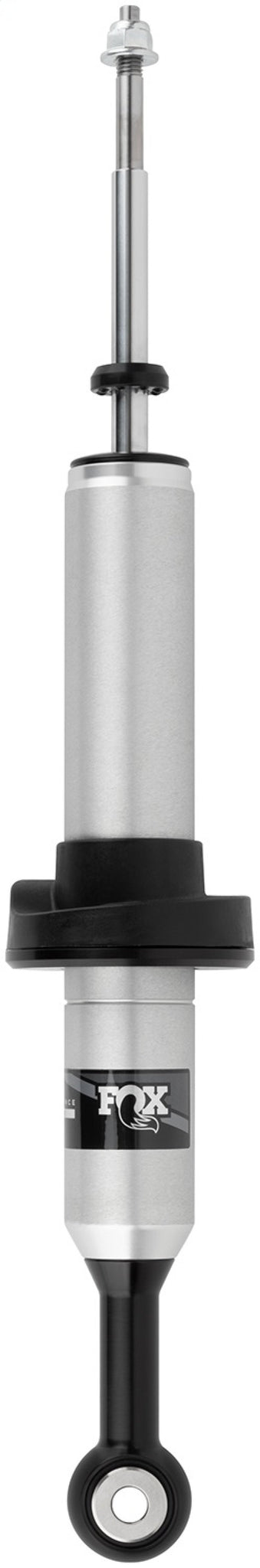

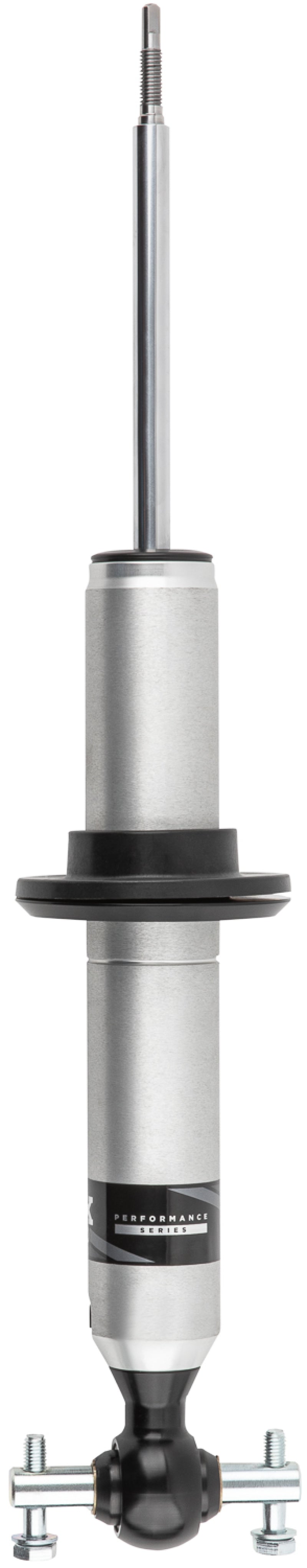

Our Performance Series 2.0 Coil-Over Snap Ring IFP shock is a bolt-on solution, loaded with a long list of features that set it apart. This includes a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point.
Key Features
- 2.0in Aluminum Body: Dissipates heat 3x faster than steel to maintain consistent damping during long runs.
- 0-2in Lift: Adjustable height for leveled stance without major suspension modifications.
- 4.3in Travel: Extended length 20.82in, compressed 16.52in for full articulation and bump absorption.
- 2.0in aluminum body, Eibond coating for corrosion resistance, and dual-rate coil spring.
- Internal Floating Piston (IFP): Separates shock oil from nitrogen charge to prevent cavitation and fade.
- Velocity-Sensitive Damping: Race-proven valving delivers precise control for varied terrain and loads.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2007-2013 | Chevrolet | Silverado 1500 | Position: Front | Lift height: 0"-2" |
| 2007-2013 | GMC | Sierra 1500 | Position: Front | Lift height: 0"-2" |
Specifications
| Brand | FOX |
|---|---|
| Manufacturer Part Number | 985-62-004 |
| Product Type | Coilovers |
| Condition | New |
| Fitment State | Vehicle Specific |
| Body Diameter | 2 |
| Bottom Mount Type | Bar Pin |
| Compressed Length | 15.46 |
| Extended Length | 19.79 |
| Lifetime Warranty | Yes |
| Lift Height | 0-2" |
| Position | Front |
| Series | Performance |
| Shock Type | Snap Ring Coil-Over |
| Top Mount Type | Stem Top |
| Travel Length | 4.34 |
What's Included
One new FOX product package identified by manufacturer part number 985-62-004. Only components expressly supplied for this exact part number are included.
About FOX
FOX develops performance suspension products for street, off-road, racing, and specialty vehicle applications. Correct selection remains exact-application and exact-part-number specific.
Related FOX Products
- Fox 07-18 GM 1500 2.5 Performance IFP Front Coilover - 2-3in Lift
- Fox 14-18 GM 1500 2.0 Performance Series 3.8in IFP Front Coilover Shock / 0-2in Lift
- Fox 19+ GM 1500 2.0 Performance Series 4.9in. IFP Coilover Shock / 0-2in Lift
Browse the FOX collection for related suspension and service components.
Frequently Asked Questions
Will FOX 985-62-004 fit my 2007-2013 Chevrolet Silverado 1500?
That year-make-model is listed, but the trim, drivetrain, suspension package, position, lift height, production split, and every application note must also match.
Which FOX shocks can use fluid 985-62-004?
Use it only when the current FOX service specification calls for this exact fluid, weight, and quantity. Shock family, damper design, operating temperature, and service procedure must match.
What is included with FOX 985-62-004?
The package includes only the components supplied by FOX for this exact part number. Springs, reservoirs, brackets, clamps, hardware, companion shocks, service fluid, and installation tools are separate unless expressly listed.
Installation Instructions
Follow the current FOX instructions and vehicle service information for this exact part number. Support the vehicle safely, use the specified tools and torque values, inspect all mounts and hardware, verify brake-line, steering, driveline, reservoir, wheel, and tire clearance, settle the suspension, and complete an alignment whenever geometry or ride height changes. Professional installation is recommended.
