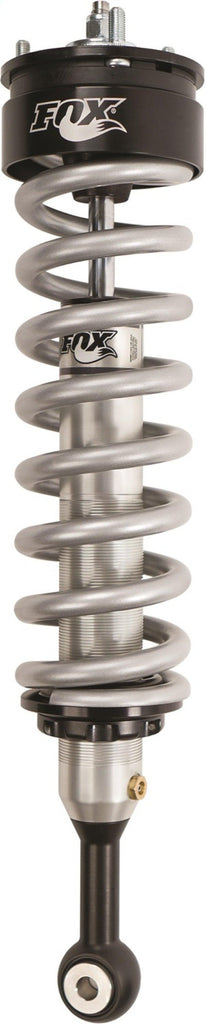

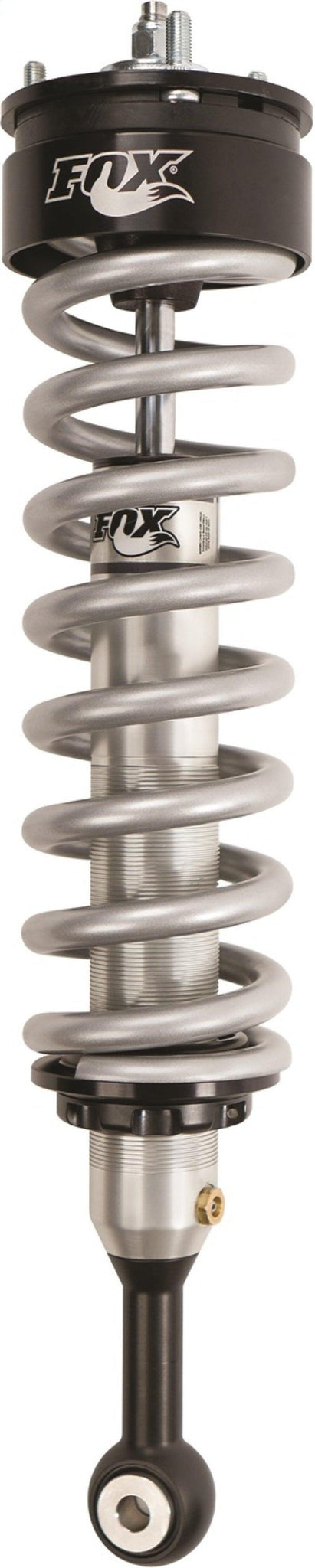

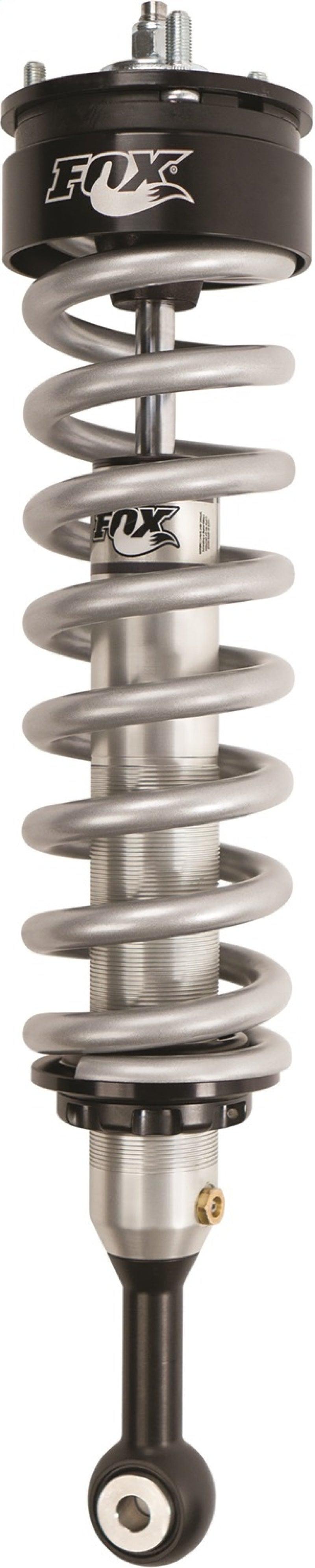

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Key Features
- 2.0in Smooth Bore Aluminum Body: Hard-anodized for corrosion resistance heat dissipation and long-term durability.
- Coilover Design 0-2in Lift: Includes dual-rate coil spring for ride height adjustment without sacrificing handling.
- 2.0in hard-anodized aluminum body 16mm induction-hardened chrome steel shaft and high-grade coil spring.
- Race-Proven Damping Control: Delivers consistent fade-free performance across varied terrain for daily driving and trails.
- Internal Floating Piston (IFP): Separates oil from nitrogen to eliminate cavitation improve response and maintain control.
- Fully assembled with nitrogen-charged spring ready for install.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2010-2024 | Toyota | 4Runner | Position: Front | Lift height: 0"-2" |
| 2010-2021 | Toyota | FJ Cruiser | Position: Front | Lift height: 0"-2", 0"-2" (0-50mm) | Application: UAE only |
| 2009-2023 | Toyota | Land Cruiser Prado | Position: Front | Lift height: 0"-2" | Model note: Official model group: Land Cruiser Prado 150 | Position: Front | Lift height: 0"-2" | Chassis: J150 |
Specifications
| Brand | FOX |
|---|---|
| Manufacturer Part Number | 983-02-051 |
| Product Type | Coilovers |
| Condition | New |
| Fitment State | Vehicle Specific |
| Body Diameter | 2 |
| Bottom Mount Type | Eyelet |
| Compressed Length | 15.06 |
| Extended Length | 20.46 |
| Lifetime Warranty | Yes |
| Lift Height | 0-2" |
| Position | Front |
| Series | Performance |
| Shock Type | Coil-Over |
| Top Mount Type | TM |
| Travel Length | 5.39 |
What's Included
One new FOX product package identified by manufacturer part number 983-02-051. Only components expressly supplied for this exact part number are included.
About FOX
FOX develops performance suspension products for street, off-road, racing, and specialty vehicle applications. Correct selection remains exact-application and exact-part-number specific.
Related FOX Products
- Fox 05+ Toyota Tacoma 2.0 Performance Series 4.625in. IFP Coilover Shock - Front (Alum) / 0-2in Lift
- FOX 03-24 Toyota 4Runner / 07-14 FJ Cruiser Performance Elite 2.5 Series Shock Rear 0-1.5in Lift
- Fox 2010+ Toyota 4Runner 2.0 Performance Series 4.87in IFP Front Coilover Shock / 0-2in Lift
Browse the FOX collection for related suspension and service components.
Frequently Asked Questions
Will FOX 983-02-051 fit my 2010-2024 Toyota 4Runner?
That year-make-model is listed, but the trim, drivetrain, suspension package, position, lift height, production split, and every application note must also match.
Which FOX shocks can use fluid 983-02-051?
Use it only when the current FOX service specification calls for this exact fluid, weight, and quantity. Shock family, damper design, operating temperature, and service procedure must match.
What is included with FOX 983-02-051?
The package includes only the components supplied by FOX for this exact part number. Springs, reservoirs, brackets, clamps, hardware, companion shocks, service fluid, and installation tools are separate unless expressly listed.
Installation Instructions
Follow the current FOX instructions and vehicle service information for this exact part number. Support the vehicle safely, use the specified tools and torque values, inspect all mounts and hardware, verify brake-line, steering, driveline, reservoir, wheel, and tire clearance, settle the suspension, and complete an alignment whenever geometry or ride height changes. Professional installation is recommended.
