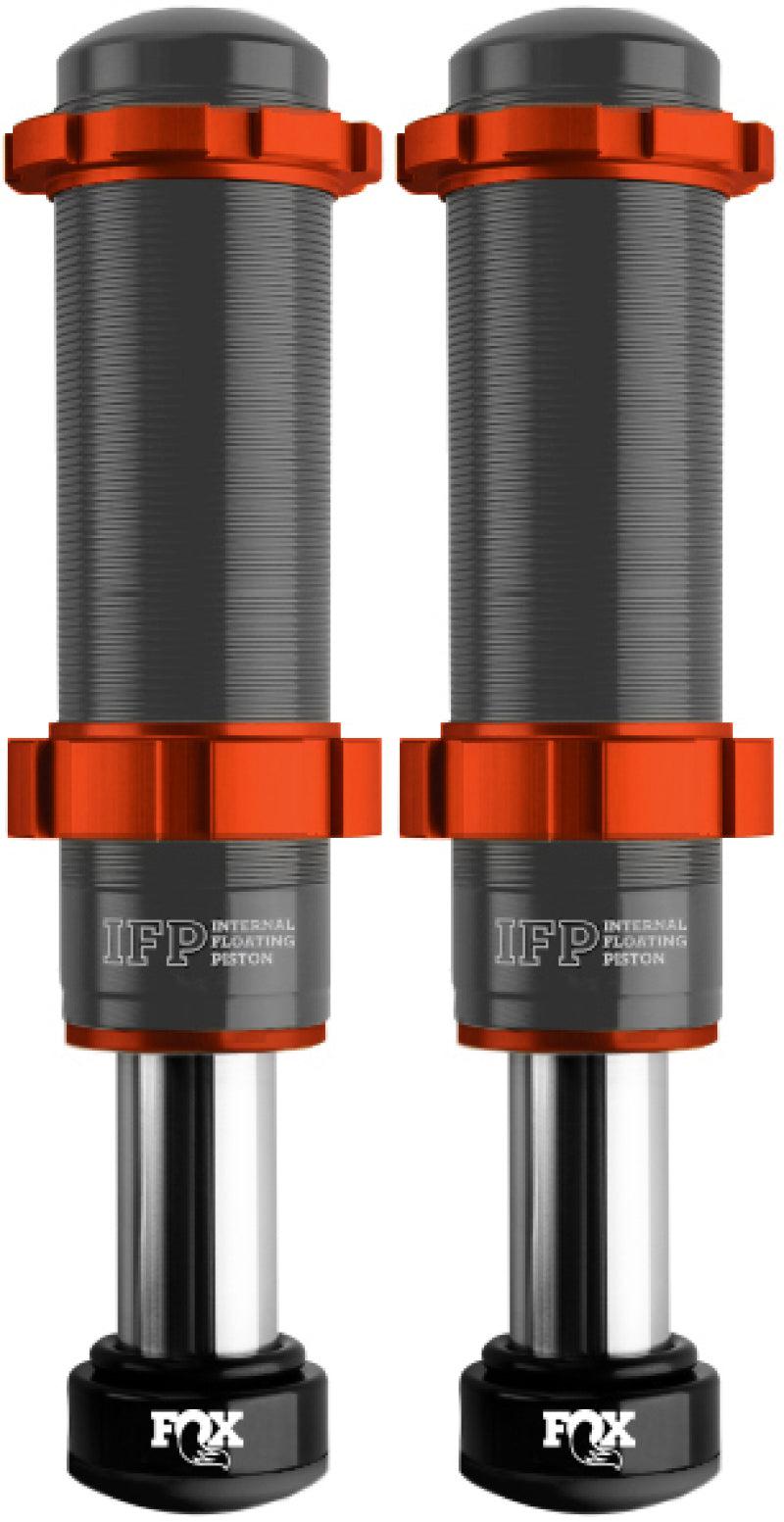

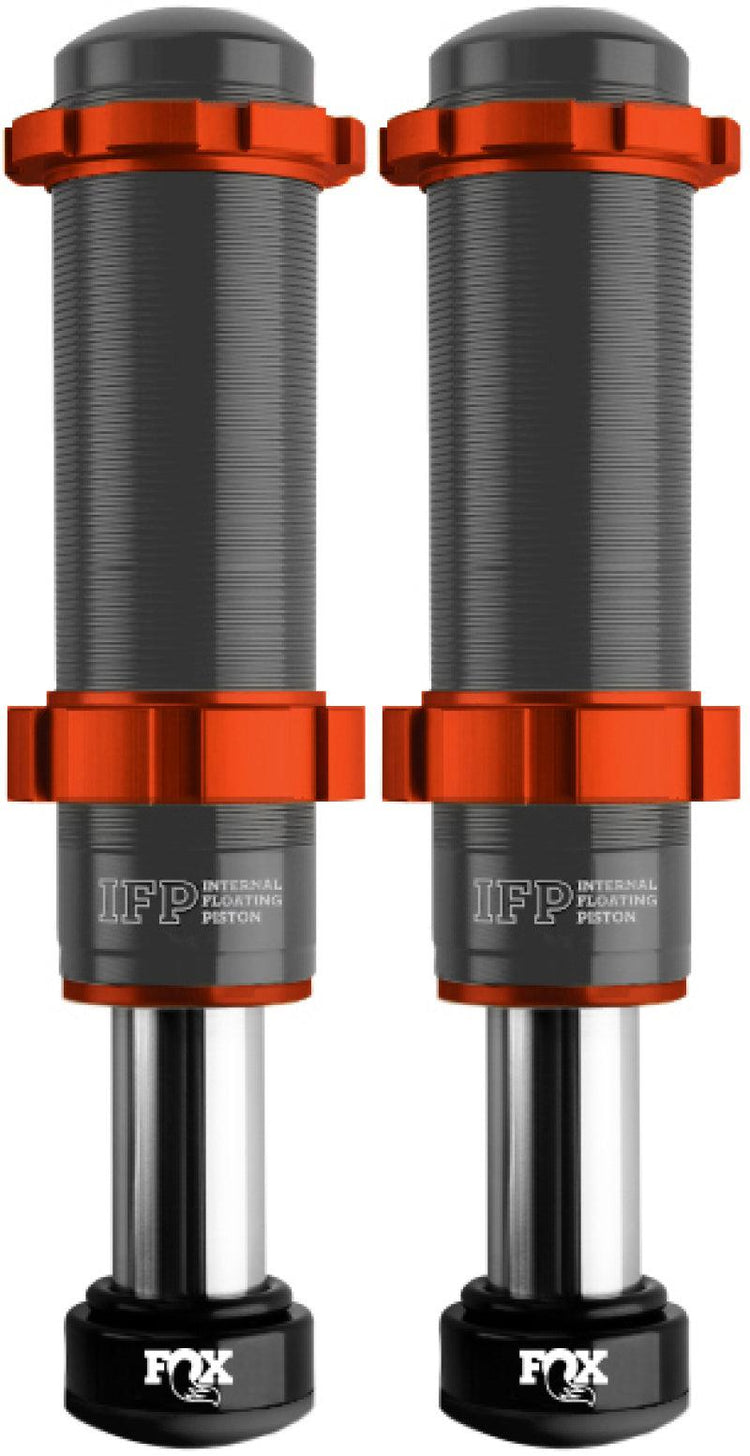

Inspired by it's off-road racing predecessors, the new Factory Race Series bump stop combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel. The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs.
Key Features
- 2.0in Travel / 10in Extended Length: Absorbs up to 2 inches of compression from 10-inch extended position for smooth progression to full bottom-out.
- 2.0in Body Diameter: Compact design fits inside 2.5-inch coilover shocks without compromising strength or travel.
- Eyelet/Eyelet Mounting: Direct bolt-on compatibility with FOX Factory Race Series coilovers using 0.50in bore eyelets top and bottom.
- IFP Technology: Separates high-pressure nitrogen from fluid to prevent cavitation and ensure fade-free performance over repeated use.
- Race-Proven Construction: 6061-T6 aluminum body with high-flow pistons withstands extreme abuse from desert racing to rock crawling.
- Eyelet mounts align with 2.5in shock bodies. torque to 20-30 ft-lbs.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2020-2025 | Jeep | Gladiator | Position: Front |
| 2018-2025 | Jeep | Wrangler | Position: Front |
Specifications
| Brand | FOX |
|---|---|
| Manufacturer Part Number | 883-02-167 |
| Product Type | Bump Stops |
| Condition | New |
| Fitment State | Vehicle Specific |
| Body Diameter | 2 |
| Bottom Mount Type | None |
| Compressed Length | 8.18 |
| Extended Length | 10.04 |
| Lifetime Warranty | No |
| Lift Height | ALL |
| Position | Front |
| Series | Factory Race |
| Shock Type | Bump Stop |
| Top Mount Type | Threaded Body |
| Travel Length | 1.85 |
What's Included
One new FOX product package identified by manufacturer part number 883-02-167. Only components expressly supplied for this exact part number are included.
About FOX
FOX develops performance suspension products for street, off-road, racing, and specialty vehicle applications. Correct selection remains exact-application and exact-part-number specific.
Related FOX Products
- Fox 07-18 Jeep JK 2.0 Factory Series 2in Travel Rear Gen2 Bump Stop IFP (Pair)
- Fox 07+ Jeep JK 2.0 Factory Series 2.55in. Front Bump Stop IFP (Pair)
- Fox 2018+ Jeep JL 2.0 Factory Series 1.853in Travel Rear Bump Stops IFP (Pair)
Browse the FOX collection for related suspension and service components.
Frequently Asked Questions
Will FOX 883-02-167 fit my 2020-2025 Jeep Gladiator?
That year-make-model is listed, but the trim, drivetrain, suspension package, position, lift height, production split, and every application note must also match.
Does FOX 883-02-167 change ride height or require supporting parts?
That depends on the exact application and configuration. Confirm the stated lift range, spring requirements, upper control arms, brackets, reservoirs, steering parts, alignment needs, and wheel and tire clearance before installation.
What is included with FOX 883-02-167?
The package includes only the components supplied by FOX for this exact part number. Springs, reservoirs, brackets, clamps, hardware, companion shocks, service fluid, and installation tools are separate unless expressly listed.
Installation Instructions
Follow the current FOX instructions and vehicle service information for this exact part number. Support the vehicle safely, use the specified tools and torque values, inspect all mounts and hardware, verify brake-line, steering, driveline, reservoir, wheel, and tire clearance, settle the suspension, and complete an alignment whenever geometry or ride height changes. Professional installation is recommended.
