SKU: 883-06-166 | UPC: 711745590274

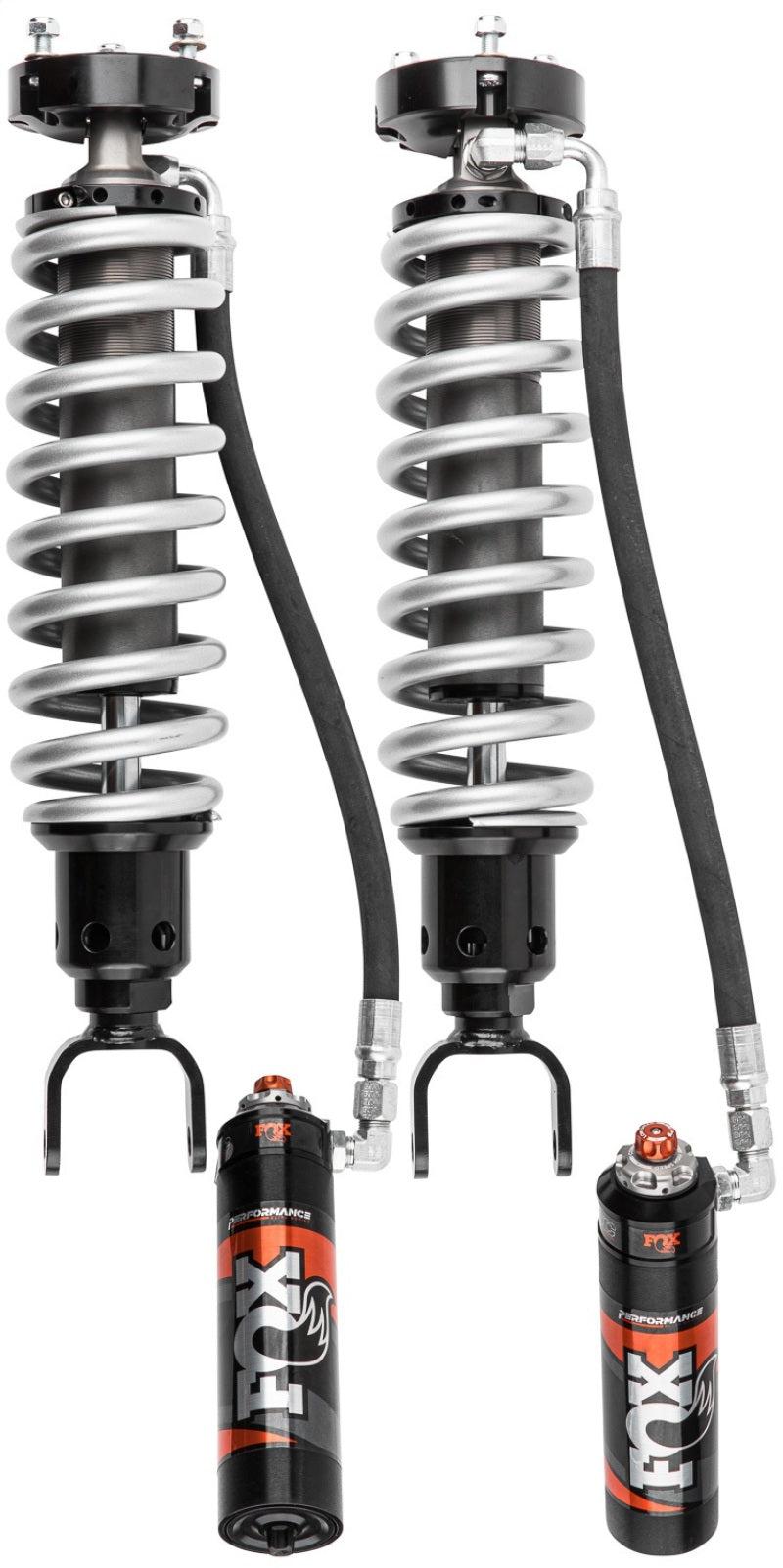

Fox 19+ Ram 1500 DT 4WD 2.5 Performance Series 6.25in. R/R Front Coilover w/DSC Adj / 2-3in. Lift
FOX 883-06-166 front coilover upgrades 2019-2024 Ram 1500 DT 4WD trucks with race-derived damping from FOX off-road race shocks. Delivers 2-3 inches of front lift plus 14-position DSC adjustment for tuned compression damping on road or trail. Bolt-on design fits Big Horn Laramie Rebel TRX Limited and more for immediate handling gains.
Key Features
- Remote Reservoir Design: Boosts oil capacity and cooling for fade-free performance during extended off-road use
- DSC Adjustment: 14 clicks of dual-speed compression tuning lets you dial in firmness for payload highway or rough terrain
- 2.5in Aluminum Body: Dissipates heat 3x faster than steel for consistent damping and smoother control
- Race-Proven Valving: Application-tuned piston and valving from FOX race shocks provide precise fade-resistant response
- 2-3in Lift: Levels front end improves approach angle and works with stock or aftermarket rear suspension
Product Notes
- Position-specific right front coilover sold individually left side 883-06-165 sold separately
- Revalvable and rebuildable by FOX for long service life
- Package weight 28.35 lbs ships in 27 x 9 x 9 inch box
Installation Notes
- Professional installation recommended.
- Requires coil spring compressor tool for safe disassembly.
- Bolts to factory mounts no cutting or welding needed post-install alignment required.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2024 | Ram | 1500 | Big Horn |
| 2019-2024 | Ram | 1500 | HFE |
| 2019-2024 | Ram | 1500 | Laramie |
| 2019-2021 | Ram | 1500 | Laramie Longhorn |
| 2019-2024 | Ram | 1500 | Limited |
| 2021-2024 | Ram | 1500 | Limited Longhorn |
| 2019-2024 | Ram | 1500 | Lone Star |
| 2021 | Ram | 1500 | Longhorn |
| 2019-2024 | Ram | 1500 | Rebel |
| 2020-2021 | Ram | 1500 | Special Service |
| 2019-2024 | Ram | 1500 | Tradesman |
| 2021-2024 | Ram | 1500 | TRX |
| 2021 | Ram | 1500 | TRX Launch Edition |
Why Choose FOX?
- Backed by decades of off-road race wins in Baja and short course
- Engineered damping matches Ram 1500 DT suspension geometry
- High-flow pistons and reservoirs maintain performance under heat
Frequently Asked Questions
-
Q: Does this fit 2WD Ram 1500 models
A: Designed for 4WD DT platform only 2WD uses different part number -
Q: What materials are used in construction
A: 2.5-inch anodized aluminum body cadmium steel components Eibond coating on rod resists corrosion -
Q: What warranty coverage applies
A: Limited lifetime on shock limited 1-year on coilover spring FOX authorized service centers handle repairs
Shipping & Handling
- Method: UPS Ground / FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: FOX factory box 27in L x 9in W x 9in H
- Weight: 28.35 lbs
