Control Long Travel with Position Sensitive Rebound

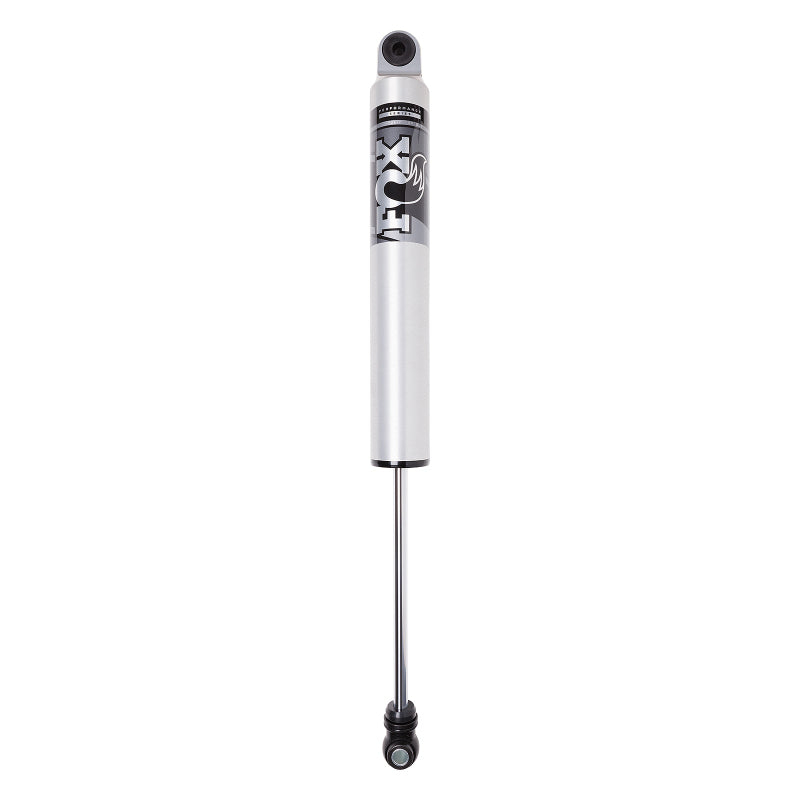

The FOX 987-24-062 is a 2.5 Performance Series smooth body front shock with an internal floating piston and Hydraulic Top Out control for lifted Jeep Gladiator applications.
Key Features
- Hydraulic Top Out damping adds position sensitive rebound control near full extension
- Internal floating piston separates the shock oil from the high pressure nitrogen charge
- Impact extruded 6061-T6 aluminum body helps manage heat and resist corrosion
- Vehicle specific valving for the 987-24-062 application
- Bolt on eyelet mounts use the original mounting locations
Fitment
| Years | Make | Model | Position | Lift Height | Notes |
|---|---|---|---|---|---|
| 2020-2026 | Jeep | Gladiator | Front | 4.5-6 inches | All drive types. Excludes Mojave models. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer | FOX |
| Manufacturer Part Number | 987-24-062 |
| Product Type | 2.5 Performance Series smooth body IFP HTO shock absorber |
| Series | Performance Series |
| Position | Front |
| Lift Height | 4.5-6 inches |
| Body Diameter | 2.5 inches |
| Body Material | Impact extruded 6061-T6 aluminum |
| Reservoir | Internal floating piston |
| Travel | 11.18 inches |
| Extended Length | 30.72 inches |
| Compressed Length | 19.54 inches |
| Upper Mount | Eyelet |
| Lower Mount | Eyelet |
| Damping | Factory valved with Hydraulic Top Out rebound control |
| Warranty | Limited lifetime warranty for qualifying purchases by the original retail owner, subject to FOX terms |
What's Included
- One FOX 987-24-062 front shock absorber
About FOX
FOX develops serviceable suspension products for street and off road vehicles. Performance Series truck shocks combine application specific tuning with race developed damping technology.
FAQ
What is the 987-24-062?It is one gas charged front shock absorber with an internal floating piston and Hydraulic Top Out damping.
Which vehicles does this shock fit?It fits 2020-2026 Jeep Gladiator models with the required lift height and any factory drive type.
Is this shock compatible with Mojave models?No. Mojave models are excluded from this application.
What lift height is required?This front shock is designed for vehicles with 4.5-6 inches of lift.
Is the damping externally adjustable?No. The shock uses factory vehicle specific valving rather than an external adjuster.
Does this shock use an external reservoir?No. An internal floating piston separates the shock oil from the nitrogen charge.
Does the package contain one shock or a pair?The package contains one front shock absorber.
Should front shocks be installed in pairs?Yes. Installing matched shocks as a pair supports consistent performance across the axle.
What warranty applies?Qualifying 2.5 Performance Series products purchased after March 30, 2025 are covered by a limited lifetime warranty for the original retail owner, subject to the complete FOX warranty terms and exclusions.
Installation Instructions
- Have a qualified technician support the vehicle safely with a chassis lift and suitable tools.
- Remove the existing front shock according to the Jeep service manual.
- Confirm the replacement label shows 987-24-062 and verify both eyelet mounts before installation.
- Install the shock with the body at the top and reuse original hardware only when it is in serviceable condition.
- Compress mounting bushings by approximately one eighth inch and torque all fasteners to Jeep specifications.
- Cycle the suspension, verify clearance, and recheck every fastener before driving.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
