Fox 2011+ GMC Sierra 2500/3500 HD 0-1in Lift Rear 2.5 Performance Series Smooth Body IFP HTO Shock

FOX
FOX987-24-009
Shocks and Struts
20+ Units In Stock - Ships Next Business Day
$ 346.95
$ 346.95

SKU: 987-24-009

Silverado 2500HD/3500HD 2011-2024 Chevy (w/0-1" lift) - Fox 2.5 Performance Series IFP HTO Shock (REAR)

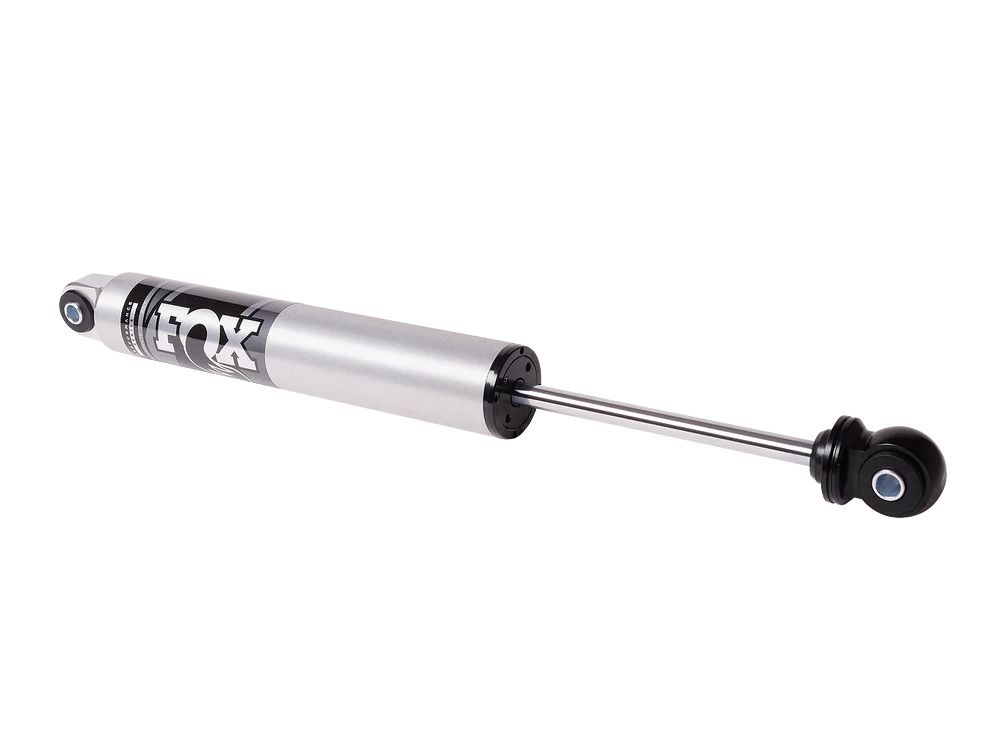

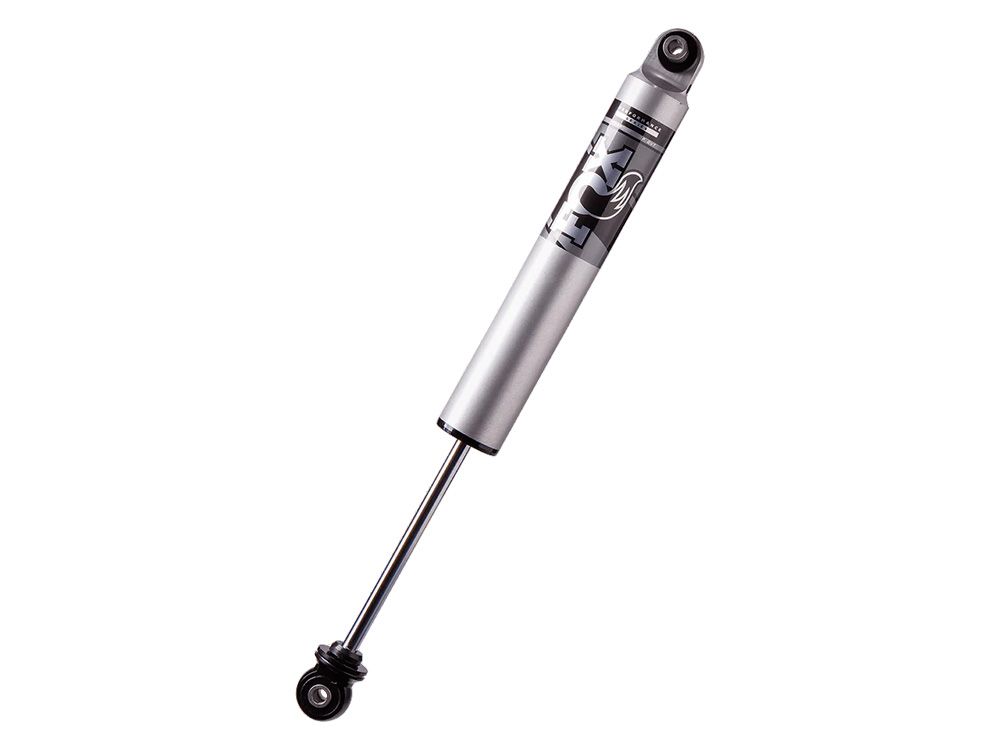

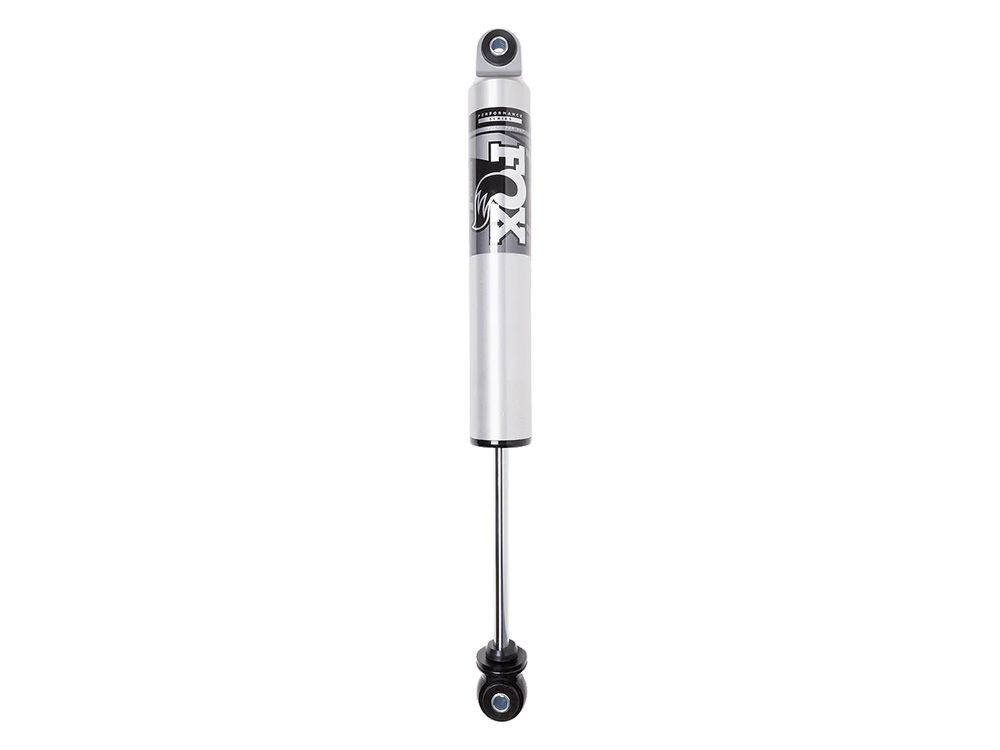

The FOX 2.5 987-24-009 2.5 Performance Series Smooth Body HTO Shock for the Chevy Silverado 2500HD / 3500HD is a bolt-on shock absorber featuring position-sensitive technology, vehicle-specific valving, and larger pistons for enhanced road performance.

The 2.5-inch diameter 6061-T1 type II anodized aluminum "Smooth" body resists corrosion, efficiently dissipates heat, and looks awesome. This shock body incorporates an internal floating piston (IFP) to separate shock oil from high-pressure nitrogen, optimizing damping performance.

The Hydraulic Top Out (HTO) technology provides position-sensitive rebound damping control, improving comfort and reducing harsh top-outs by directing shock oil through a secondary shim stack to slow the shock shaft speed. This is especially advantageous for vehicles with heavier, aggressive tires and those lifted beyond OEM specifications.

Upgrade to the bolt-on 2.5 Performance Series HTO Shocks for increased damping capacity, a smoother ride, and advanced position-sensitive rebound control. A great option for on and off-road conditions.

Features & Benefits:

  • Large 2.5-inch impact-extruded 6061-T6 aluminum shock body
  • Increased size improves oil capacity and dampening capabilities
  • Hydraulic Top Out (HTO) piston reduces harsh top-out and improves ride comfort
  • Excellent performance for on and off-road
  • Type II clear-anodized body plating
  • High-flow velocity-sensitive damping
  • 5/8” hard chrome shaft
  • Internal floating piston (IFP)
  • Corrosion resistant finish
  • Application specific tune
  • Fully rebuildable and re-tunable

Shock Specs

  • Extended length: 26.020 inches
  • Compressed length: 17.340 inches
  • Travel: 8.680 inches
  • Top mount: Eyelet
  • Bottom mount: Eyelet
  • Axle: Rear

Fits models with 0 to 1.5 inches of suspension lift

Notes:

Quantity (1) shock absorber. Quantity (2) shock absorbers are required for most applications.

Fits 0-1" Lifts
