Fox 2018+ Jeep JL Factory Series Remote Res. Front Shock / 3.5-4in. Lift w/ DSC

FOX
FOX883-26-051
788000424339
Shocks and Struts
8 Units In Stock - Ships Next Business Day
$ 1,679.95
$ 1,679.95

SKU: 883-26-051 | UPC: 788000424339

Fox 2018+ Jeep JL Factory Series Remote Res. Front Shock / 3.5-4in. Lift w/ DSC

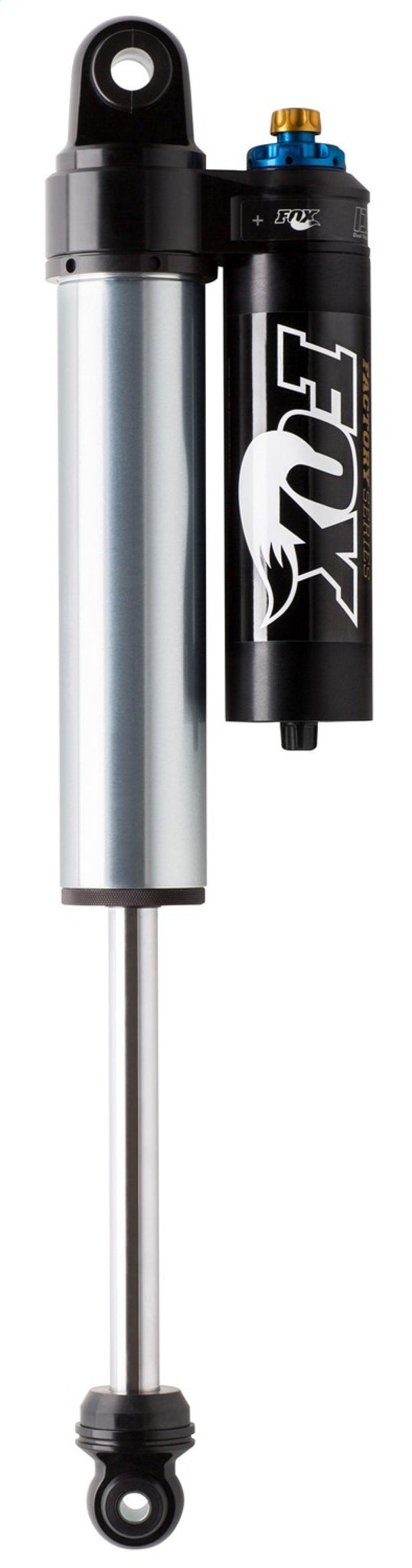

This FOX Factory Series 2.5 remote reservoir front coilover shock with Dual Speed Compression (DSC) fits 2018+ Jeep Wrangler JL and Gladiator JT models equipped with 3.5-4 inch lifts. Developed from FOX off-road race shocks it provides precise damping control for rocks trails and high-speed desert runs. The external reservoir and DSC adjustment deliver consistent performance under extreme conditions.

Key Features

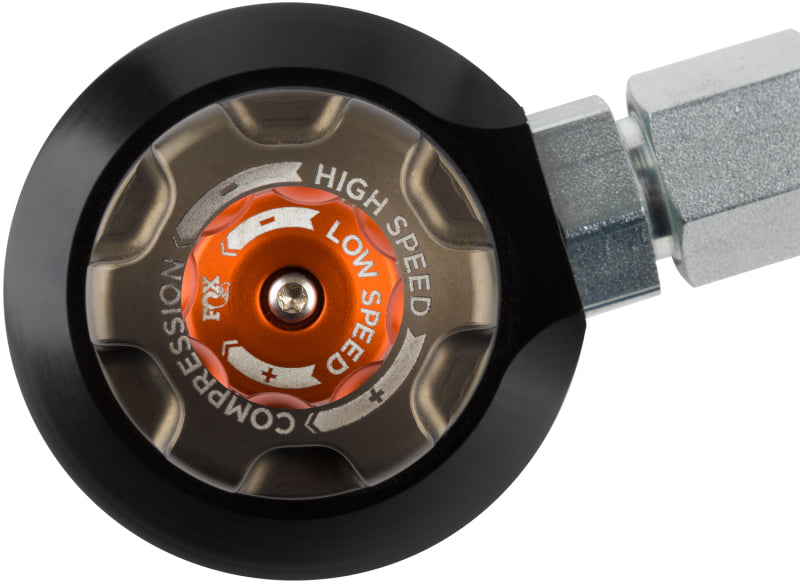

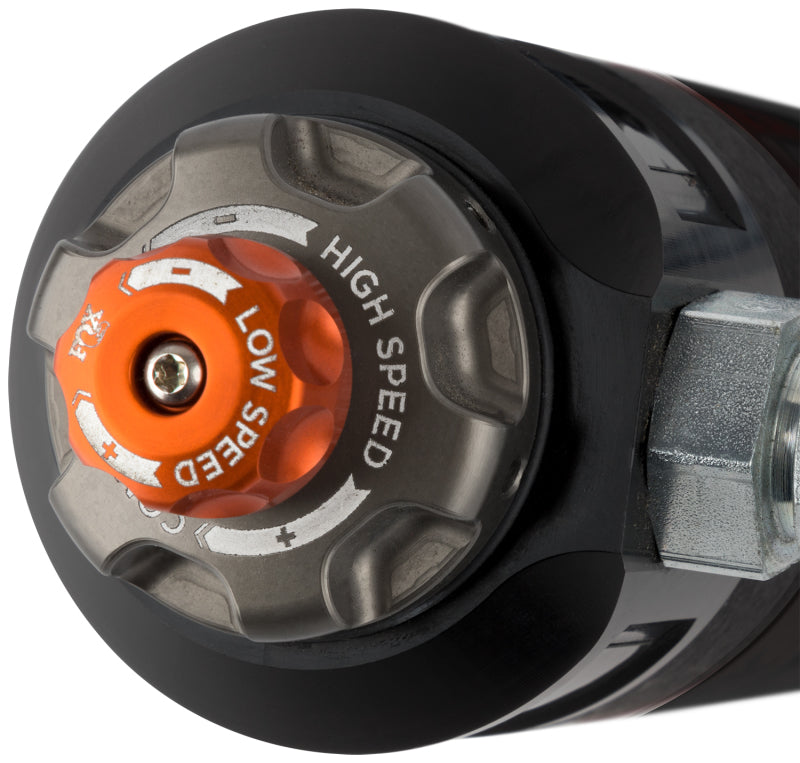

  • Dual Speed Compression (DSC) Adjuster: 10-position low-speed and 12-position high-speed compression adjustments allow real-time tuning for terrain from soft whoops to rocky crawls.
  • 2.5 Inch Aluminum Body: Smoothbore hard-anodized aluminum body dissipates heat efficiently while resisting corrosion for long-term durability on dusty trails.

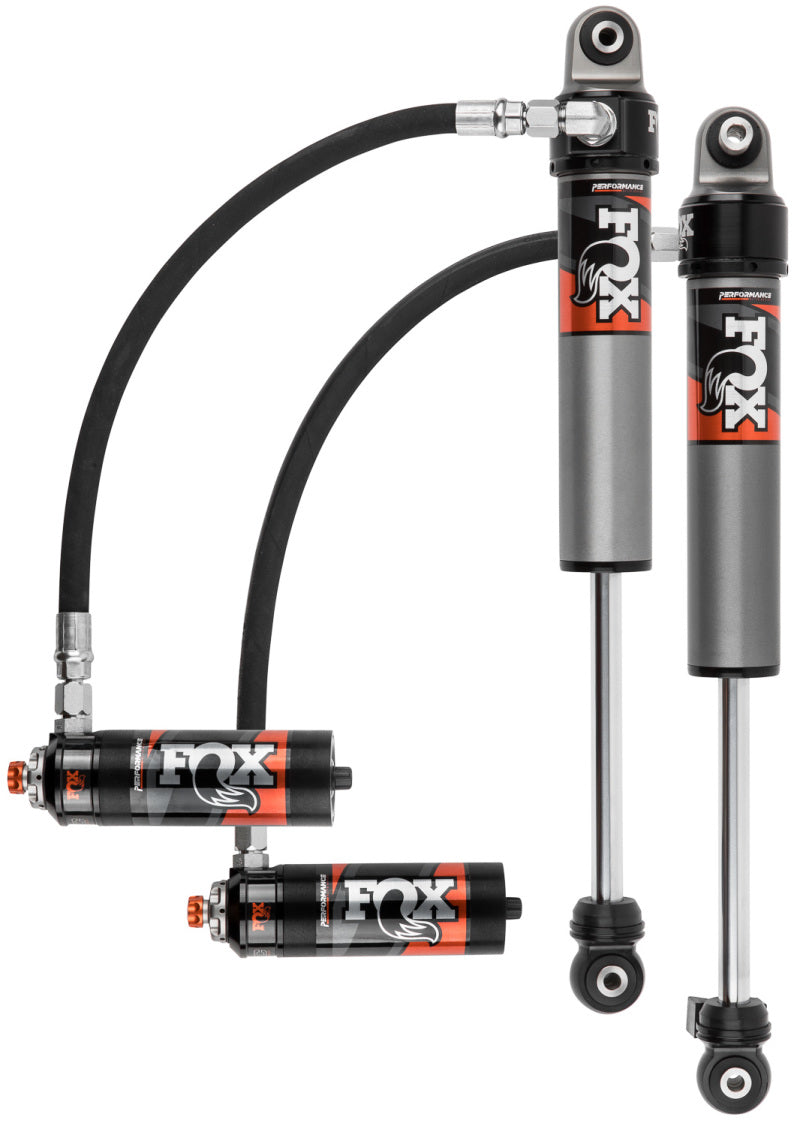

  • Remote Reservoir: Increases oil and nitrogen capacity to prevent fade during extended hard-hitting off-road abuse maintaining stroke and control.
  • Application-Specific Valving: Race-tuned valving and Eibach progressive coil spring matched to Jeep JL/JT weight and suspension geometry for balanced ride quality.
  • Fully Rebuildable Design: Serviceable components with FOX service centers ensure lifetime performance with straightforward maintenance.

Product Notes

  • Sold individually as right front shock. order left side (883-26-052) separately for pair.
  • Requires 3.5-4 inch suspension lift. verify clearance with upper control arms and bump stops.
  • Weight approximately 19.5 lbs per shock. box dimensions 38 x 8 x 8 inches.

Installation Notes

  • Professional installation recommended.
  • Torque to FOX specs: shock mounting bolts 75 ft-lbs upper/lower.
  • Compatible with stock or aftermarket control arms. adjust ride height coil collar during install.

This Part Fits

Year Make Model Submodel
2021 Jeep Gladiator 80th Anniversary
2020,2022 Jeep Gladiator Altitude
2023-2024 Jeep Gladiator Freedom
2021-2024 Jeep Gladiator High Altitude
2020 Jeep Gladiator Launch Edition
2020-2024 Jeep Gladiator Mojave
2020-2024 Jeep Gladiator Overland
2020-2024 Jeep Gladiator Rubicon
2020-2024 Jeep Gladiator Sport
2020-2024 Jeep Gladiator Sport S
2021-2024 Jeep Gladiator Willys
2021-2024 Jeep Gladiator Willys Sport
2021 Jeep Wrangler 80th Anniversary
2021,2023 Jeep Wrangler Freedom
2021 Jeep Wrangler Islander
2018-2024 Jeep Wrangler Rubicon
2018-2024 Jeep Wrangler Sport
2018-2024 Jeep Wrangler Sport S
2021 Jeep Wrangler Unlimited 80th Anniversary
2021,2023 Jeep Wrangler Unlimited Freedom
2021-2024 Jeep Wrangler Unlimited High Altitude
2021-2024 Jeep Wrangler Unlimited High Altitude 4xe
2022-2024 Jeep Wrangler Unlimited High Tide
2021 Jeep Wrangler Unlimited Islander
2018-2019 Jeep Wrangler Unlimited Moab
2018-2024 Jeep Wrangler Unlimited Rubicon
2021-2024 Jeep Wrangler Unlimited Rubicon 392
2021-2024 Jeep Wrangler Unlimited Rubicon 4xe
2018-2024 Jeep Wrangler Unlimited Sahara
2021-2024 Jeep Wrangler Unlimited Sahara 4xe
2021-2024 Jeep Wrangler Unlimited Sahara Altitude
2018-2024 Jeep Wrangler Unlimited Sport
2021-2024 Jeep Wrangler Unlimited Sport Altitude
2018-2024 Jeep Wrangler Unlimited Sport S
2021-2024 Jeep Wrangler Unlimited Willys
2023-2024 Jeep Wrangler Unlimited Willys 4xe
2021-2024 Jeep Wrangler Unlimited Willys Sport
2021-2024 Jeep Wrangler Willys
2021-2024 Jeep Wrangler Willys Sport

Why Choose FOX?

  • Proven in Baja 1000 and King of the Hammers races for real-world durability.
  • High-flow piston technology handles G-out and square-edge hits without packing.
  • Precision CNC-machined components ensure leak-free seals and consistent damping.

Frequently Asked Questions

  • Q: Does this fit 2020 Jeep Gladiator Rubicon with 3.5 inch lift?
    A: Yes it bolts on directly to 2020-2024 Gladiator Rubicon with 3.5-4 inch lift kits from AEV Teraflex or similar.
  • Q: What material is the shock body?
    A: Hard-anodized 6061-T6 aluminum body with 4130 steel shaft and stainless steel fittings for corrosion resistance.
  • Q: What is the warranty?
    A: FOX limited lifetime warranty on manufacturing defects when registered. covers rebuilds at authorized centers.

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Secure foam-lined cardboard box 38 x 8 x 8 inches
  • Weight: 19.5 lbs

Request For Information

Have questions about Fox 2018+ Jeep JL Factory Series Remote Res. Front Shock / 3.5-4in. Lift w/ DSC? Fill out the form below and we'll get back to you by the next business day.
