SKU: 883-26-140

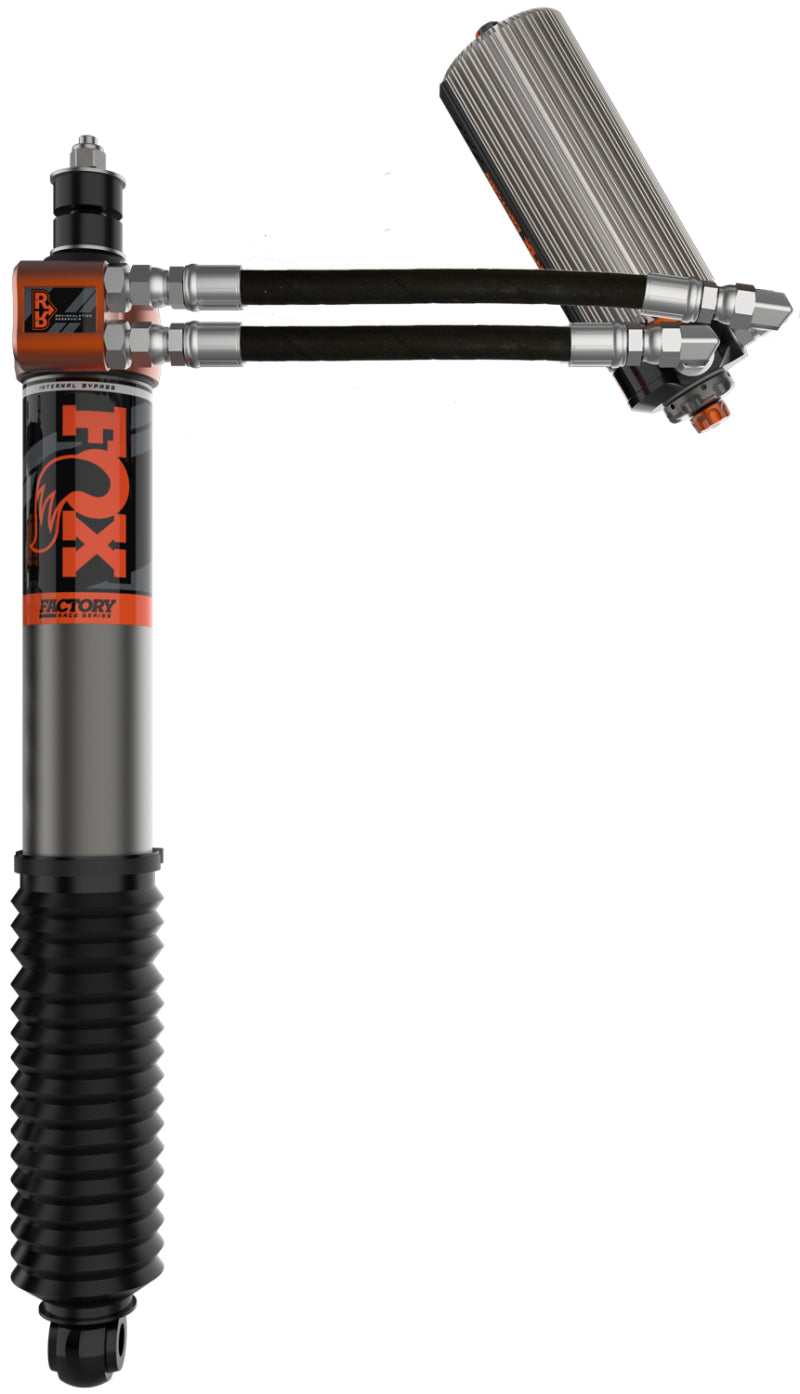

Fox 2022+ Toyota Tundra 3.0 Factory Race Series Internal Bypass Rear Coilover 0-1in Lift
Developed from FOX off-road race shocks, the Factory Race Series 3.0 Internal Bypass rear coilover delivers race-proven damping and cutting-edge ride control for 2022-2024 Toyota Tundra models including SR, SR5, Limited, Platinum, 1794 Edition, Capstone, and TRD Pro. This bolt-on shock provides precise handling on and off-road with 0-1 inch lift capability. Engineered for durability and performance in demanding conditions.
Key Features
- 3.0 Inch Aluminum Body: Lightweight 6061-T6 construction resists corrosion and heat for consistent performance during long hauls or high-speed runs.
- Internal Bypass Technology: Three precision-tuned bypass zones offer progressive damping, smoother ride over rough terrain, and firmer control at higher speeds.
- External Reservoir: Increases oil capacity by 35% to manage shock fade, ensuring reliable damping even under extreme off-road abuse.
- Dual Speed Compression (DSC) Adjuster: 20-click high-speed and 20-click low-speed adjustments allow tuning for track, trail, or street driving preferences.
- Race Shaft and Seals: 5/8 inch .25 PTFE-plated shaft with Race Series seal head reduces friction and wear for long-term reliability.
Product Notes
- Designed as direct bolt-on replacement with no modifications required for listed Tundra models.
- Fully rebuildable and serviceable by FOX authorized technicians.
- Ships as single rear coilover unit. pair required for complete rear suspension upgrade.
Installation Notes
- Professional installation recommended.
- Requires standard Tundra rear suspension tools. torque specs per FOX instructions.
- Compatible with factory springs or aftermarket coils in 0-1in lift range. verify ride height post-install.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2024 | Toyota | Tundra | 1794 Edition |
| 2022-2024 | Toyota | Tundra | Capstone |
| 2022-2024 | Toyota | Tundra | Limited |
| 2022-2024 | Toyota | Tundra | Platinum |
| 2022-2024 | Toyota | Tundra | SR |
| 2022-2024 | Toyota | Tundra | SR5 |
| 2022-2024 | Toyota | Tundra | TRD Pro |
Why Choose FOX?
- Decades of off-road racing wins back every design decision.
- Valving tuned specifically for Tundra chassis dynamics.
- Precision manufacturing ensures leak-free operation for years.
Frequently Asked Questions
-
Q: Does this fit all 2022-2024 Toyota Tundra trims?
A: Yes, direct fit for SR, SR5, Limited, Platinum, 1794 Edition, Capstone, and TRD Pro with no modifications. -
Q: What materials are used in construction?
A: 6061-T6 aluminum body, steel reservoir, and PTFE-plated shaft for corrosion resistance and smooth operation. -
Q: What is the warranty coverage?
A: FOX provides a limited lifetime warranty against defects in materials and workmanship. register online for full details.
Shipping & Handling
- Method: Ground shipping via UPS or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Secure foam-lined box measuring 30 x 8 x 8 inches
- Weight: 21.6 lbs
