FOX Fox 2022+ Toyota Tundra 3.0 Factory Race Series Internal Bypass Rear Coilover 1.5-2in Lift
Click to zoom in

Fox 2022+ Toyota Tundra 3.0 Factory Race Series Internal Bypass Rear Coilover 1.5-2in Lift

FOX
FOX883-26-142
Coilovers
3 Units In Stock - Ships Next Business Day
$ 3,674.95
$ 3,674.95

SKU: 883-26-142

Fox 2022+ Toyota Tundra 3.0 Factory Race Series Internal Bypass Rear Coilover Kit with 1.5-2in Lift

The Fox kit is designed specifically for drivers seeking precise control and stability across diverse terrains. This Factory Race Series 3.0 Internal Bypass Rear Coilover system integrates race-proven technology to manage impacts effectively, ensuring your Tundra handles high-speed off-road runs and daily drives with consistent damping and reduced fade. Compared to standard shocks, the internal bypass design channels fluid through regulated ports for smoother initial travel, then ramps up resistance to absorb harsh hits without compromising ride comfort, delivering the level of performance that keeps your truck planted where others falter.

What's Included in Your Purchase

This complete bolt-on kit provides everything needed for a straightforward installation on your lifted Tundra:

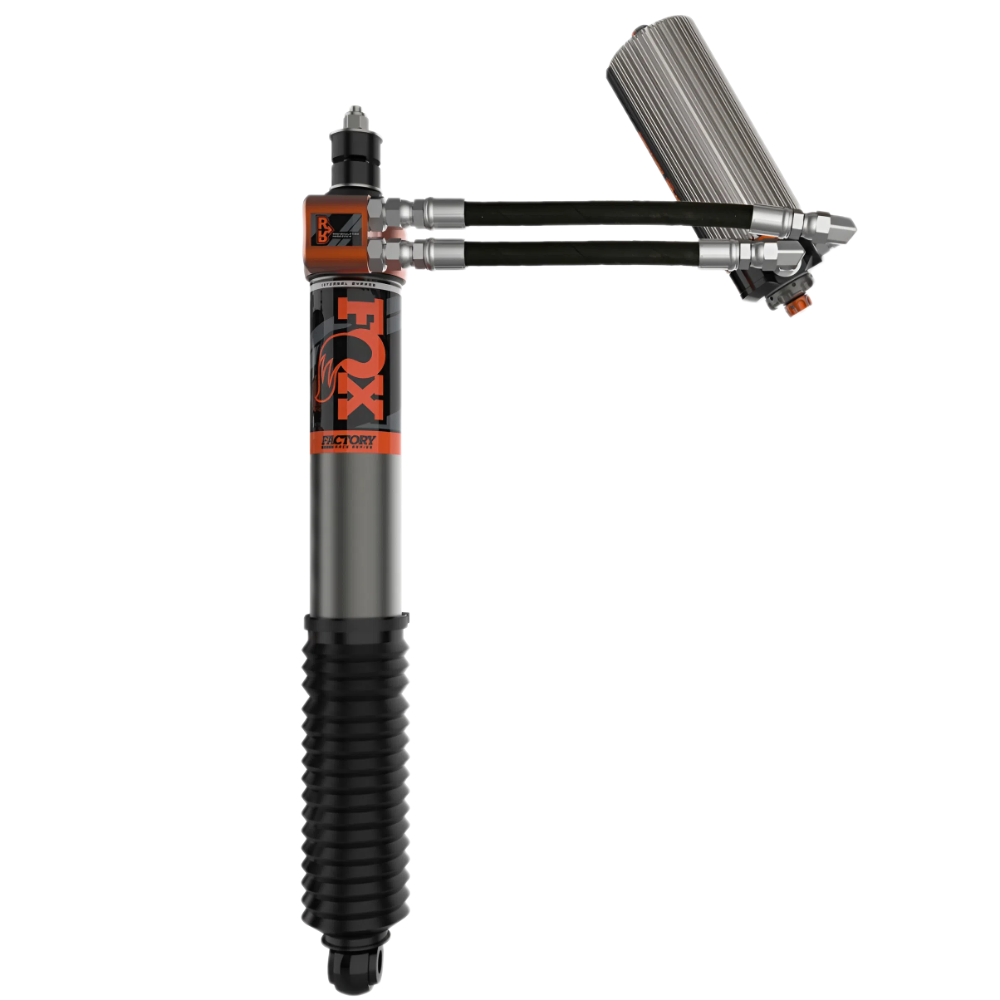

  • Pair of 3.0 Internal Bypass Rear Coilover Shocks with finned remote reservoirs and Dual Speed Compression (DSC) adjusters.
  • Extended brake lines to accommodate the 1.5-2in lift height.
  • All necessary hardware for OEM shock mount compatibility.

Vehicle Fitment Details

Engineered exclusively for the 2022-2025 Toyota Tundra across all trims and configurations:

  • Year Range: 2022, 2023, 2024, 2025.
  • Make/Model: Toyota Tundra (2WD and 4WD models).
  • Position: Rear.
  • Lift Compatibility: 1.5-2 inches (requires extended brake lines, included).
  • Drive Type: Compatible with all drivetrains; bolts directly to factory mounts when paired with an aftermarket lift kit.

Key Specifications

  • Part Number: 883-26-142.
  • Body Construction: 3.0-inch diameter CNC-machined 6061-T6 aluminum with Type III hard-anodizing for corrosion resistance and three times faster heat dissipation than steel.
  • Shaft: 7/8-inch hard chrome-plated steel for durability under extreme loads.
  • Reservoir: Finned aluminum remote with recirculating bridge for continuous fluid exchange and optimal temperature control.
  • Adjustment: DSC adjuster with 10 low-speed and 12 high-speed compression settings to fine-tune for load, terrain, and driving conditions.
  • Mounting: Stem top mount eyelet bottom mount.
  • Dimensions:
    • Extended Length: 26.25 inches.
    • Compressed Length: 16.28 inches.
    • Travel: 9.97 inches.
  • Seals and Bushings: High-temperature Viton seals, quiet nitrile rubber bushings, and PTFE-lined spherical bearings for long-lasting performance.
  • Valving and Piston: Application-specific race-bred valving with high-flow piston design.
  • Product Weight: Approximately 50 pounds.
  • Shipping Box Size: 39.2 x 20.8 x 11.9 inches (single box for the kit).

The Fox 883-26-142 stands out for Tundra owners by combining adjustable damping zones that adapt to every stroke, offering more progressive force control than competitors' fixed-valve setups. This means fewer bottom-outs on jumps, smoother landings from rough sections, and sustained performance during extended trails or highway hauls. With its vehicle-tuned springs and proprietary racing oil, this kit unlocks your Tundra's capabilities, making it the direct path to reliable, trail-ready handling that matches your adventures.
