FOX Fox 21-23 Ford F150 Supercrew 3.2 Factory Race Live Valve Front Coilover - 2-2.5in Lift
FOX Fox 21-23 Ford F150 Supercrew 3.2 Factory Race Live Valve Front Coilover - 2-2.5in Lift
FOX Fox 21-23 Ford F150 Supercrew 3.2 Factory Race Live Valve Front Coilover - 2-2.5in Lift
Click to zoom in

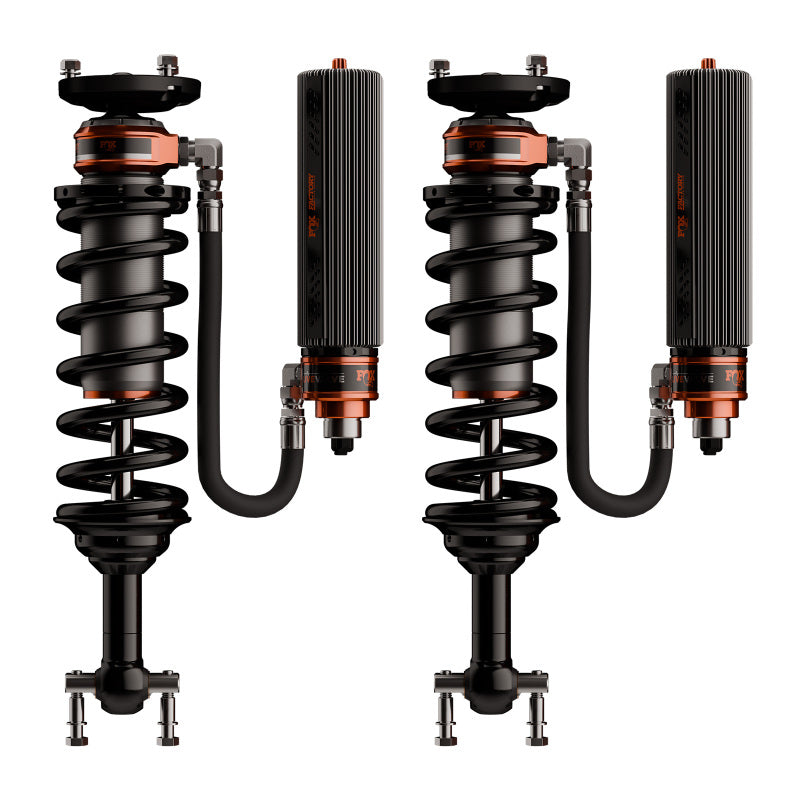

Fox 21-23 Ford F150 Supercrew 3.2 Factory Race Live Valve Front Coilover - 2-2.5in Lift

FOX
FOX883-06-262
Coilovers
Out of stock
$ 8,495.95

SKU: 883-06-262


Fox 21-23 Ford F150 Supercrew 3.2 Factory Race Live Valve Front Coilover - 2-2.5in Lift

America’s best-selling full-size pickup gains unmatched versatility with Fox Factory Race Series 3.2 Live Valve front coilovers. Designed for 2021-2023 Ford F-150 SuperCrew 5.5ft bed models (2WD/4WD non-Raptor), these coilovers deliver a 2-2.5in lift while monitoring terrain and driver inputs 400 times per second. Control damping at all four corners in real time for ideal handling on pavement, gravel, dunes, or rocks.

Key Features

  • Live Valve Technology – Electronic solenoids adjust damping 400 times/second based on speed, steering, braking, and terrain
  • 3.2in Aluminum Body – Large-bore design with external reservoir dissipates heat for consistent performance
  • 2-2.5in Lift Height – Raises front end for better approach angle and leveled stance
  • Factory Race Valving – Tuned for F-150 SuperCrew with 7.3in travel (extended 25.3in, compressed 18in)
  • Stem/Stem Top Mounts – Bolt-on fit with eyelet bottoms, no modifications required
  • High-Strength Components – 2.5in shafts and DU bushings ensure durability under extreme use

Specifications

Detail Value
Brand Fox Factory
Type Front Live Valve Coilover Pair
Compatibility 2021-2023 Ford F-150 SuperCrew 5.5ft bed 2WD/4WD non-Raptor
MPN 883-06-262
Lift 2-2.5in
Travel 7.3in
Weight 38.6 lbs
Shipping Dimensions 26 x 9 x 9in
Country of Origin USA
Warranty 12-month manufacturer

Whats Included

  • Pair of 3.2 Live Valve front coilover assemblies
  • Fox decals
  • Installation instructions

Product Notes

  • Front coilovers only, pair of Live Valve ECU, wiring harness, and rear shocks sold separately for full system
  • Requires 2021-2023 F-150 SuperCrew 5.5ft bed (non-Raptor), all trims including XL, XLT, Lariat, King Ranch, Platinum, Tremor, Police Responder, SSV, Limited
  • Professional installation recommended, calibration via Fox app or dealer

This Part Fits

Year Range Make Model Notes
2021-2023 Ford F-150 SuperCrew 5.5ft bed 2WD/4WD non-Raptor, all trims, 2-2.5in lift
2021-2023 Ford F-150 XL/XLT SuperCrew only
2021-2023 Ford F-150 Lariat/King Ranch/Platinum/Limited/Tremor SuperCrew only

Why Choose Fox?

  • Live Valve system originally engineered for Ford OEM F-150 applications
  • Monitors and adapts suspension instantly across all terrains
  • Race-developed components handle daily driving to extreme off-road
  • Direct integration preserves truck electronics and ride quality

Frequently Asked Questions

  • Q: What makes Live Valve different from standard shocks?
  • A: It uses sensors and electronic valving to adjust damping 400 times per second for current conditions
  • Q: Do I need the full Live Valve kit?
  • A: Yes, fronts require matching rear shocks, ECU module, and wiring for complete operation
  • Q: Will this fit my 2021-2023 F-150 Raptor?
  • A: No, designed for non-Raptor SuperCrew models only

Shipping & Handling

  • Method: UPS Ground / FedEx Ground
  • Availability: In stock – ships same or next business day
  • Packaging: Original Fox box 26 x 9 x 9in, 40 lbs shipping weight, foam protected

Request For Information

Have questions about Fox 21-23 Ford F150 Supercrew 3.2 Factory Race Live Valve Front Coilover - 2-2.5in Lift? Fill out the form below and we'll get back to you by the next business day.
