FOX 213-27-000-B replacement shock sleeve for Polaris RZR XP 1000
FOX Fox Replacement Shock Sleeve - 5/8in OD x 1.500in L TLG 12mm Bolt
Click to zoom in

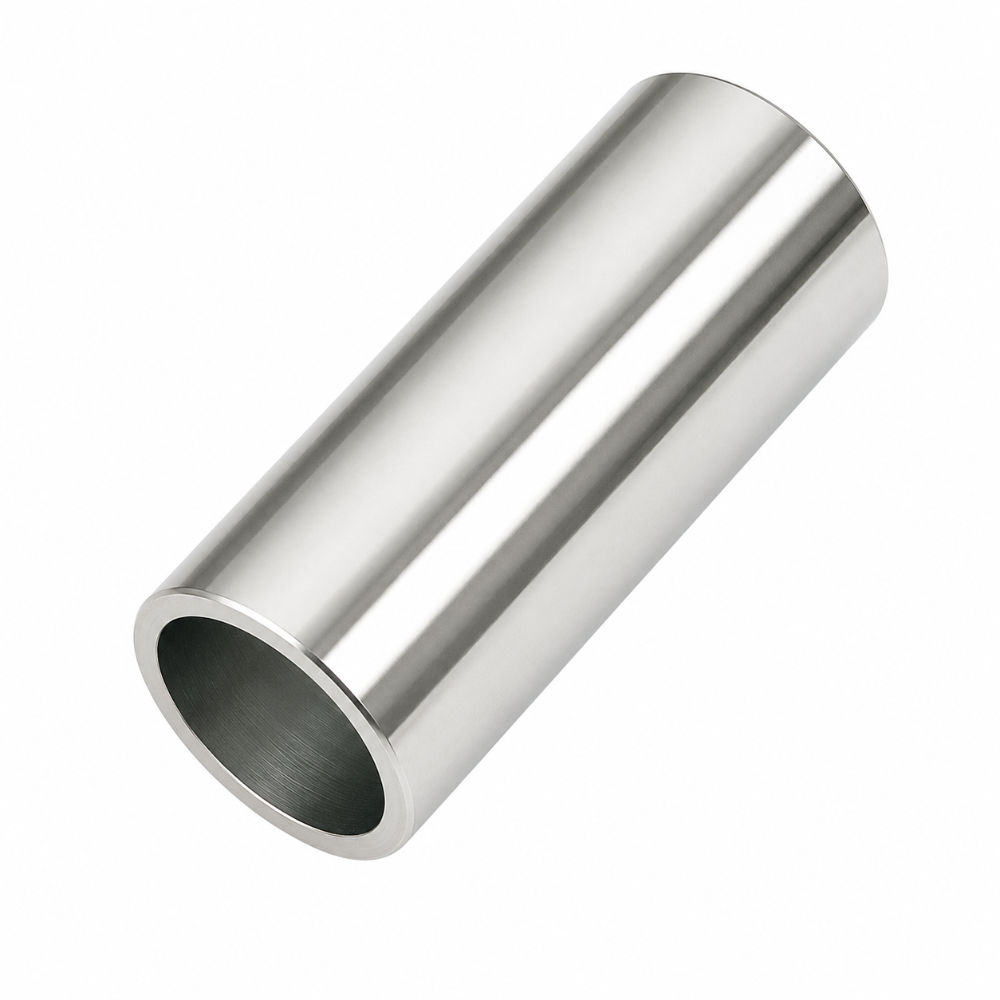

Fox Replacement Shock Sleeve - 5/8in OD x 1.500in L TLG 12mm Bolt

FOX
FOX213-27-000-B
Coilovers
10 Units In Stock - Ships Next Business Day
$ 5.00
$ 5.00

SKU: 213-27-000-B

Fox Replacement Shock Sleeve - 5/8in OD x 1.500in L TLG 12mm Bolt for 2014-2021 Polaris RZR XP 1000

Fox Replacement Shock Sleeve 213-27-000-B delivers precise bushing alignment for Fox performance shocks in UTV applications. This 5/8in OD x 1.500in L sleeve pairs with TLG bushings and 12mm mounting bolts on models like Polaris RZR XP 1000 and Can-Am Maverick X3. It prevents bushing deflection restores damping control and supports consistent suspension travel.

Key Features

  • Exact Sizing: 5/8in outer diameter x 1.500in length matches OEM specs for drop-in installation in compatible Fox shocks
  • 12mm Bolt Compatibility: Engineered for secure mounting with standard 12mm hardware used in UTV shock eyes
  • TLG Bushing Match: Works with Fox Teflon Lined Graphite bushings to minimize friction and wear during operation
  • Aluminum Construction: Hard anodized aluminum build resists corrosion handles high loads and maintains shape under stress
  • Direct OEM Replacement: Fixes worn or damaged sleeves to return shocks to factory performance levels

Product Notes

  • Inspect shock body and bushings for wear before installing new sleeve
  • Apply Fox suspension fluid during reassembly for optimal bushing life
  • Packaged for protection during transit lightweight design simplifies handling

Installation Notes

  • Professional installation recommended.
  • Follow Fox shock service manual to disassemble reservoir and body for sleeve access
  • Compatible with M12x1.5 bolts and Fox DU or TLG bushings torque to 25 ft-lbs

This Part Fits

Year Make Model Submodel
2014-2021 Polaris RZR XP 1000 EPS LE Turbo
2015-2020 Polaris RZR XP 900 EPS
2017-2024 Can-Am Maverick X3 Turbo DS RS
2011-2014 Polaris RZR XP 900 EPS
2013-2015 Polaris RZR XP 1000 EPS Fox Edition

Why Choose Fox?

  • Leaders in off-road suspension with parts in factory UTV programs
  • Components tested in extreme motocross and desert racing conditions
  • Precision manufacturing ensures consistent fit across shock series

Frequently Asked Questions

  • Q: Does this sleeve fit my Polaris RZR Fox shock
  • A: Yes it fits 2014-2021 RZR XP 1000 and similar models with Fox 2.0 or 2.5 shocks using 5/8in OD x 1.500in L sleeve and 12mm eyelet confirm via Fox parts diagram
  • Q: What material is the shock sleeve made from?
  • A: Hard anodized 6061-T6 aluminum provides strength corrosion resistance and precise tolerances for long-term bushing protection
  • Q: What warranty applies to this replacement part?
  • A: Backed by Fox Factory 1-year limited warranty on replacement hardware when installed per service guidelines

Shipping & Handling

  • Method: UPS Ground or USPS Priority Mail
  • Availability: In stock - ships same or next business day
  • Packaging: Protective poly bag in 4in x 3in x 1in box
  • Weight: 0.05 lbs
