Billet Lock-Up Stall for the 10-Speed Coyote

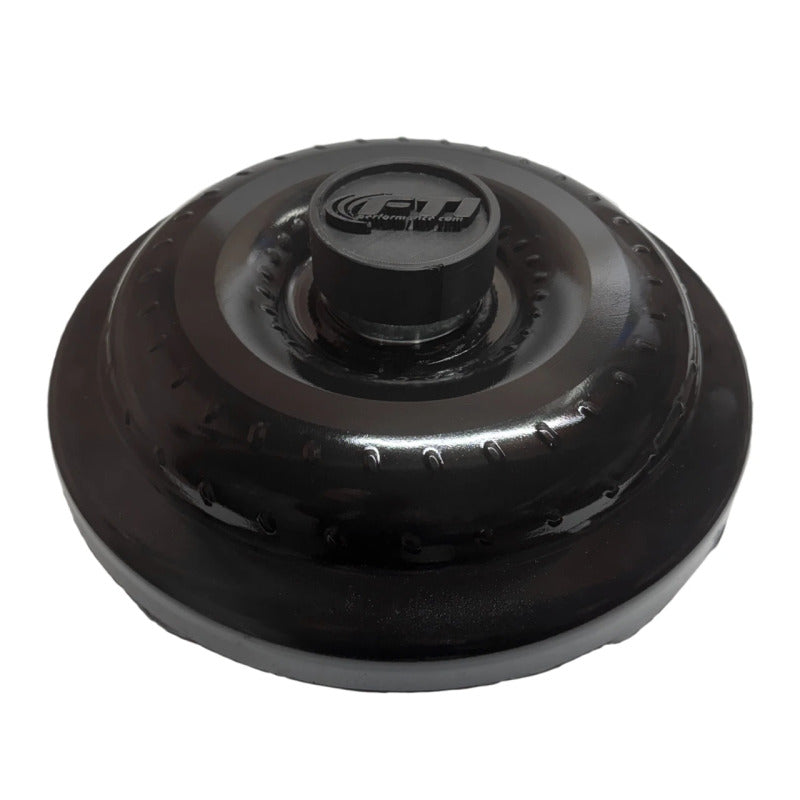

This is the FTI Performance Street Racer Lock-Up Series torque converter, a 9.5in billet unit built for the 2018+ Ford Mustang 5.0L with the 10R80 10-speed automatic transmission, with a 3200-3600RPM stall range. It is a single disc lock-up converter rated to 1000HP, designed for weekend warriors who want a firmer, more aggressive stall without giving up daily drivability.
Key Features
- Rated to 1000HP, built specifically for 2018+ Mustang 5.0L 10R80 transmissions.
- 3200-3600RPM stall range for an aggressive launch.
- CNC-machined billet stator and billet lock-up piston reduce premature clutch wear.
- Furnace brazed and balanced construction, lockup compatible.
- 3 year warranty.
Fitment
| Year | Make | Model | Transmission |
|---|---|---|---|
| 2018+ | Ford | Mustang 5.0L | 10R80 10-speed automatic |
Verify your specific Mustang is equipped with the 10-speed 10R80 transmission before ordering, since this converter does not fit 6R80-equipped Mustangs.
Specifications
| Detail | Value |
|---|---|
| Brand | FTI Performance |
| Series | Street Racer Lock-Up (SRL) |
| Diameter | 9.5in |
| Stall Speed | 3200-3600 RPM |
| Max Rated Horsepower | 1000 HP |
| Disc Configuration | Single disc lock-up |
| Furnace Brazed | Yes |
| Balanced | Yes |
| Lockup Compatible | Yes |
| Warranty | 3 year |
What's Included
- One FTI Street Racer Lock-Up Series 10R80 torque converter
About FTI Performance
FTI Performance builds torque converters and transmission components for street, street/strip, and race applications, and was among the first to introduce a purpose-built lock-up converter line for the Ford 10R80 10-speed automatic transmission.
FAQ
What vehicles does this converter fit?
2018 and newer Ford Mustang 5.0L models equipped with the 10R80 10-speed automatic transmission.
Will this fit a 2018+ F-150?
FTI's 10R80 converter line was also introduced for the 10R80 as used in F-150 applications. Confirm your specific F-150 transmission and stall requirements with FTI before ordering, since this specific listing is cataloged for Mustang.
What stall speed does this converter provide?
A 3200-3600RPM stall range.
What is the maximum horsepower rating?
1000HP.
Is this a single disc or multi-disc lock-up converter?
Single disc lock-up.
What warranty does this converter carry?
A 3 year warranty.
Will this converter work with a 6R80-equipped Mustang?
No, this converter is built specifically for the 10R80 10-speed transmission and does not fit 6R80-equipped Mustangs.
Is mounting hardware included?
Confirm hardware inclusion with FTI Performance or Black Ops Auto Works before installation.
Installation Instructions
- Remove the transmission from the vehicle following the applicable factory service procedure.
- Remove the factory torque converter from the transmission input shaft and flexplate.
- Install the new FTI converter onto the transmission input shaft, confirming full engagement of the pump drive and stator support.
- Reinstall the transmission and secure the converter to the flexplate using the appropriate mounting hardware.
- Verify proper converter-to-flexplate clearance before final installation.
- Fill the transmission with the correct fluid type and quantity, then check for proper operation.
