SKU: SRLS40086-3 Â | Â UPC: 674866108448

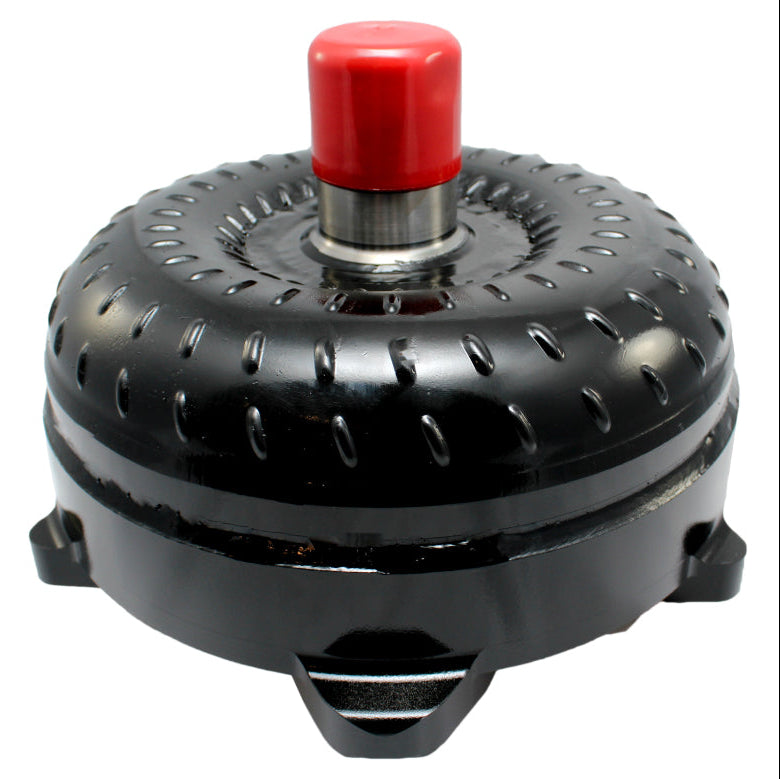

FTI Performance 9.5" Billet Triple Disc Lock-Up Street Racer Series Torque Converter – LS Engine, 3600 Stall (4L80E/4L85E)
The FTI Performance is a 9.5" billet triple disc lock-up torque converter from the Street Racer Series, built specifically for LS-powered vehicles with 4L80E or 4L85E transmissions. Featuring a CNC-machined billet front cover and billet lock-up piston, this converter virtually eliminates premature clutch wear while delivering strong street and strip performance. With a 3600 stall speed, custom stator design, and multiple blade angle options, it provides excellent launch characteristics and efficient power transfer. The furnace-brazed and heli-welded fins, severe-duty sprague, and anti-ballooning flanged impeller hub make this torque converter extremely durable and capable of handling high-horsepower applications.
Key Features
- Billet Triple Disc Lock-Up – CNC-machined billet front cover and piston for maximum durability and reduced clutch wear
- 3600 Stall Speed – Optimized for LS engines and aggressive street/strip performance
- High-Flow Design – Custom stator and multiple blade angle pumps for excellent torque multiplication
- Severe-Duty Construction – Furnace-brazed fins, heli-welded assembly, severe-duty sprague, and anti-ballooning flanged hub
- 35-Spline Input – Compatible with 4L80E/4L85E transmissions
| Spec | Detail |
|---|---|
| Part Number | SRLS40086-3 |
| Brand | FTI Performance |
| Type | 9.5" Billet Triple Disc Lock-Up Street Racer Series Torque Converter |
| Application | LS Engine with 4L80E/4L85E Transmission |
| Stall Speed | 3600 RPM |
| Outside Diameter | 9.500 inches |
| Pilot Diameter | 1.703 inches |
| Spline Count | 35 |
| Lock-Up | Yes |
| Torque Converter Use | Street/Strip |
| Country of Origin | United States |
Whats Included
- FTI SRLS40086-3 Billet Triple Disc Lock-Up Torque Converter
- Mounting hardware
Product Notes
- Custom-built for LS engines with 4L80E/4L85E transmissions
- Triple disc lock-up design greatly reduces clutch wear and improves lock-up performance
- Actual stall speed may vary based on engine combination, gear selection, and vehicle weight
- Professional installation and transmission tuning recommended
Installation Notes
- Requires professional installation and proper transmission setup
- Estimated time: 4–8 hours (depending on transmission removal and reinstallation)
- Compatible with stock or aftermarket flexplates (verify bolt circle)
Why Choose FTI Performance Torque Converters?
- Billet construction and triple disc lock-up for unmatched durability
- Custom-built to your exact stall and driving style
- Proven in street, strip, and high-horsepower applications
Frequently Asked Questions
-
Q: What stall speed is this converter?
A: 3600 stall – ideal for street/strip LS engines with 4L80E/4L85E transmissions. -
Q: Does it include a lock-up clutch?
A: Yes, it features a billet triple disc lock-up design for strong lock-up performance and reduced wear. -
Q: Will actual stall speed match the rated 3600 RPM?
A: Actual stall may vary depending on engine combination, gearing, and vehicle weight. FTI can custom-build to your exact needs.
Shipping & Handling
- Method: Ground UPS or FedEx (oversize shipping may apply)
- Availability: In stock – ships same or next business day
- Packaging: Secure FTI Performance retail packaging
