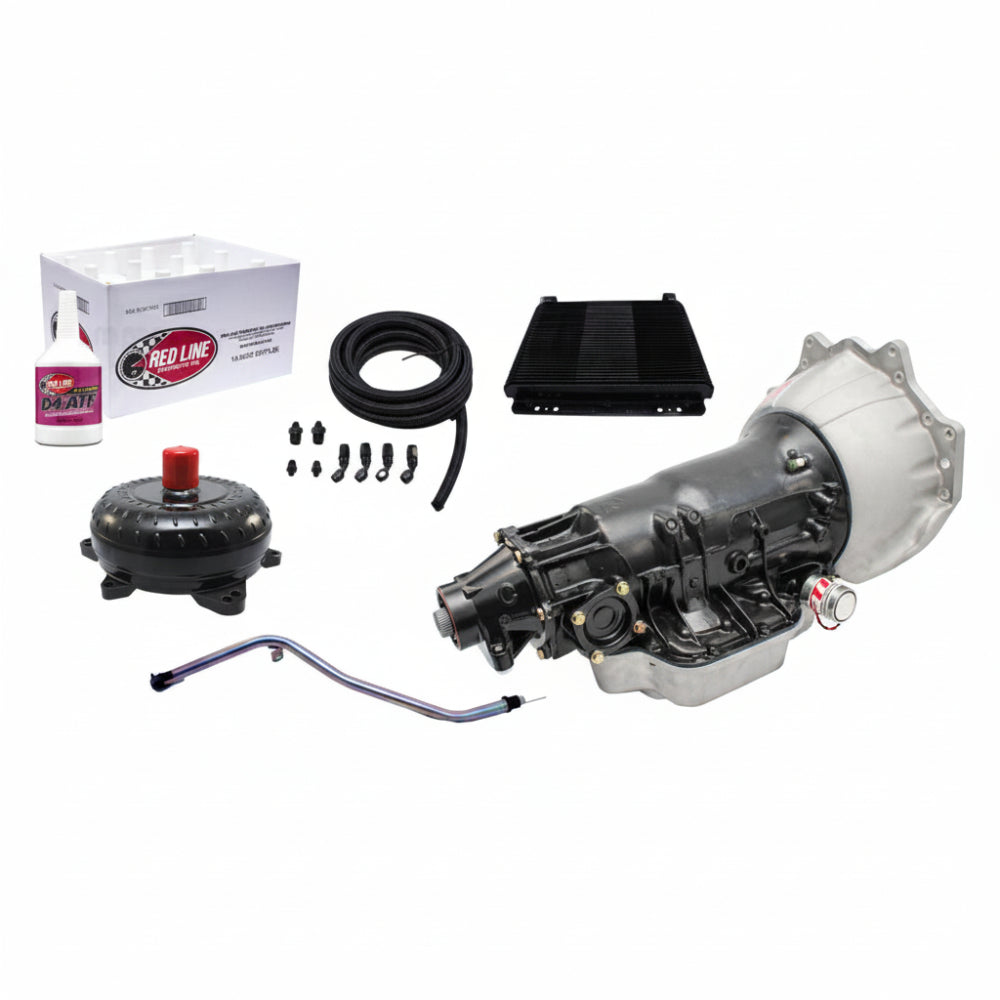

A Race-Prepped TH400 Built for 1100HP
This is the FTI Performance TH400 Level 4.5 racing transmission with an SFI certified bellhousing, rated for 1100HP and built for the bracket racer, high-powered street car, or mud truck that needs a full manual valve body with a billet Sportsman transbrake. FTI builds this transmission on a race-prepped factory case with a reverse shift pattern and a full complement of upgraded internal components.
Key Features
- Rated for 1100HP.
- Race-prepped factory GM case with rollerized output shaft (case to output).
- FTI billet aluminum Sportsman transbrake valve body, full manual, reverse shift pattern.
- 300M material input shaft and billet aluminum direct drum.
- 34 element sprague and Performance Red race clutches.
- Deep aluminum pan for added fluid capacity and cooling.
- SFI certified bellhousing for sanctioned drag racing use.
Fitment
| Application | Requirements |
|---|---|
| GM TH400-pattern transmission swap | Requires a slip yoke and one-piece driveshaft. Racing or pre-emissions use only |
Specifications
| Detail | Value |
|---|---|
| Brand | FTI Performance |
| Model | TH400 Level 4.5 |
| Horsepower Rating | 1100 HP |
| Valve Body | Full manual, Sportsman transbrake, billet aluminum |
| Shift Pattern | Reverse |
| Input Shaft | 300M material, 30 spline |
| Direct Drum | Billet aluminum |
| Sprague | 34 element |
| Clutches | Performance Red race clutches |
| Pan | Deep aluminum |
| Bellhousing | SFI certified |
| Gear Ratios | 2.48 - 1.48 - 1.00 |
| Torque Converter Included | No |
| Trans-Brake Included | Yes |
What's Included
- One FTI TH400 Level 4.5 racing transmission with SFI certified bellhousing
About FTI Performance
FTI Performance builds torque converters and complete racing transmissions for street, street/strip, and race applications, with the TH400 Level series scaled from Level 3 through Level 5 to match horsepower and use case, from bracket racers to mud trucks.
FAQ
What horsepower is this transmission rated for?
1100HP.
Does this transmission include a torque converter?
No, the torque converter is sold separately.
What shift pattern does this transmission use?
A reverse shift pattern (PRN123), common on transbrake-equipped racing transmissions.
What driveshaft setup does this transmission require?
A slip yoke and one-piece driveshaft.
Is this transmission legal for street use?
FTI markets this build for racing or pre-emissions use only. Verify local regulations before street use.
What material is the input shaft?
300M material.
Does this transmission come with a trans-brake?
Yes, an FTI Sportsman billet transbrake valve body is included.
Is the bellhousing SFI certified?
Yes, this configuration includes an SFI certified bellhousing.
Installation Instructions
- Remove the existing transmission from the vehicle following the applicable factory or aftermarket service procedure.
- Confirm bellhousing bolt pattern and driveshaft slip yoke compatibility before installation.
- Install a compatible torque converter (sold separately) onto the input shaft before mounting the transmission.
- Mount the transmission to the engine, torquing bellhousing bolts to the specified values.
- Connect the transbrake wiring and verify correct operation before track use.
- Fill with the correct transmission fluid type and quantity, then verify shift pattern operation before driving.
