Garrett 17-19 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger Garrett GRT951206-5001S
Click to zoom in

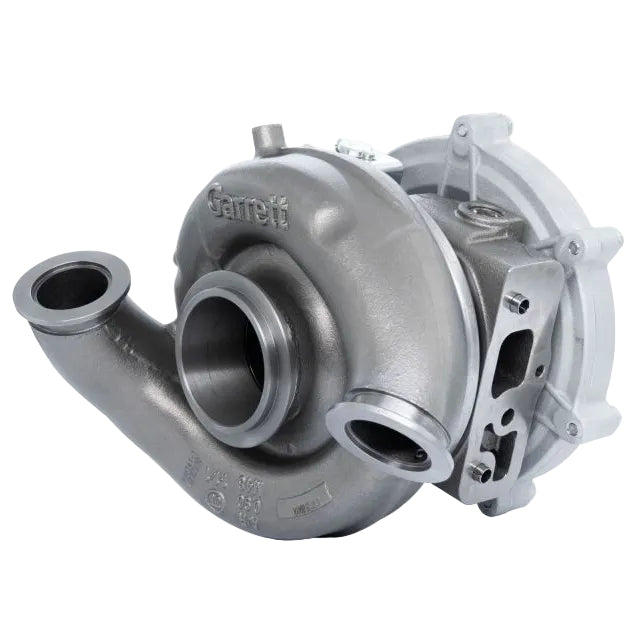

Garrett 17-19 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger

Garrett
GRT951206-5001S
Turbochargers
1 Units In Stock - Ships Next Business Day
$ 3,571.37 $ 2,999.95
$ 2,999.95

SKU: 951206-5001S

Garrett 17-19 Ford Power Stroke 6.7L 63.5mm AVNT3788R PowerMax Turbocharger

The Garrett 17-19 Ford Power Stroke 6.7L 63.5mm AVNT3788R PowerMax Turbocharger serves as a direct bolt-on replacement for 2017-2019 Ford F-Series Super Duty trucks equipped with the 6.7L diesel engine. This turbocharger increases airflow and boost levels for improved horsepower and torque output during towing or daily driving. It maintains stock-like spool time with enhanced durability for diesel performance.

Key Features

  • 63.5mm Compressor Inducer: Paired with 88.7mm exducer supports airflow up to 65 lbs/min for higher power gains across the RPM range
  • AVNT Variable Nozzle Turbine: 78/88mm turbine wheel with adjustable vanes provides quick spool-up and responsive throttle feel from low RPM
  • OE-Style Actuator: Factory-matched electronic actuator ensures precise boost control and compatibility with stock ECM tuning
  • Cast Compressor Housing: T04 style housing with 360-degree anti-surge recirculation port reduces compressor surge during deceleration
  • High-Temperature Materials: Mar-M 247 turbine wheel and Inconel vanes withstand extreme exhaust temperatures for reliable long-term operation

Product Notes

  • Direct OEM replacement with no modifications or tuning required for basic install
  • No core charge applies for straightforward exchange
  • Pre-assembled with factory-style speed sensor port and fittings

Installation Notes

  • Professional installation recommended.
  • Bolts directly to factory turbo mounting location using stock hardware
  • Compatible with existing oil feed drain and coolant lines no adapters needed

This Part Fits

Year Make Model Submodel
2017-2019 Ford F-250 Super Duty 6.7L V8 Diesel
2017-2019 Ford F-350 Super Duty 6.7L V8 Diesel
2017-2019 Ford F-450 Super Duty 6.7L V8 Diesel

Why Choose Garrett?

  • Direct supplier of OEM turbochargers to Ford for proven factory reliability
  • Engineering focused on diesel truck applications with real-world testing
  • Precision-balanced assembly reduces vibration and extends bearing life

Frequently Asked Questions

  • Q: Will this turbocharger fit my 2018 Ford F-350 6.7L Power Stroke?
    A: Yes it is a plug-and-play direct replacement for all 2017-2019 Ford Super Duty trucks with the 6.7L diesel engine regardless of cab or bed configuration.
  • Q: What materials are used in the turbine assembly?
    A: The turbine wheel uses Mar-M 247 superalloy and Inconel vanes for resistance to high exhaust gas temperatures over 1700 degrees F.
  • Q: What warranty coverage is provided?
    A: Backed by a 12-month unlimited mileage warranty when installed by a certified technician.

Shipping & Handling

  • Method: Ground shipping via UPS Freight or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Securely packed in heavy-duty box measuring 19 x 17 x 17 inches
  • Weight: 38 lbs
